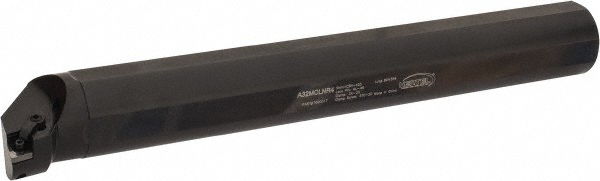

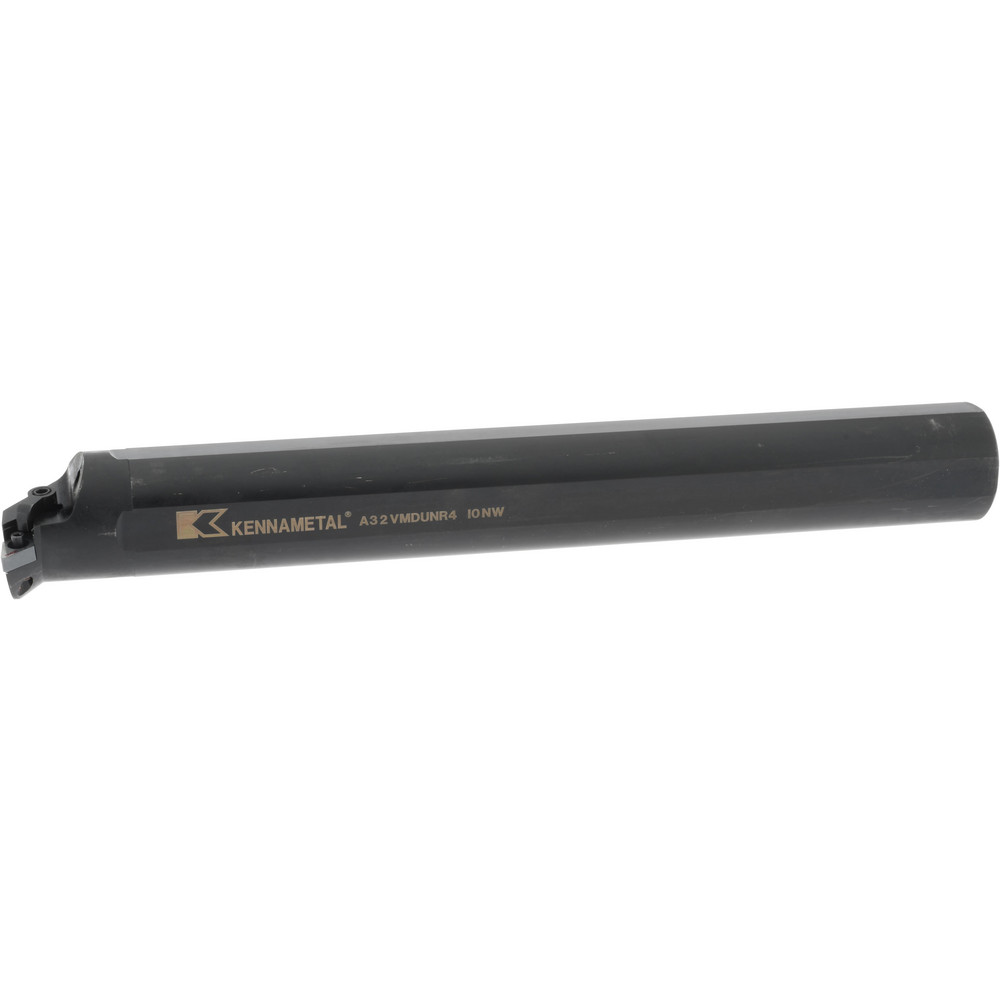

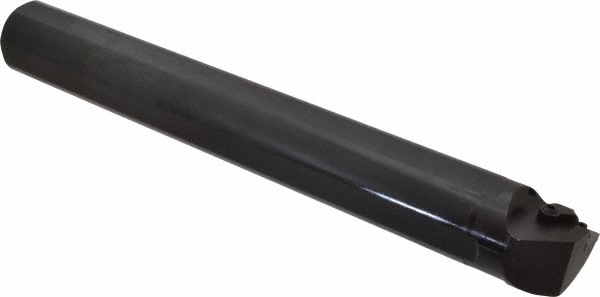

16.0000" OAL, Clamp, Uses WN.. 43.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 2.3300 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 2.5500 |
| Toolholder Style | S-DWLN |
| Tool Material | Steel |
| Insert Compatibility | WN.. 43.. |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 2 |
| Overall Length (Decimal Inch) | 16.0000 |
| Compatible Insert Size Code | 43 |
| Insert Holding Method | Clamp |
| Compatible Insert Shape | Trigon |
| Rake | Negative |
| Rake Angle | -10.00 |
| Series | Isoturn |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (Decimal Inch) | 1.2800 |
| Standards | ISO 13399 |
| UNSPSC Code | 23241601 |
| Coolant Through | No |
| Country of Origin | Israel |
| MSC Number | MSC# 70043799 |
