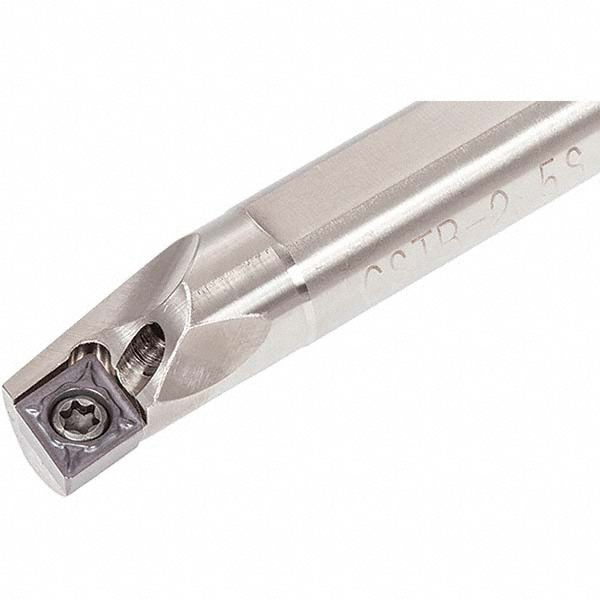

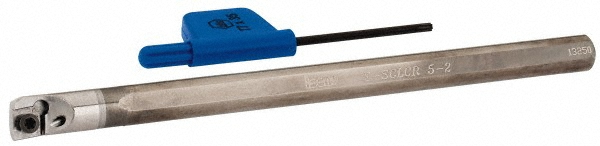

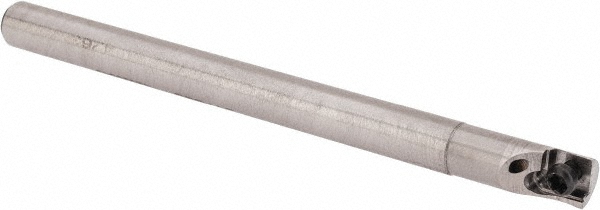

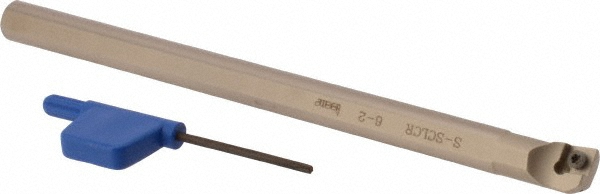

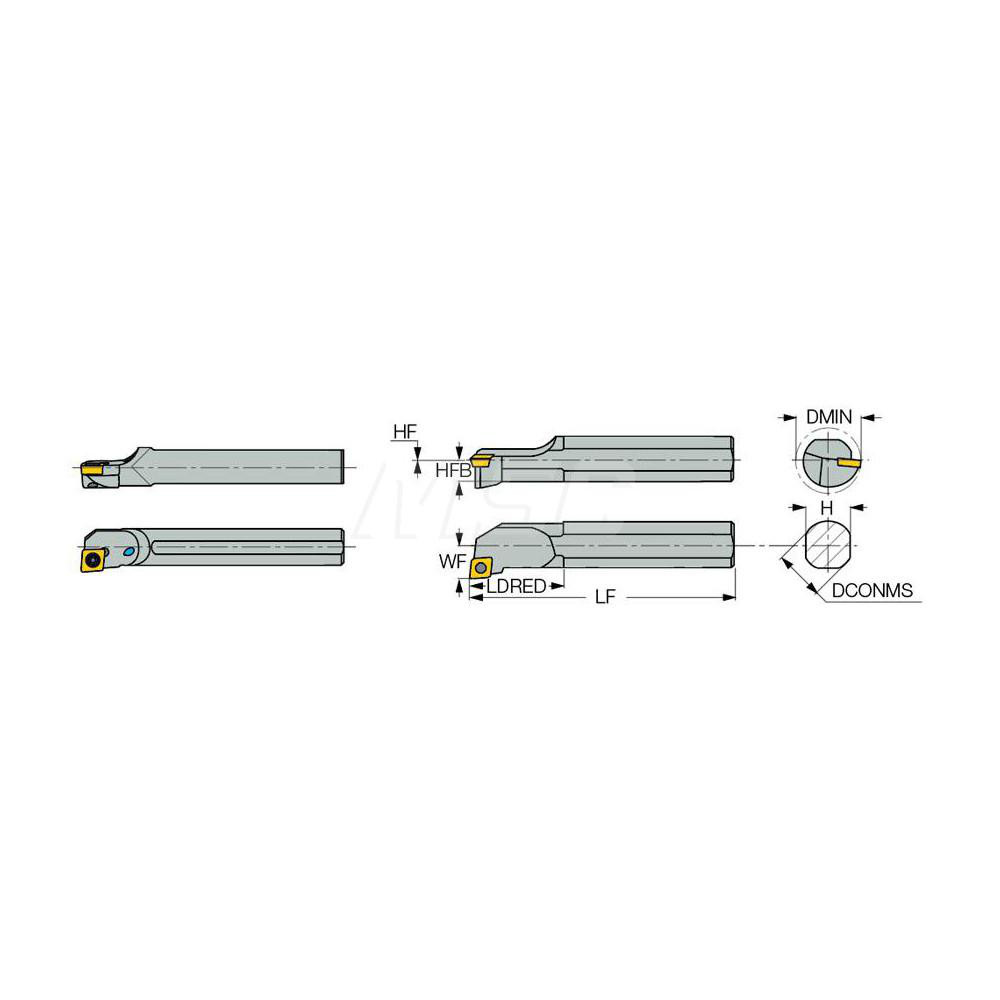

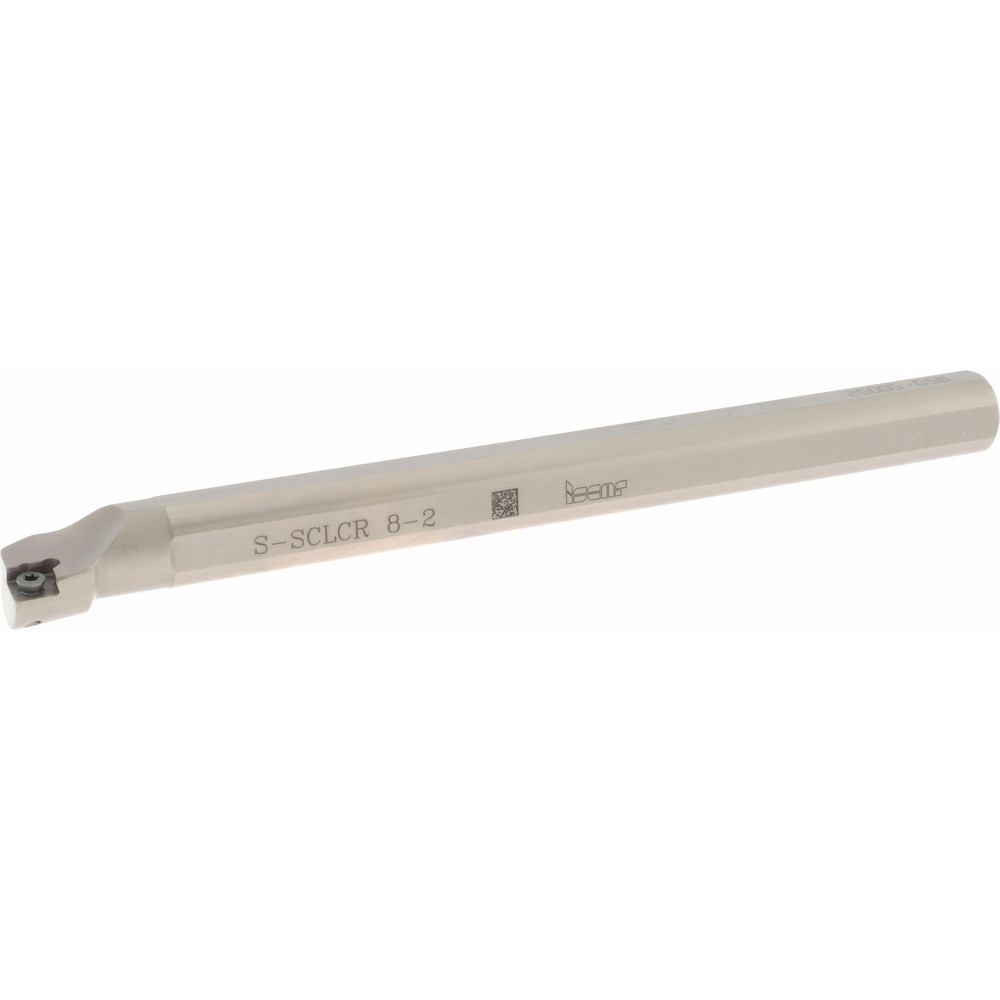

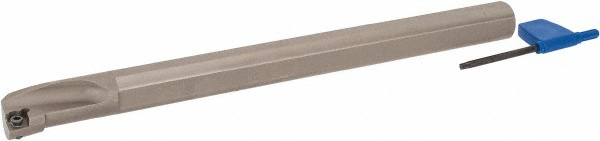

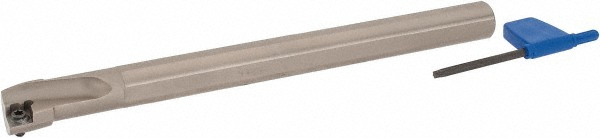

6.0000" OAL, Screw, Uses CC.T 2 Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.4490 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 0.7500 |
| Maximum Bore Depth (Inch) | 3/4 |
| Toolholder Style | S-SCLC |
| Insert Compatibility | CC.T 2 |
| Hand of Holder | Right Hand |

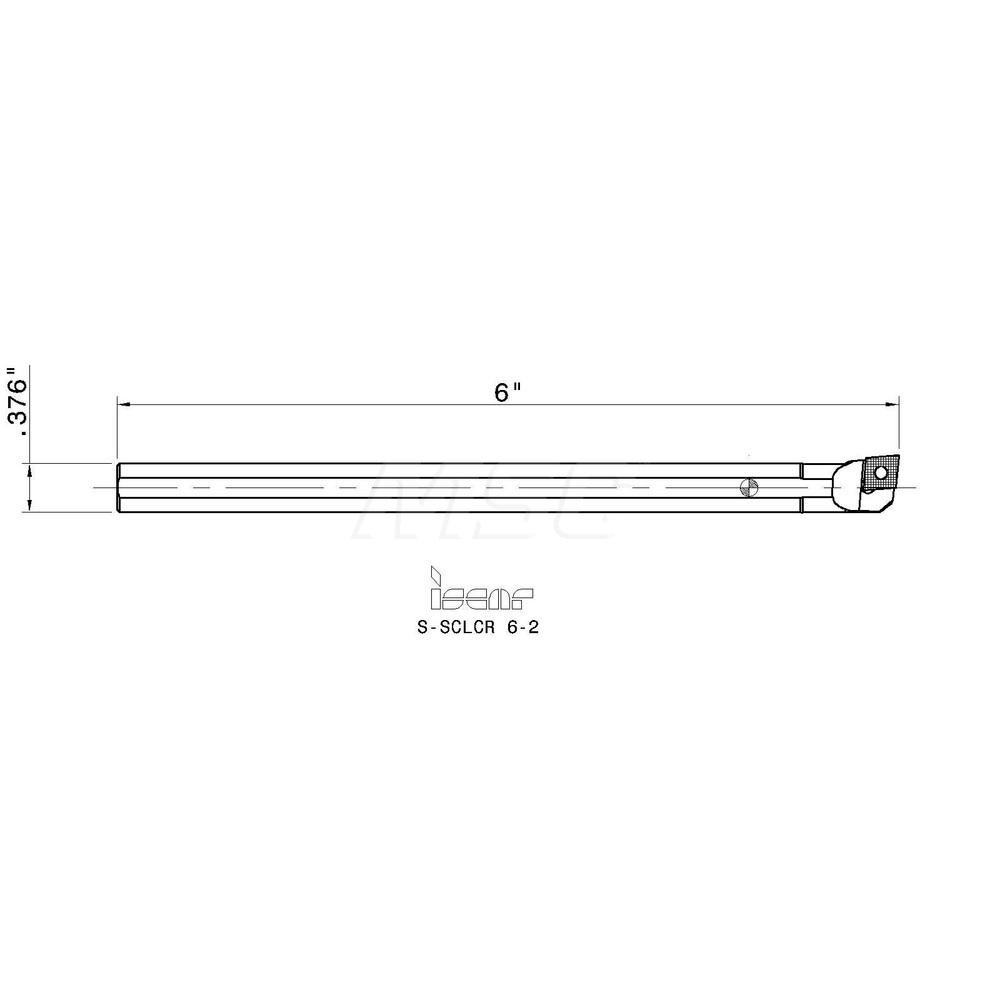

| Shank Diameter (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 6.0000 |
| Compatible Insert Size Code | 2 |

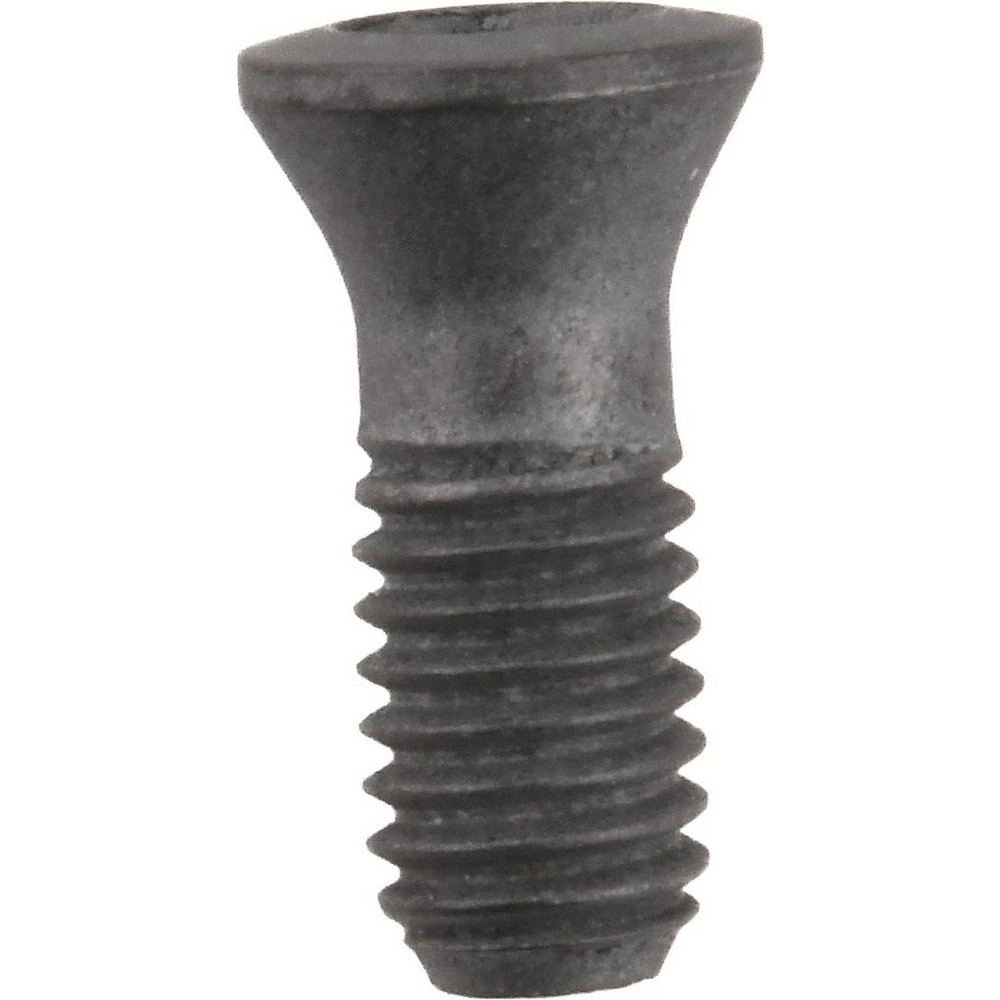

| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Negative |
| Rake Angle | -7.00 |
| Series | Isoturn |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.2500 |
| Standards | ISO 13399 |
| UNSPSC Code | 23241601 |
| Coolant Through | No |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 75543538 |
