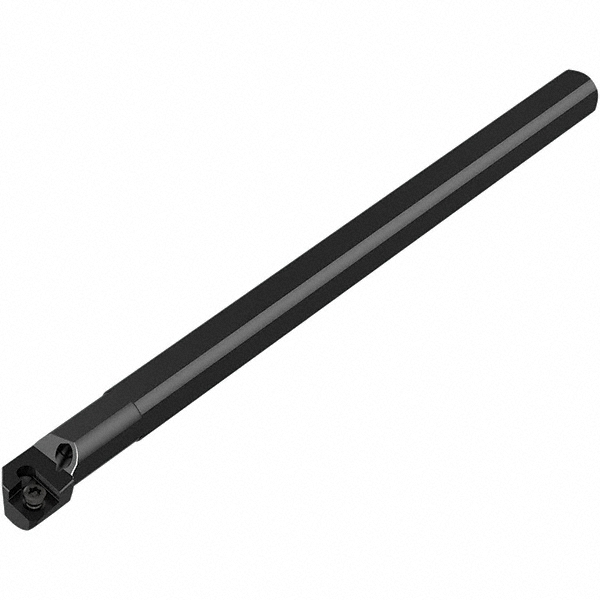

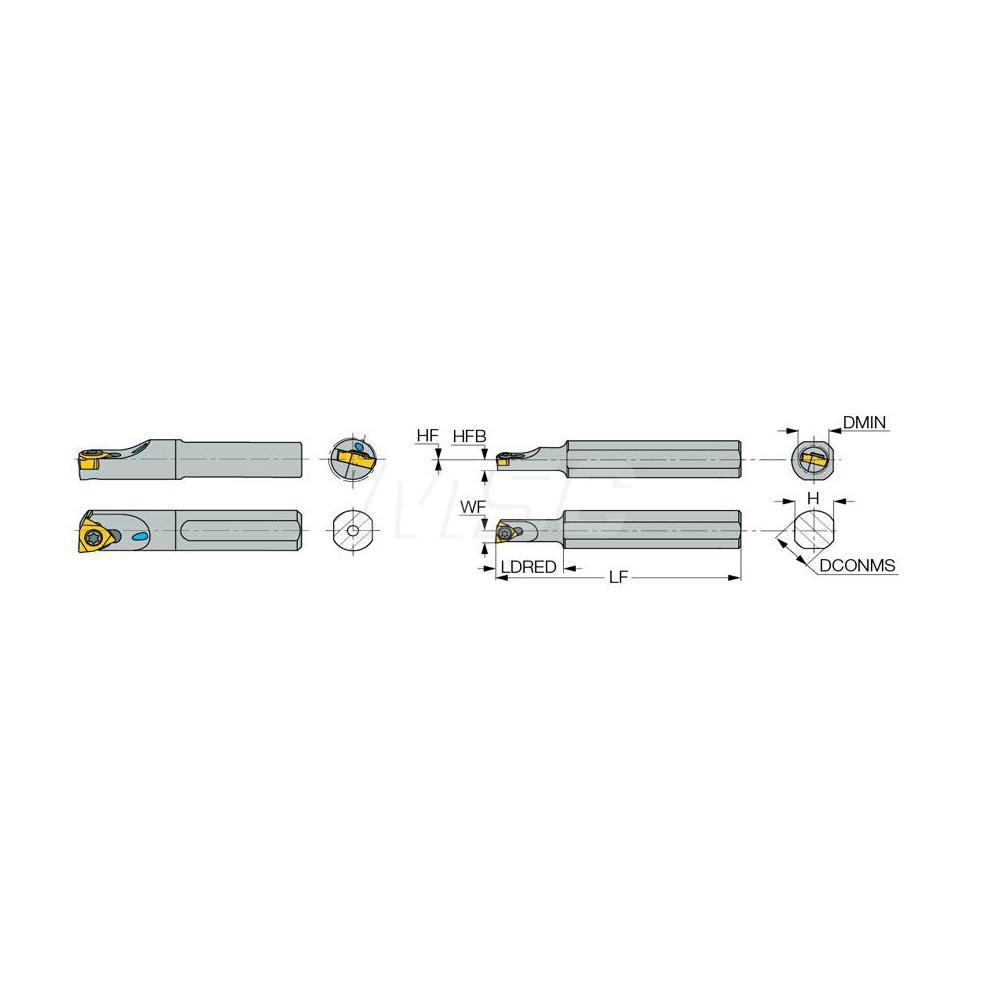

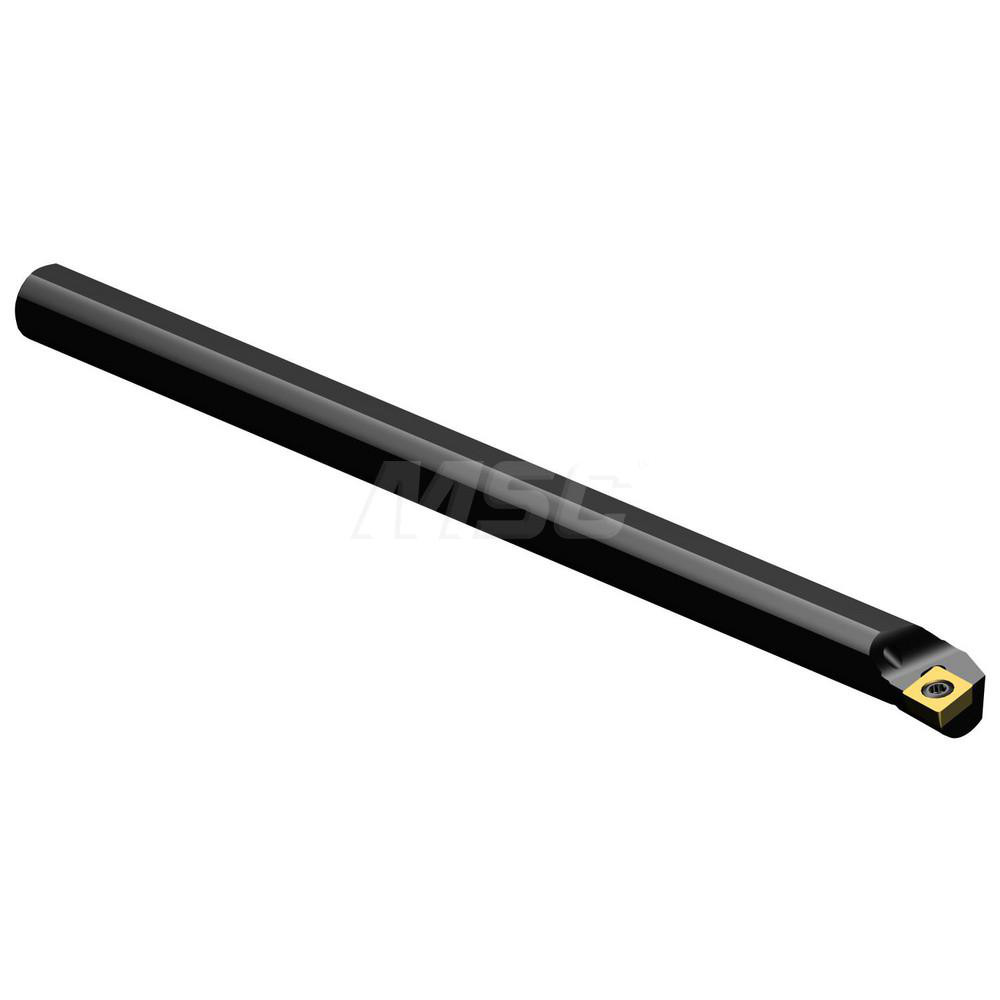

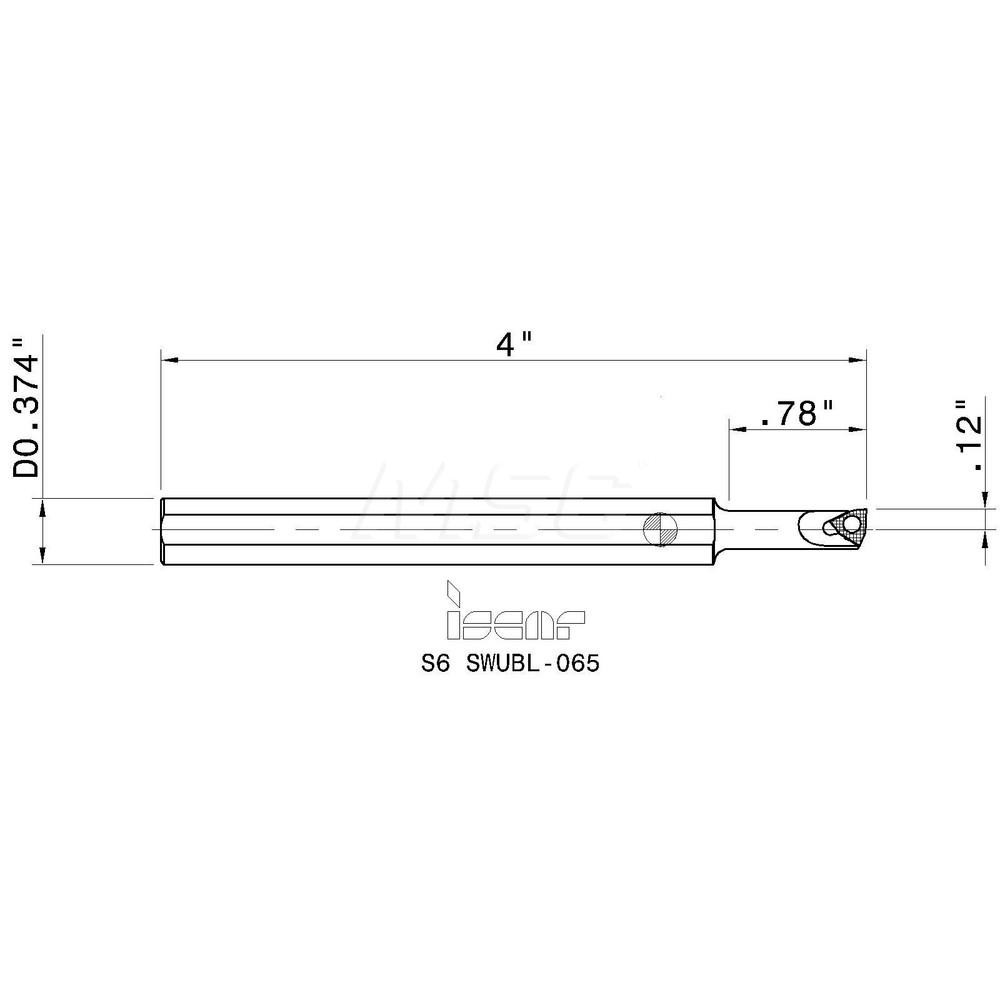

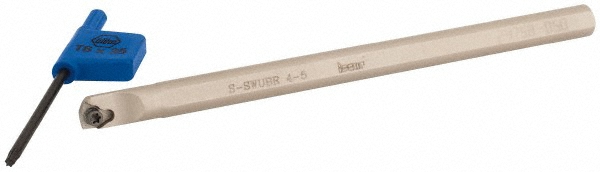

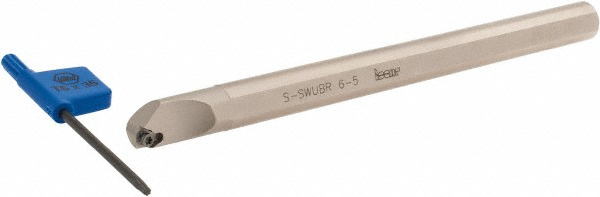

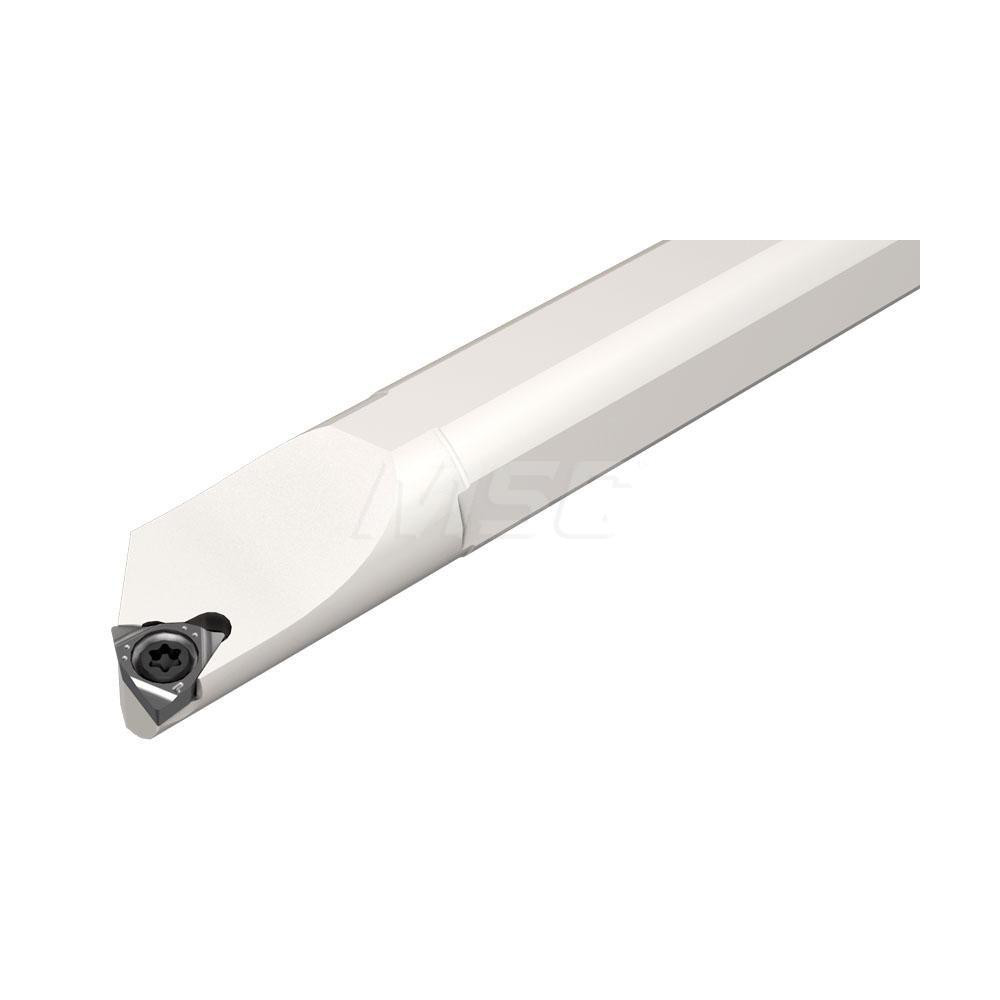

4.0000" OAL, Screw & Clamp, Uses WBMT 52.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.2760 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 0.9370 |
| Toolholder Style | S-SWUB |
| Tool Material | Steel |

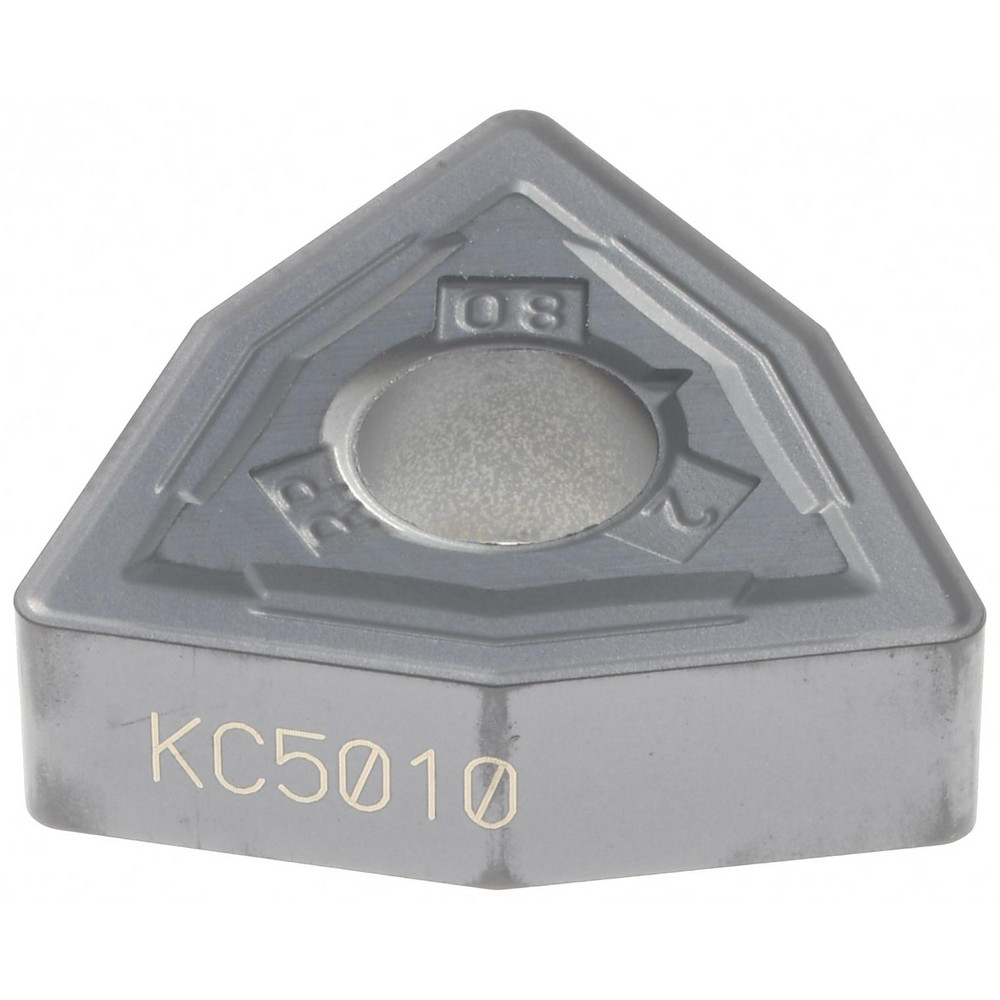

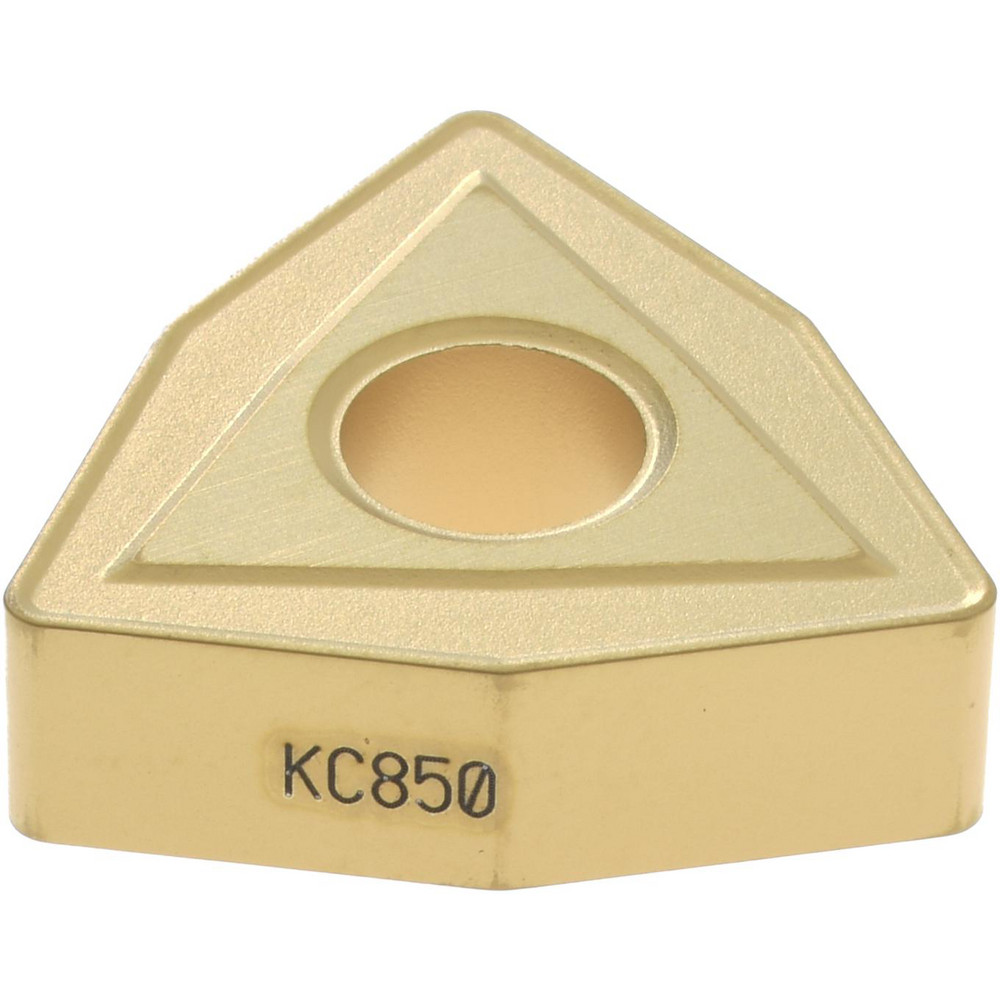

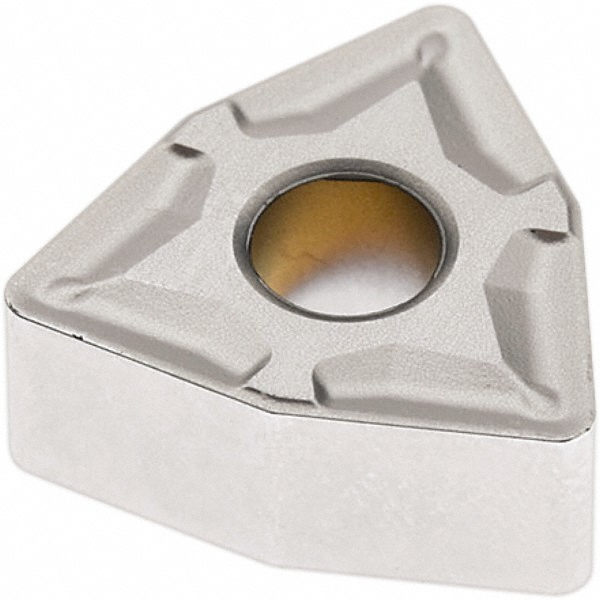

| Insert Compatibility | WBMT 52.. |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 4.0000 |
| Compatible Insert Size Code | 52 |
| Insert Holding Method | Screw; Clamp |
| Compatible Insert Shape | Trigon |
| Rake | Negative |
| Rake Angle | -13.00 |
| Series | Isoturn |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.1400 |
| Standards | ISO 13399 |
| UNSPSC Code | 23241601 |
| Coolant Through | No |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 52738168 |
