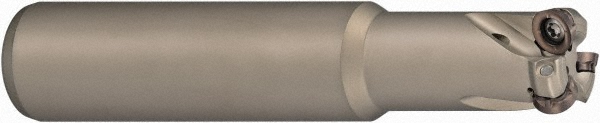

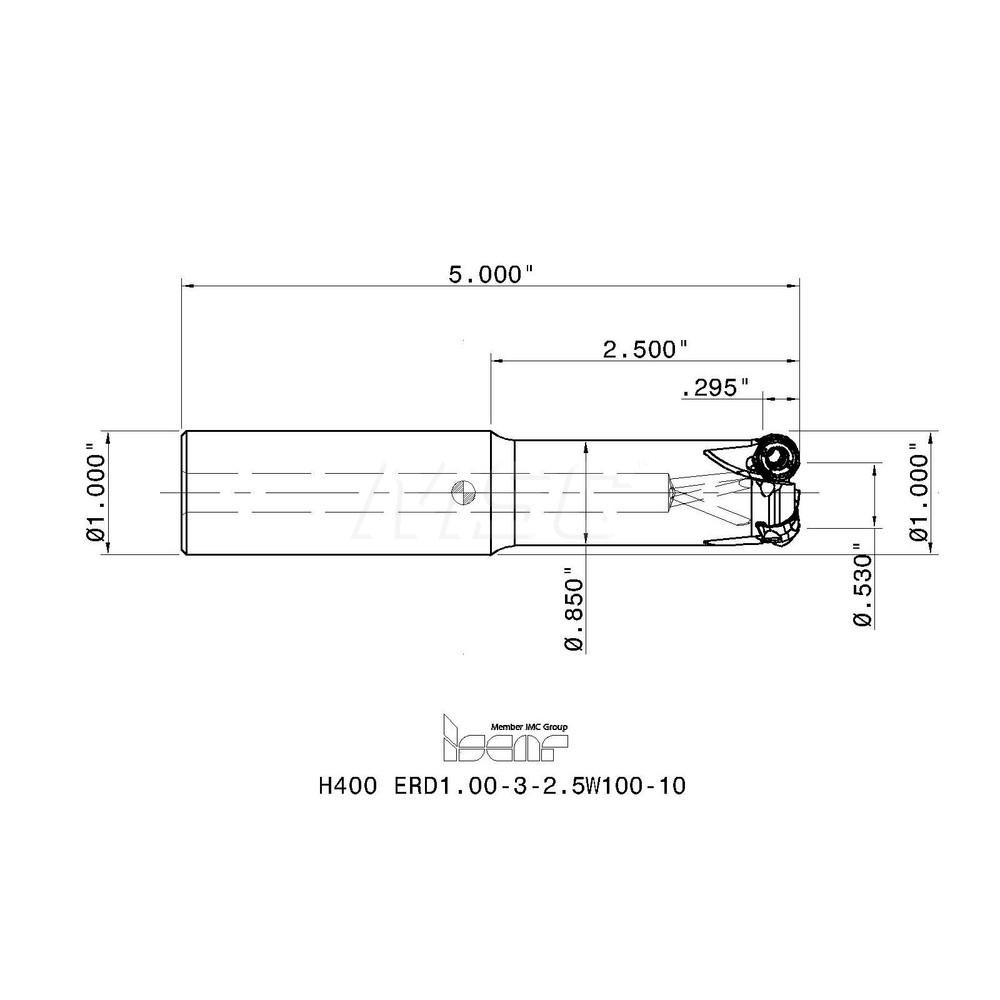

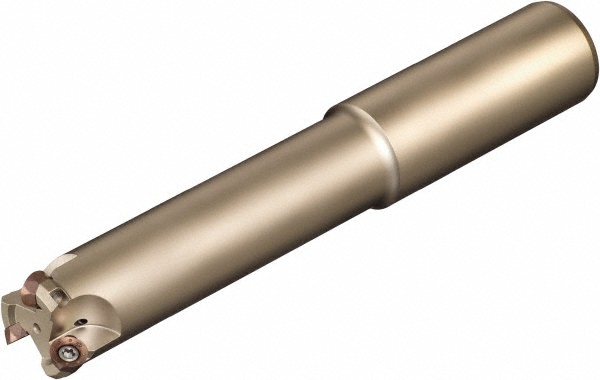

Uses 3 H400 RNHU Inserts, Weldon Shank

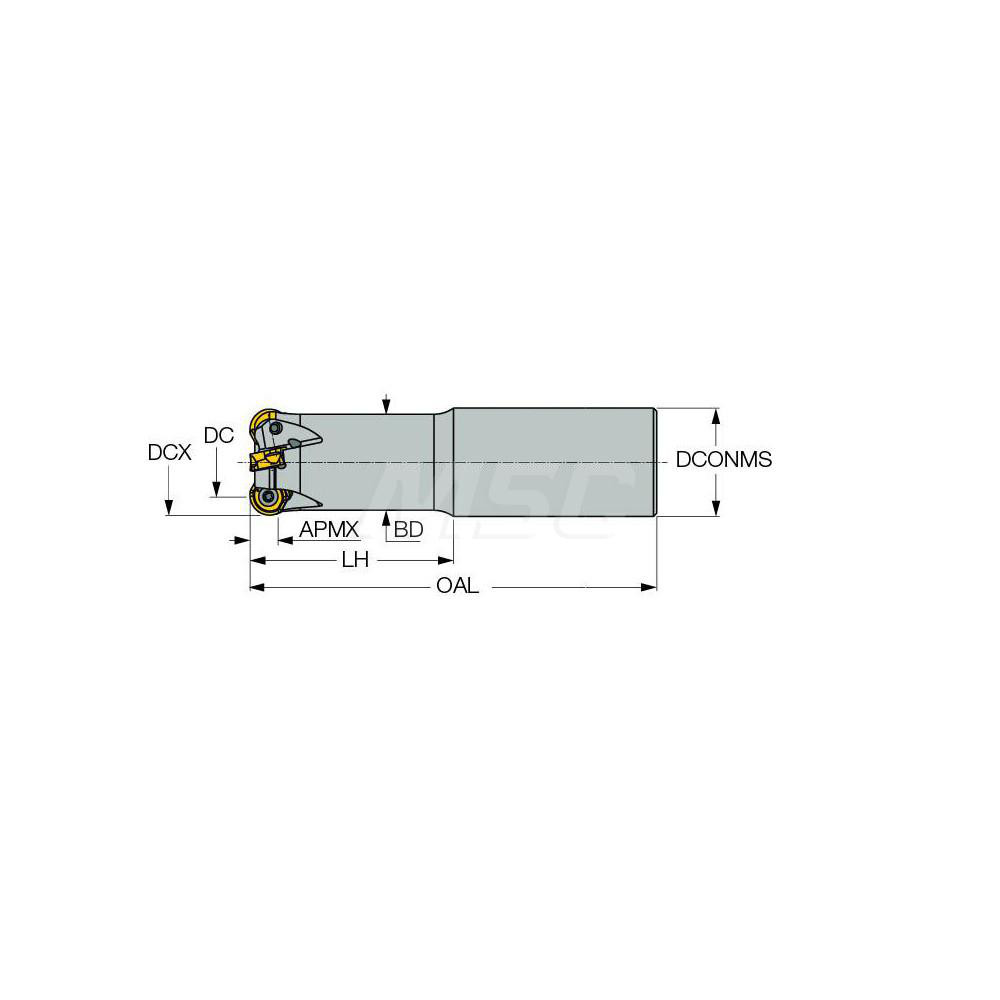

| Minimum Cutting Diameter (Decimal Inch) | 0.5300 |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Inch) | 1 |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| Toolholder Style | H400 ER-12; H400 ER-M; ER-12; H400 ER-10; ER-M; H400 |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 29.00 |
| Shank Diameter (Decimal Inch) | 1.1420 |
| Shank Diameter | 0.6875 |
| Maximum Ramping Angle | 5.8 |
| Compatible Insert Style | H400 RNHU |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 5.0000 |
| Series | H400 ER-12 |
| Shank Length (Decimal Inch) | 2.5000 |
| Head Length (Inch) | 2-1/2 |
| Head Length (Decimal Inch) | 2.5000 |
| Tool Application | Milling |
| Standards | ISO 13399 |
| Toolholder Material | Solid Carbide |
| Weldon Flat | Yes |
| UNSPSC Code | 27112803 |
| Cutting Diameter (Inch) | 1 |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| MSC Number | MSC# 44547123 |
