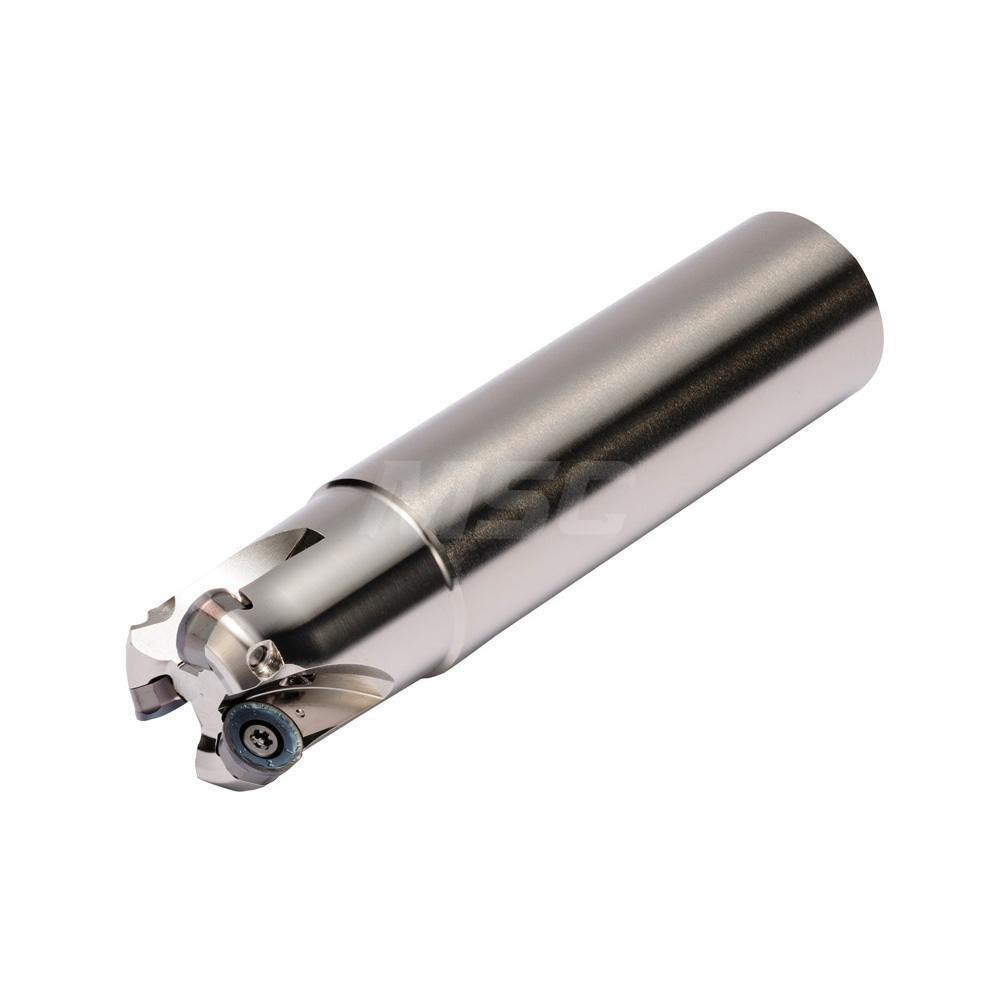

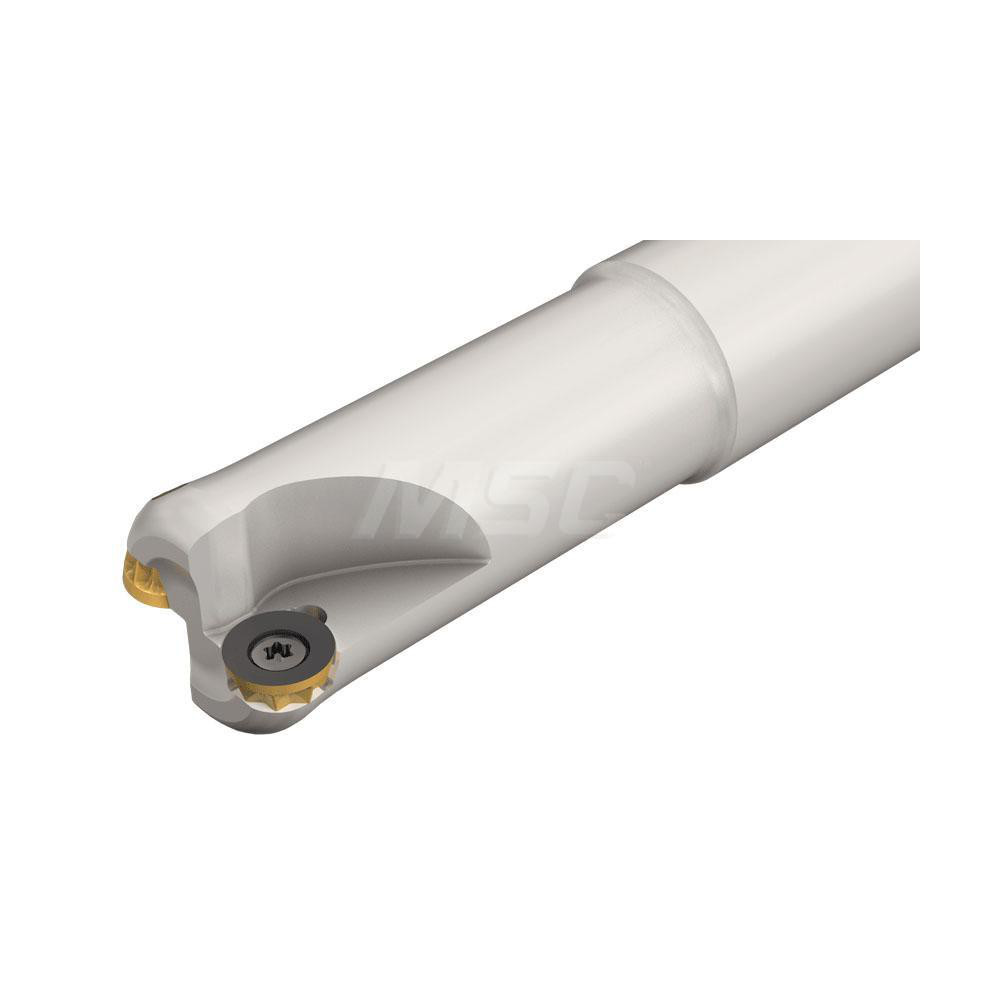

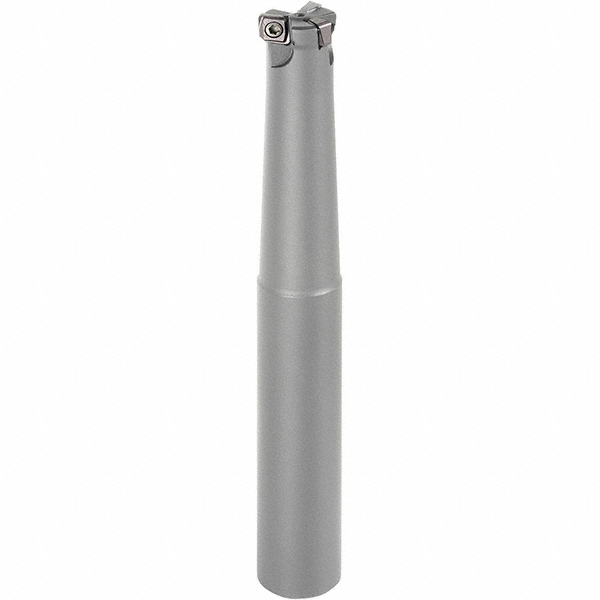

Uses 4 TR Inserts, 3/4" Weldon Flat Shank
| Minimum Cutting Diameter (Decimal Inch) | 0.6710 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Cutting Diameter (Inch) | 3/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.0390 |
| Maximum Depth of Cut (mm) | 1.00 |
| Toolholder Style | TR6 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Inch - 0 Decimals) | 0.7500 |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Decimal Inch) | 0.7500 |

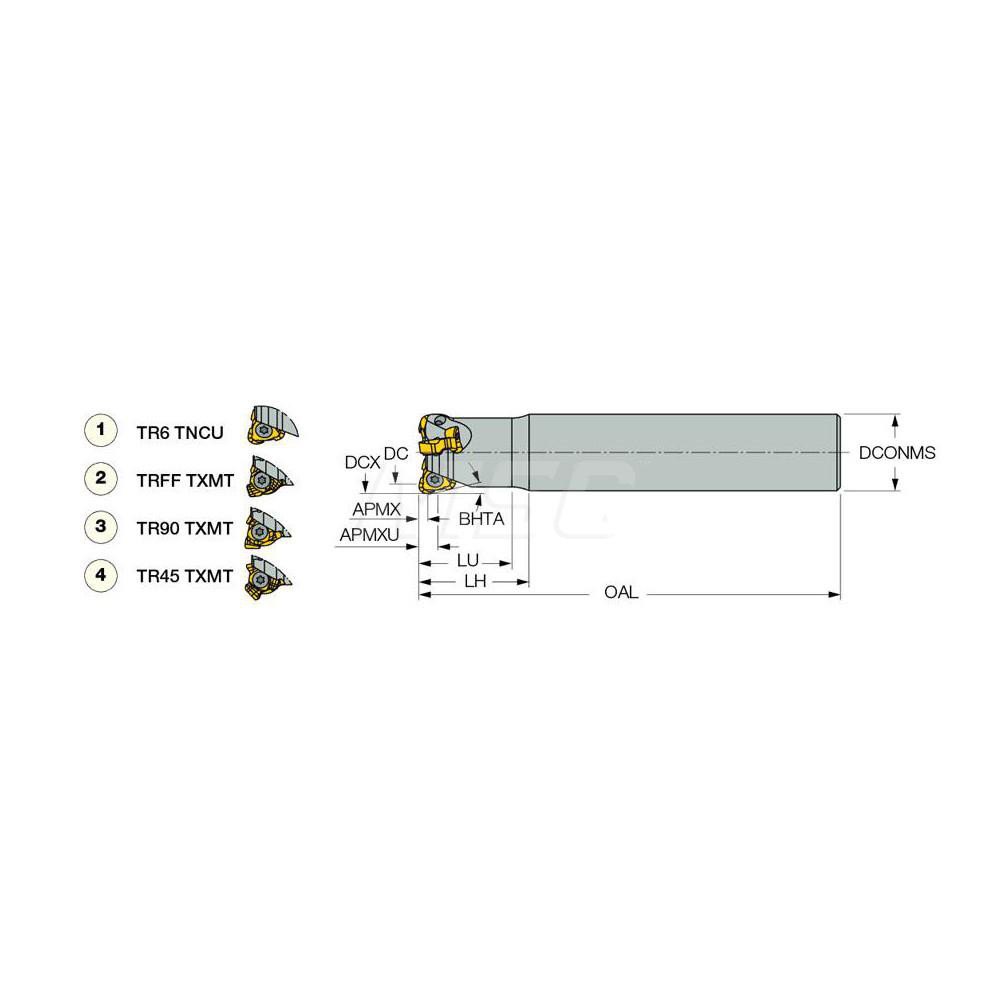

| Compatible Insert Style | TR |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 4 |

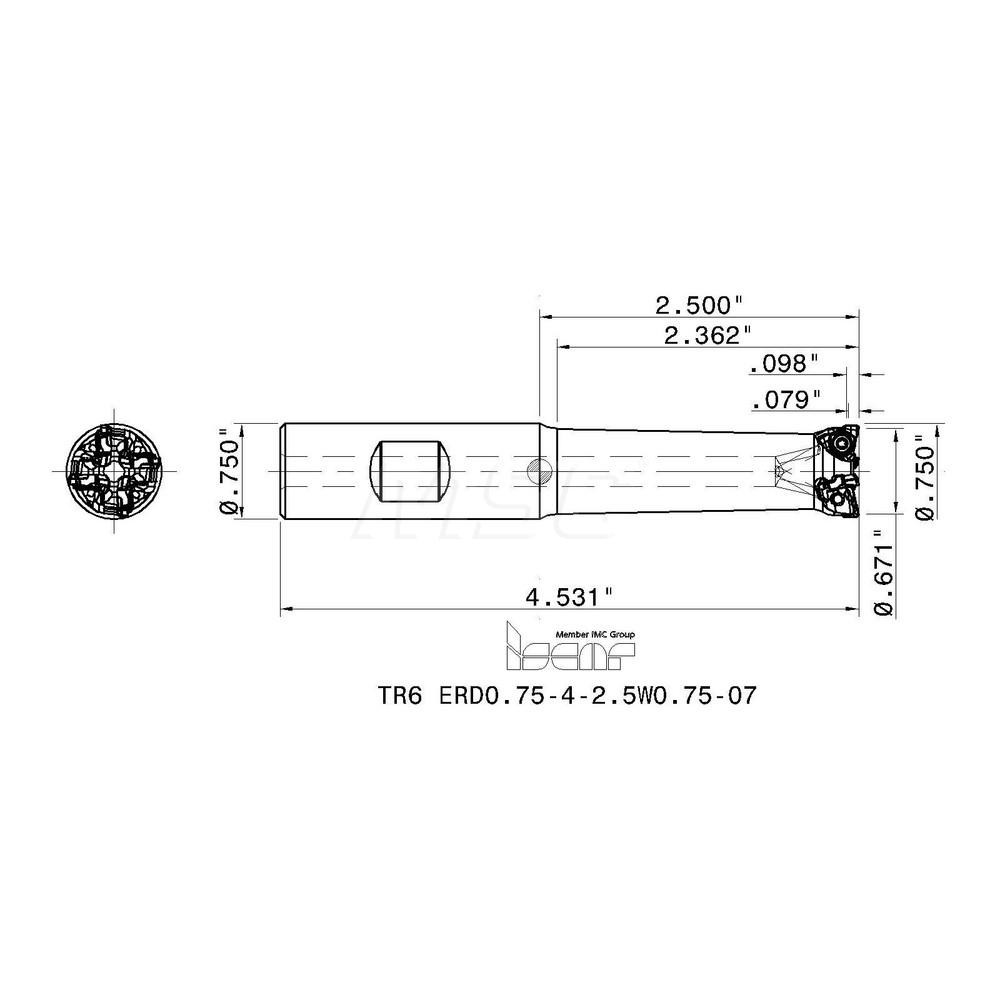

| Overall Length (mm) | 115.00 |
| Overall Length (Decimal Inch) | 4.5300 |
| Series | TR6 ER |
| Shank Length (mm) | 115.00 |
| Shank Length (Decimal Inch) | 4.5300 |
| Functional Length (Decimal Inch) | 2.3700 |
| Head Length (mm) | 59.90 |
| Head Length (Decimal Inch) | 2.3600 |
| Tool Application | Milling |
| Standards | ISO 13399 |
| Toolholder Material | Steel |
| Weldon Flat | No |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 4 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| MSC Number | MSC# 31449168 |
