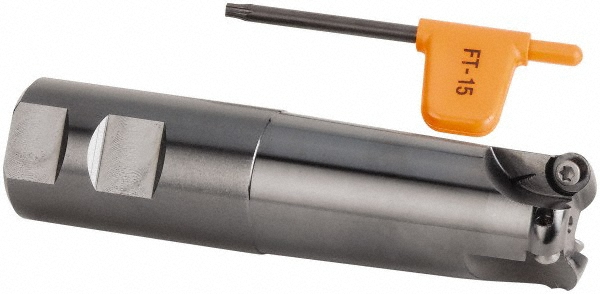

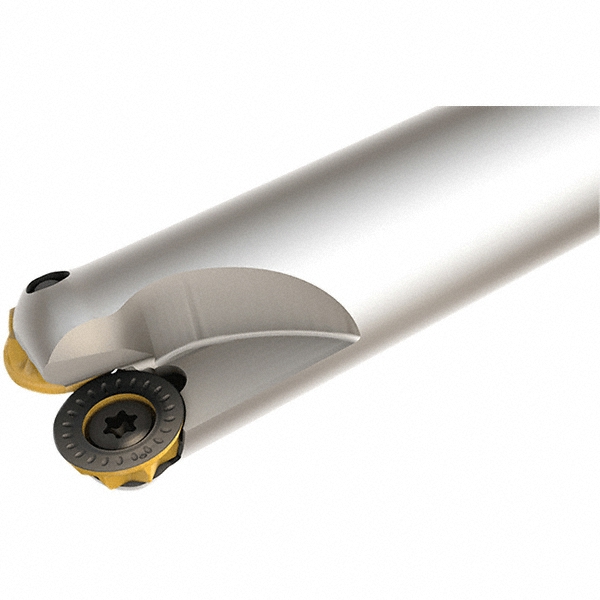

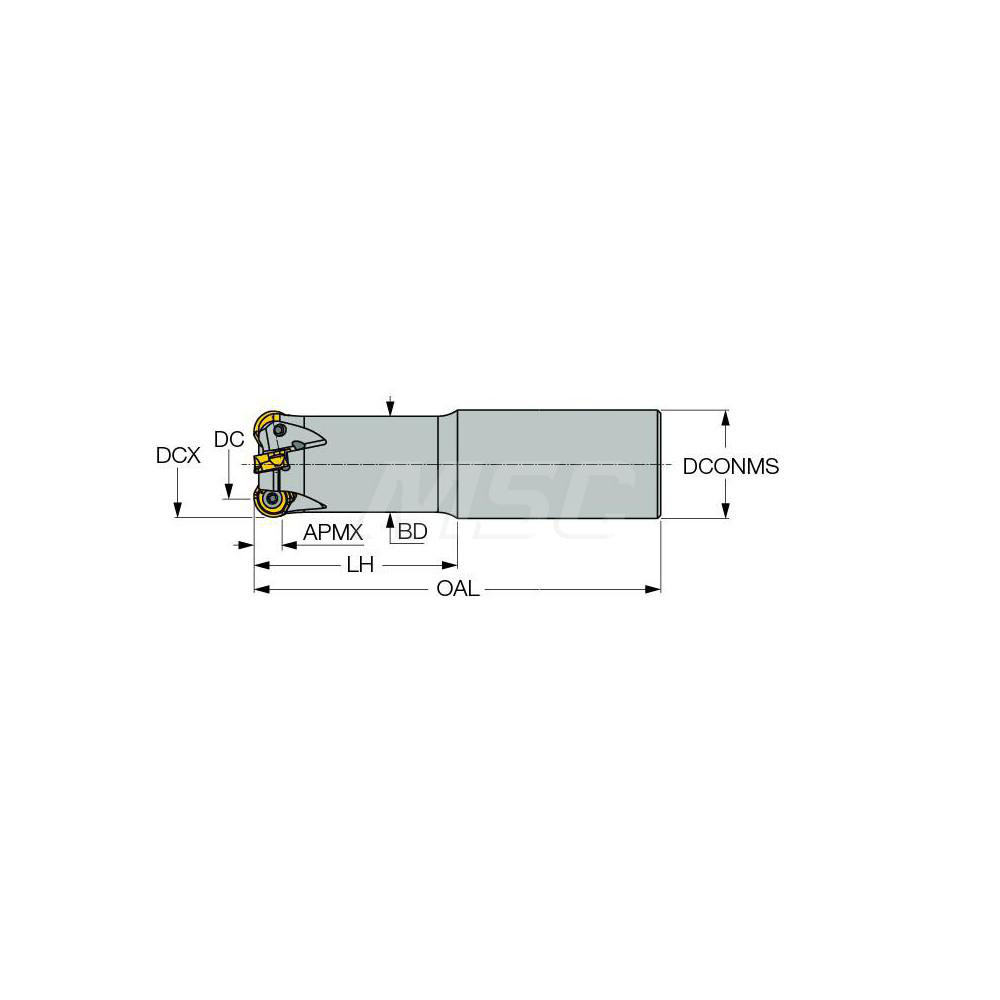

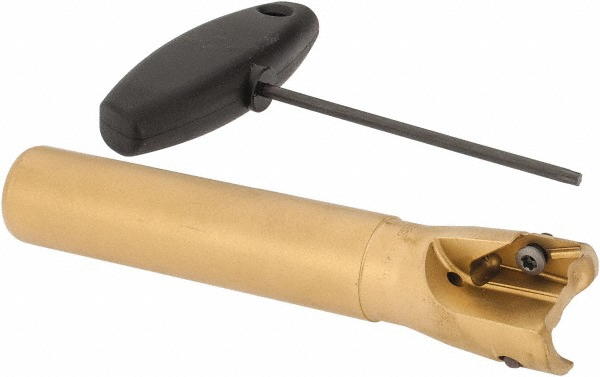

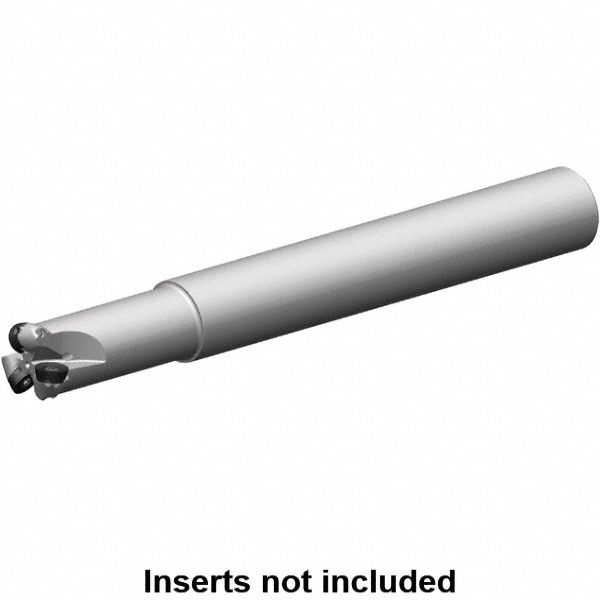

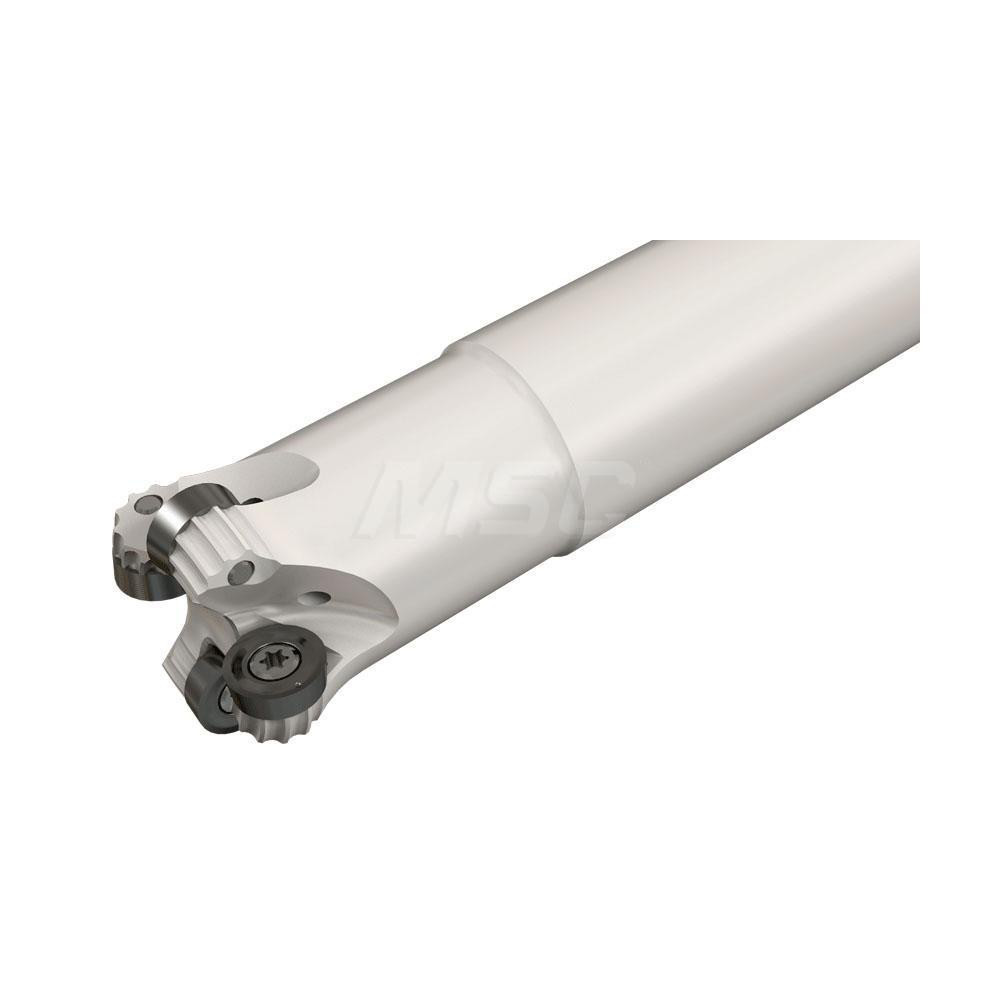

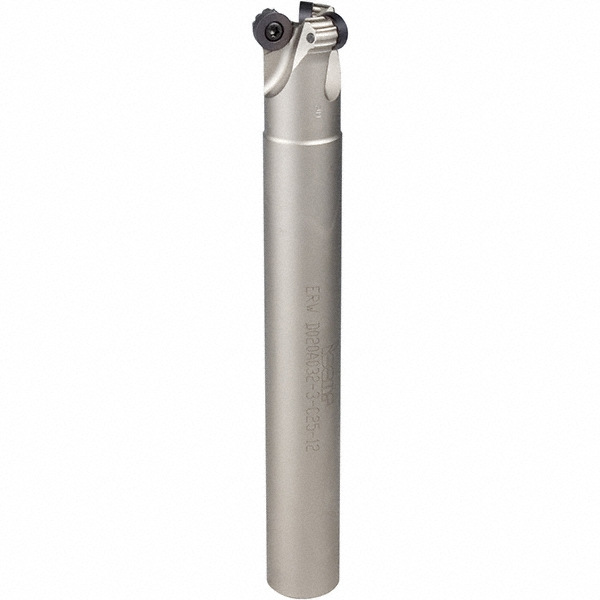

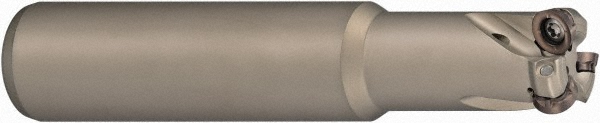

Uses 4 H400 RNHU 1,205 Inserts, 1" Weldon Shank
| Minimum Cutting Diameter (Decimal Inch) | 0.7770 |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Cutting Diameter (Inch) | 1-1/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.3400 |
| Toolholder Style | H400 ER-12; H400 ER-M; ER-12; H400 ER-10; ER-M; H400 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter | 0.4375 |
| Maximum Ramping Angle | 5.6 |

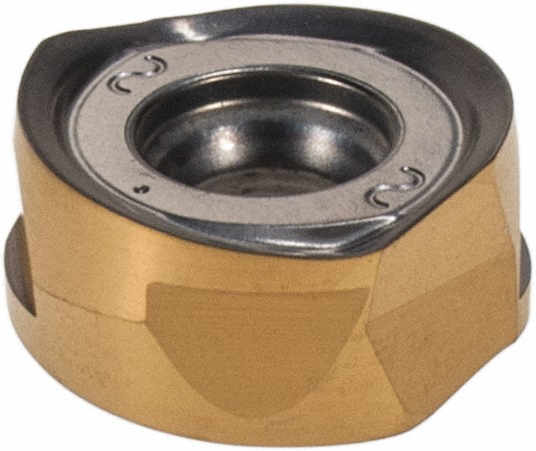

| Compatible Insert Style | H400 RNHU 1205 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 4 |
| Overall Length (Decimal Inch) | 4.7200 |
| Series | H400 ER-12 |
| Shank Length (Decimal Inch) | 2.3600 |
| Head Length (Decimal Inch) | 2.3600 |
| Tool Application | Milling |
| Standards | ISO 13399 |
| Toolholder Material | Solid Carbide |
| Weldon Flat | Yes |
| UNSPSC Code | 27112803 |

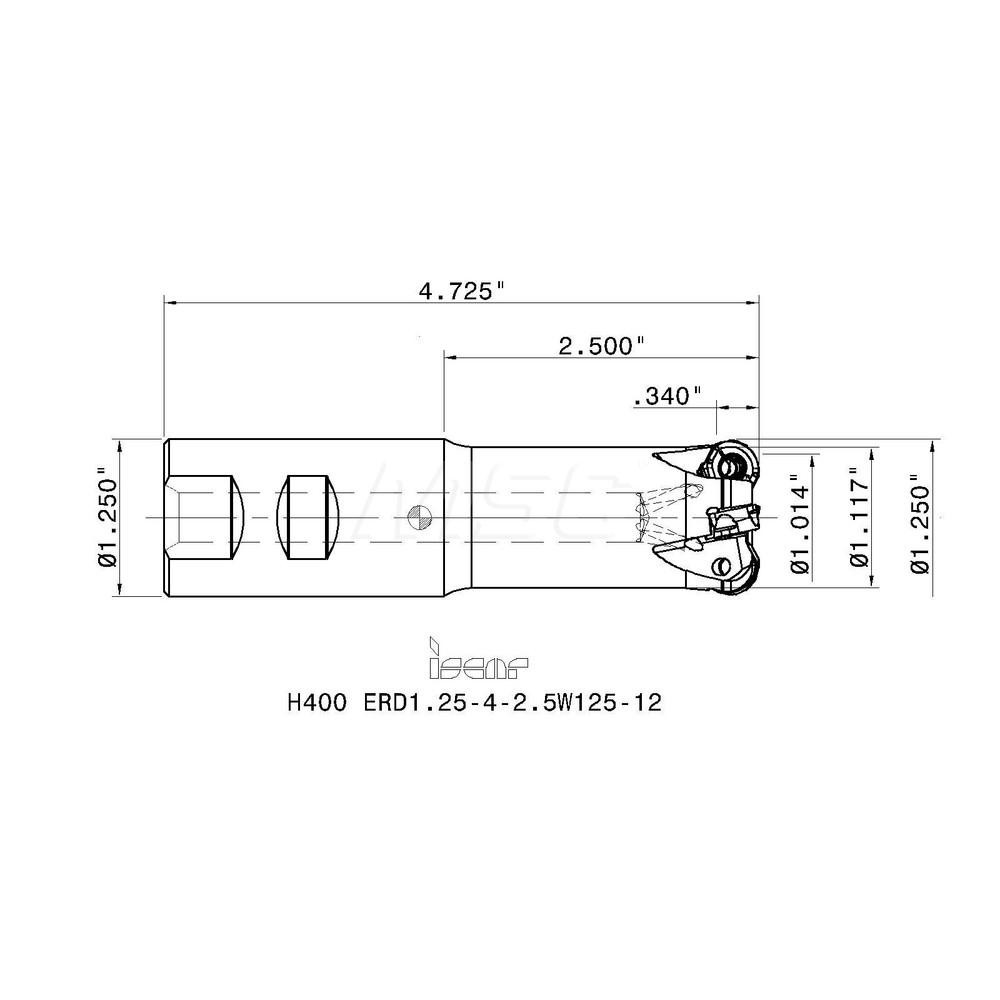

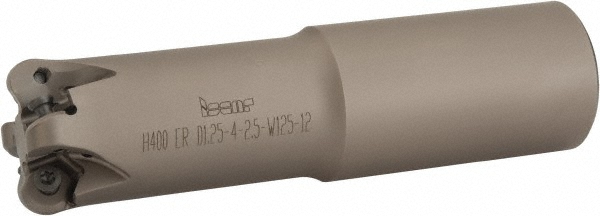

| Manufacturers Catalog Number | H400 ERD1.25-4-2.5W125-12 |
| Cutting Diameter (Inch) | 1-1/4 |
| Number Of Flutes | 4 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| MSC Number | MSC# 57749590 |
