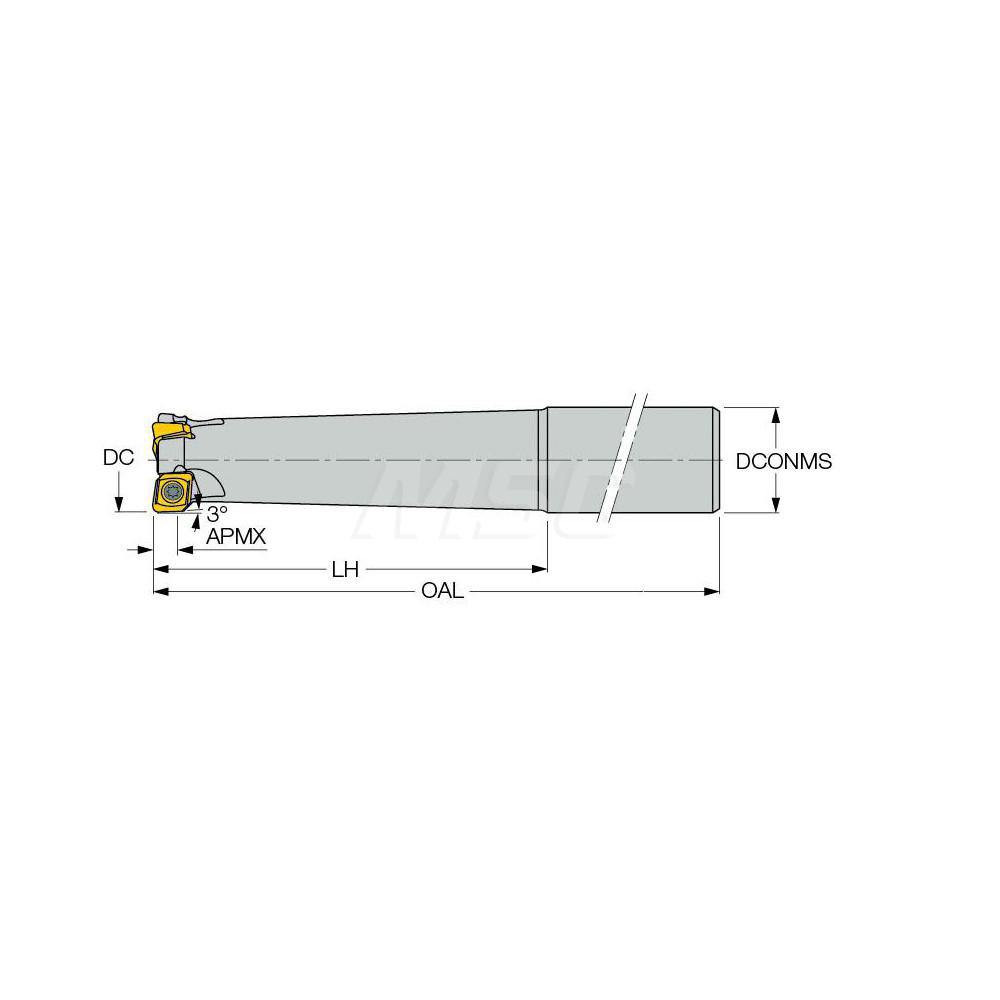

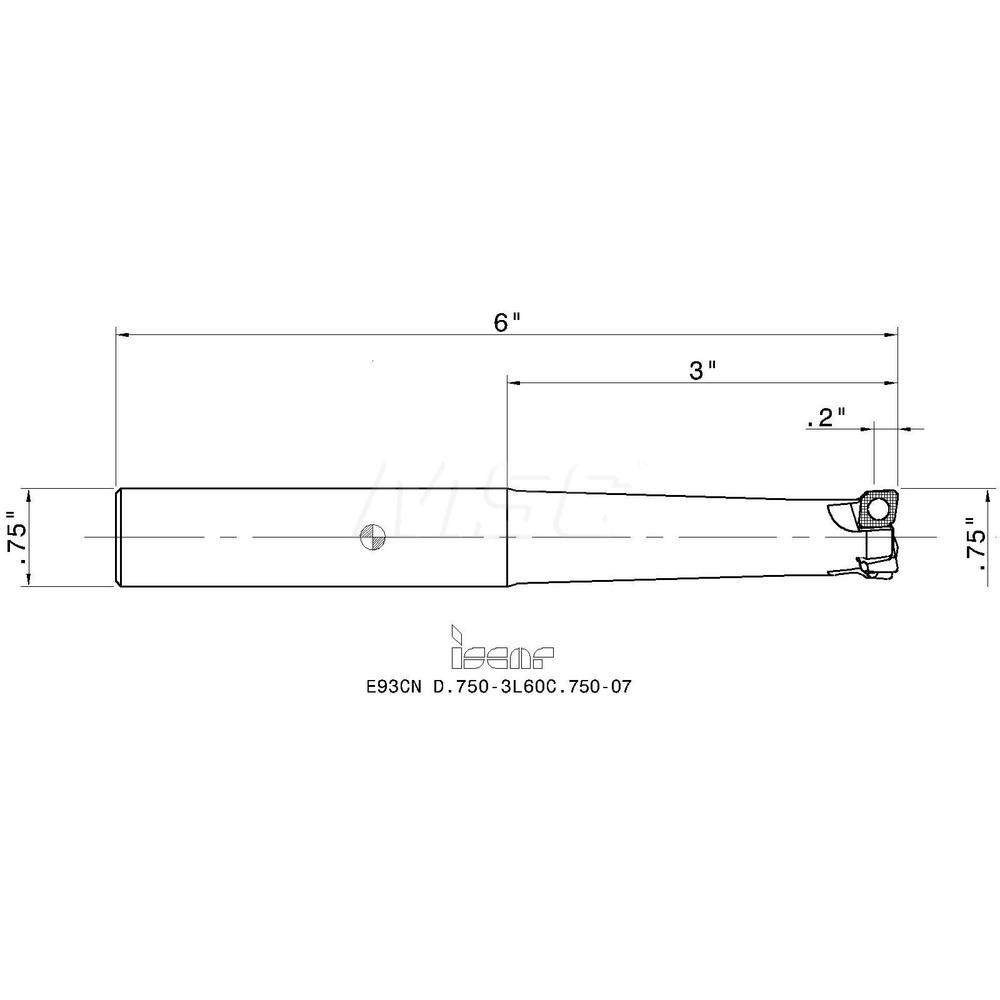

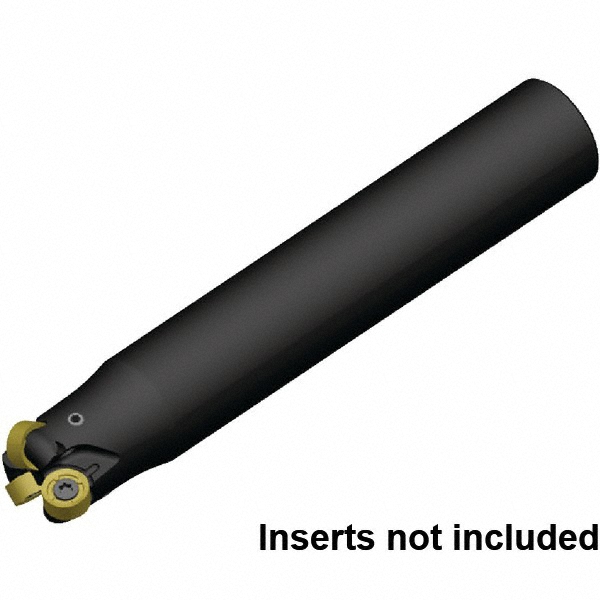

Uses 3 CNHT & ENHT Inserts, 3/4" Cylindrical Shank
| Cutting Diameter (Decimal Inch) | 0.7500 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Cutting Diameter (Inch) | 3/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.2000 |
| Toolholder Style | E93CN |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter | 0.5625 |
| Maximum Ramping Angle | 3.0 |
| Compatible Insert Style | ENHT; CNHT |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 6.0000 |
| Series | E93CN |
| Shank Length (Decimal Inch) | 3.0000 |
| Head Length (Decimal Inch) | 3.0000 |
| Tool Application | Milling |
| Standards | ISO 13399 |
| Toolholder Material | Solid Carbide |
| Weldon Flat | No |
| UNSPSC Code | 27112803 |
| Cutting Diameter (Inch) | 3/4 |
| Number Of Flutes | 3 |
| Coolant Through | No |
| Country of Origin | Israel |
| MSC Number | MSC# 85759967 |
