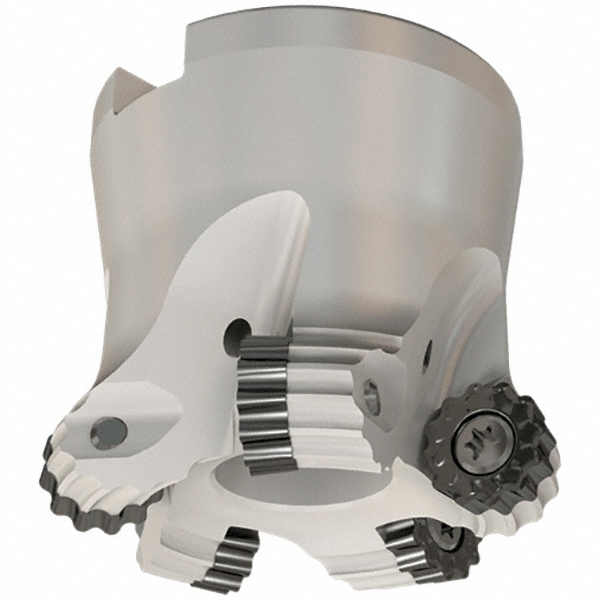

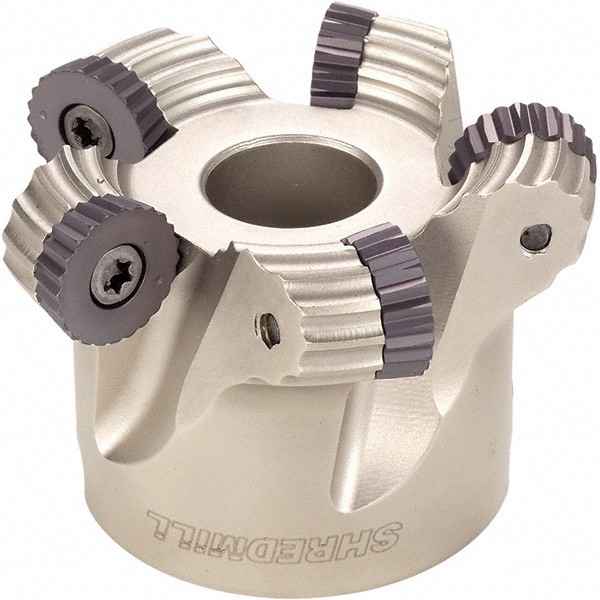

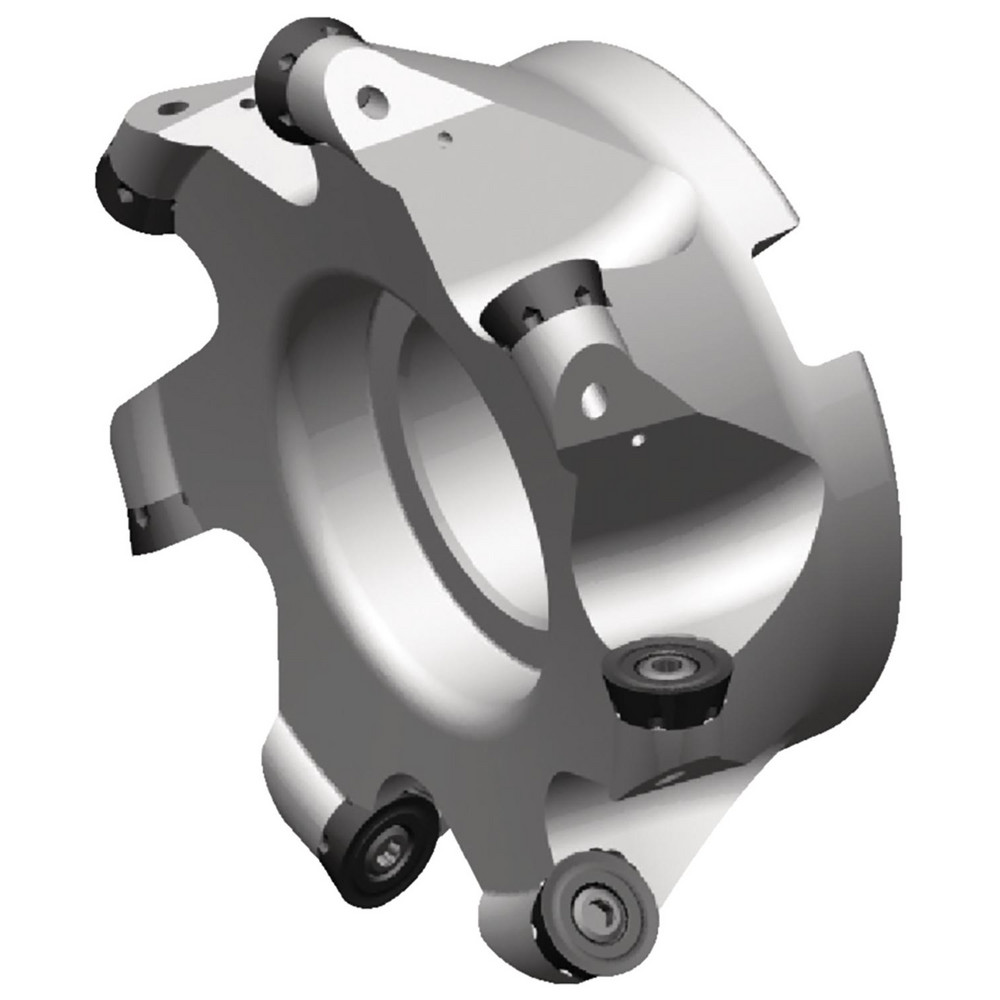

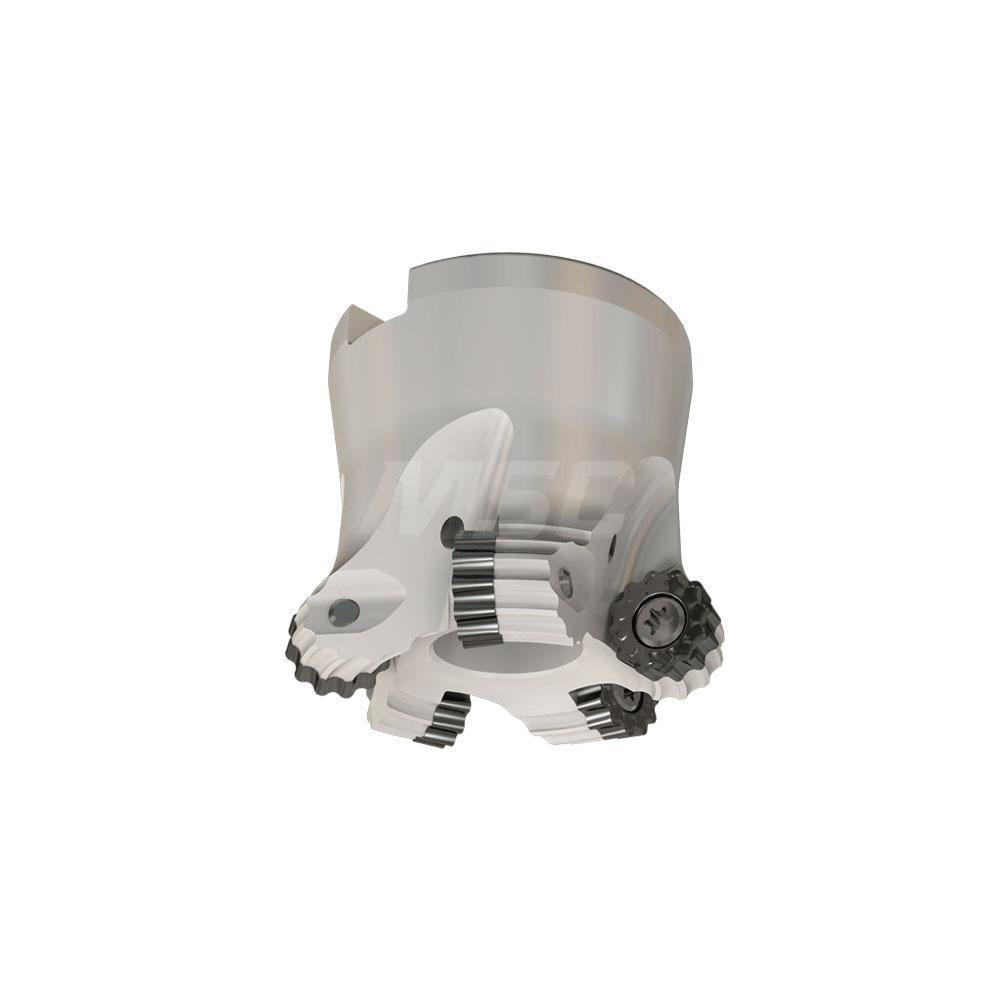

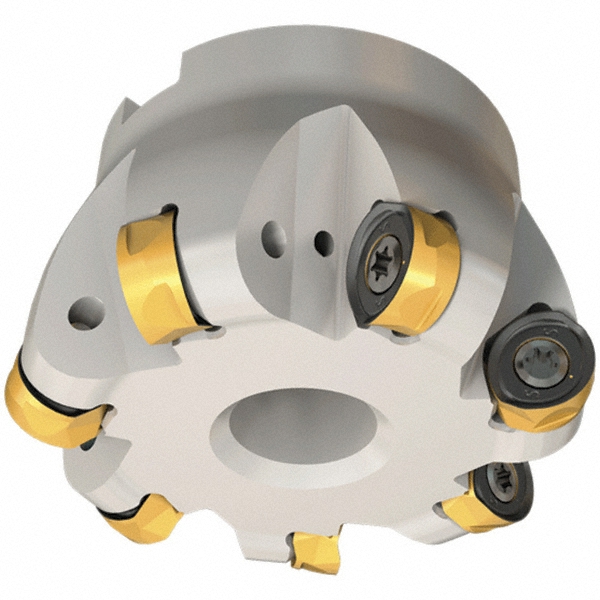

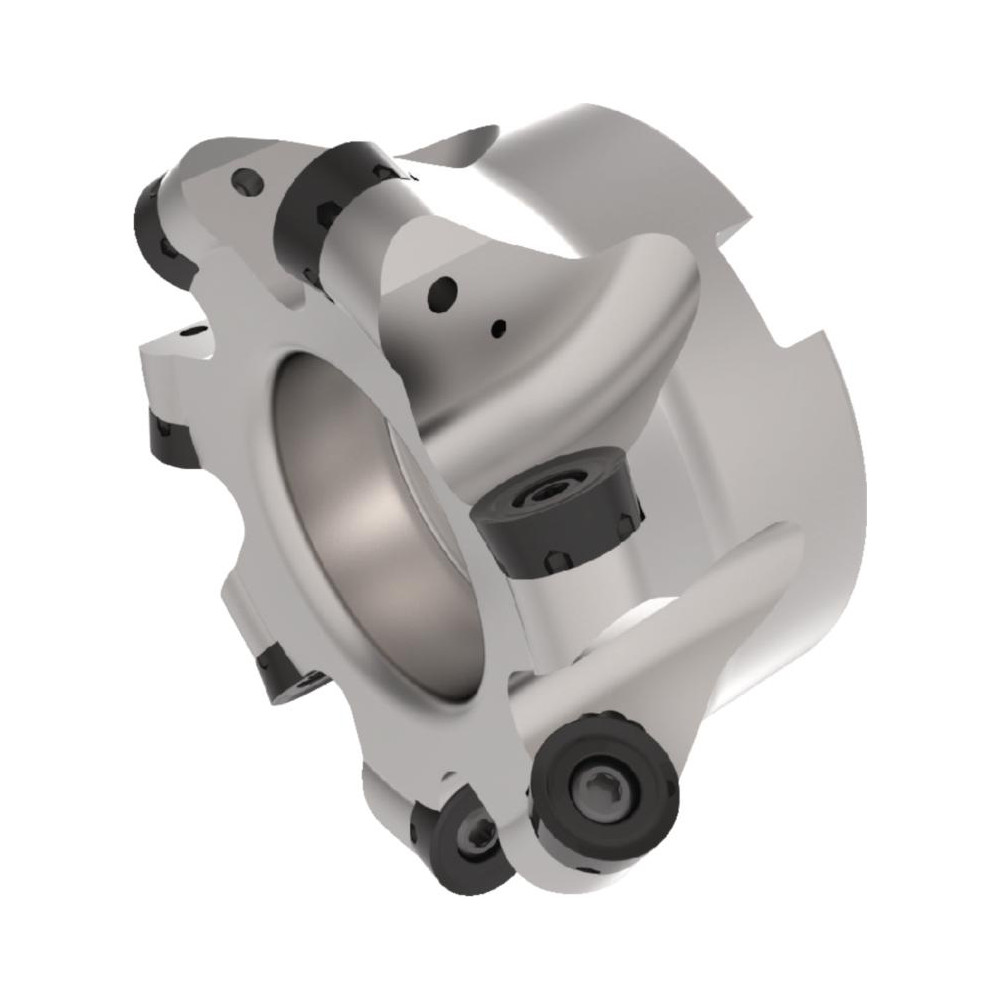

Takes (7) RC Inserts, 8 mm Max Depth

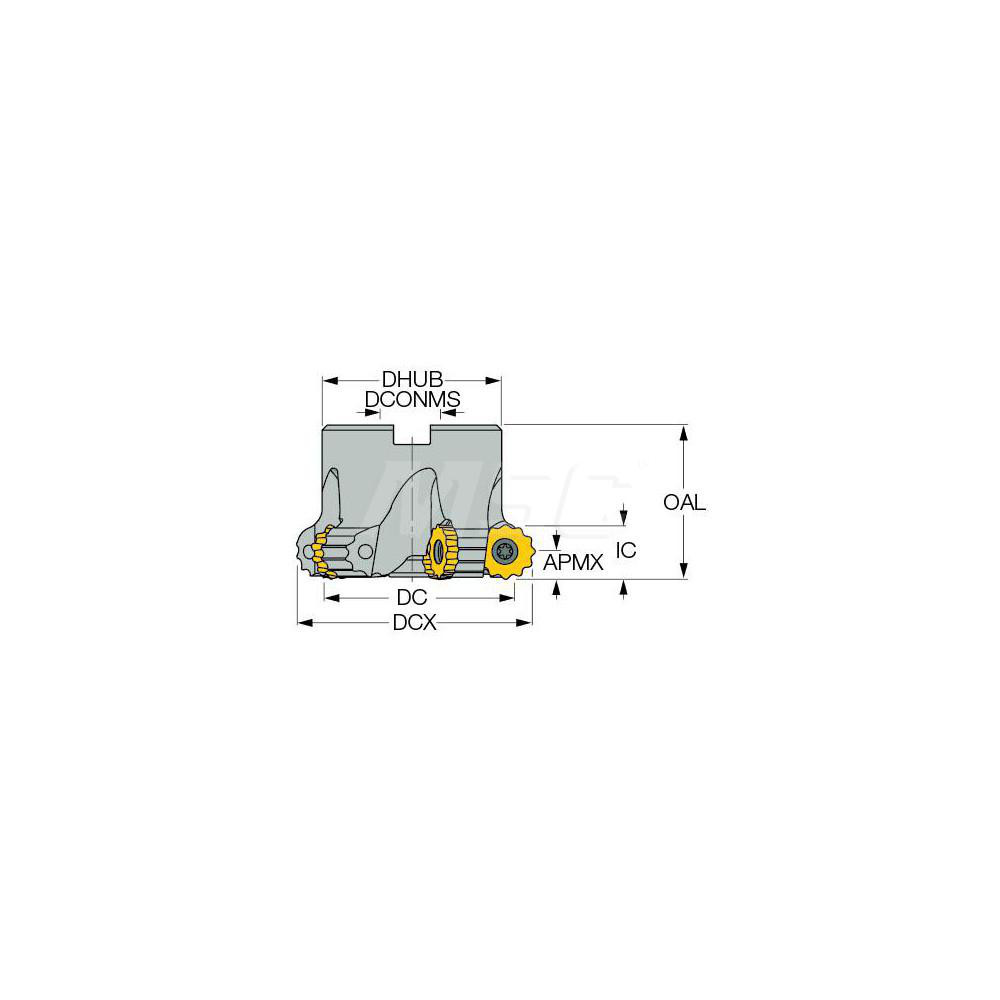

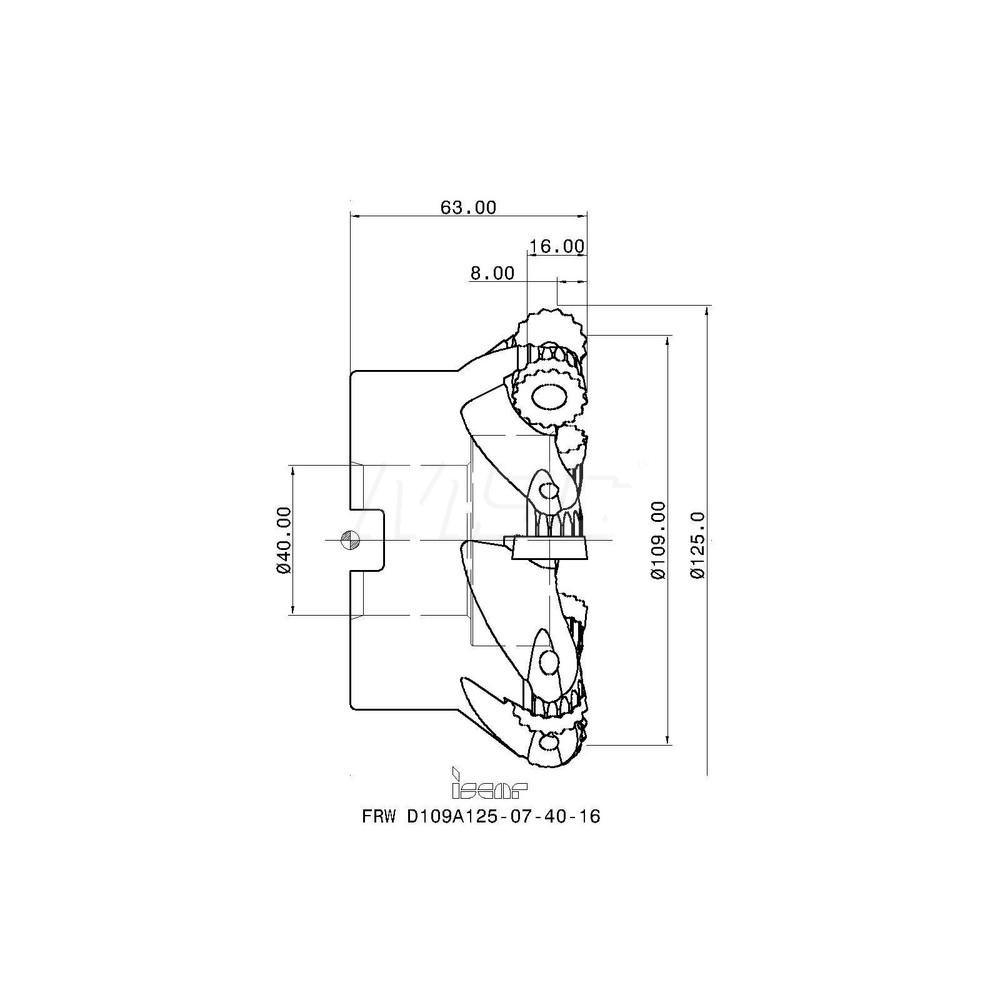

| Minimum Cutting Diameter (mm) | 109.00 |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Maximum Cutting Diameter (mm) | 125.00 |
| Maximum Depth of Cut (mm) | 8.00 |
| Arbor Hole Diameter (mm) | 40.00 |
| Compatible Insert Size Code | RC |
| Maximum Ramping Angle | 3.00 |
| Cutter Style | FRW |
| Insert Holding Method | Screw |
| Series | MillShred |
| Hub Diameter (mm) | 90.00 |
| Counterbore Diameter (Decimal Inch) | 2.0870 |
| Keyway Width (Decimal Inch) | 0.6460 |
| Overall Height (Decimal Inch) | 63.00 |
| Standards | ISO |
| Insert Inscribed Circle (mm) | 16.00 |
| Complete Insert Compatibility | RCMT/RCCT-MO; RCMT/RCMW/RCCW-FW; RCMW/RCCW-MO |
| Number Of Cutter Inserts | 7 |
| Coolant Through | No |
| UNSPSC Code | 27112803 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 91120386 |
