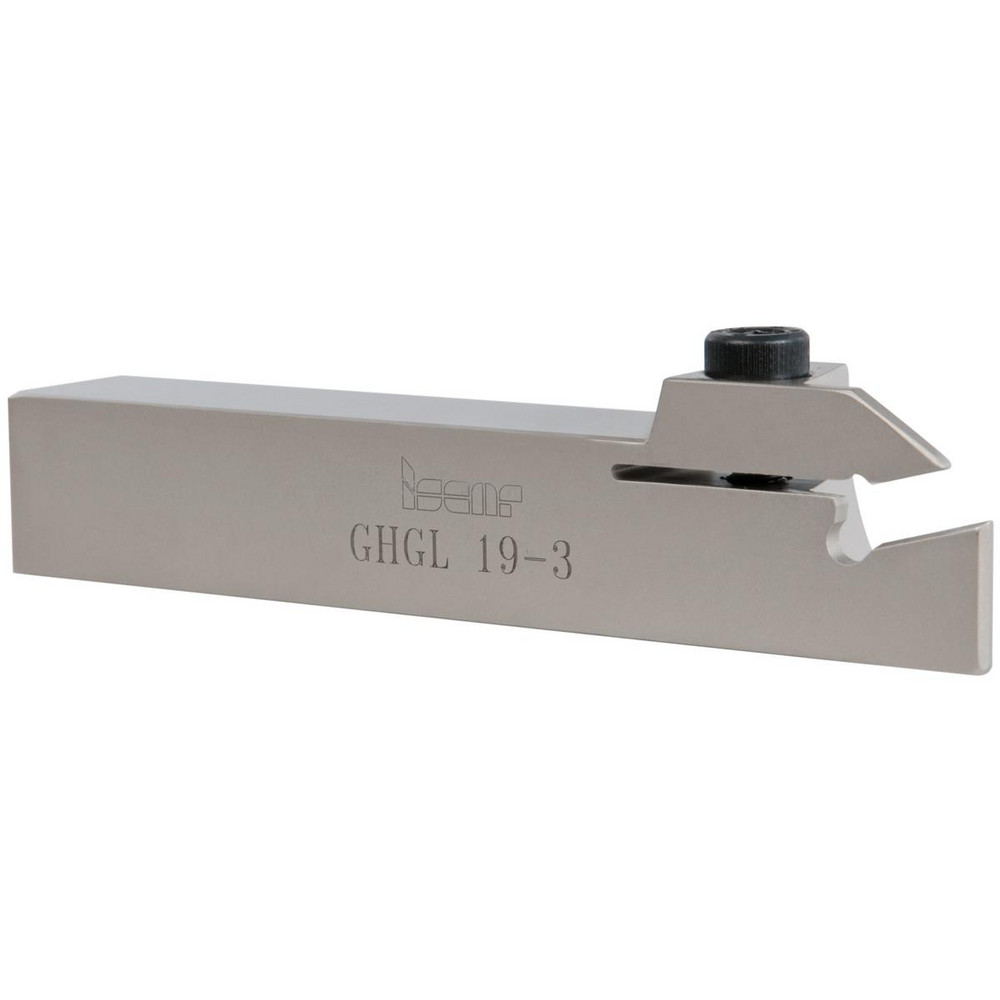

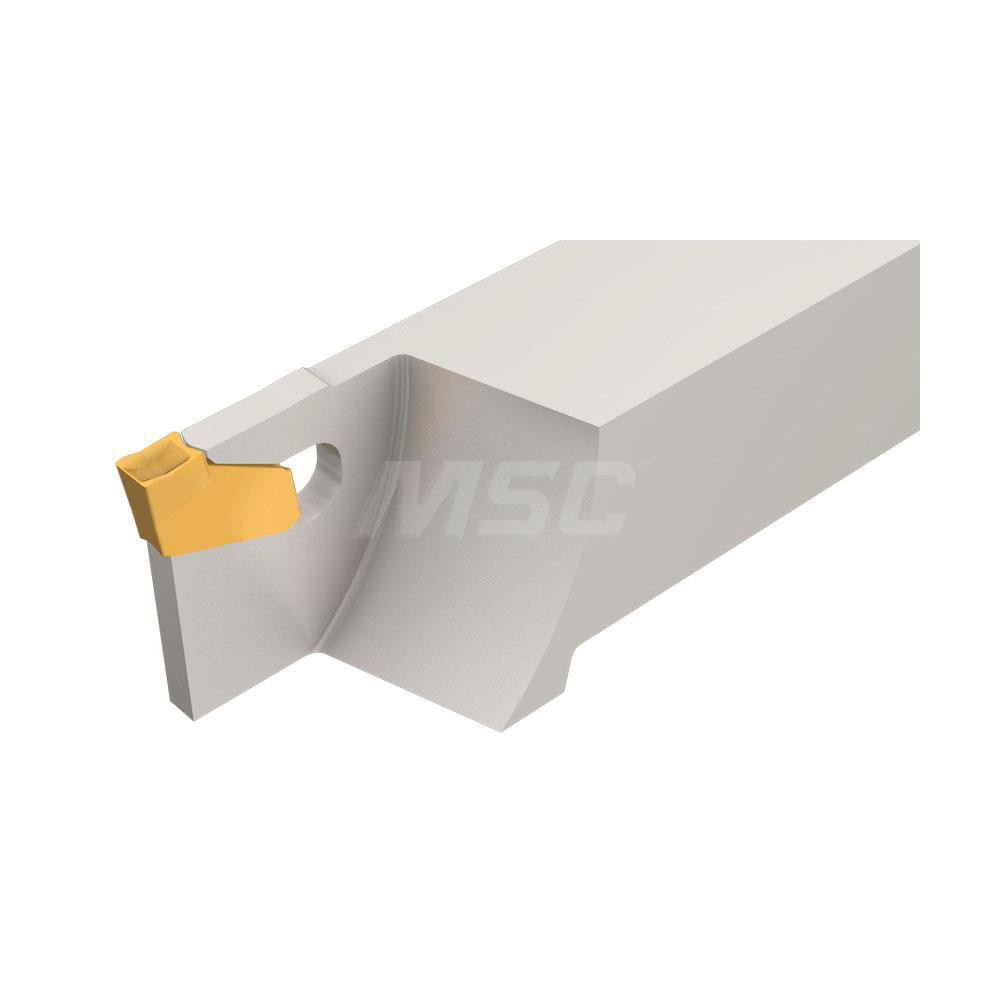

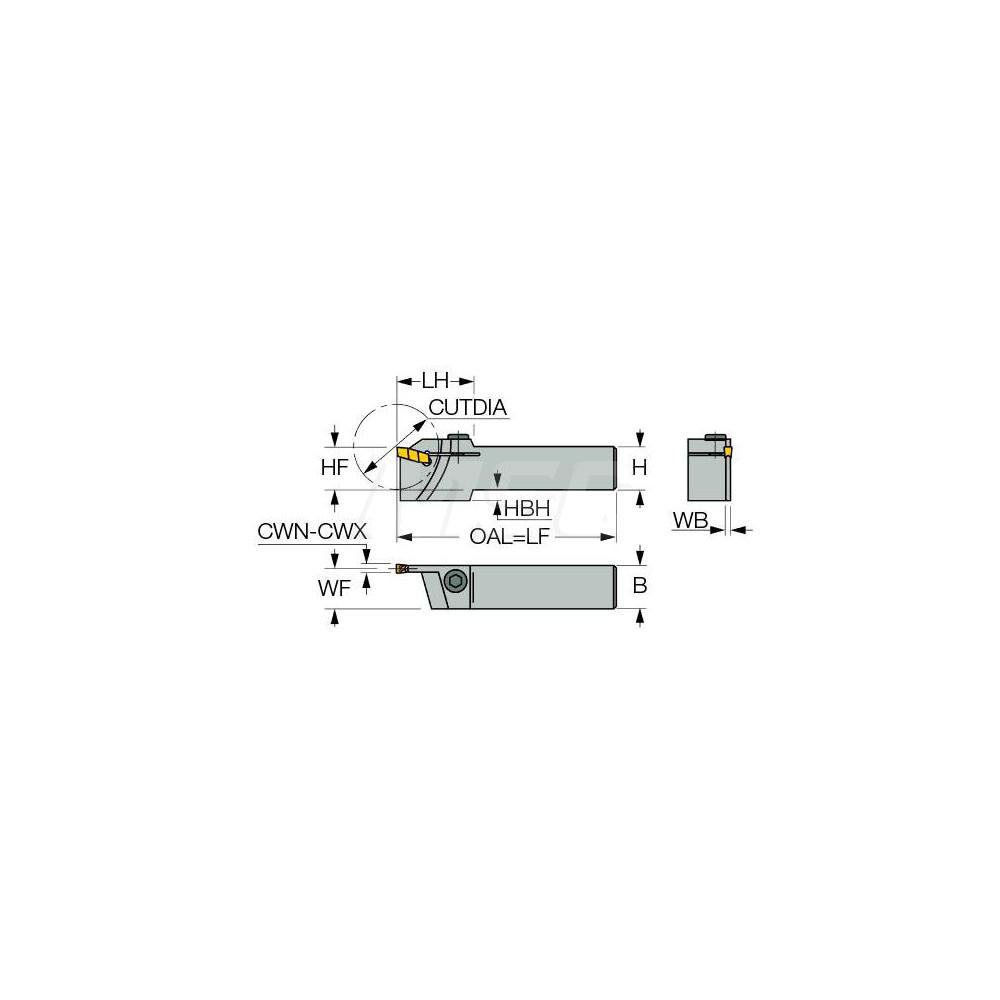

3/4 x 3/4" Shank, Uses GI..,TIP.. Inserts, Series Cut Grip
| Hand of Holder | Left Hand |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.7900 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.5800 |
| Toolholder Style | GHG |

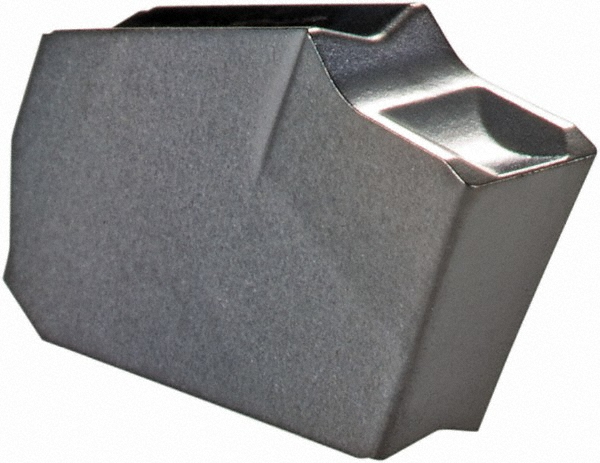

| Compatible Insert Size Code | GI..,TIP.. |

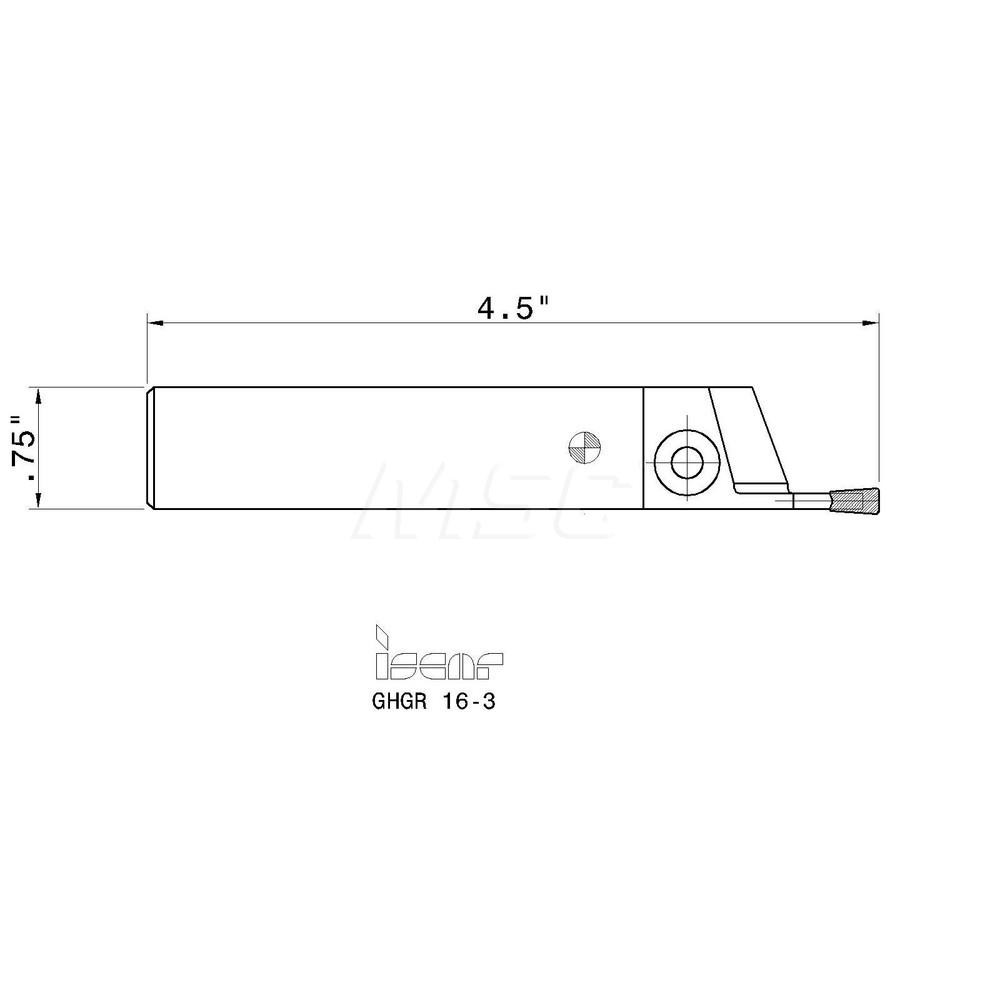

| Overall Length (Decimal Inch) | 4.5000 |
| Insert Holding Method | Clamp |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Height (Inch) | 3/4 |
| Shank Length (Inch) | 3 |
| Shank Length (Decimal Inch) | 3.0000 |
| Series | Cut Grip |
| Cutting Tool Application | Grooving; Turning; Parting |
| Head Length (Decimal Inch) | 1.4200 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7500 |
| Standards | ISO 13399 |
| Minimum Insert Width (Decimal Inch) | 0.1180 |
| Maximum Insert Width (Decimal Inch) | 0.1570 |
| UNSPSC Code | 23153308 |
| Blade Width (Decimal Inch) | 0.0960 |
| Coolant Through | No |
| Country of Origin | Israel |
| MSC Number | MSC# 60785383 |
