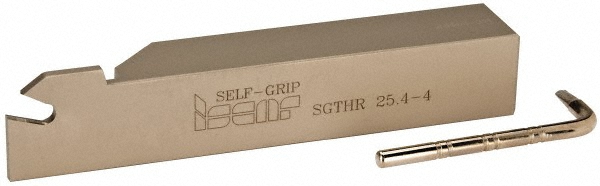

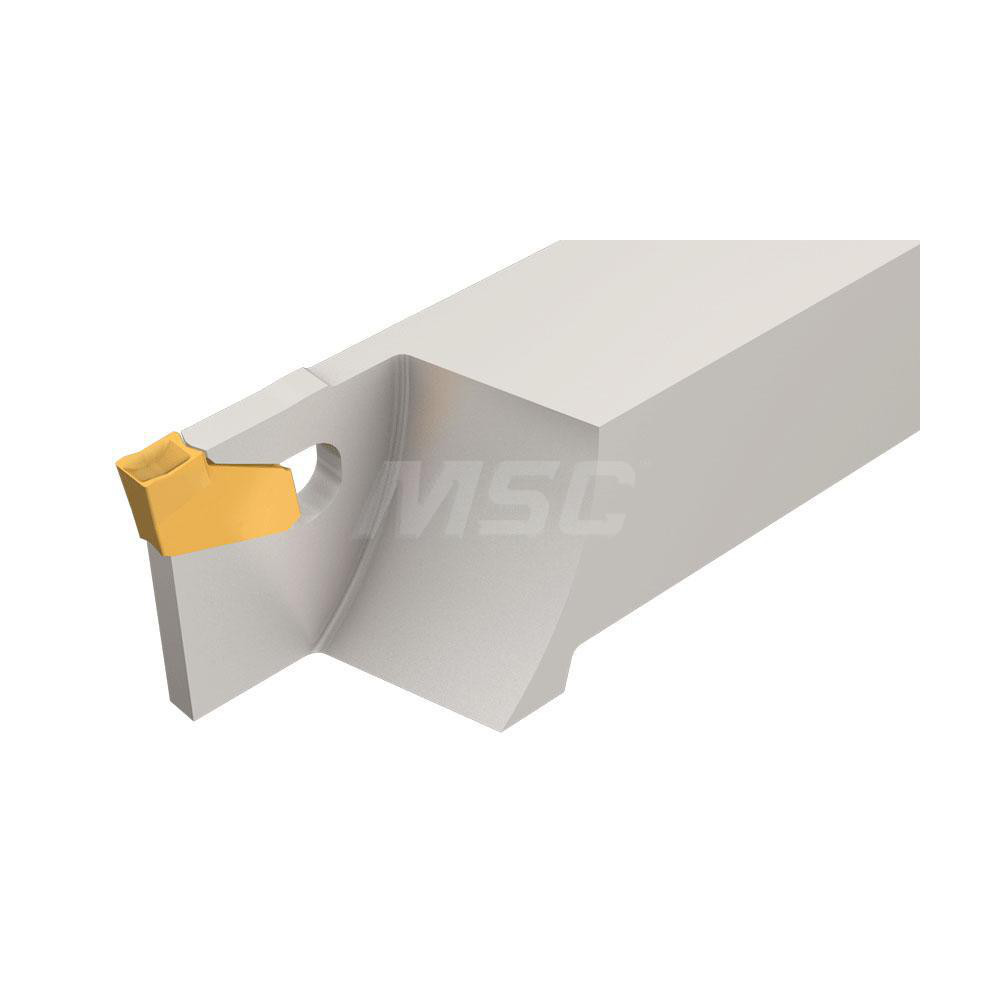

1 x 1" Shank, Uses GTN 4.., GTR 4.. Inserts, Series Self Grip
| Hand of Holder | Right Hand |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 1.1000 |
| Maximum Workpiece Diameter (Decimal Inch) | 2.4400 |
| Toolholder Style | SGTH |
| Compatible Insert Size Code | GTN 4..; GTR 4.. |
| Overall Length (Decimal Inch) | 5.9000 |
| Insert Holding Method | Self Grip |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Length (Inch) | 1 |
| Shank Length (Decimal Inch) | 1.0000 |
| Series | Self Grip |
| Cutting Tool Application | Cut-Off |
| Head Height (Decimal Inch) | 1.1800 |
| Head Length (Decimal Inch) | 1.1000 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Minimum Insert Width (Decimal Inch) | 0.1610 |
| Maximum Insert Width (Decimal Inch) | 0.1610 |
| UNSPSC Code | 23153308 |
| Blade Width (Decimal Inch) | 0.1250 |
| MSC/Manufacturer Number | SGTHR 25.4-4 |
| Coolant Through | No |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 60826229 |
