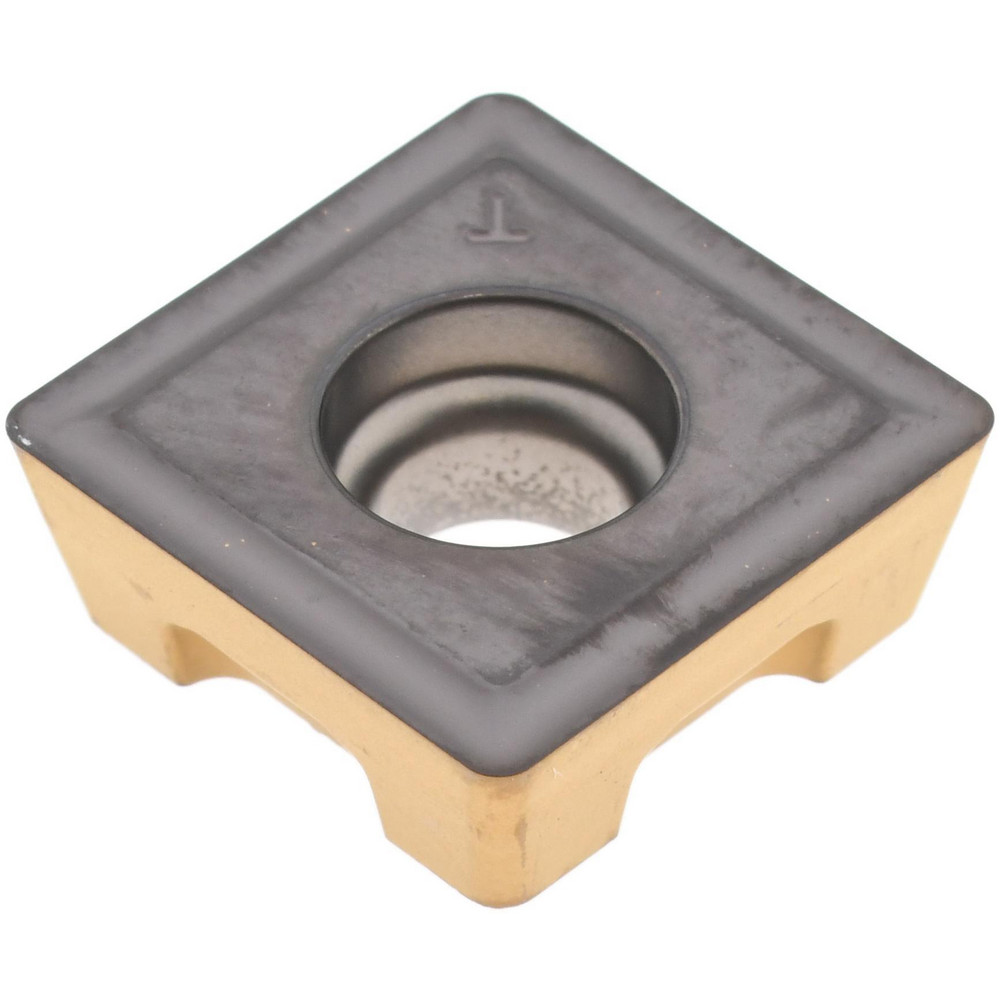

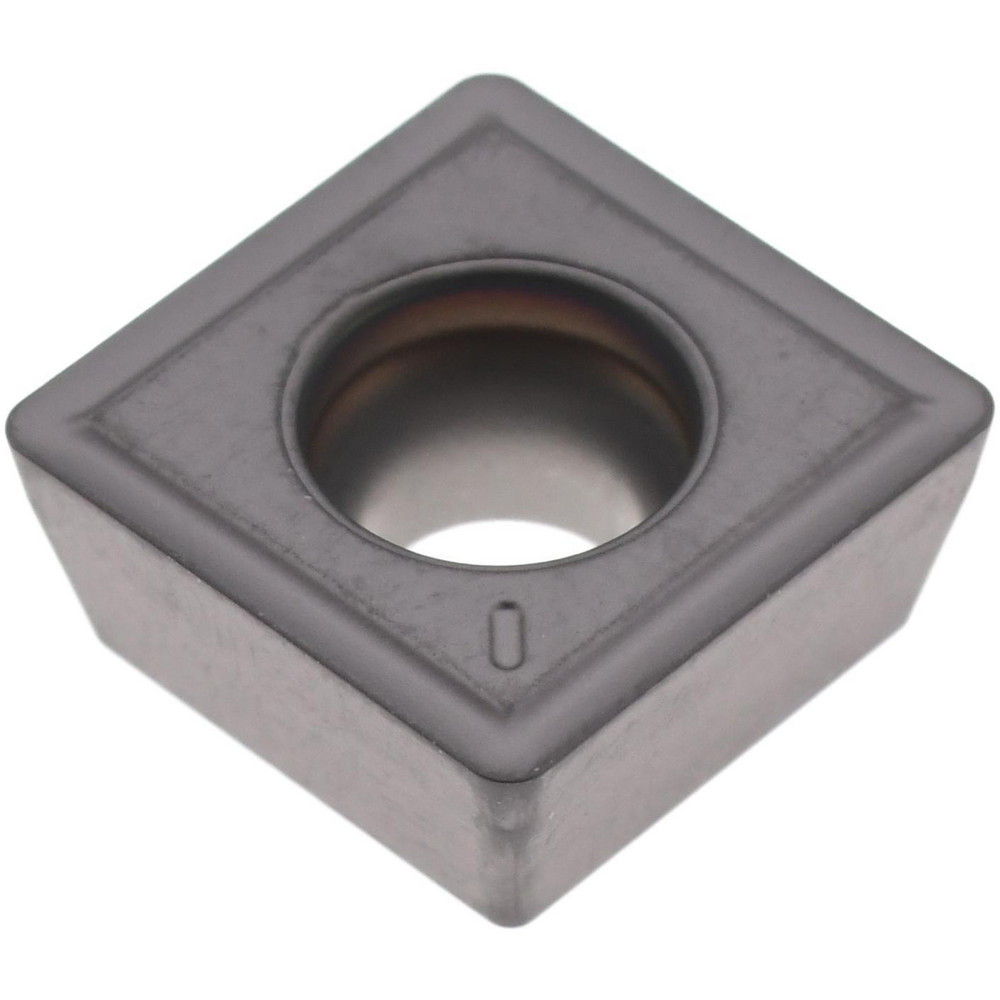

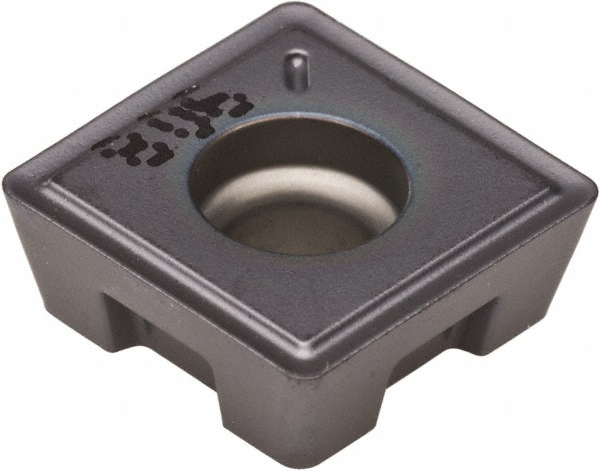

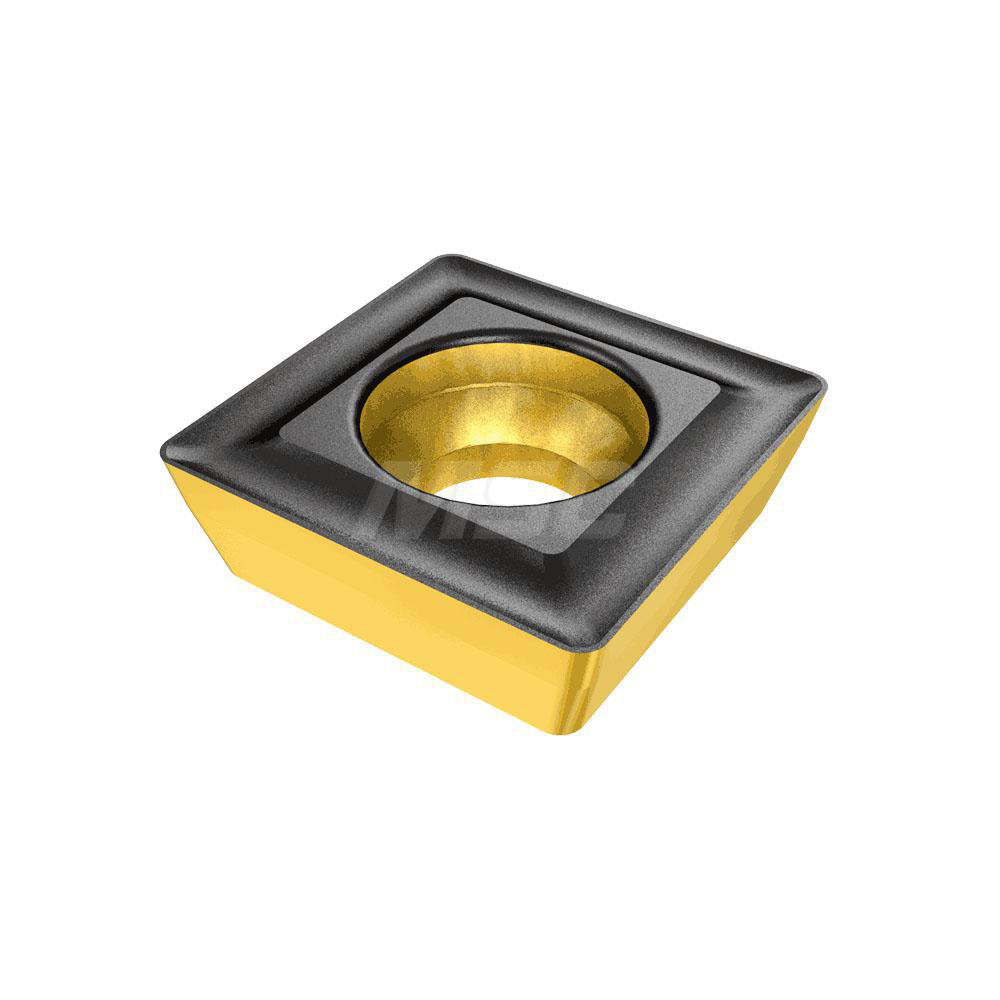

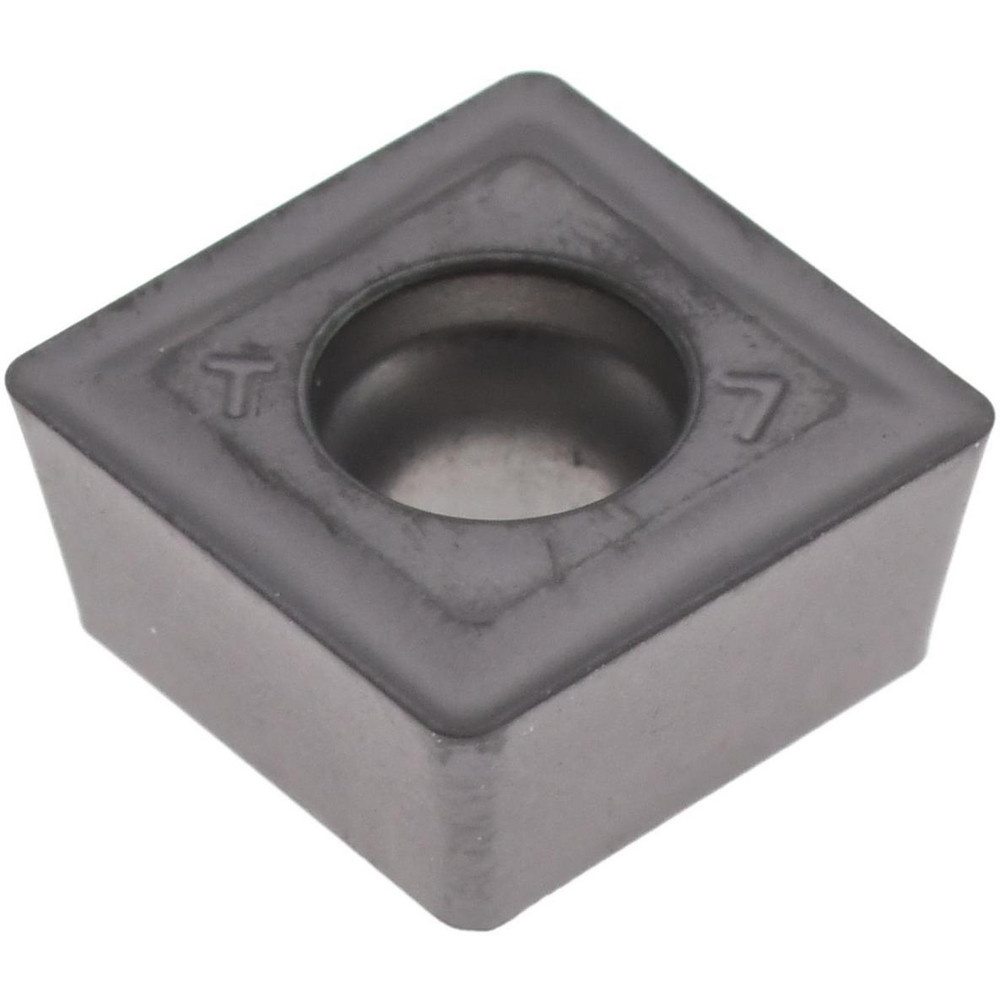

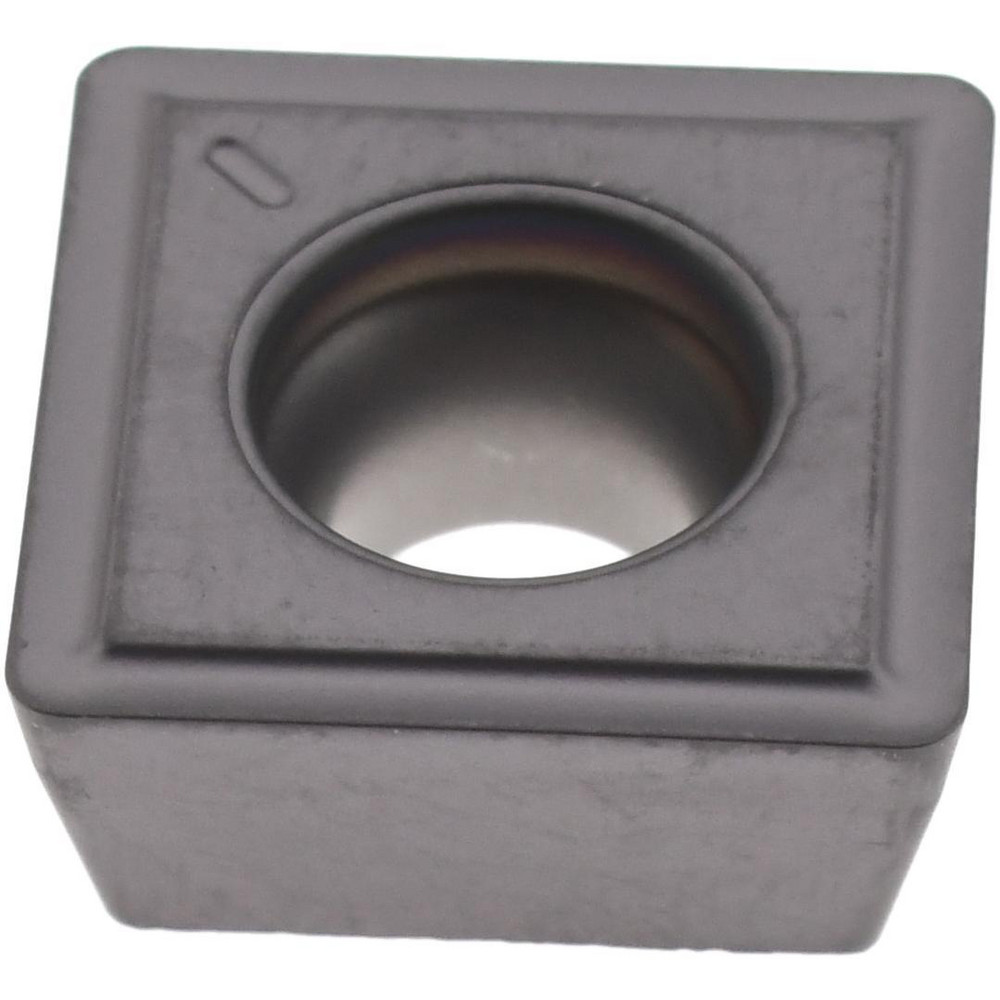

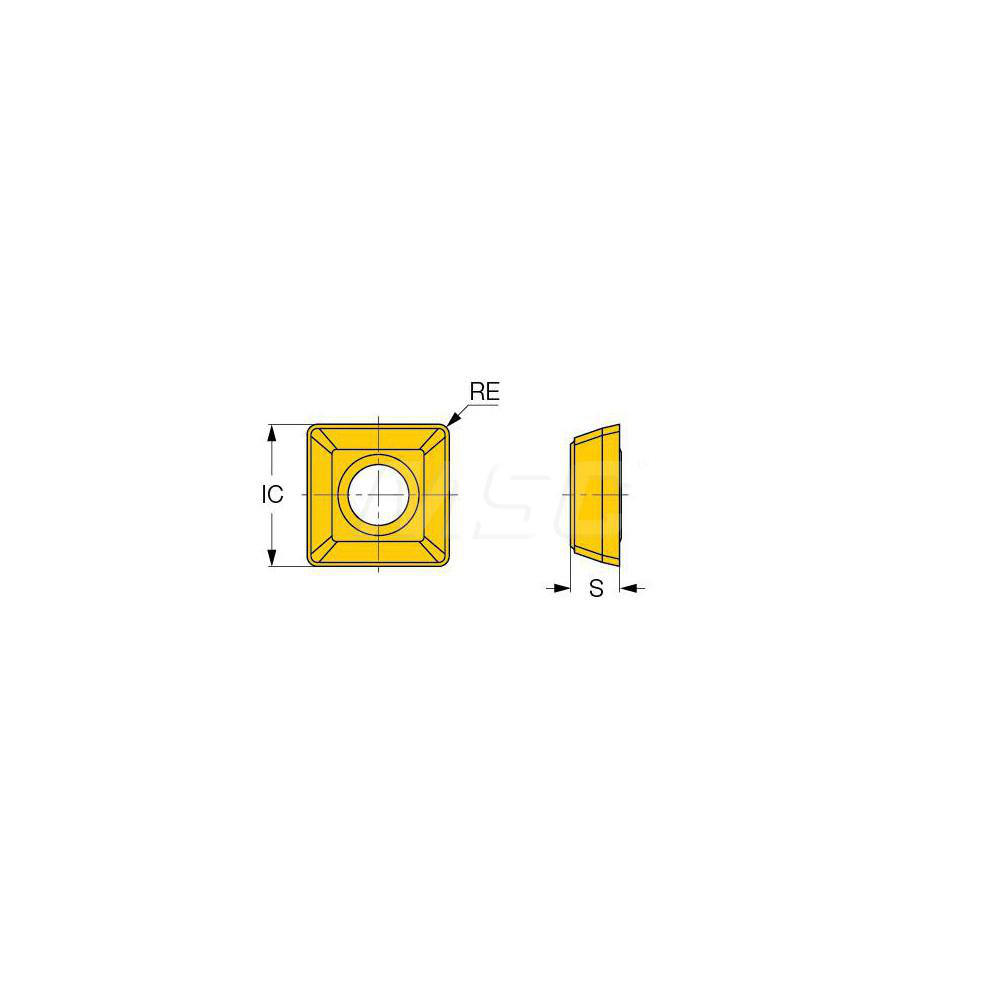

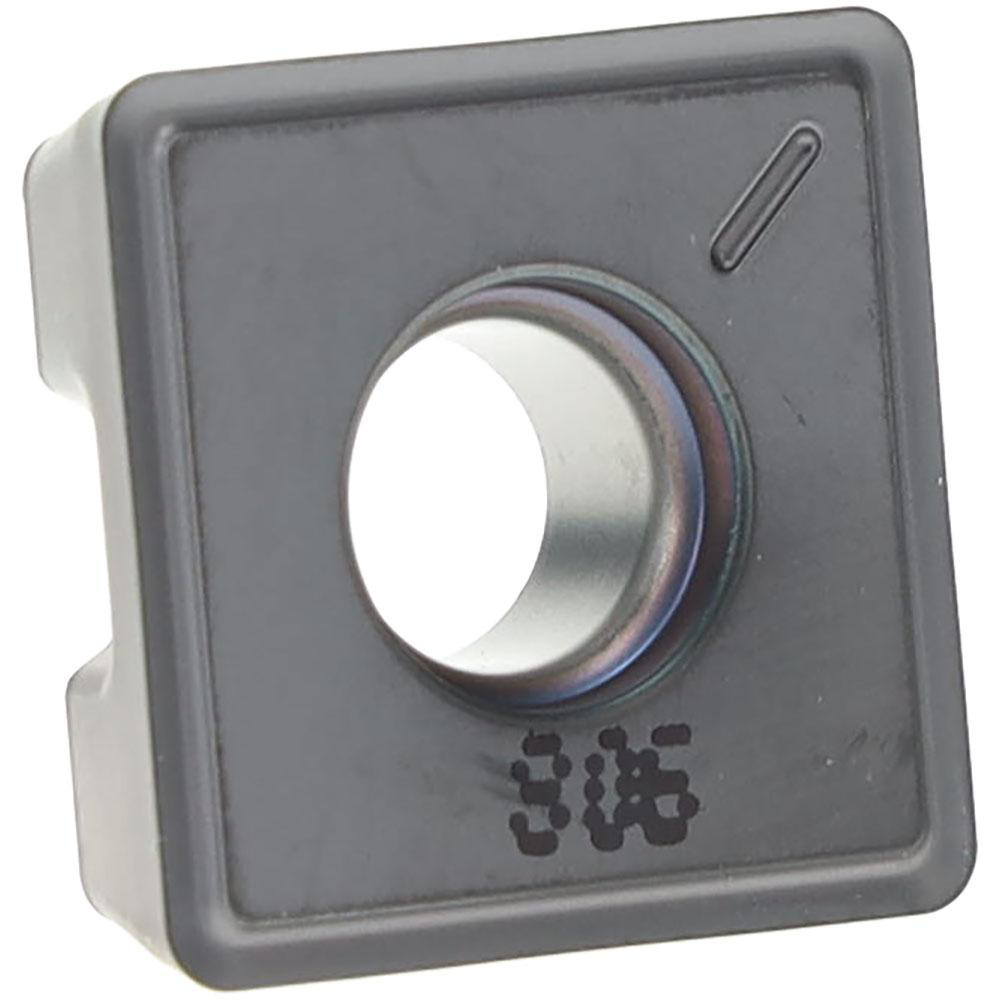

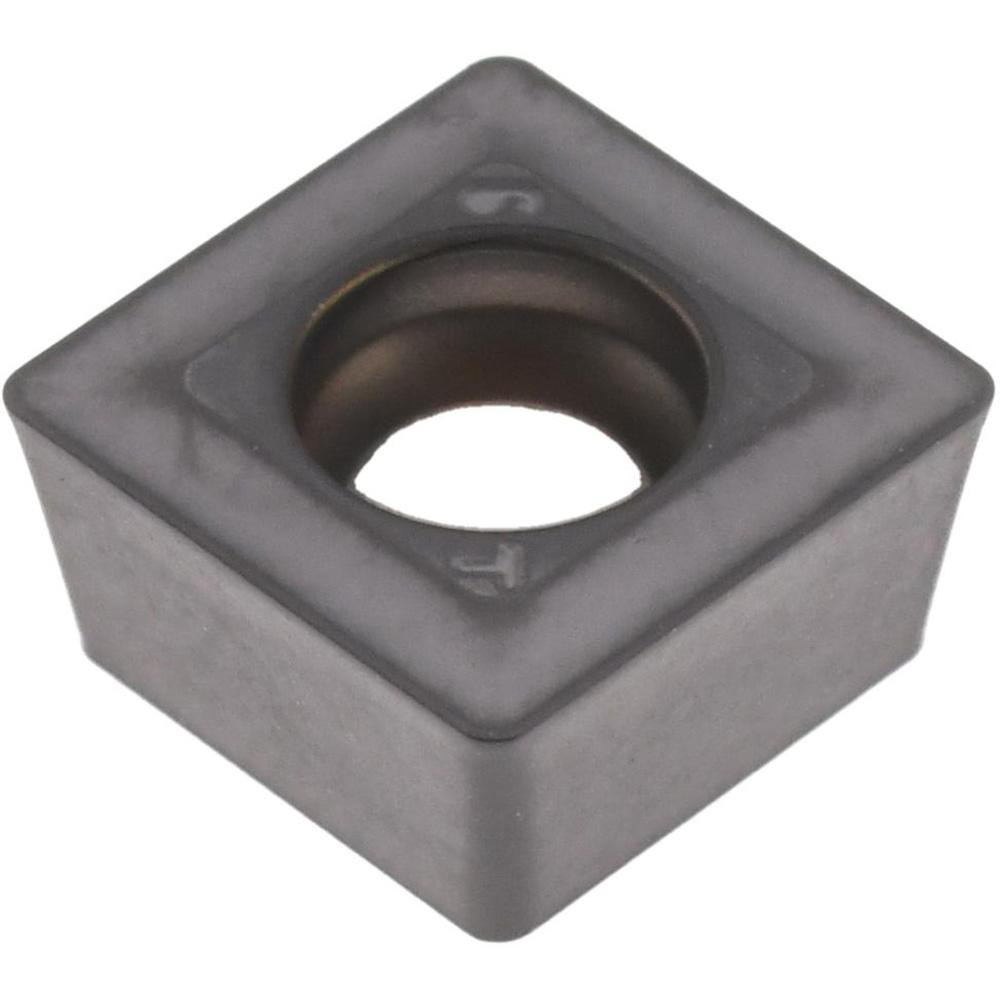

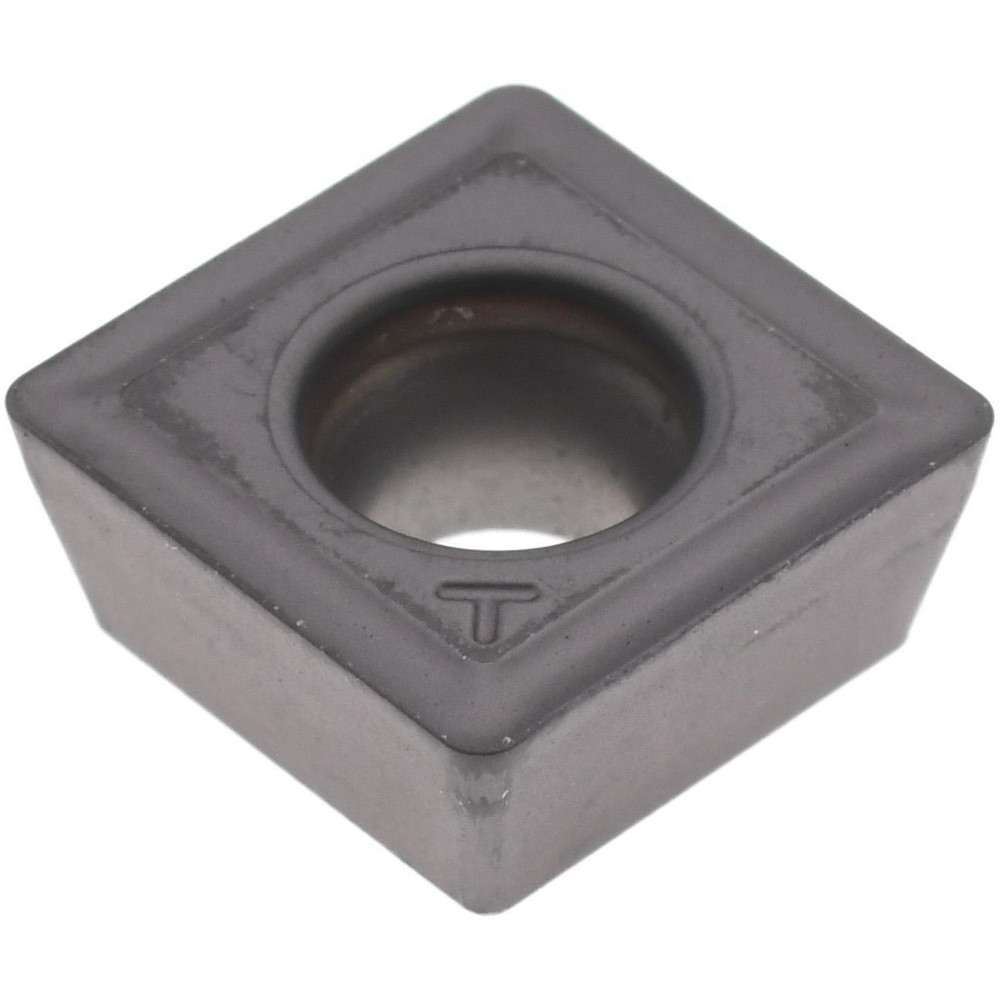

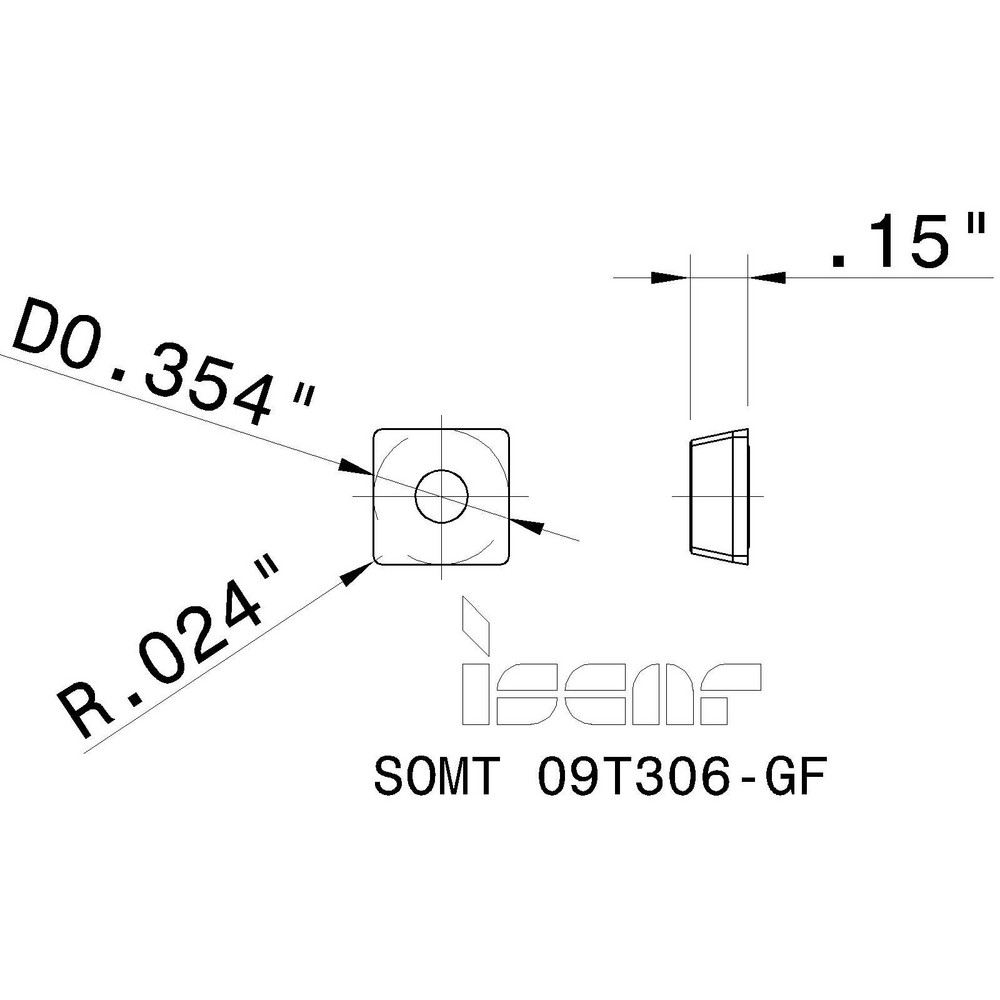

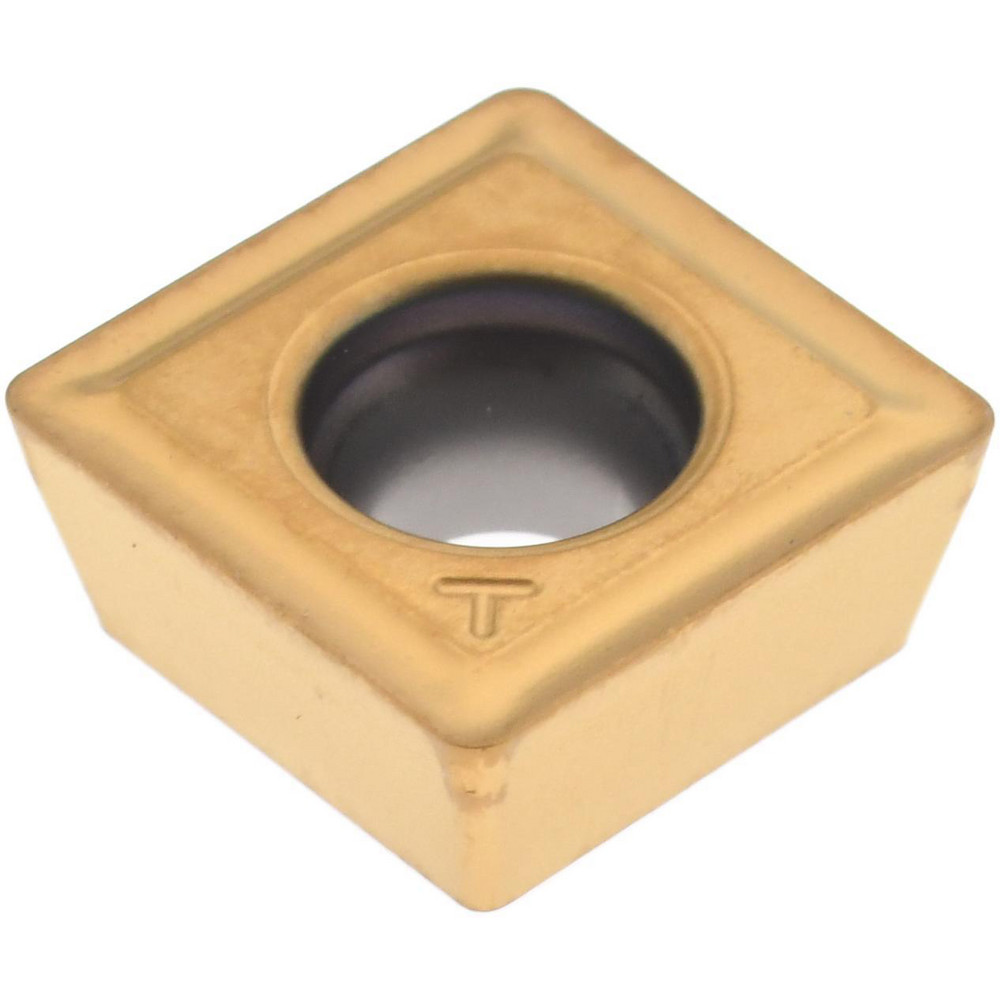

TiAlN Finish, 9.00 mm Inscribed Circle, 0.60 mm Corner Radius, 90 deg Square
| Insert Style | SOMT |
|---|---|
| Insert Material | Carbide |
| Manufacturer Grade | IC908 |
| Inscribed Circle (Decimal Inch) | 0.3543 |
| Inscribed Circle (mm) | 9.00 |
| Corner Radius (Decimal Inch) | 0.0236 |
| Corner Radius (mm) | 0.60 |
| Chipbreaker | GF |
| Series | DR-TWIST |
| Material Grade | C6; C7; C1; C2 |
| Coating Process | PVD |
| Shape | Square |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Insert Size | 09T306 |
| Width (mm - 2 Decimals) | 9 |
| Length (Mm) | 9 |
| Width (Decimal Inch - 4 Decimals) | 0.354 |
| Length (Decimal Inch - 4 Decimals) | 0.354 |
| Included Angle Degree | 90 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1500 |
| Coating/Finish | TiAlN |
| Insert Size Code | 09 |
| Hole Diameter | 0.1330 in |
| UNSPSC Code | 23242105 |
| Country of Origin | Israel |
| MSC Number | MSC# 60847472 |
