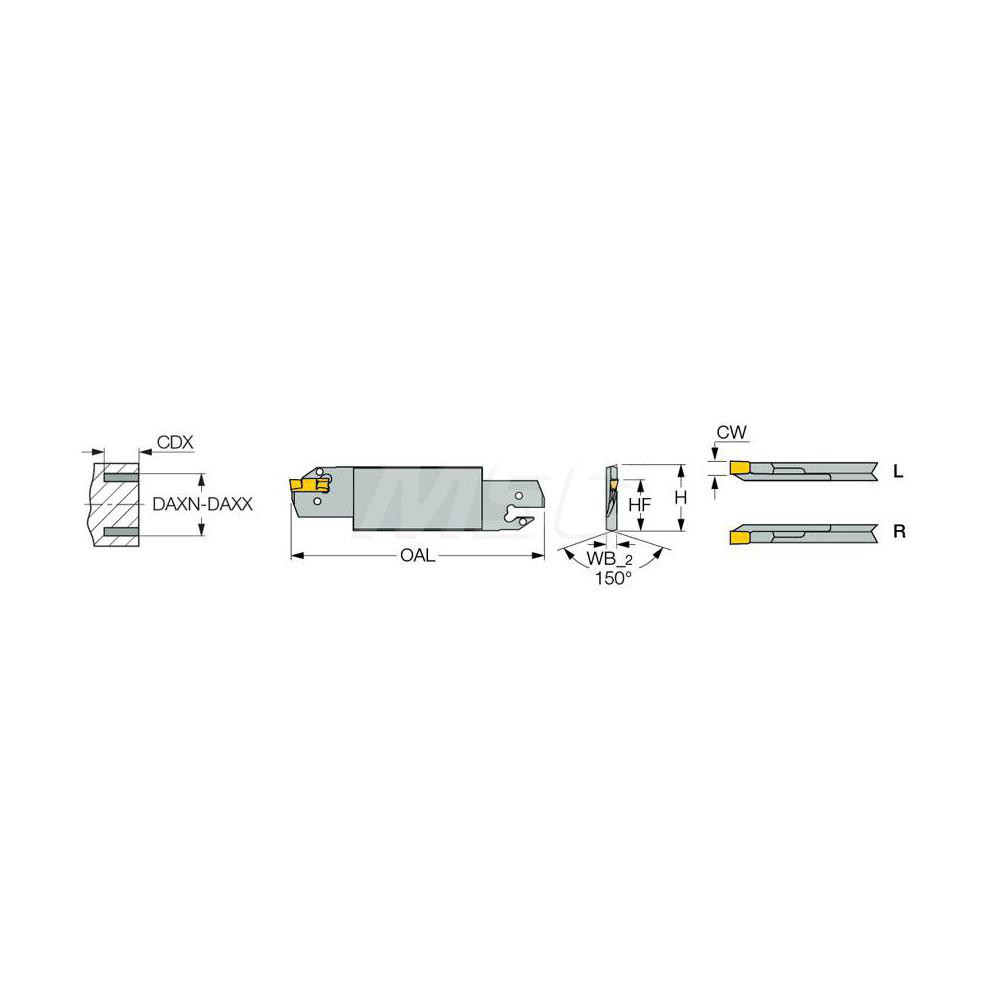

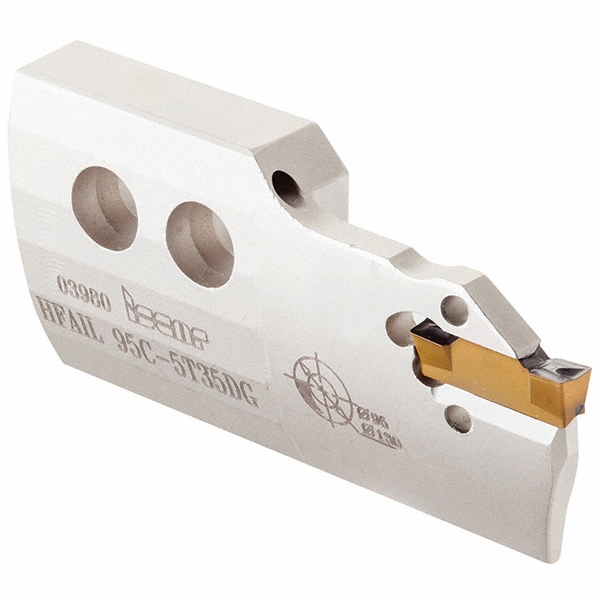

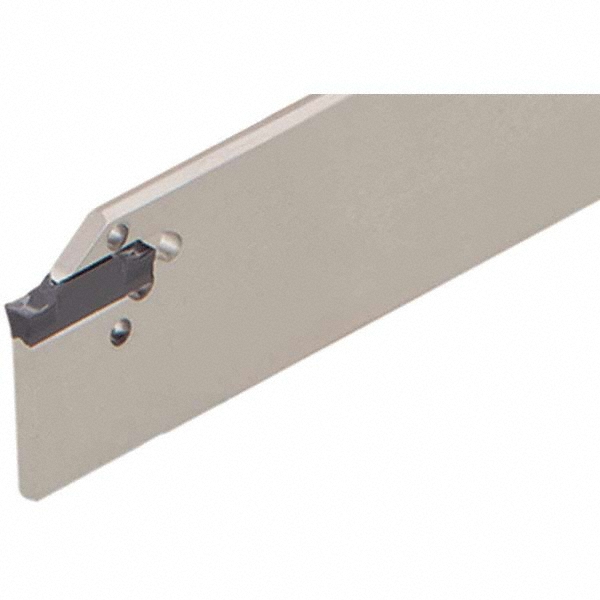

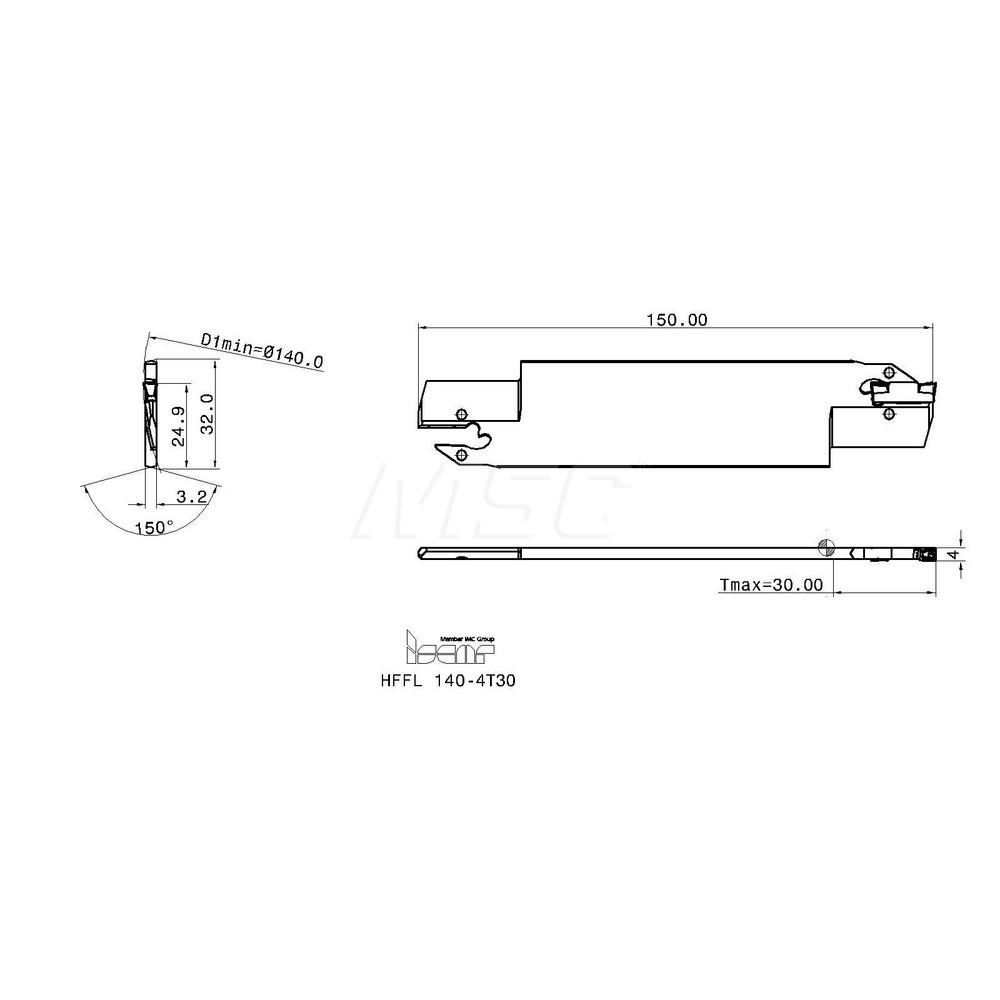

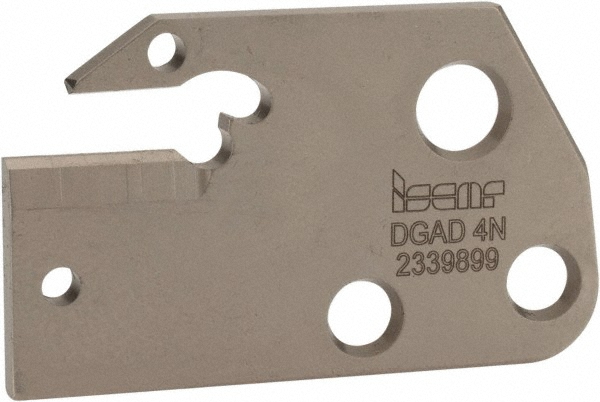

59.0551" Max Workpiece Dia, Uses HFPR/L 4020... Inserts
| Cutting Direction | Left Hand |
|---|---|
| Minimum Groove Width (Decimal Inch) | 0.1575 |
| Minimum Groove Width (mm) | 4.00 |
| Blade Style | HFF |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2598 |
| Blade Width (Decimal Inch) | 0.1260 |
| Blade Width (mm) | 3.20 |
| Maximum Depth of Cut (Decimal Inch) | 1.1811 |
| Maximum Depth of Cut (mm) | 30.00 |
| Minimum Workpiece Diameter (Decimal Inch) | 5.5118 |
| Minimum Workpiece Diameter (mm) | 140.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 59.0551 |
| Maximum Workpiece Diameter (mm) | 1500.00 |

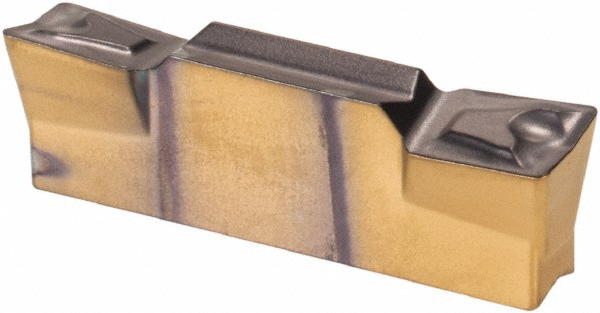

| Compatible Insert Style | HFPR/L 4020... |
| Compatible Insert Size Code | 4020… |
| Series | Heliface |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Cutting Tool Application | Grooving; Turning; Parting |
| Standards | ISO 13399 |
| UNSPSC Code | 23241600 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 52720521 |
