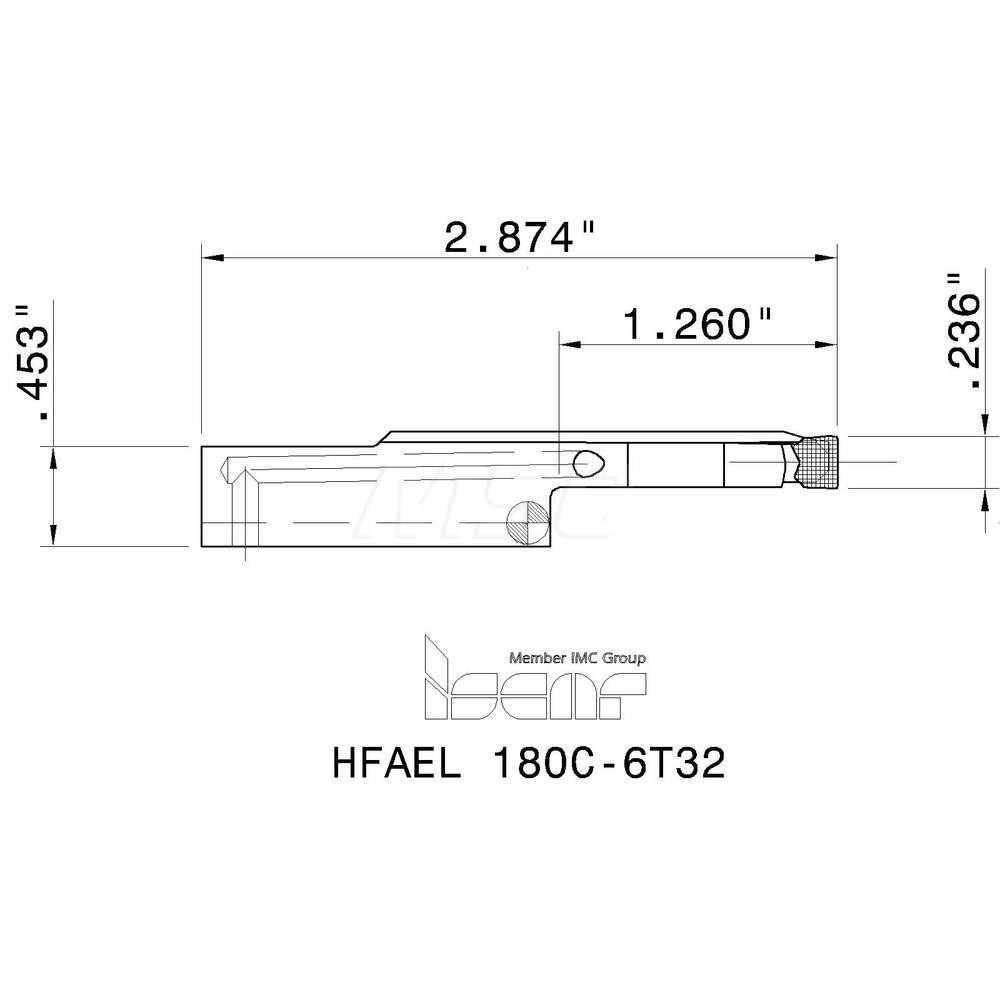

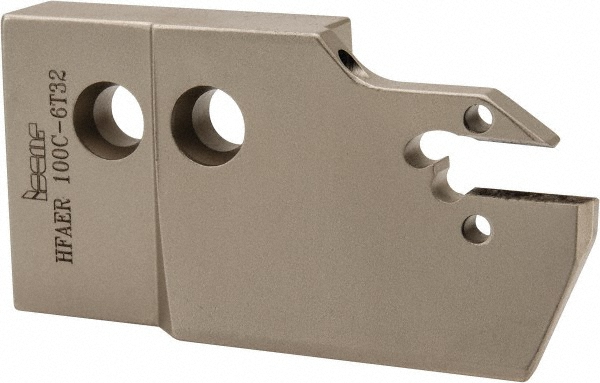

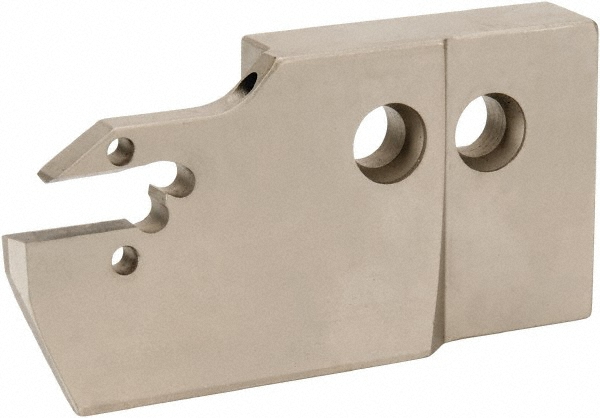

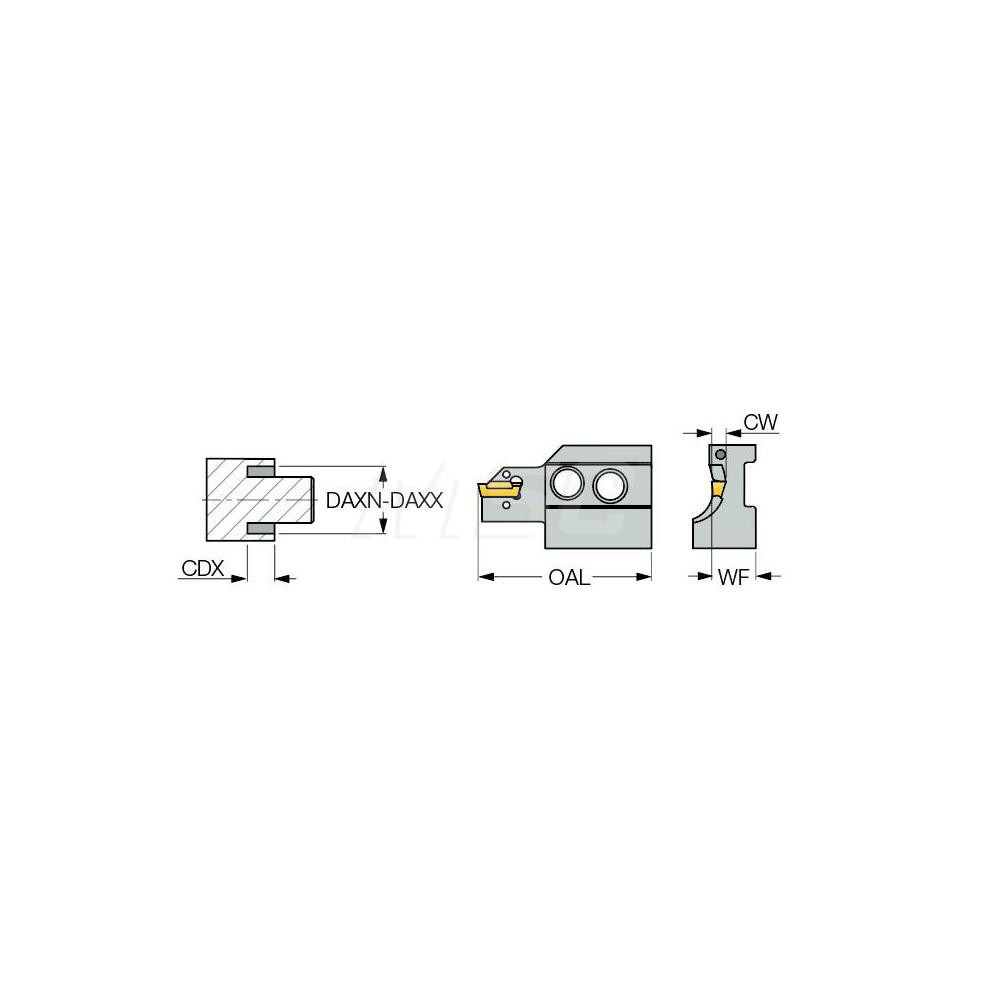

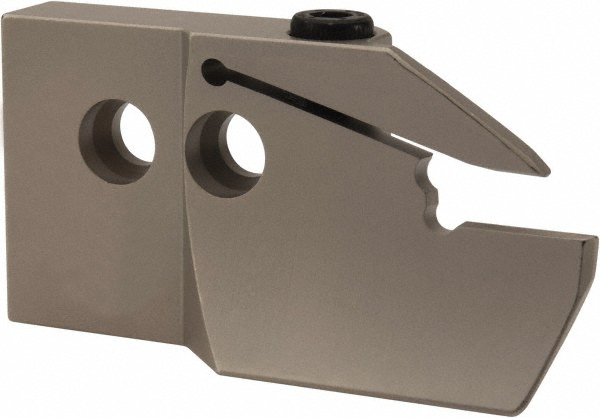

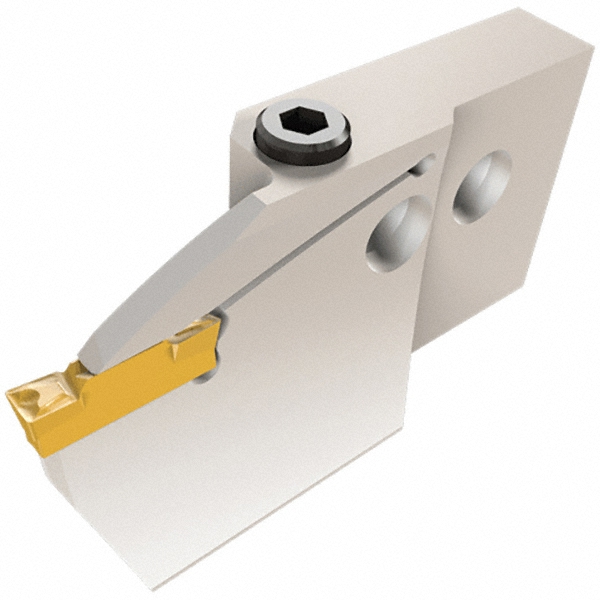

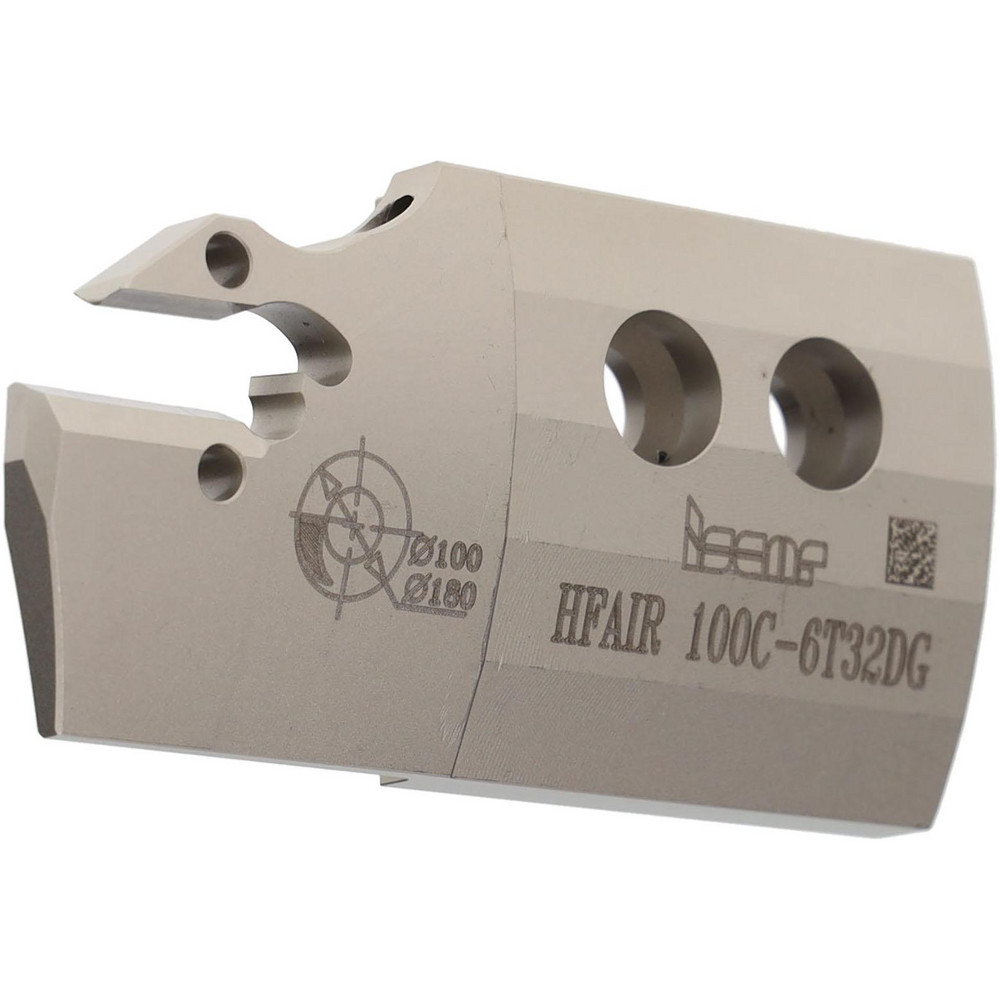

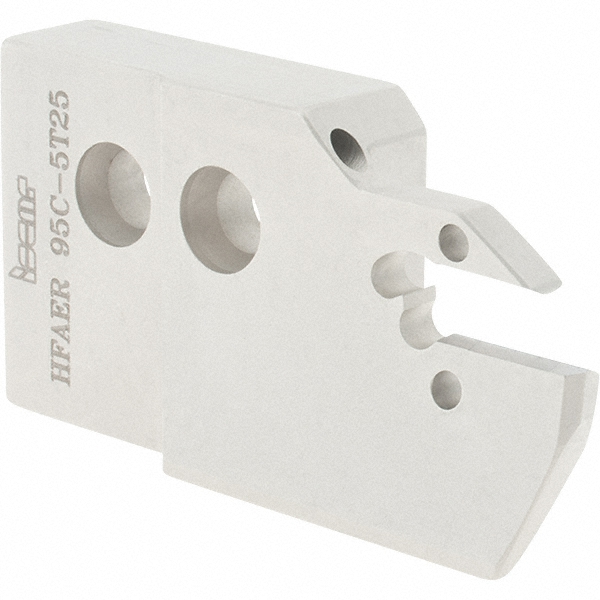

15.748" Max Workpiece Dia, Uses DGN/DGNC/DGNM-C, DGN/DGNM-J/JS/JT, DGN-UT/UA, DGN-W, GRIP, HFPR/L & HGPL Inserts
| Cutting Direction | Left Hand |
|---|---|
| Minimum Groove Width (Decimal Inch) | 0.2362 |
| Minimum Groove Width (mm) | 6.00 |
| Blade Style | HFAE |
| Blade Height (Decimal Inch) | 1.2600 |
| Blade Width (Decimal Inch) | 0.2040 |
| Maximum Depth of Cut (Decimal Inch) | 1.2598 |
| Maximum Depth of Cut (mm) | 32.00 |
| Minimum Workpiece Diameter (Decimal Inch) | 7.0866 |
| Minimum Workpiece Diameter (mm) | 180.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 15.7480 |
| Maximum Workpiece Diameter (mm) | 400.00 |
| Compatible Insert Style | HFPR/L; GRIP; DGN/DGNM-J/JS/JT; DGN-W; HGPL; DGN/DGNC/DGNM-C; DGN-UT/UA |
| Series | Heliface |
| Overall Length (mm) | 73.00 |
| Overall Length (Decimal Inch) | 2.8740 |
| Cutting Tool Application | Grooving; Turning; Parting |
| Standards | ISO 13399 |
| UNSPSC Code | 23241600 |
| Country of Origin | Israel |
| MSC Number | MSC# 52720182 |
