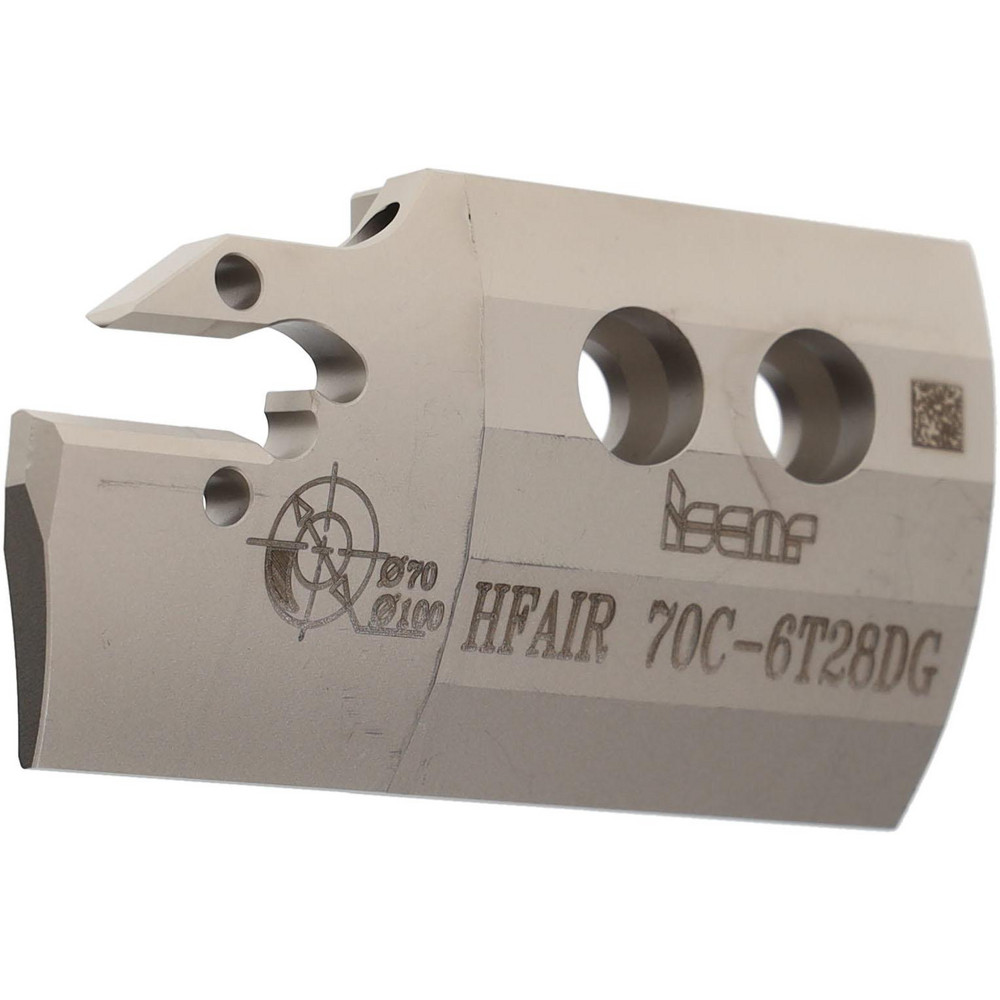

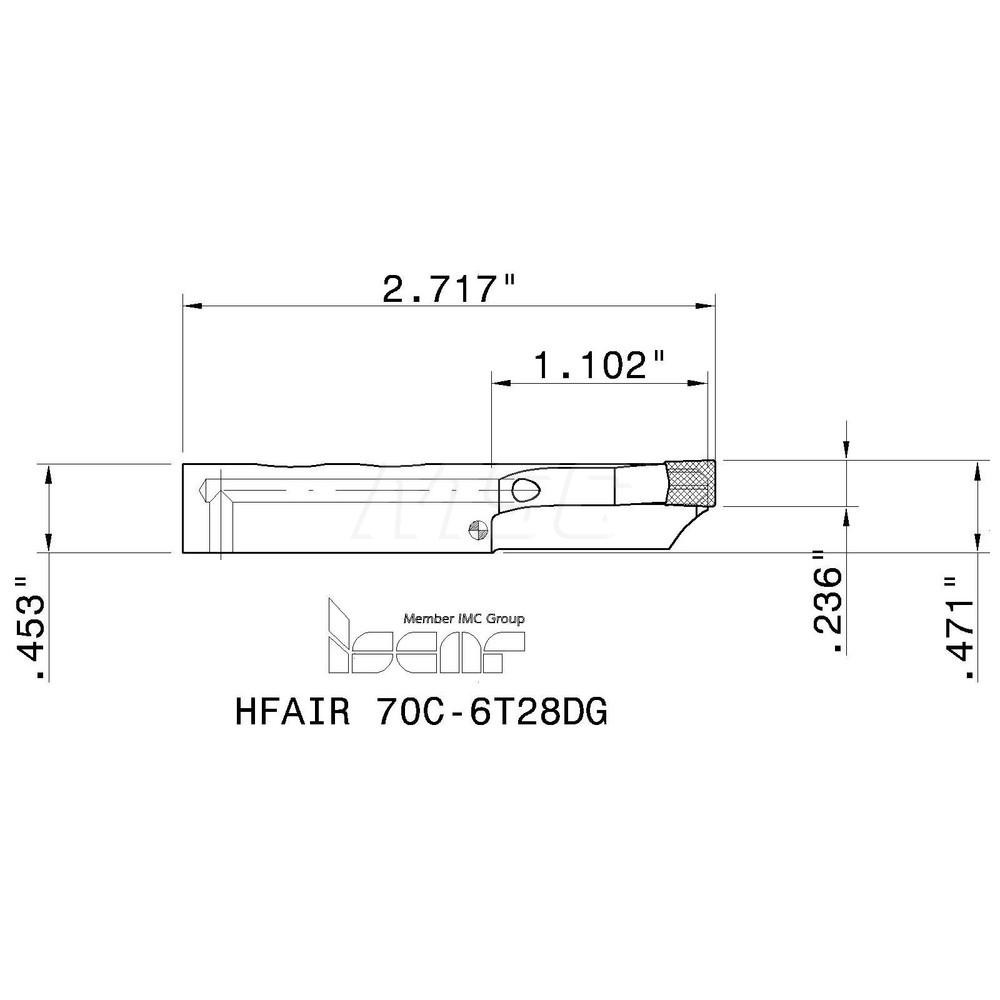

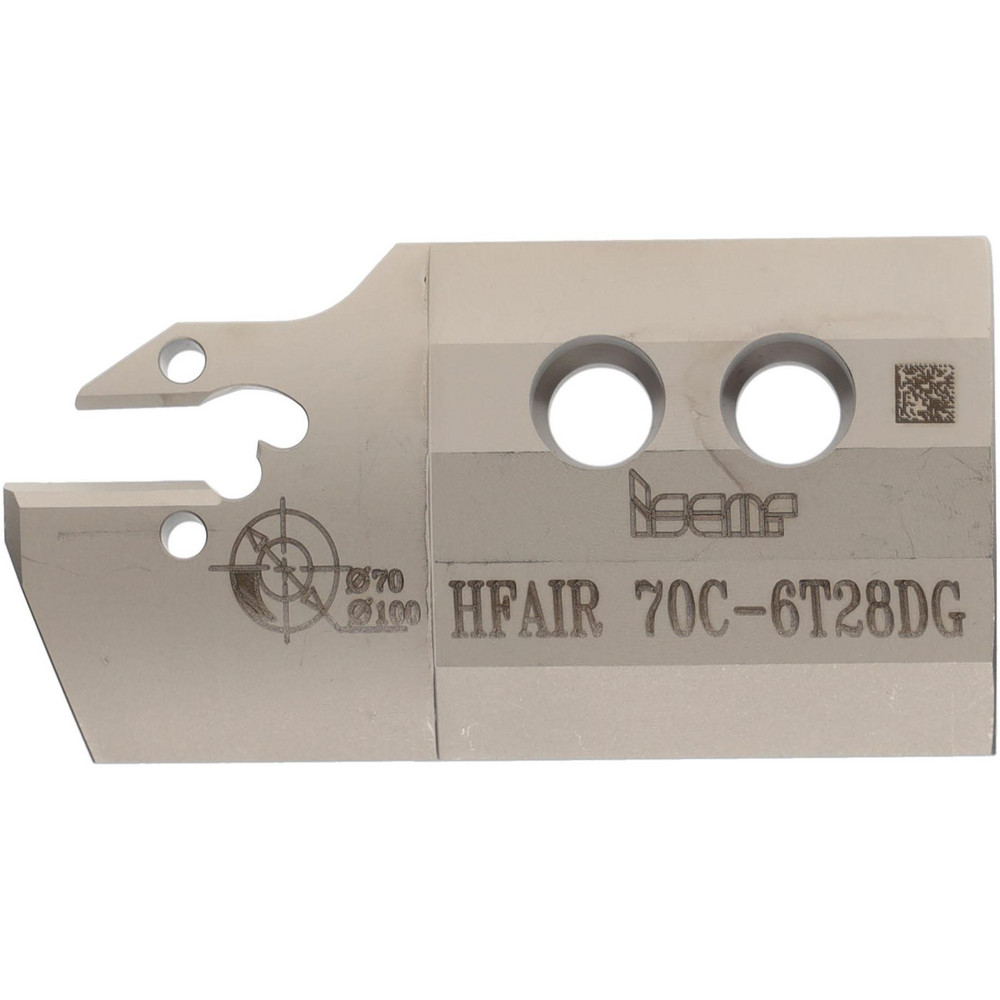

3.937" Max Workpiece Dia, Uses HFPR/L Inserts
| Cutting Direction | Right Hand |
|---|---|
| Minimum Groove Width (Decimal Inch) | 0.2362 |
| Minimum Groove Width (mm) | 6.00 |
| Blade Style | HFAI |
| Blade Height (Decimal Inch) | 1.2600 |
| Blade Width (Decimal Inch) | 0.2040 |
| Maximum Depth of Cut (Decimal Inch) | 1.1024 |
| Maximum Depth of Cut (mm) | 28.00 |
| Minimum Workpiece Diameter (Decimal Inch) | 2.7559 |
| Minimum Workpiece Diameter (mm) | 70.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 3.9370 |
| Maximum Workpiece Diameter (mm) | 100.00 |
| Compatible Insert Style | HFPR/L |
| Series | Heliface |
| Overall Length (mm) | 69.00 |
| Overall Length (Decimal Inch) | 2.7165 |
| Cutting Tool Application | Grooving; Turning; Parting |
| Standards | ISO 13399 |
| UNSPSC Code | 23241600 |
| Country of Origin | Israel |
| MSC Number | MSC# 52720505 |
