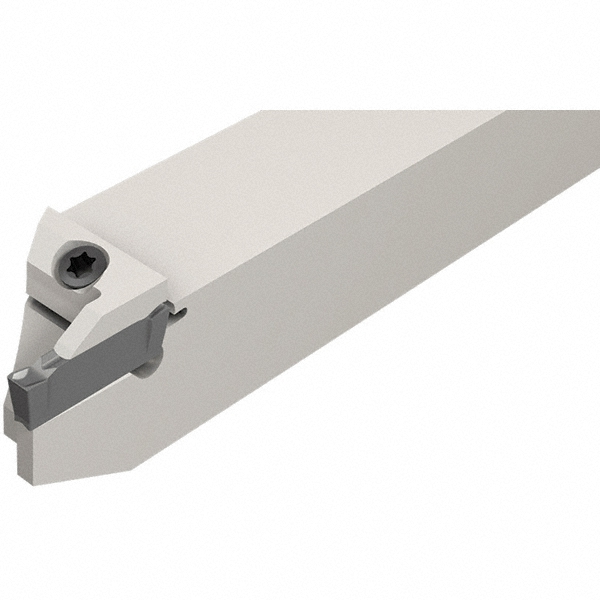

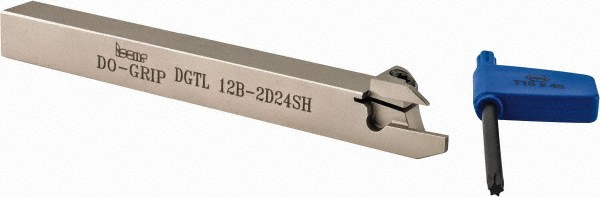

Uses DG.. Inserts, 12 x 12 mm Shank, Series Do-Grip
| Internal or External | External |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Groove Width (Decimal Inch) | 0.0591 |
| Maximum Groove Width (mm) | 1.50 |
| Minimum Groove Width (Decimal Inch) | 0.0394 |
| Minimum Groove Width (mm) | 1.00 |
| Toolholder Style | DGT |
| Insert Holding Method | Clamp |

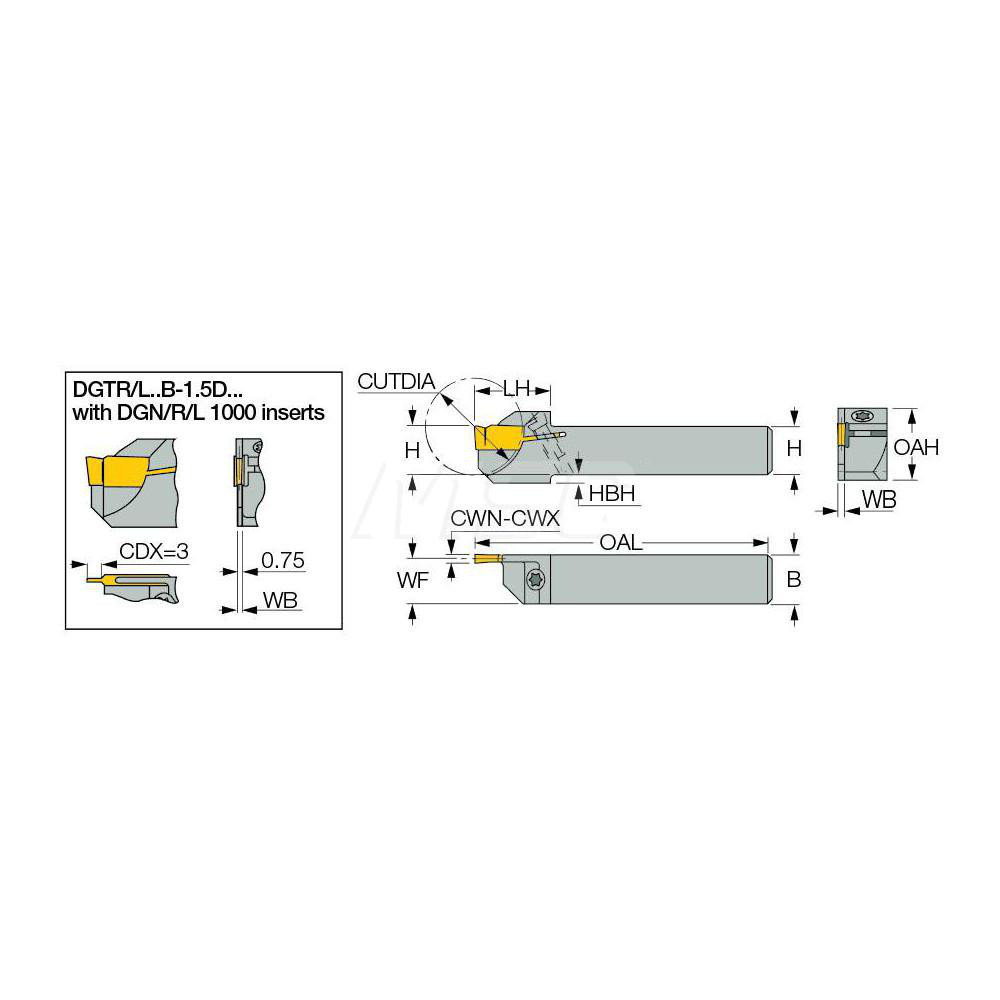

| Compatible Insert Size Code | DGR/L-J/JS; DGN/DGNM-J/JS/JT |
| Insert Compatibility | DG.. |
| Shank Height (mm) | 12.00 |
| Shank Height (Decimal Inch) | 0.4724 |
| Shank Length (mm) | 101.00 |
| Shank Width/Diameter (Decimal Inch) | 0.4724 |
| Shank Width/Diameter (mm) | 12.00 |
| Series | Do-Grip |

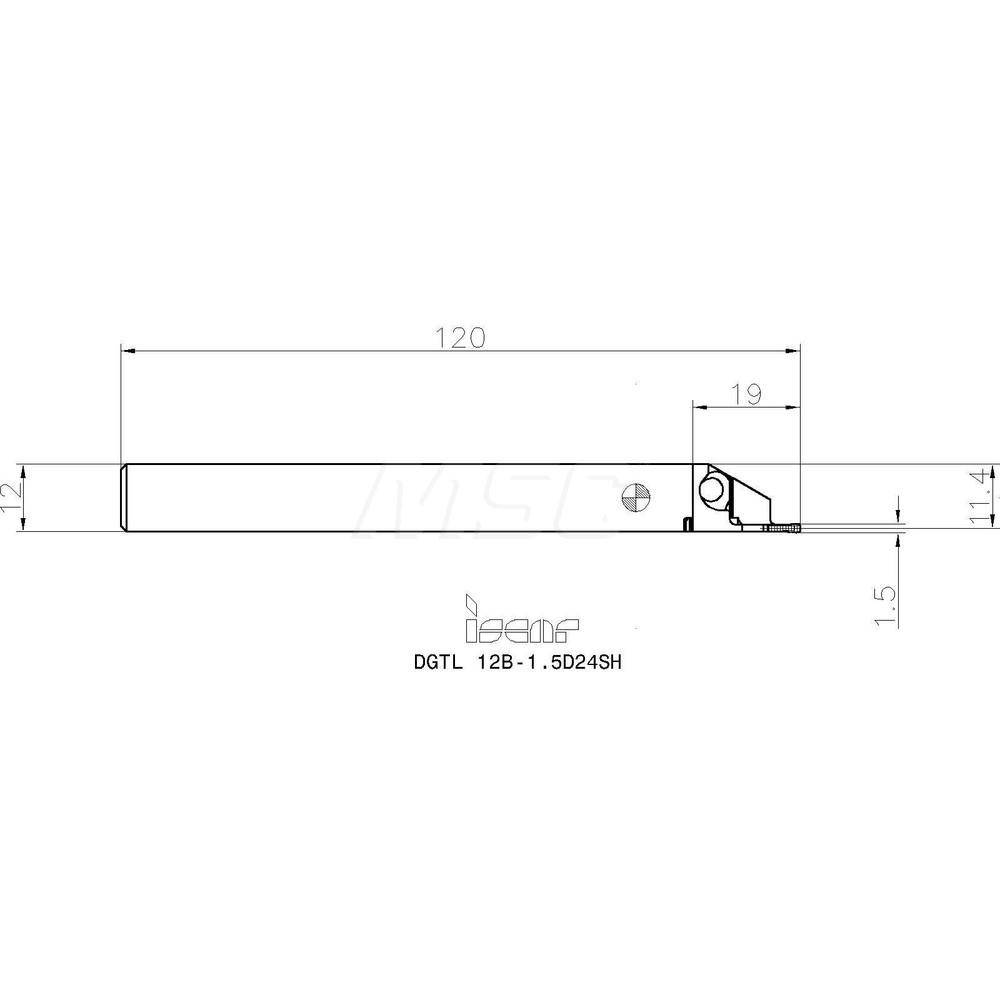

| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Cutting Tool Application | Grooving; Cut-Off |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4488 |
| Head Height (Decimal Inch) | 0.6181 |
| Head Height (mm) | 15.70 |
| Head Length (mm) | 19.00 |
| Standards | ISO 13399 |

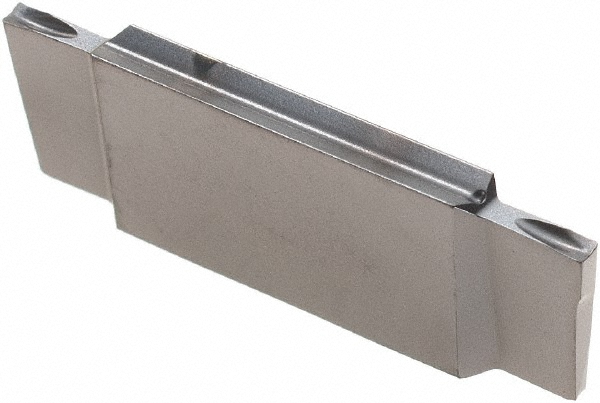

| Complete Insert Compatibility | DGR 1000P-15D; DGR 1500J-8D; DGN 1502J; DGR 1000P-6D; DGR 1001J-8D; DGN 1000P; DGR 1500P-15D; DGR 1500P-6D; DGN 1500P; DGL 1001J-8D; DGN 1002J |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 05414362 |
