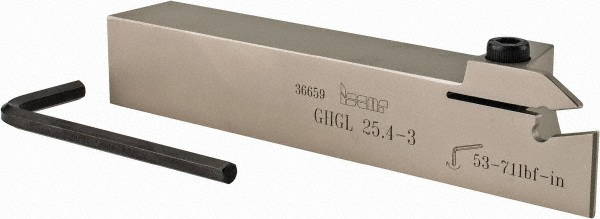

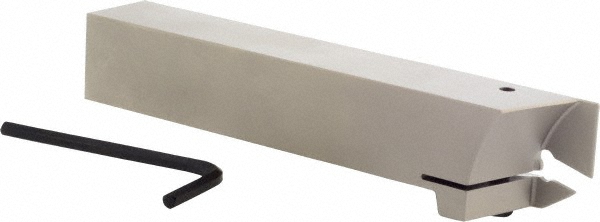

Uses GI.. Inserts, Series Cut Grip
| Internal or External | External |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Maximum Groove Width (Decimal Inch) | 0.2500 |
| Minimum Groove Width (Decimal Inch) | 0.1850 |
| Toolholder Style | GHG |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | GIPY; GIM-W-RA/LA; TIP-P-BSPT; GIF-E; GIMY-F; GIA-K; GIMF; GIM-UT-RA/LA; TIP-P-NPT; GIPM-A46 / GIP-1250; GIM-J; GIMN; TIP-P-UN; GIF; GIMT; GIM-C; GIP-E; GIMY; GIP; TIP-WT; GIM-J-RA/LA; GIPA; TIP-P-BSW; TIP-P-ISO; TIP-MT; GITM; GIM-W |
| Insert Compatibility | GI.. |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Length (Decimal Inch) | 5.4000 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Series | Cut Grip |
| Overall Length (Decimal Inch) | 7.0000 |
| Cutting Tool Application | Grooving; Cut-Off |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.1700 |
| Head Length (Decimal Inch) | 1.6000 |
| Standards | ISO 13399 |
| Complete Insert Compatibility | GIF 5.28-0.20; GIF 5.39-0.20; GIF 5.00E-0.60; GIF 5.00E-0.40; GIF 5.90-0.20; GIF 5.00E-0.80; GIMF 608; GIF 4.86-0.30; GIMF 508; GIM 6C; GIF 6.00E-0.40; GIM 5C; GIP 6.00-0.40; GIP 5.00-0.40; GIF 6.00E-0.80; GIP 6.00-0.80; GIMF 502; GIF 4.78-0.55; GIMF 605 |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | Israel |
| MSC Number | MSC# 60785649 |
