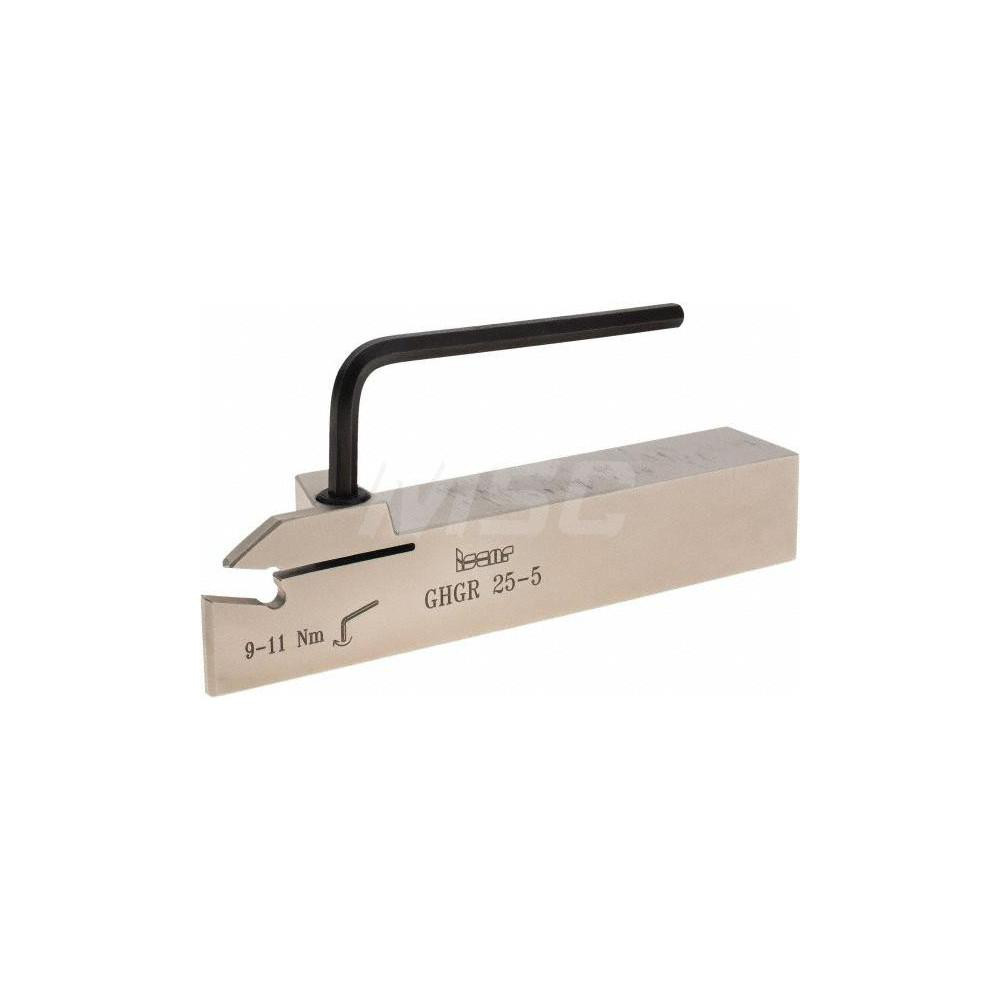

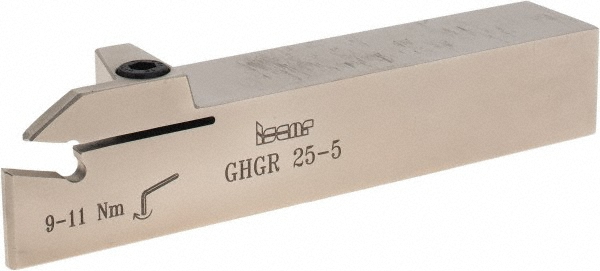

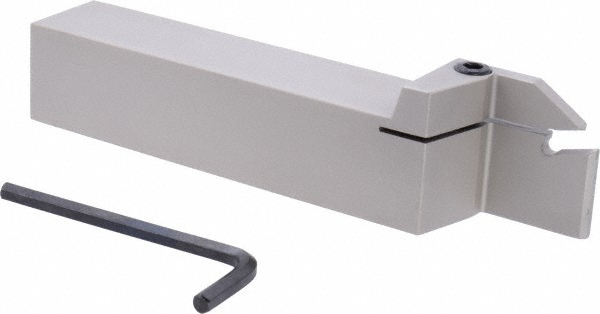

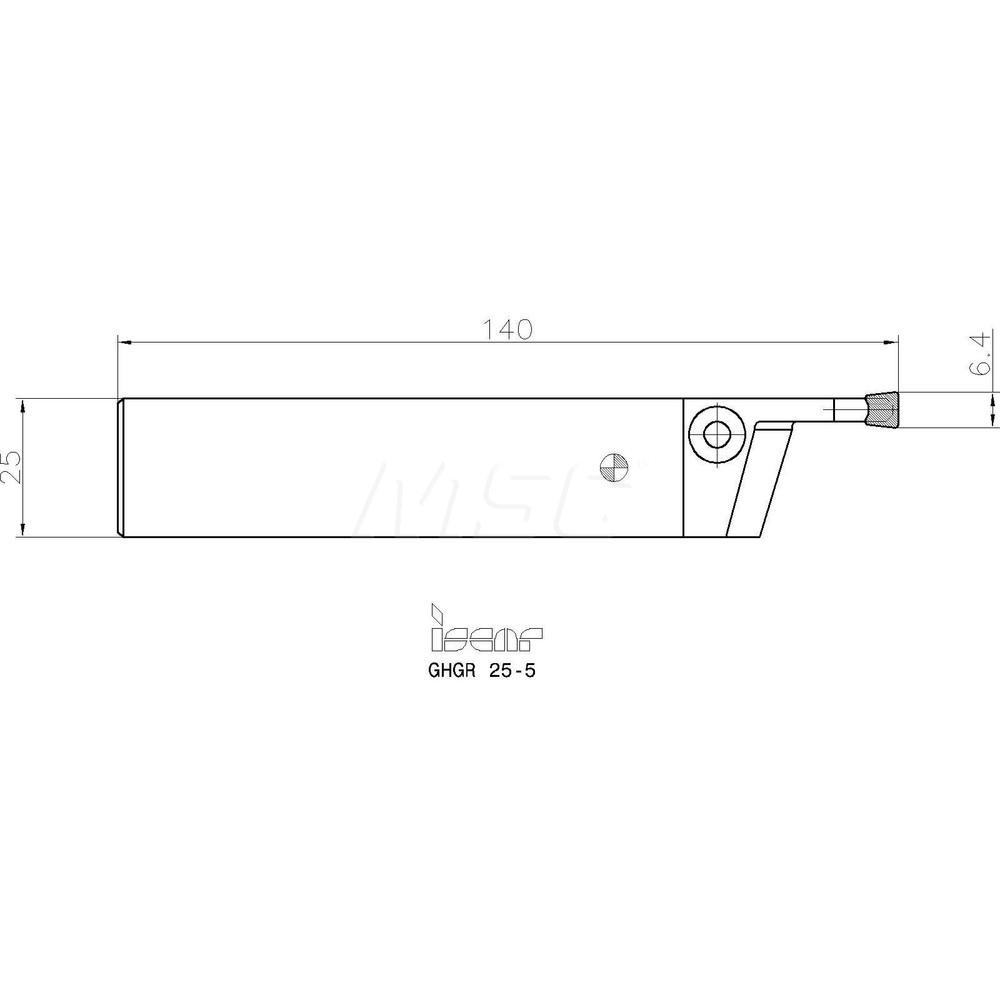

Uses GI.., TIP Inserts, 25 x 25 mm Shank, Series Cut Grip
| Internal or External | External |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Groove Width (mm) | 6.40 |
| Minimum Groove Width (mm) | 5.00 |
| Toolholder Style | GHG |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | GIPY; GIM-W-RA/LA; TIP-P-BSPT; GIF-E; GIMY-F; GIA-K; GIMF; GIM-UT-RA/LA; TIP-P-NPT; GIPM-A46 / GIP-1250; GIM-J; GIMN; TIP-P-UN; GIF; GIMT; GIM-C; GIP-E; GIMY; GIP; TIP-WT; GIM-J-RA/LA; GIPA; TIP-P-BSW; TIP-P-ISO; TIP-MT; GITM; GIM-W |
| Insert Compatibility | GI..; TIP |
| Shank Height (mm) | 25.00 |
| Shank Length (mm) | 99.00 |
| Shank Width/Diameter (mm) | 25.00 |
| Series | Cut Grip |
| Overall Length (mm) | 140.00 |
| Cutting Tool Application | Grooving; Cut-Off |
| Full Radius Insert | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9000 |
| Head Length (mm) | 41.00 |
| Standards | ISO 13399 |
| Complete Insert Compatibility | C..TBK..; IM..TBK..; SGT..; HS..TBK.. |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | Israel |
| MSC Number | MSC# 56242738 |
