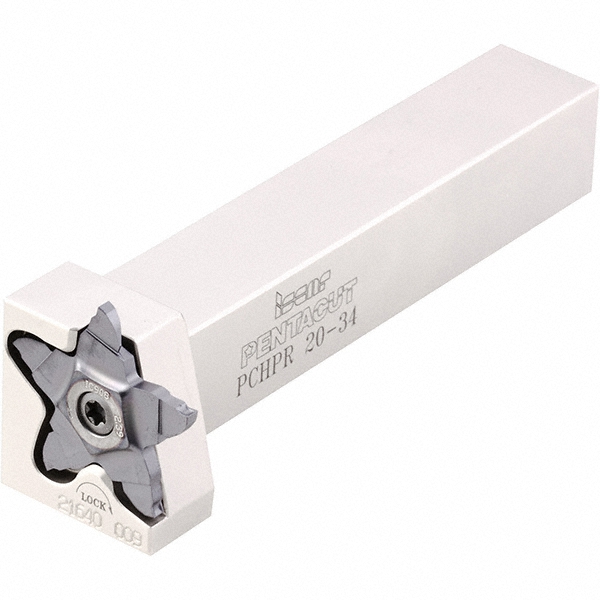

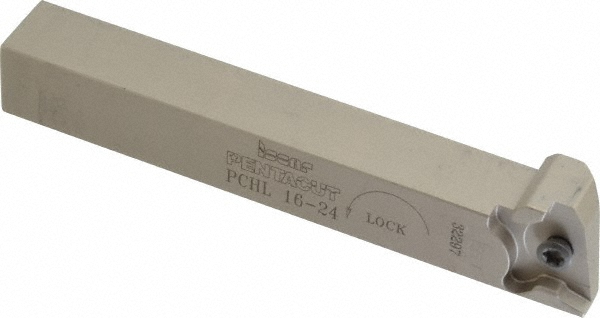

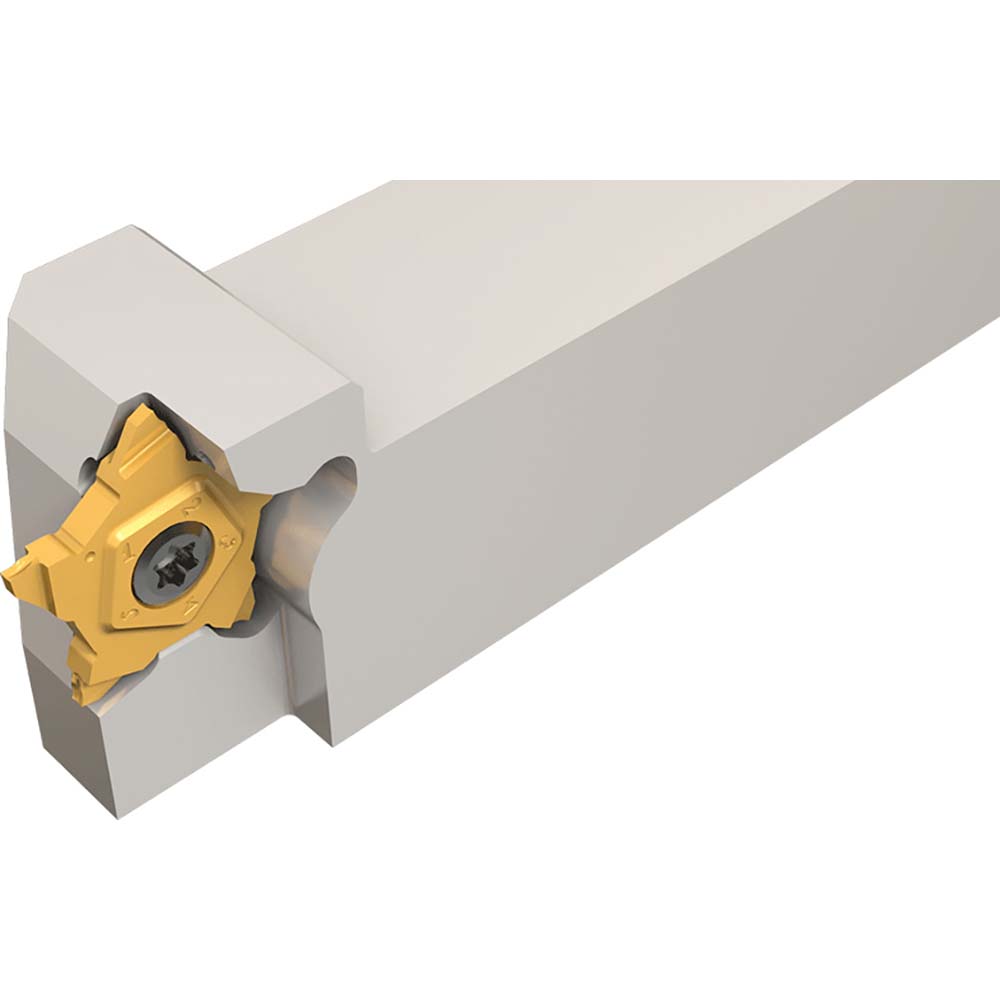

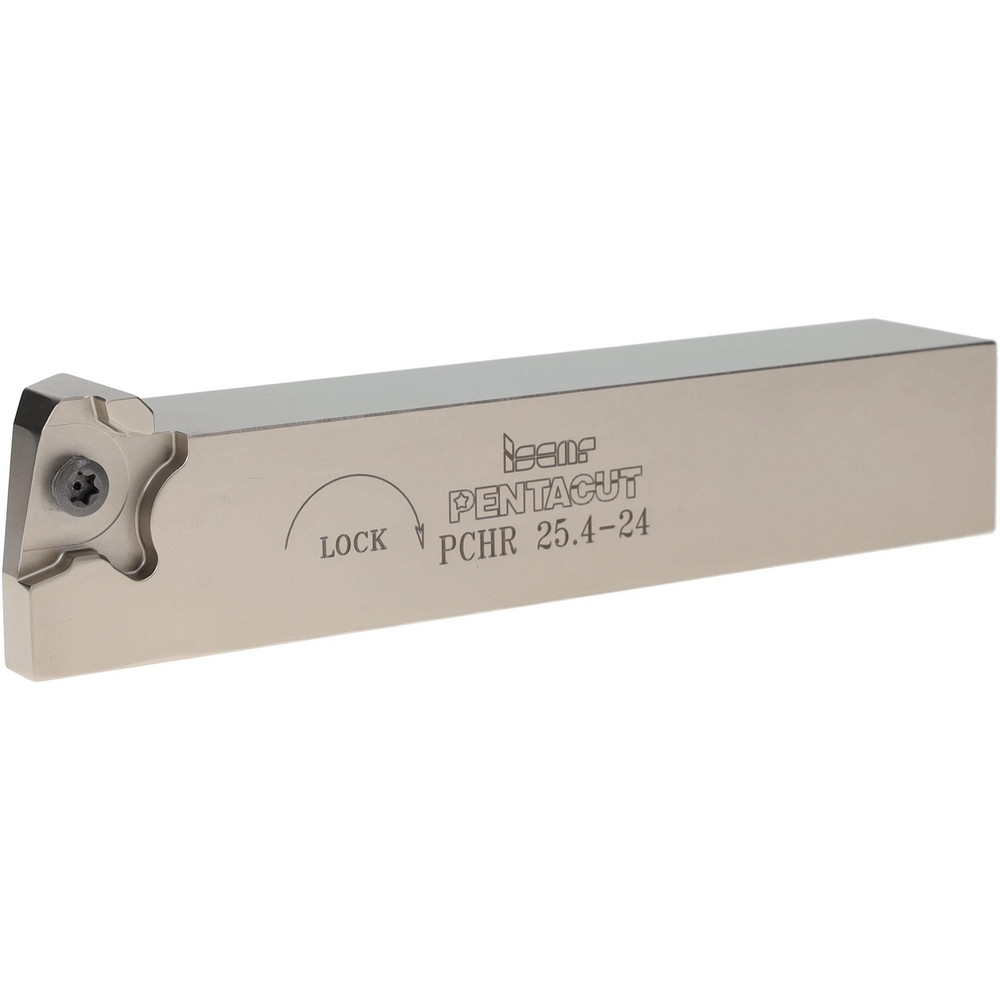

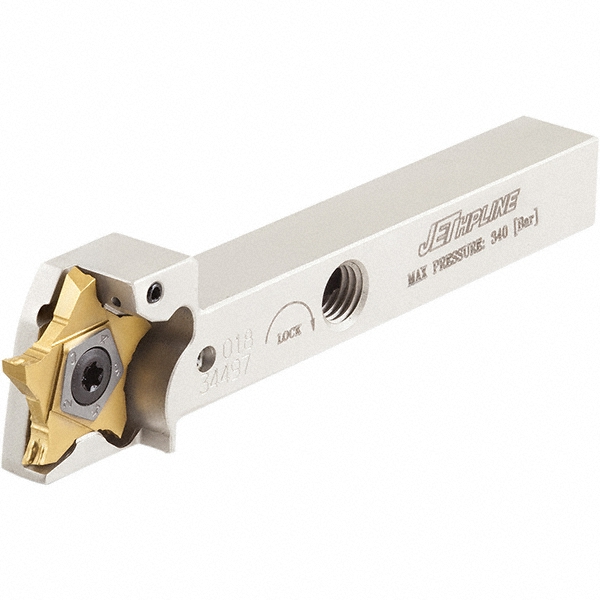

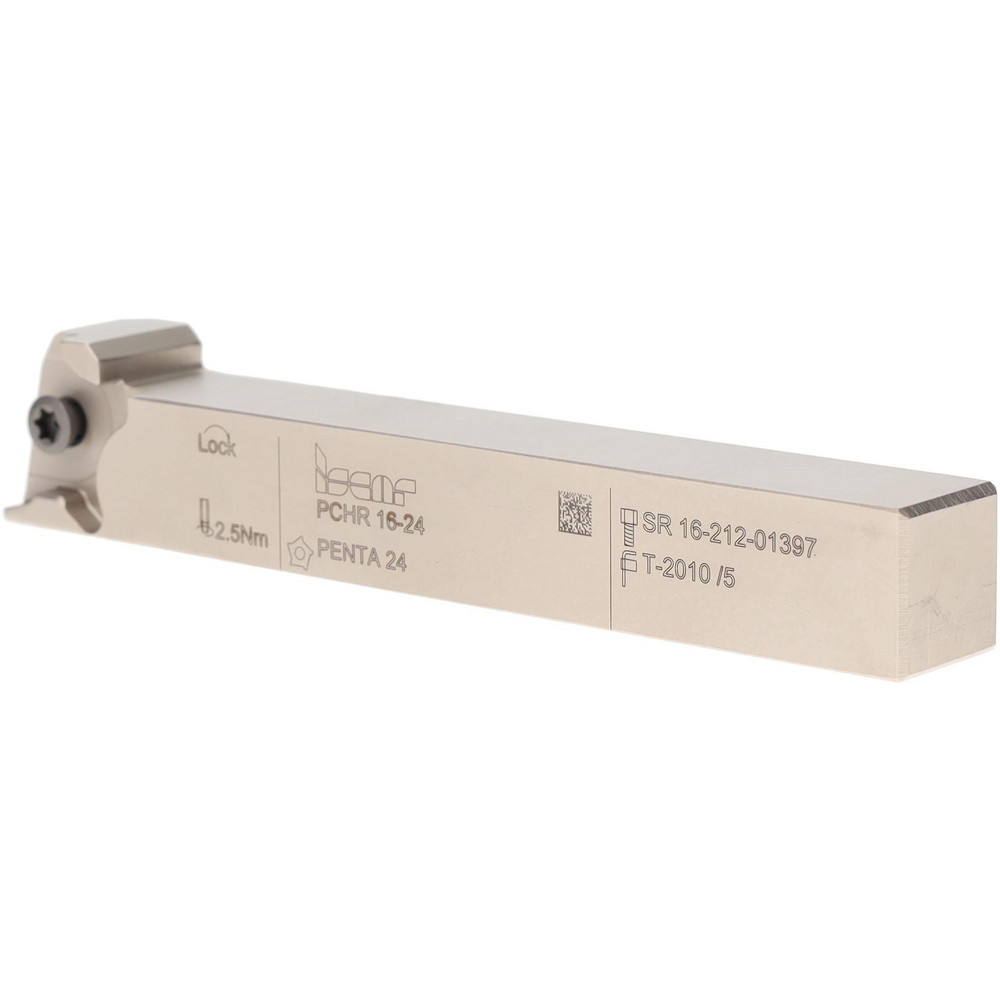

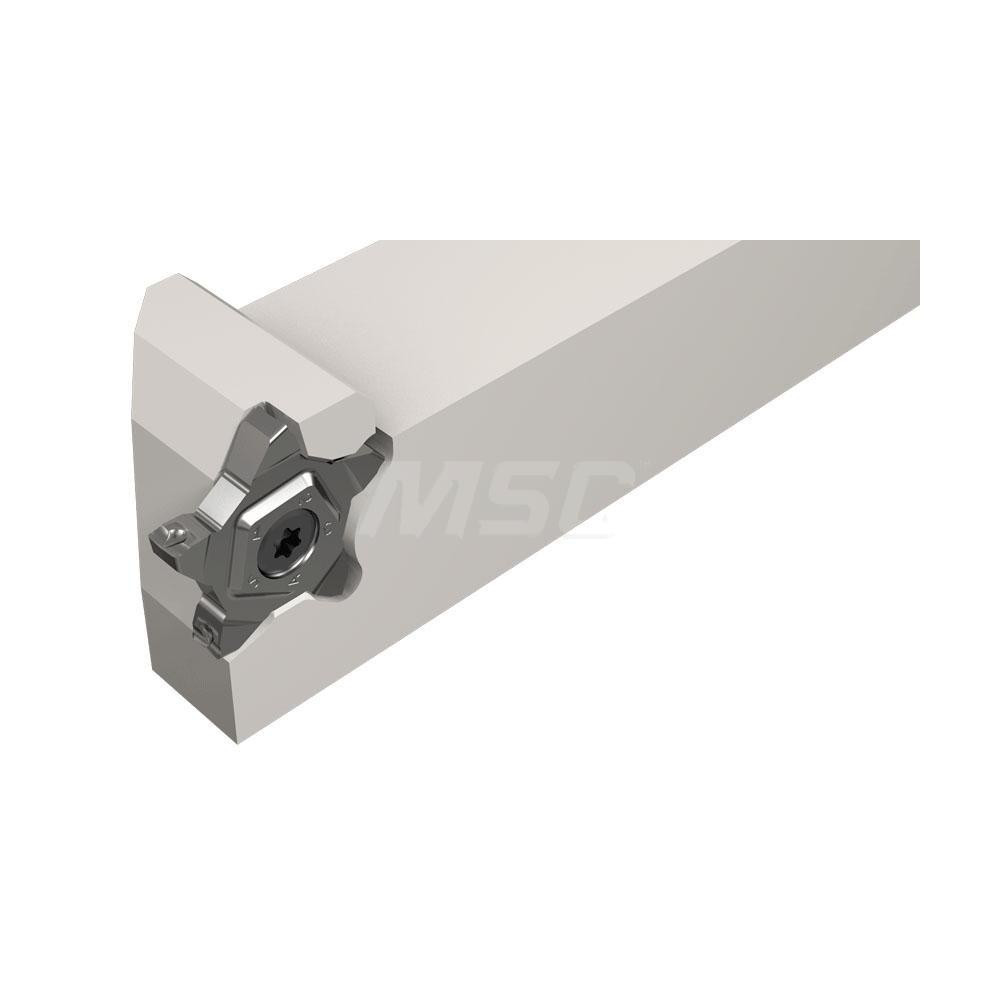

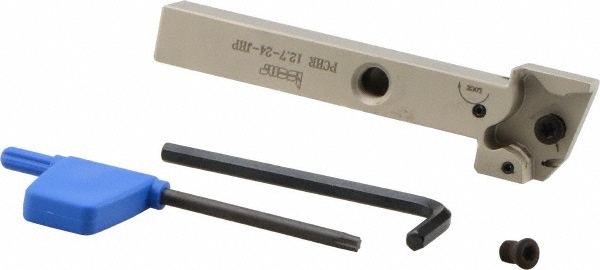

Uses PENTA 24.. Inserts, 16 x 16 mm Shank, Series PentaCut
| Internal or External | External |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2560 |
| Maximum Depth of Cut (mm) | 6.50 |
| Maximum Groove Width (Decimal Inch) | 0.1260 |
| Maximum Groove Width (mm) | 3.20 |
| Minimum Groove Width (Decimal Inch) | 0.0197 |
| Minimum Groove Width (mm) | 0.50 |
| Toolholder Style | PCHP |

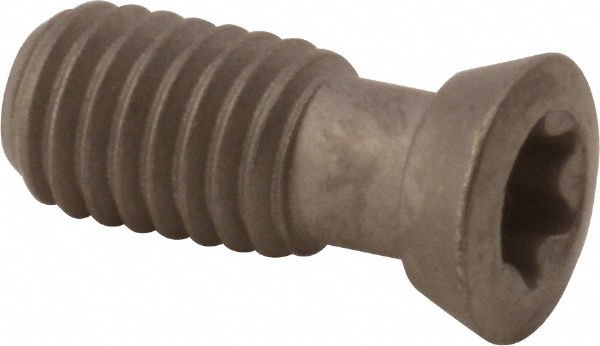

| Insert Holding Method | Screw |
| Compatible Insert Size Code | PENTA 34N-PB; PENTA 34R/L-J; PENTA 34F-R/L; PENTA 34N-J; PENTA 34N-C; PENTA 34R/L-C; PENTA 34R/L-PB |
| Insert Compatibility | PENTA 24.. |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6300 |
| Shank Length (mm) | 108.50 |
| Shank Length (Decimal Inch) | 4.2717 |
| Shank Width/Diameter (Decimal Inch) | 0.6300 |
| Shank Width/Diameter (mm) | 16.00 |
| Series | PentaCut |
| Overall Length (mm) | 120.00 |
| Overall Length (Decimal Inch) | 4.7244 |
| Cutting Tool Application | Grooving; Cut-Off |
| Full Radius Insert | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.0600 |
| Head Length (Decimal Inch) | 0.4528 |
| Head Length (mm) | 11.50 |
| Standards | ISO 13399 |
| Complete Insert Compatibility | PENTA 24N-PF; PENTA 24N-J; PENTA 24N-Z; PENTA 24N-J (Full Radius); PENTA 24R/L-J; PENTA 24R/L-Z |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 45375722 |
