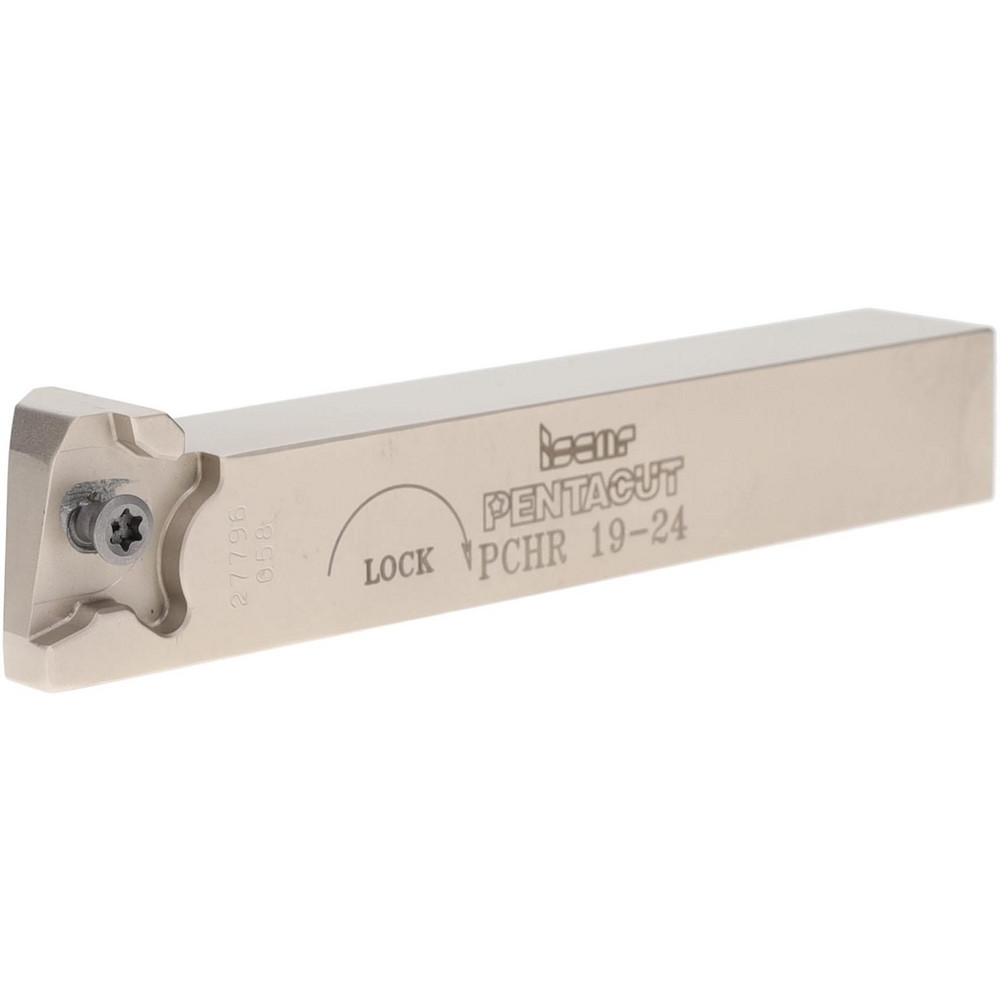

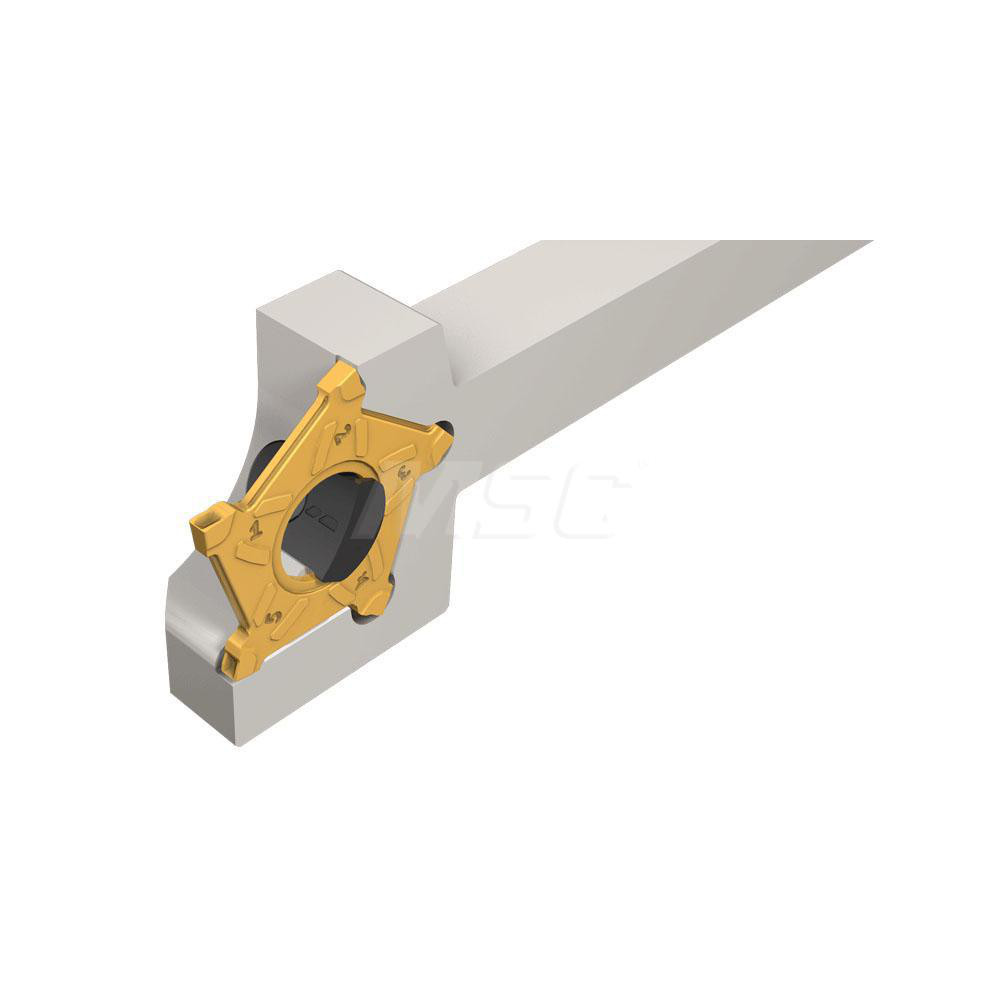

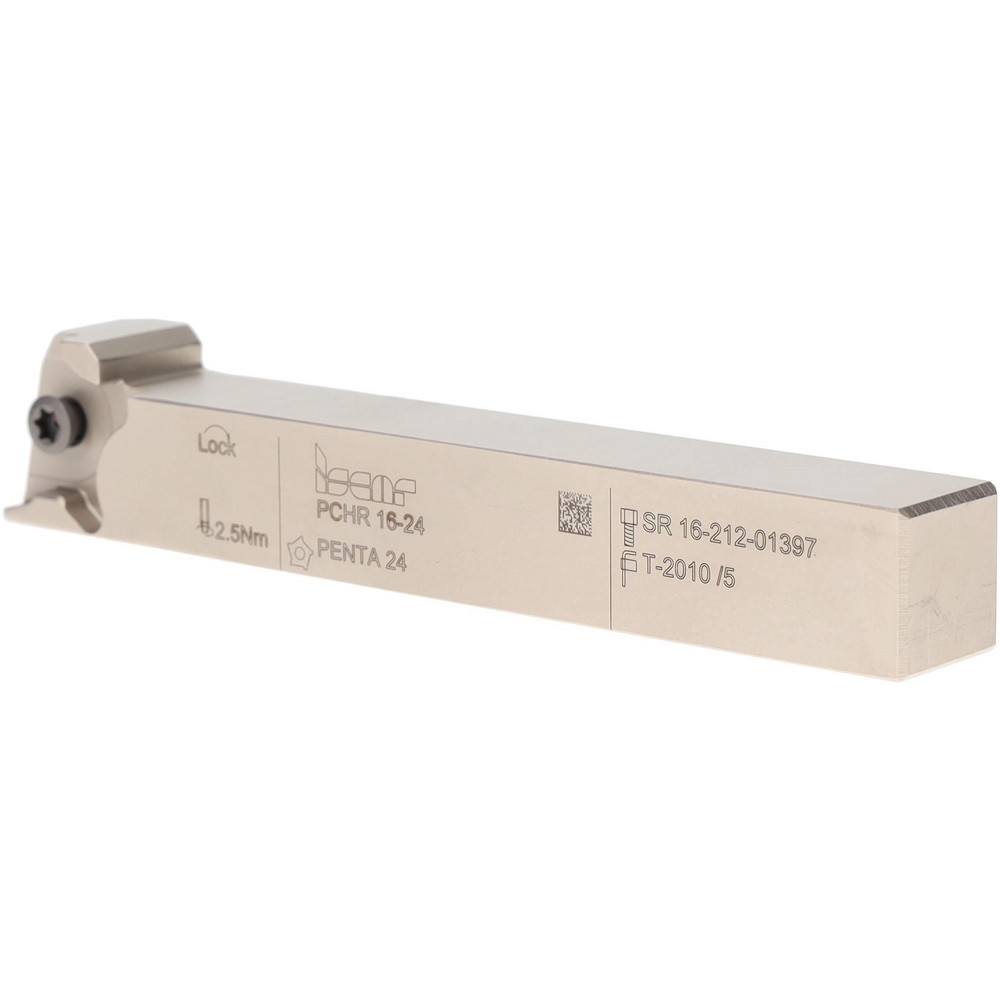

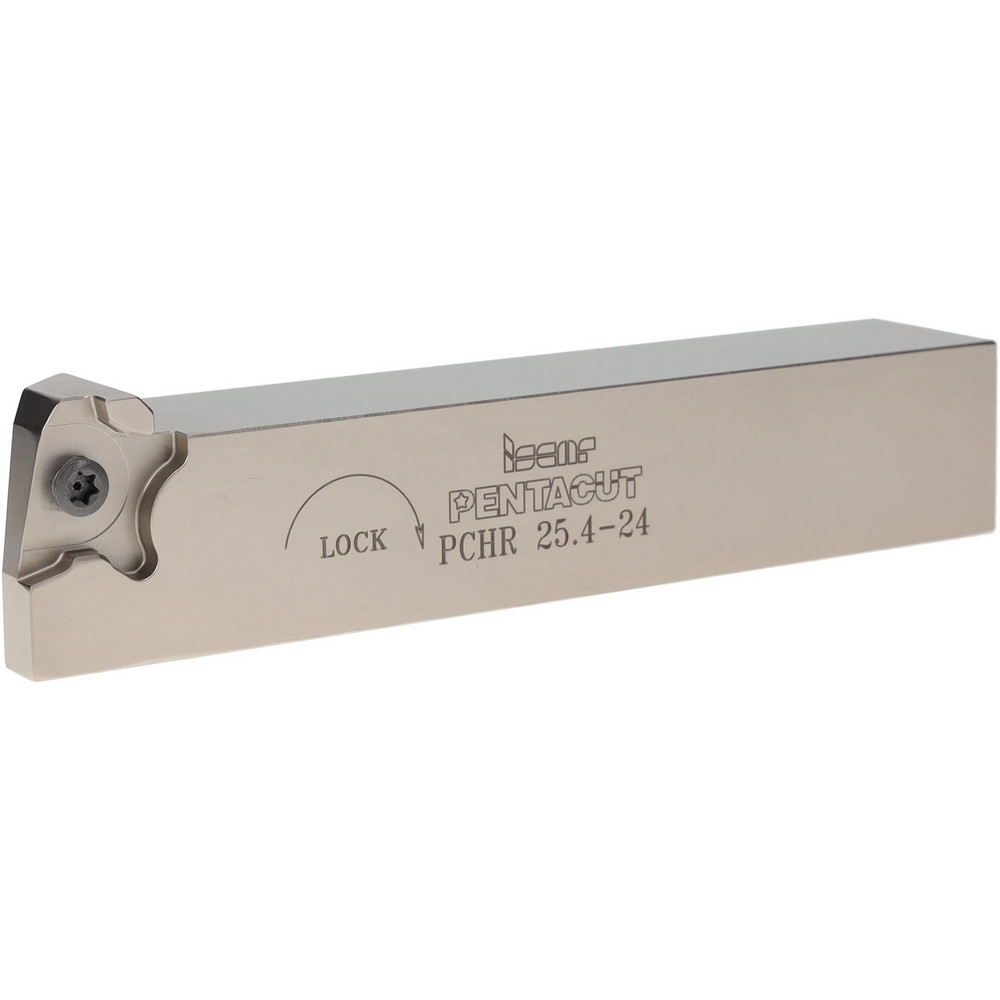

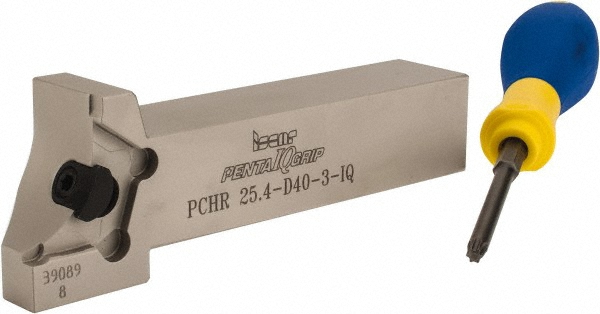

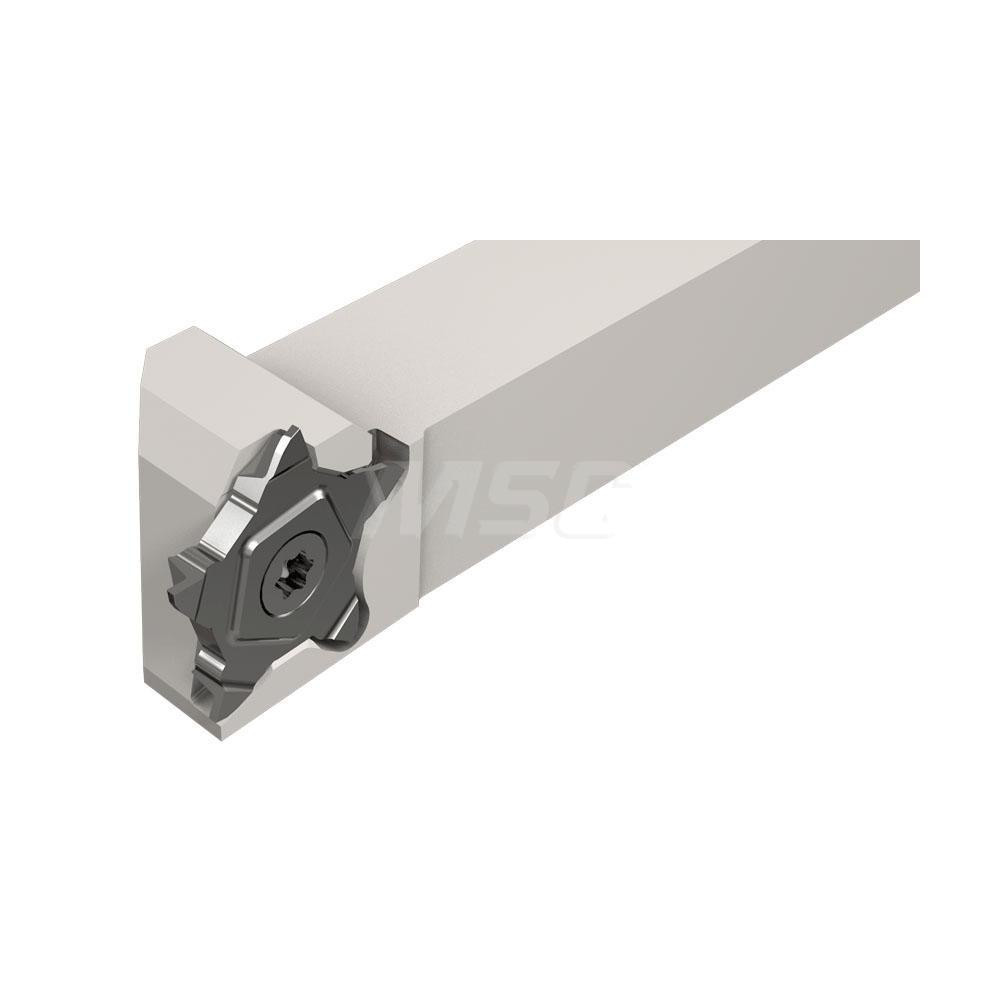

Uses PENTA D40... Inserts, Series PentaCut
| Internal or External | External |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Minimum Groove Width (mm) | 3.00 |
| Toolholder Style | PCH |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | PMN D-PB; PENTA D-N-C; PMN D-C; PENTA D-N-PB; PENTA D-R/L-C; PENTA D-R/L-PB |
| Insert Compatibility | PENTA D40... |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Inch) | 3/4 |
| Series | PentaCut |

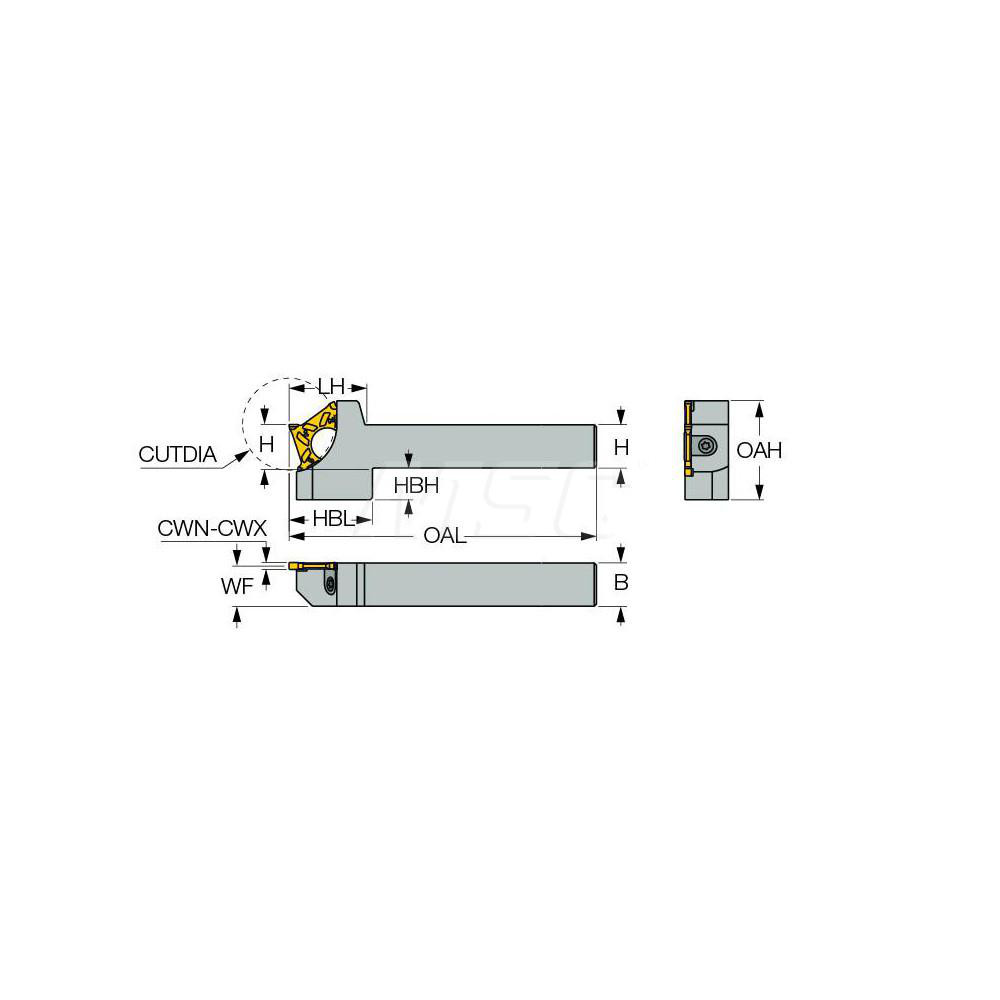

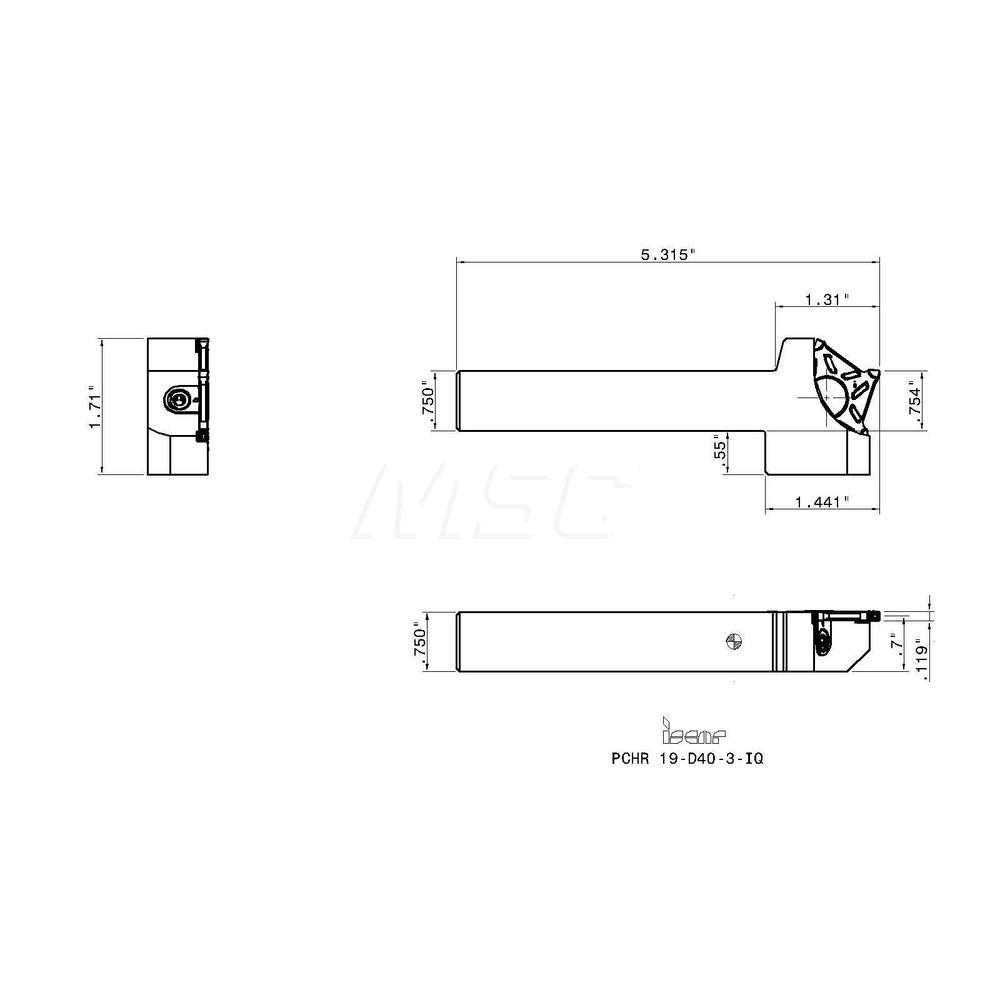

| Overall Length (Decimal Inch) | 5.3150 |
| Cutting Tool Application | Grooving; Cut-Off |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7000 |
| Head Height (Decimal Inch) | 1.7100 |
| Head Length (Decimal Inch) | 1.3100 |
| Standards | ISO 13399 |
| Complete Insert Compatibility | PENTA D-N-C; PENTA D-R/L-C |

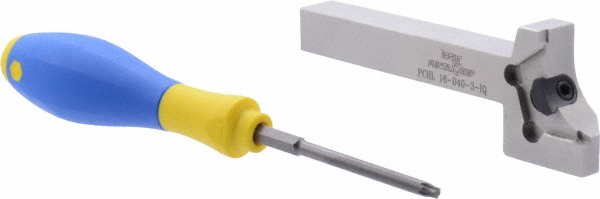

| MSC/Manufacturer Number | PCHR/L 16-D40-3-IQ |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 87640934 |
