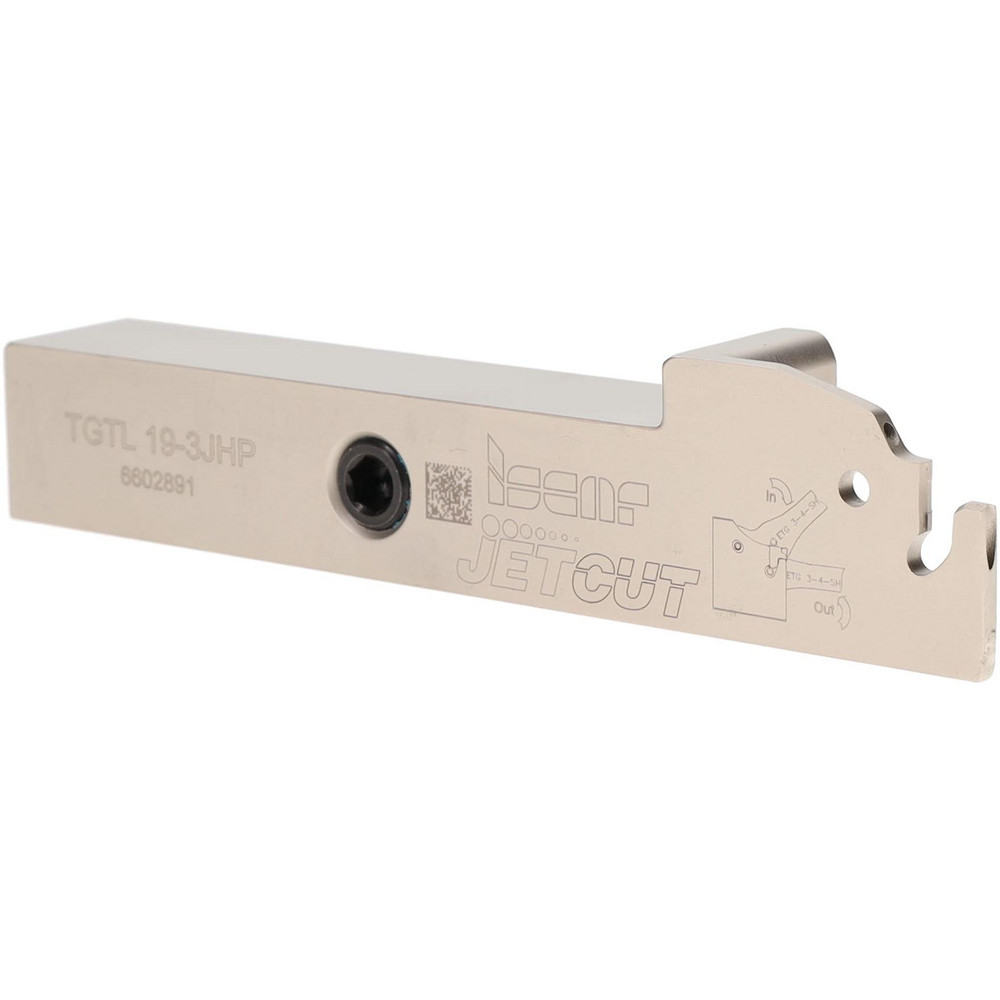

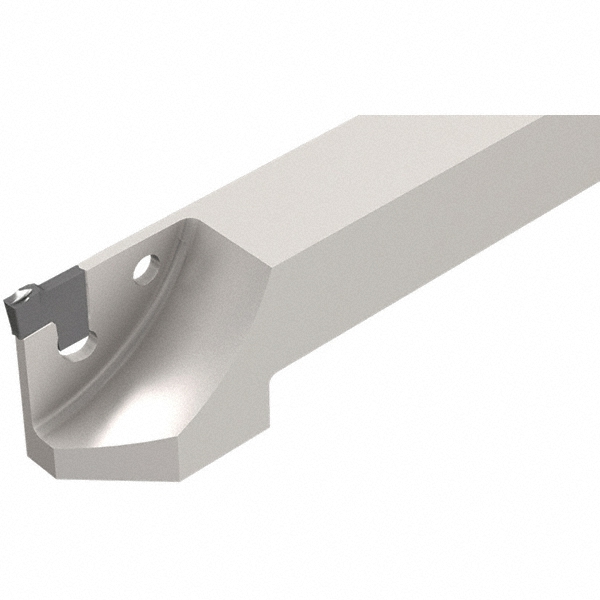

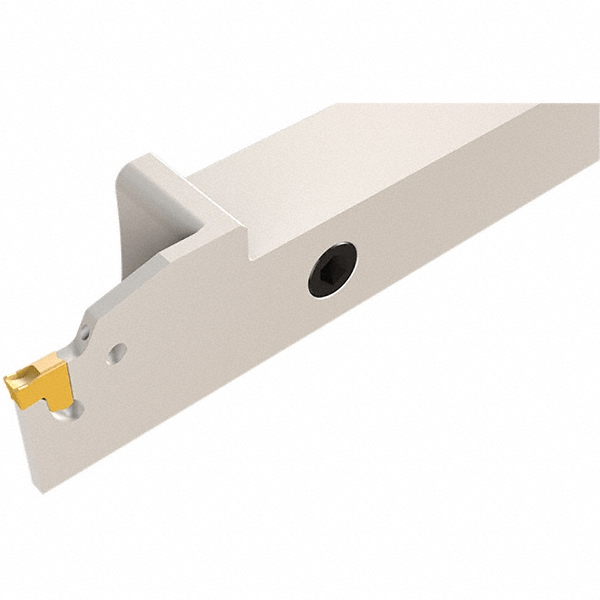

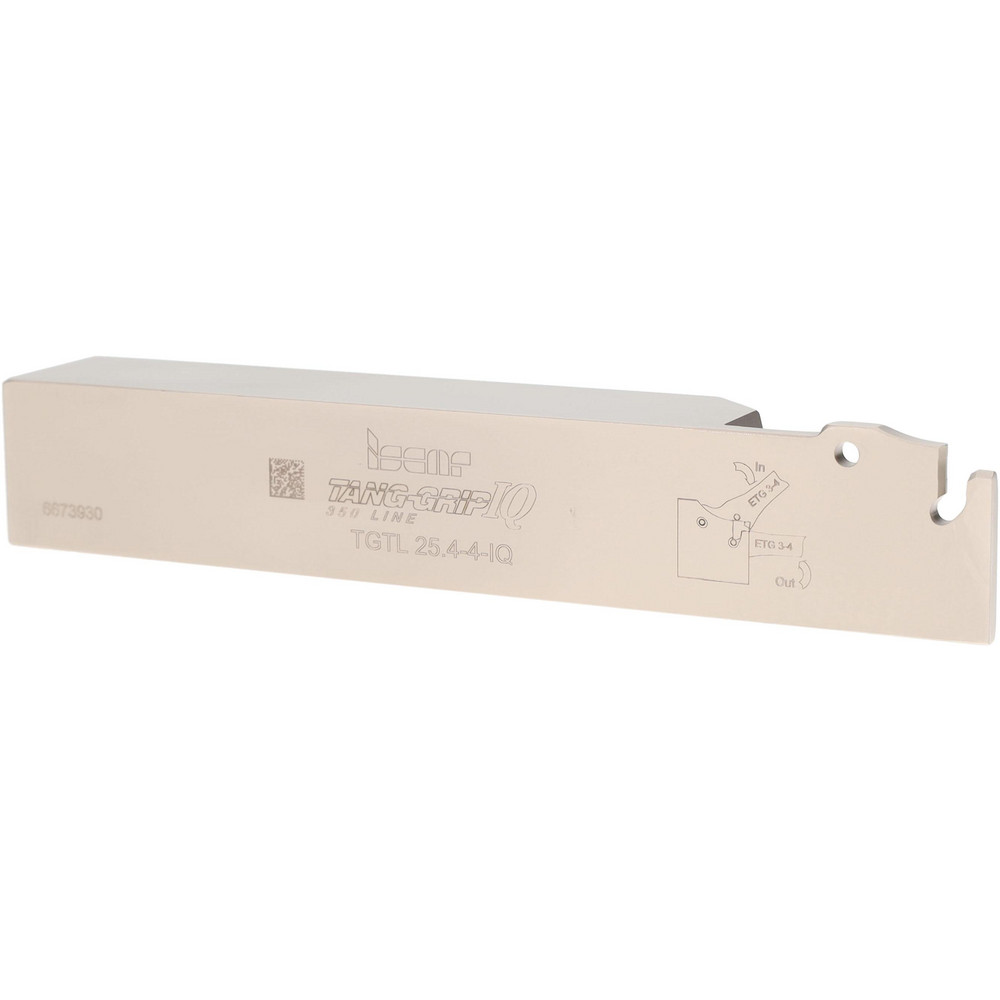

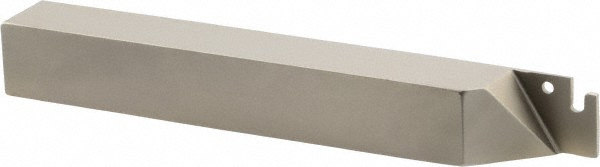

Uses TAG Inserts, Through Coolant, Series Tang-Grip
| Internal or External | External |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.8748 |
| Maximum Depth of Cut (mm) | 22.22 |
| Maximum Groove Width (Decimal Inch) | 0.1770 |
| Maximum Groove Width (mm) | 4.50 |
| Minimum Groove Width (Decimal Inch) | 0.1457 |
| Minimum Groove Width (mm) | 3.70 |
| Toolholder Style | TGT |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | TAG N-A; TAG N-UT; TAG N-C/W/M; TAG N-HF; TAG N-MF; TAG N-LF; TAG N-J/JS/JT; TAG R/L-J/JS; TAG R/L-C |
| Insert Compatibility | TAG |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Length (Decimal Inch) | 4.5300 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Inch) | 3/4 |
| Series | Tang-Grip |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Cutting Tool Application | Grooving; Cut-Off |
| Head Height (Decimal Inch) | 1.0300 |
| Head Length (Decimal Inch) | 1.3800 |
| Standards | ISO 13399 |
| Complete Insert Compatibility | TAG N-A; TAG N-UT; TAG N-C/W/M; TAG N-J/JS/JT; TAG R/L-J/JS; TAG R/L-C |
| Coolant Through | Yes |
| UNSPSC Code | 23153308 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 45375482 |
