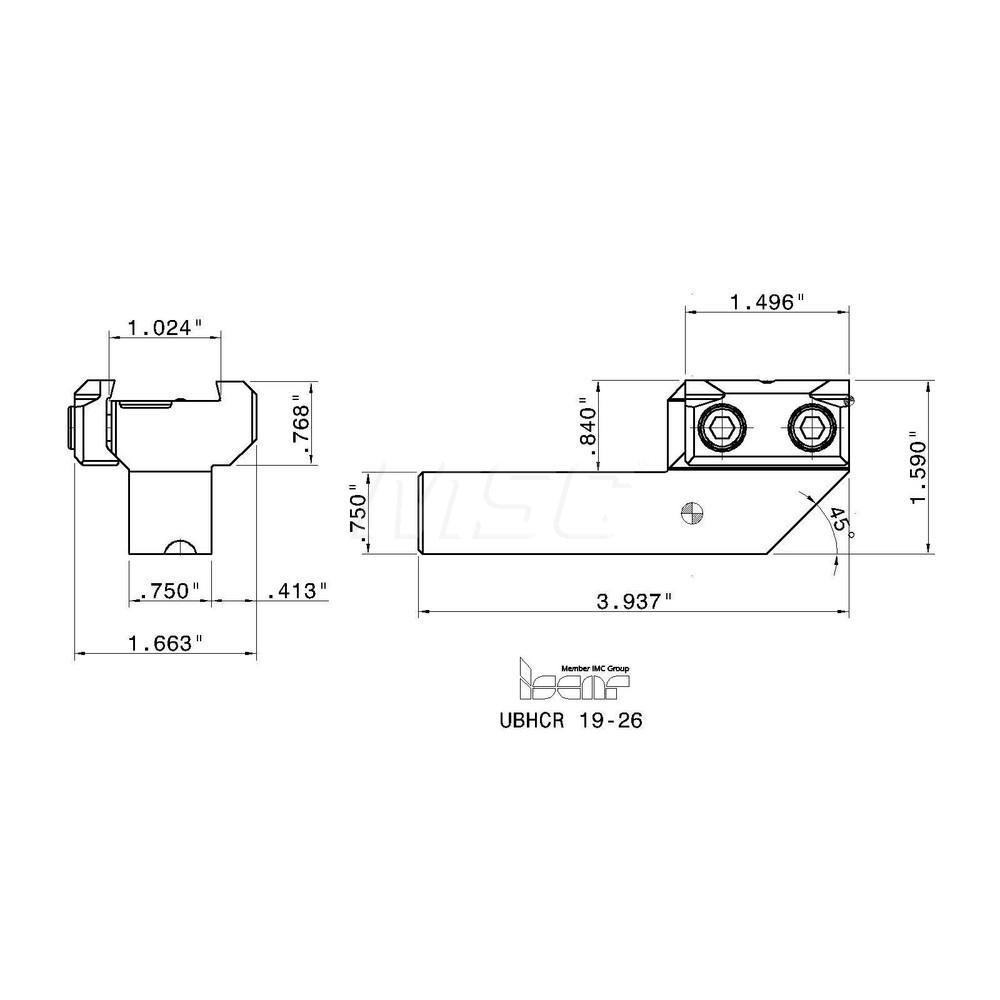

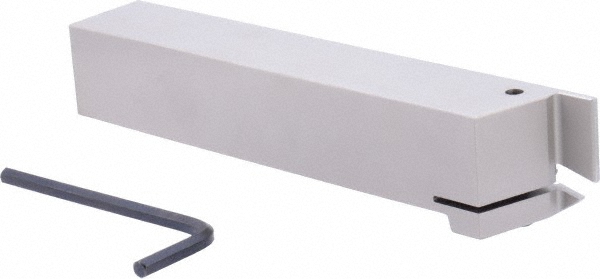

Uses GI.. Inserts, Series Cut Grip
| Hand of Holder | Right Hand |
|---|---|
| Toolholder Style | UBHC |
| Insert Holding Method | Clamp |
| Insert Compatibility | GI.. |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Inch) | 3/4 |
| Series | Cut Grip |
| Overall Length (Decimal Inch) | 3.9370 |
| Cutting Tool Application | Grooving; Cut-Off |
| Full Radius Insert | No |
| Head Height (Decimal Inch) | 1.4200 |
| Standards | ISO 13399 |
| Complete Insert Compatibility | GIF 3.98-0.20; GIF 3.74-0.20; GIF 4.00E-0.60; GIF 4.00E-0.80; GIF 4.00E-0.40; GIM 3; GIM 4C; GIM 3C; GIM 4; GIM 3.2; GIM 4J; GIF 3.48-0.20; GIM 3J; GIF 3.56-0.20 |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 60789021 |
