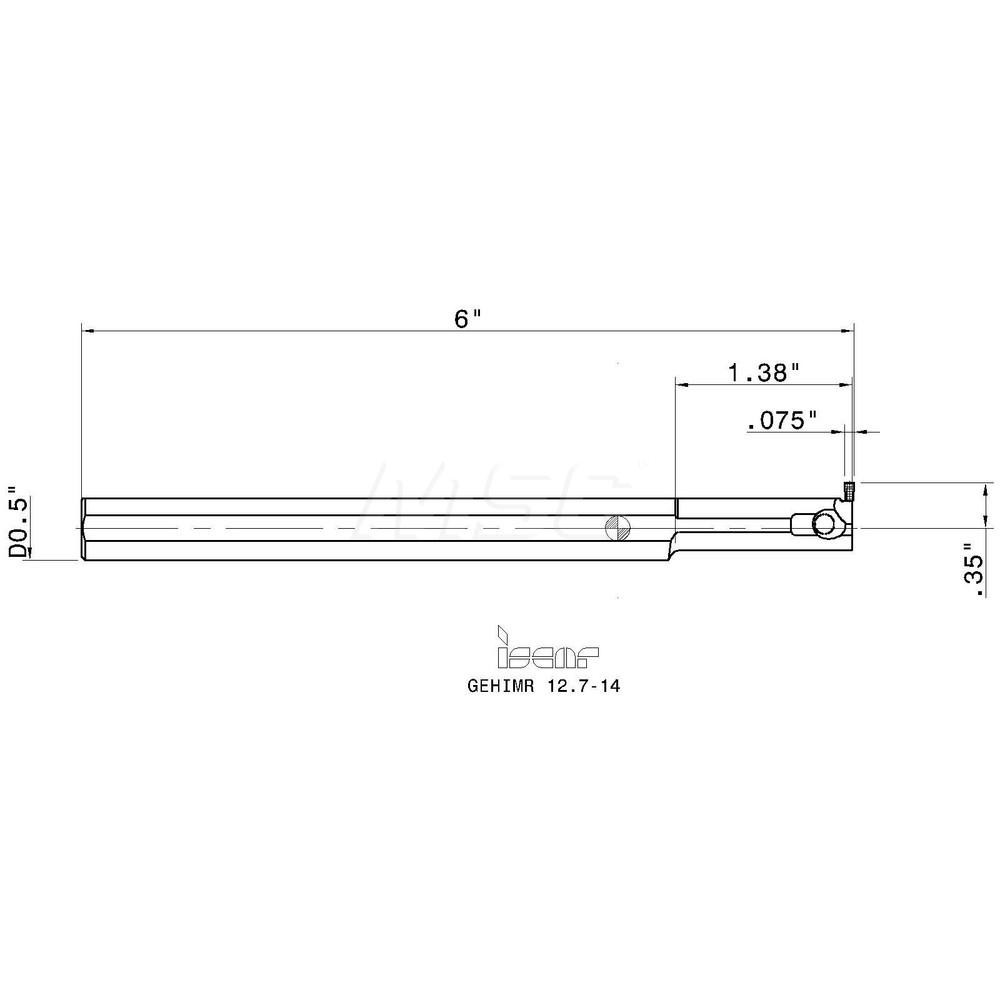

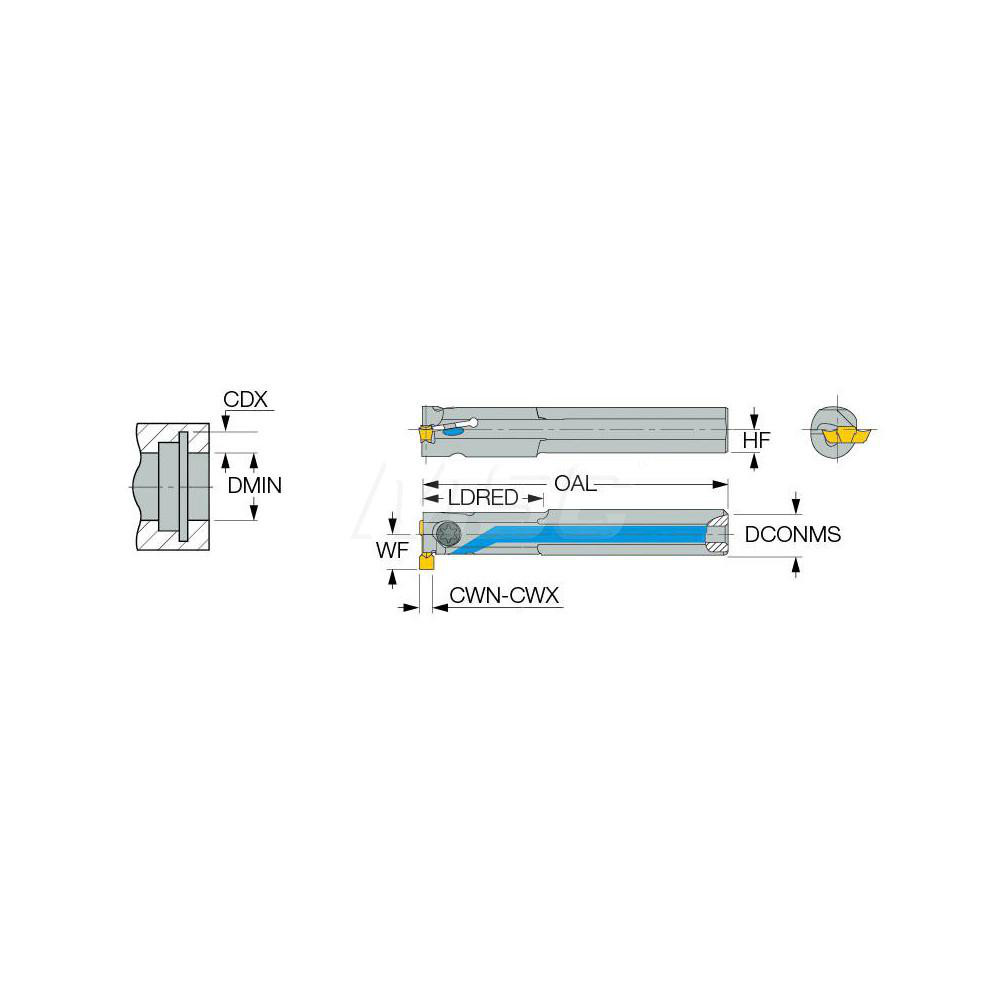

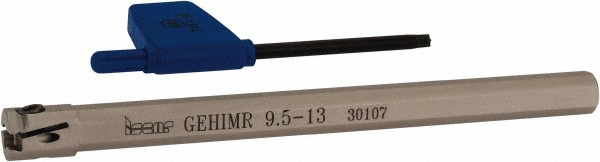

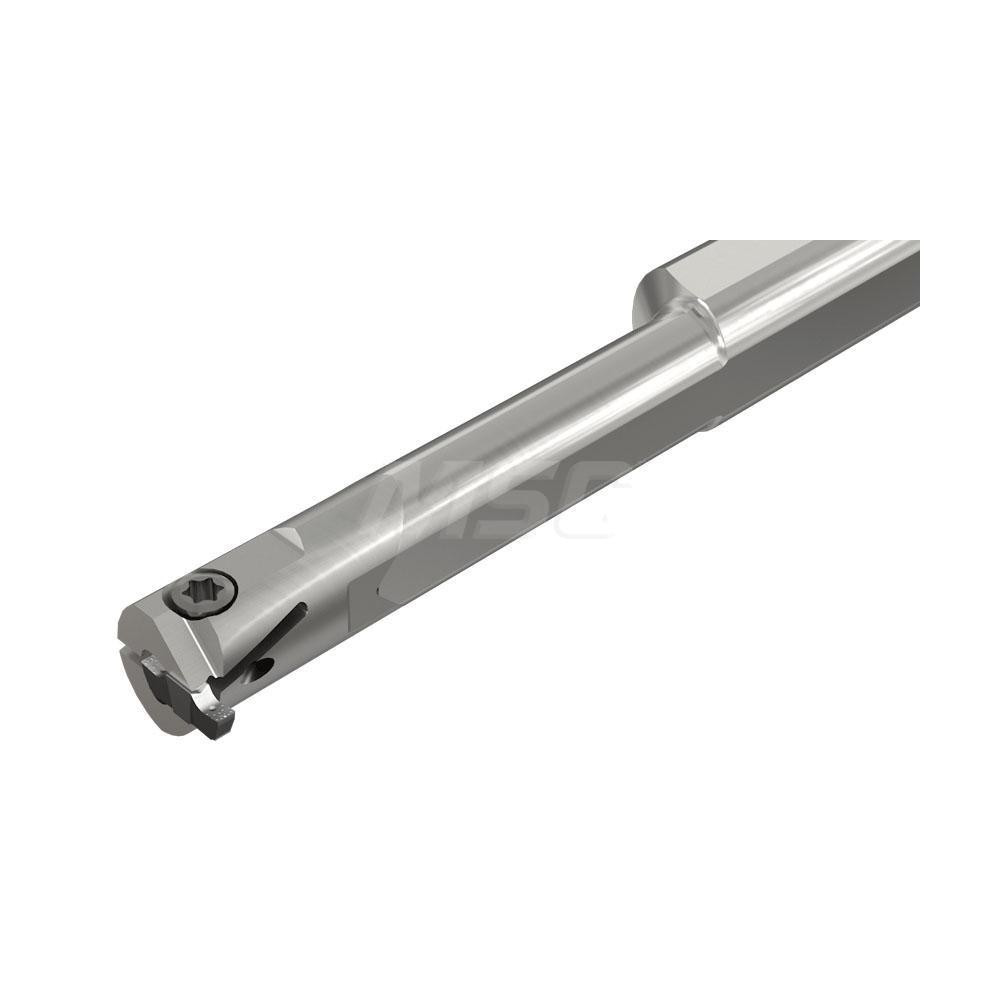

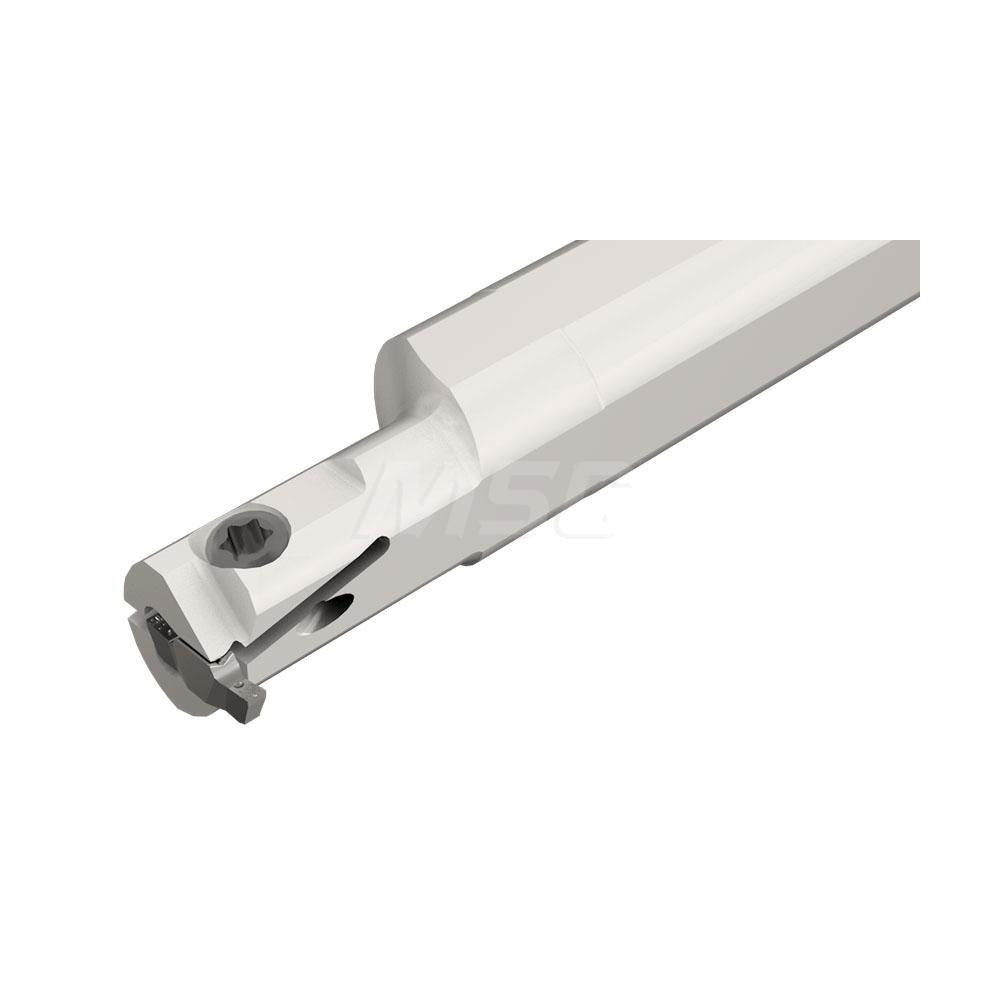

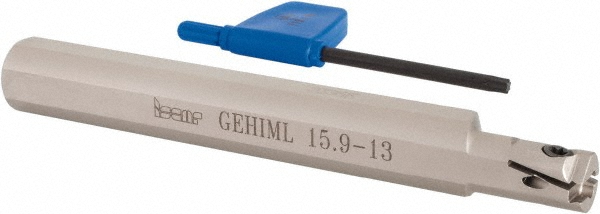

0.0980" Max Depth, Uses GEPI, GEPI-MT, GEPI-RX/LX & GEPI-WT Inserts, Through Coolant
| Toolholder Type | Internal Grooving |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Minimum Groove Width (Decimal Inch) | 0.0310 |
| Toolholder Style | GEHIM |
| Maximum Groove Width (Decimal Inch) | 0.0750 |
| Insert Holding Method | Clamp |
| Insert Compatibility | GEPI.. |
| Compatible Insert Size Code | GEPI-WT; GEPI-RX/LX; GEPI; GEPI-MT |
| Series | Cut Grip |
| Shank Length (Decimal Inch) | 4.6200 |
| Overall Length (Decimal Inch) | 6 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 0.3500 |
| Minimum Hole Diameter (Decimal Inch) | 0.5510 |
| Head Length (Decimal Inch) | 1.38 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |

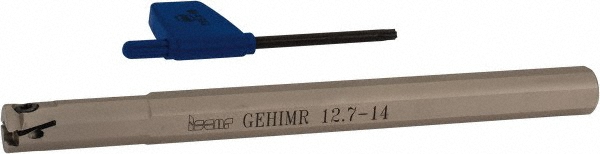

| Manufacturers Catalog Number | GEHIMR 12.7-14 |
| MSC/Manufacturer Number | GEHIMR/L 12.7-14 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 07009152 |
