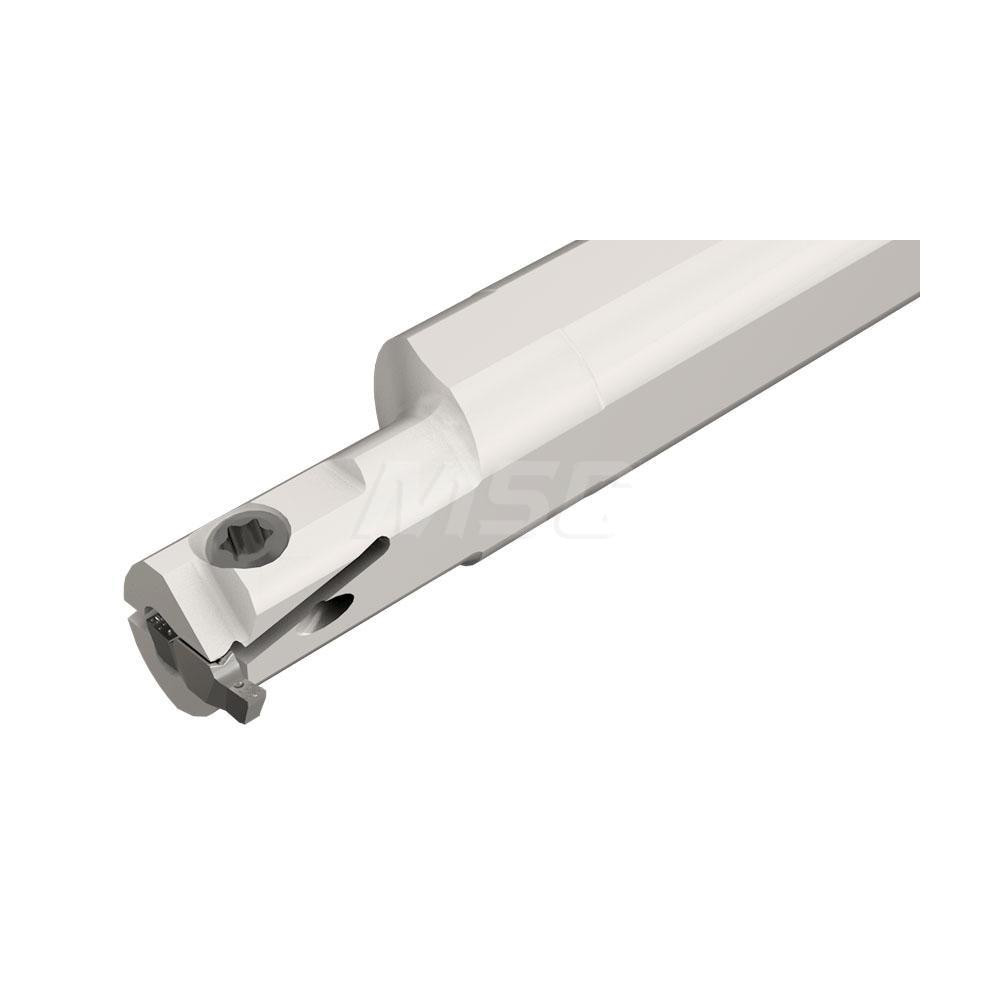

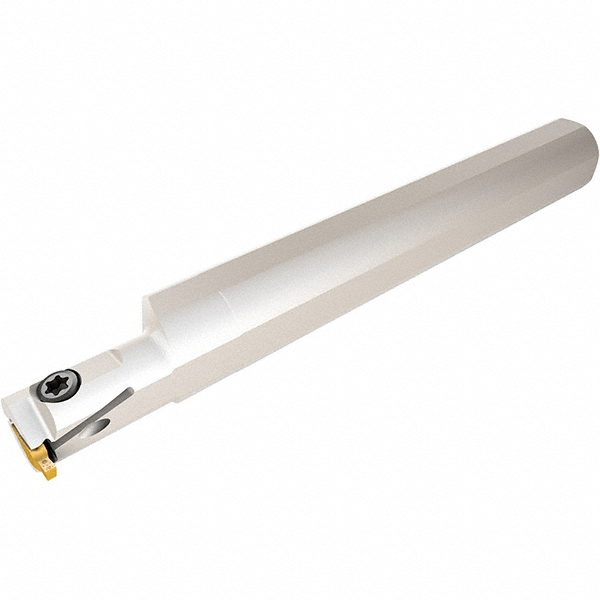

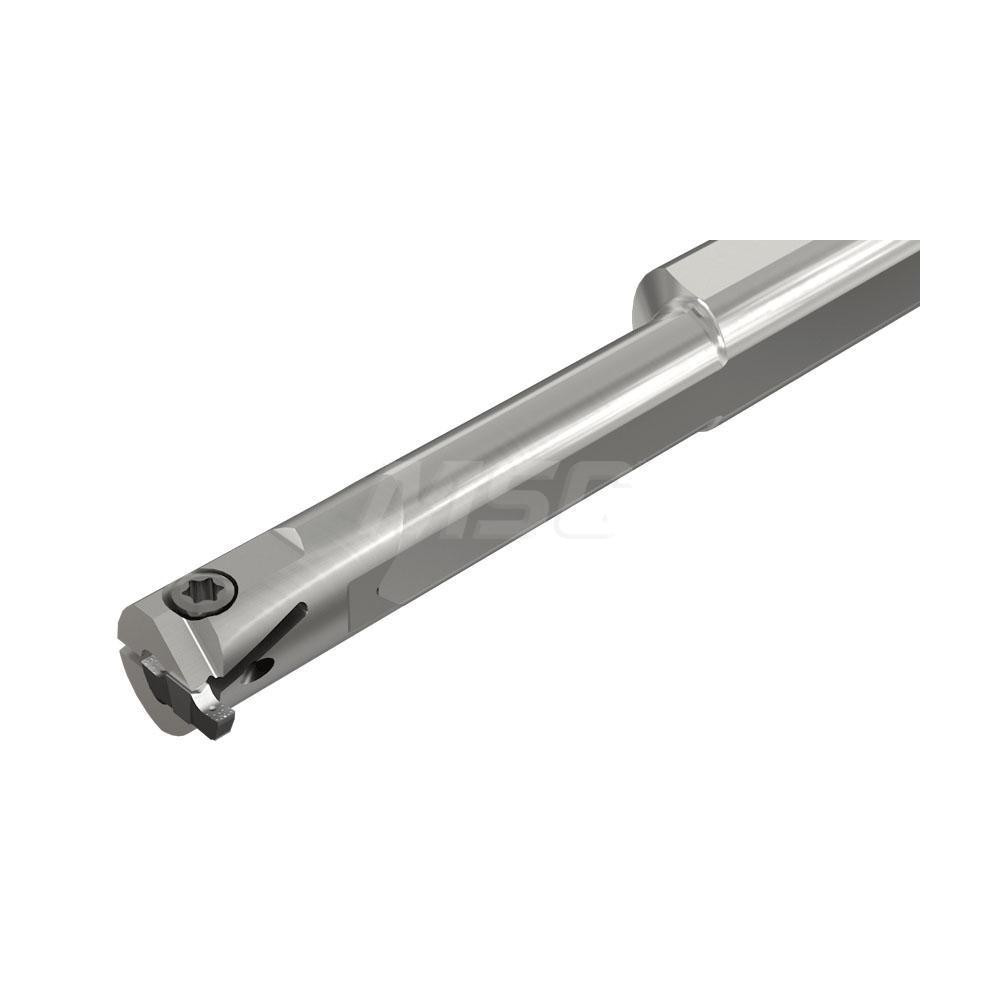

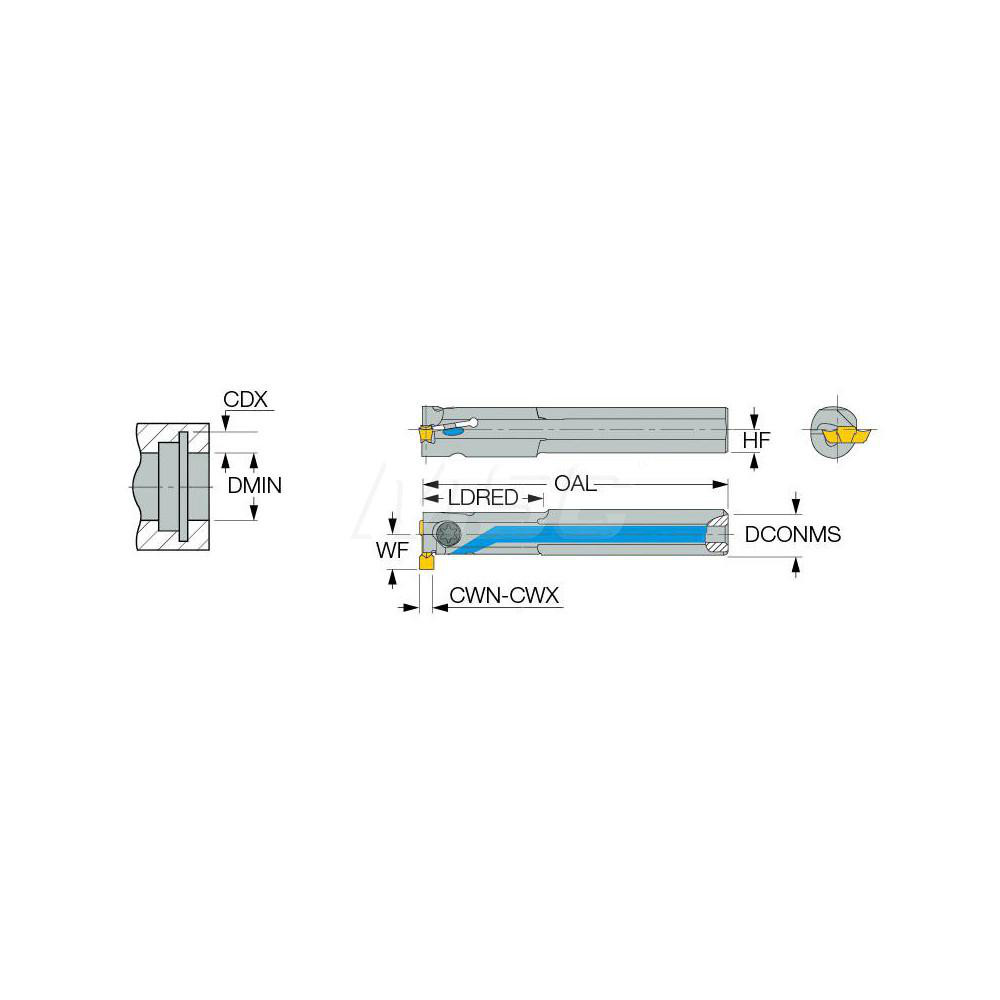

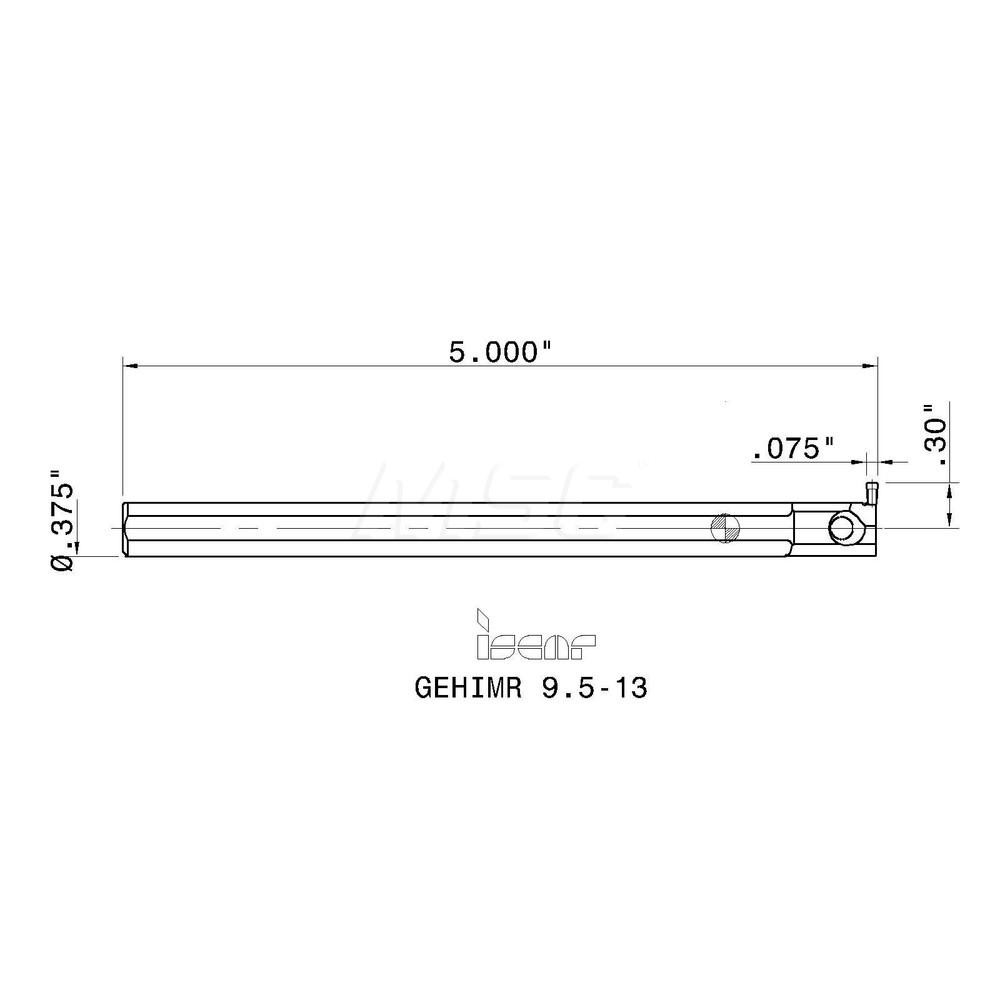

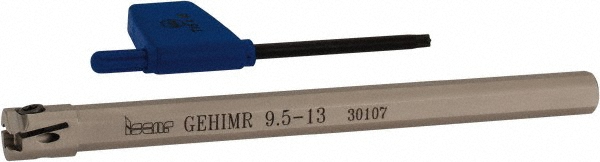

0.098" Max Depth of Cut, 3/8 Dia, Through Coolant, Uses GEPI, GEPI (WM), GEPI-MT, GEPI-RX/LX, GEPI-WT Inserts
| Toolholder Type | Internal Grooving |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Minimum Groove Width (Decimal Inch) | 0.0310 |
| Toolholder Style | GEHIM |
| Maximum Groove Width (Decimal Inch) | 0.0750 |
| Insert Holding Method | Clamp |
| Insert Compatibility | GEPI.. |
| Compatible Insert Size Code | GEPI-WT; GEPI-RX/LX; GEPI; GEPI-MT |
| Series | Cut Grip |
| Overall Length (Decimal Inch) | 5 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 0.3000 |
| Minimum Hole Diameter (Decimal Inch) | 0.4920 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| MSC/Manufacturer Number | GEHIMR/L 9.5-13 |
| Coolant Through | Yes |
| Country of Origin | VARIOUS |
| MSC Number | MSC# 07009145 |
