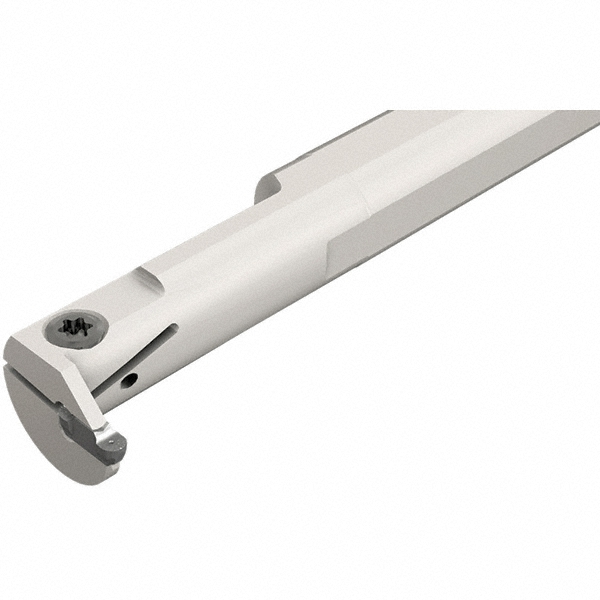

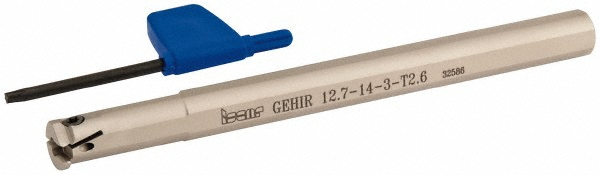

0.1020" Max Depth, Uses GEMI, GEMI (Full Radius), GEPI, GEPI (Full Radius), GEPI-MT & GEPI-WT Inserts, N/A" Shank Width, Through Coolant
| Toolholder Type | Internal Grooving |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1020 |
| Minimum Groove Width (Decimal Inch) | 0.0950 |
| Toolholder Style | GEHI |
| Maximum Groove Width (Decimal Inch) | 0.1260 |
| Insert Holding Method | Clamp |
| Insert Compatibility | GEMI..; GEPI.. |
| Compatible Insert Size Code | GEPI-WT; GEPI; GEMI (Full Radius); GEMI; GEPI (Full Radius); GEPI-MT |
| Series | Cut Grip |

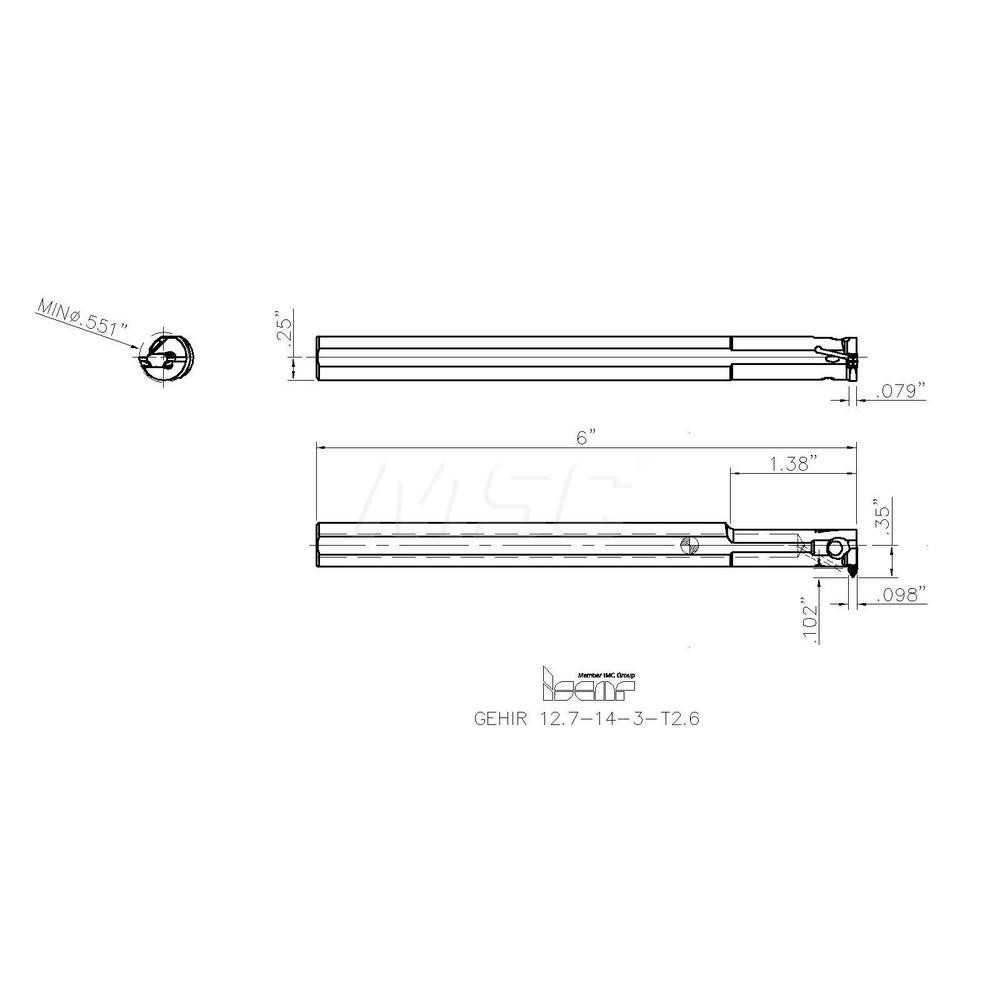

| Shank Length (Decimal Inch) | 4.6200 |
| Overall Length (Decimal Inch) | 6 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 0.3600 |
| Minimum Hole Diameter (Decimal Inch) | 0.5510 |
| Head Length (Decimal Inch) | 1.38 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| Complete Insert Compatibility | GEPI; GEMI |

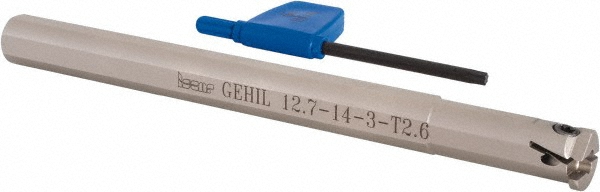

| MSC/Manufacturer Number | GEHIR/L 12.7-14-3-T2.6 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 63750459 |
