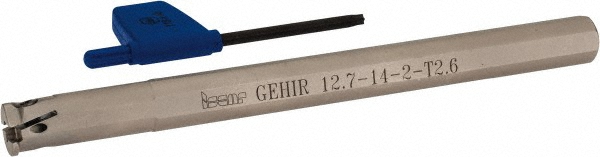

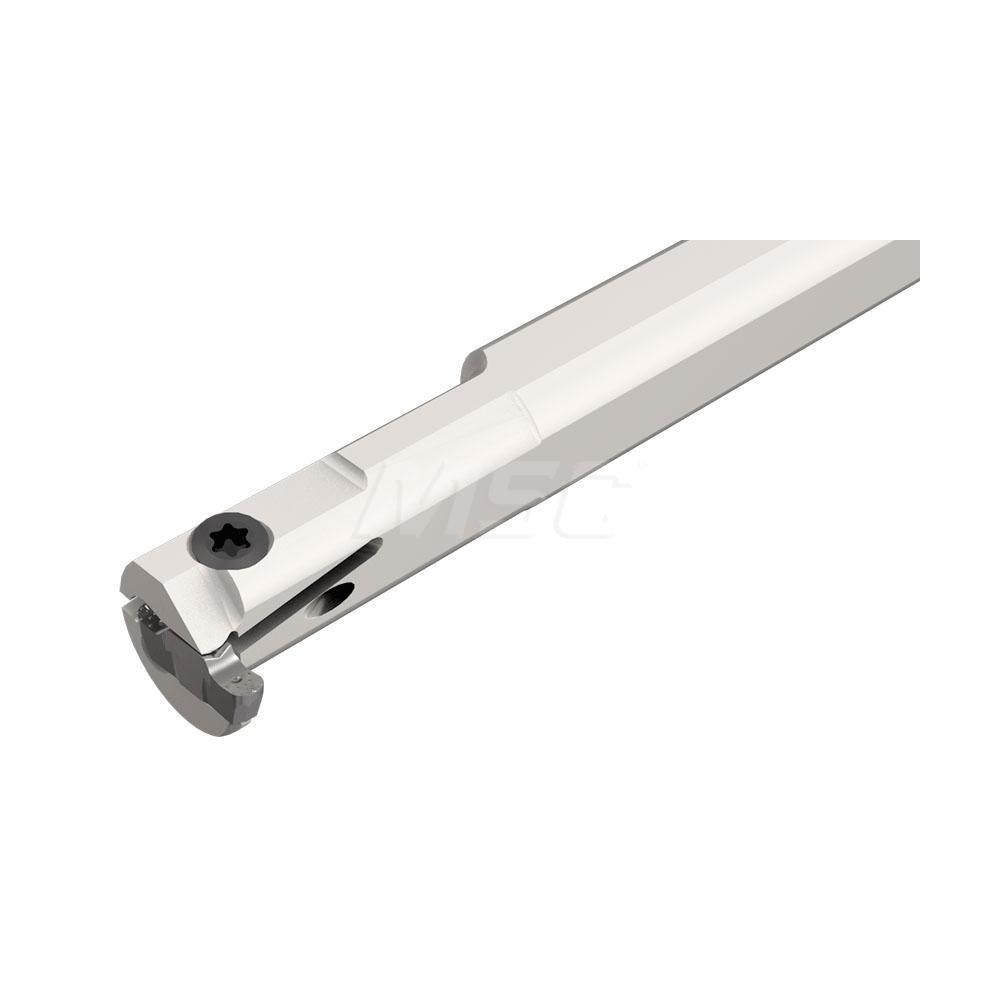

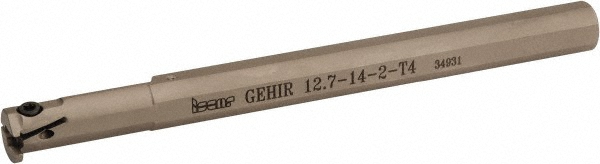

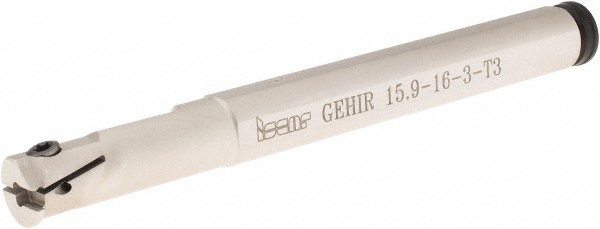

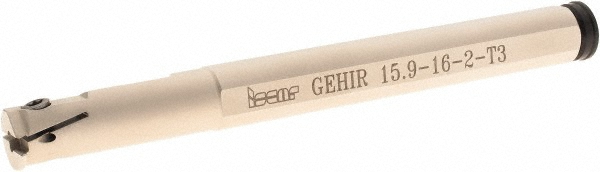

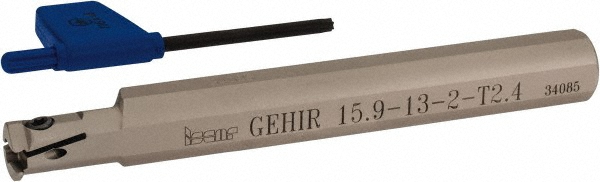

4" Max Depth of Cut, Through Coolant, Uses GEMI, GEMI (Full Radius), GEPI, GEPI (Full Radius), GEPI-MT, GEPI-WT Inserts
| Hand of Holder | Right Hand |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 4.0000 |
| Minimum Groove Width (mm) | 1.90 |
| Maximum Groove Width (mm) | 2.40 |
| Toolholder Style | GEHI |
| Insert Holding Method | Clamp |

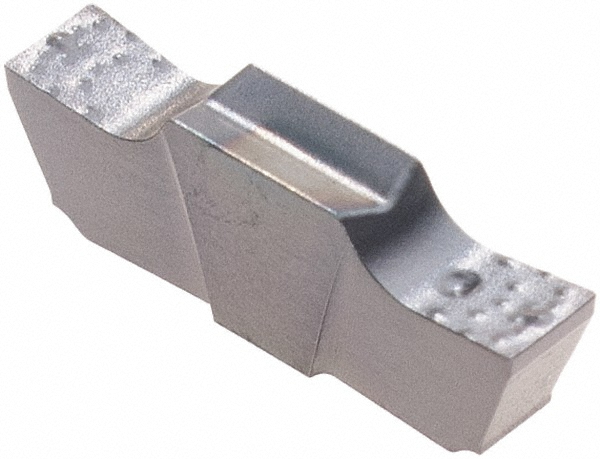

| Insert Compatibility | GEPI |
| Compatible Insert Size Code | GEPI-WT; GEPI; GEMI (Full Radius); GEMI; GEPI (Full Radius); GEPI-MT |
| Series | Cut Grip |
| Overall Length (mm) | 150 |
| Multi-use Tool | No |

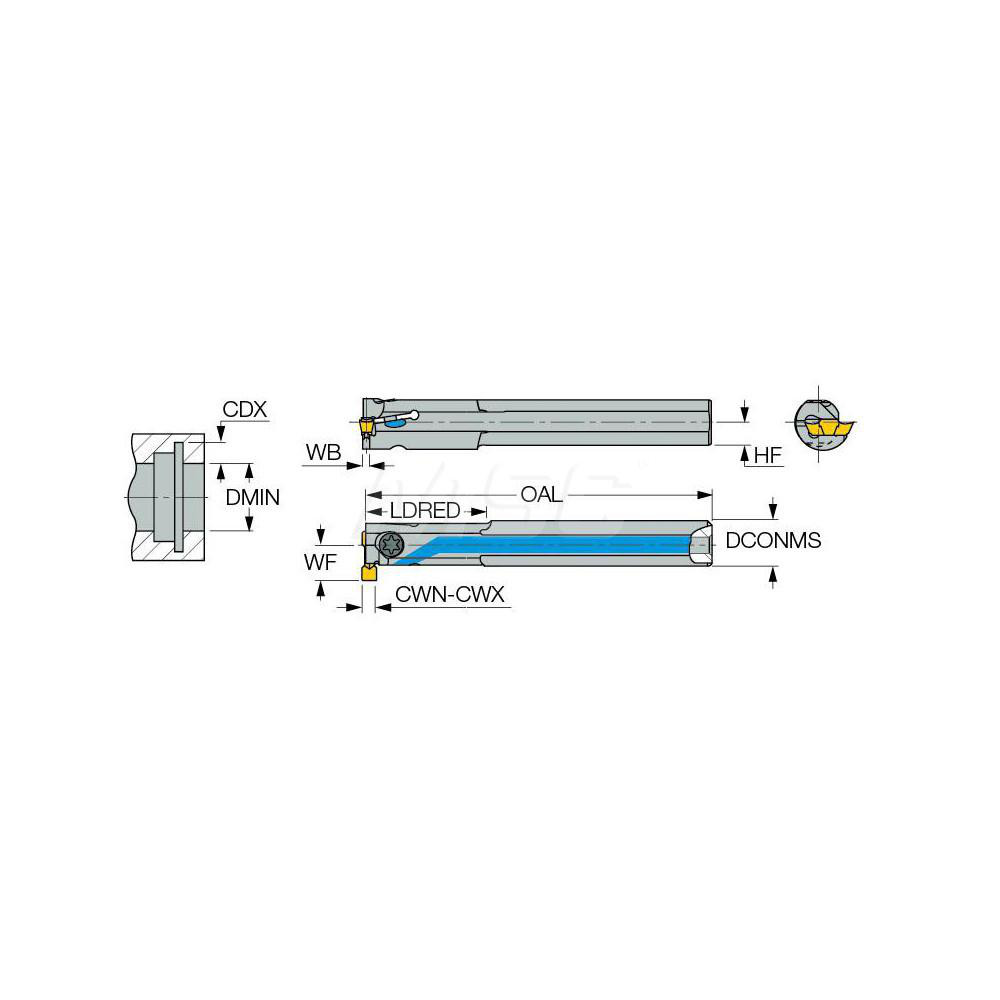

| Center to Cutting Edge (mm) | 10.30 |
| Minimum Hole Diameter (mm) | 14.00 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| Coolant Hole Diameter (mm) | 6.00 |
| Toolholder Material | Steel |
| Complete Insert Compatibility | GEPI 2.00-1.00; GEPI 2.22-0.15; GEPI 2.00-0.10; GEPI 1.96-0.10; GEPI 1.96-0.15; GEPI 2.22-0.10 |

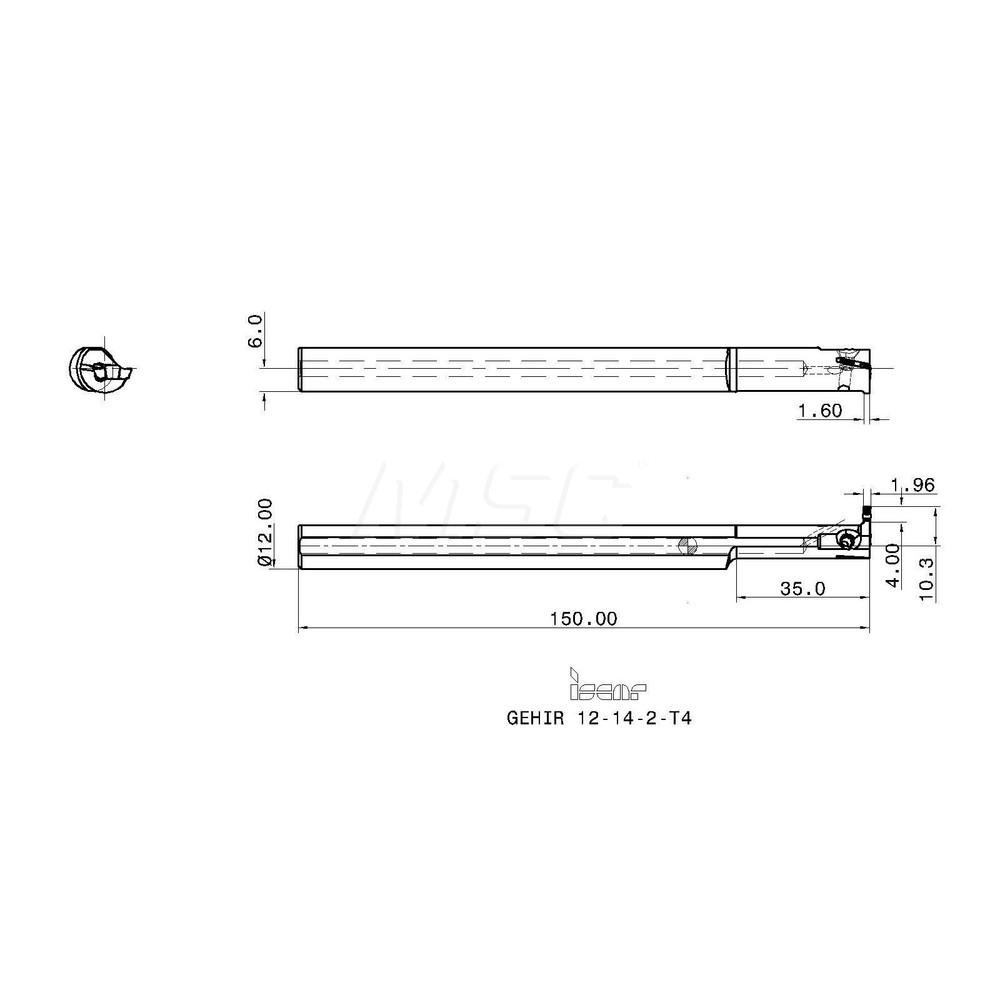

| MSC/Manufacturer Number | GEHIR/L 12-14-2T4 |
| Coolant Through | Yes |
| Minimum Bore Diameter (mm) | 14.00 |
| Maximum Bore Depth (mm) | 4.00 |
| Country of Origin | Israel |
| MSC Number | MSC# 91108100 |
