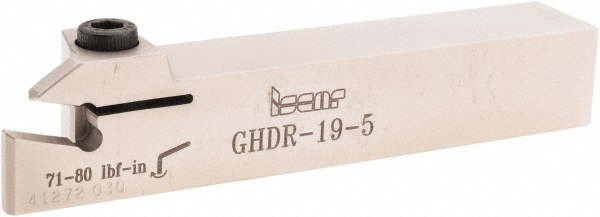

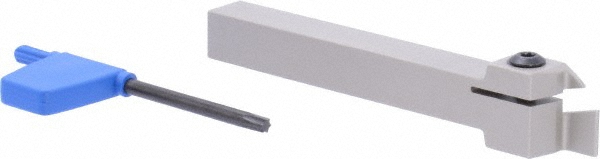

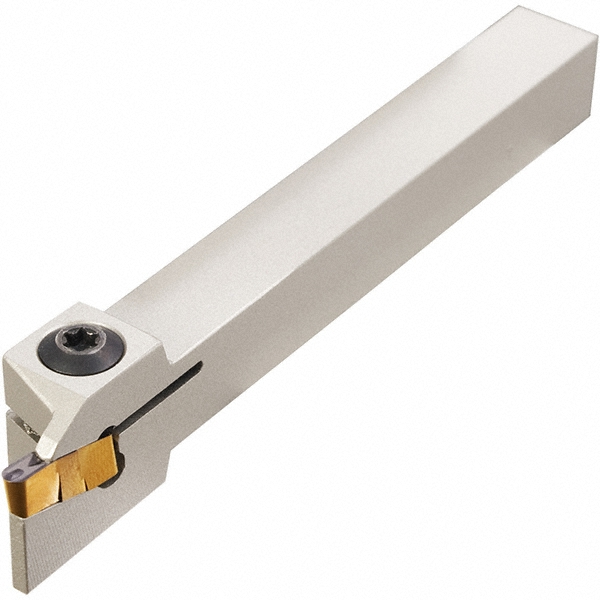

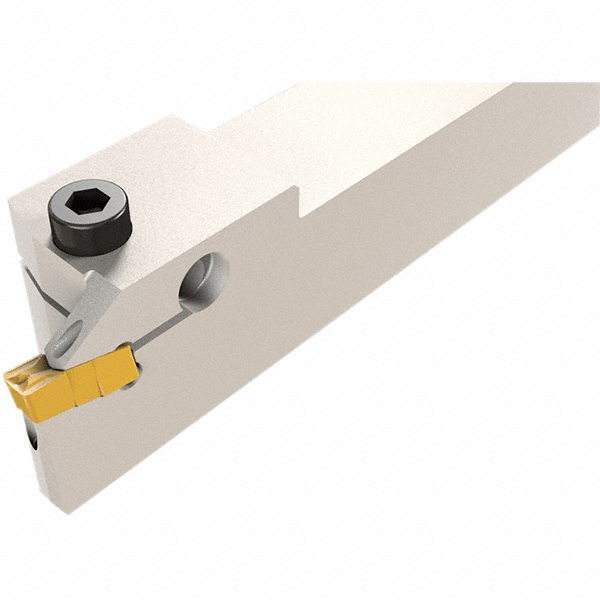

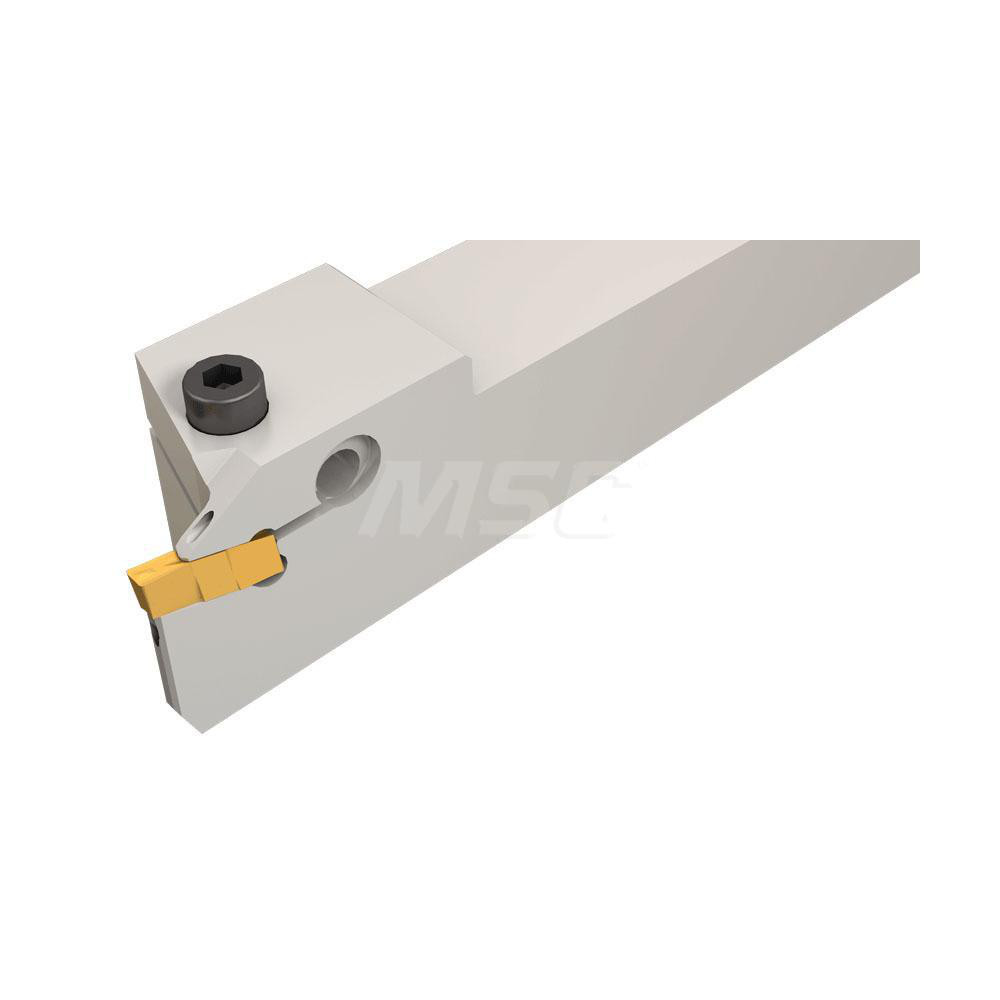

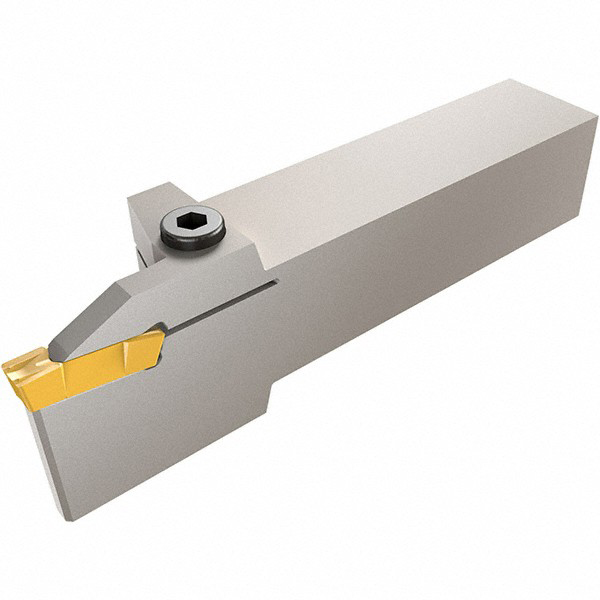

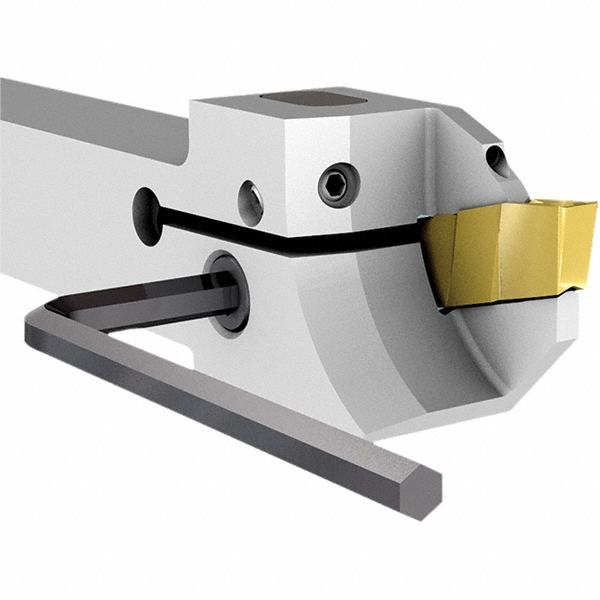

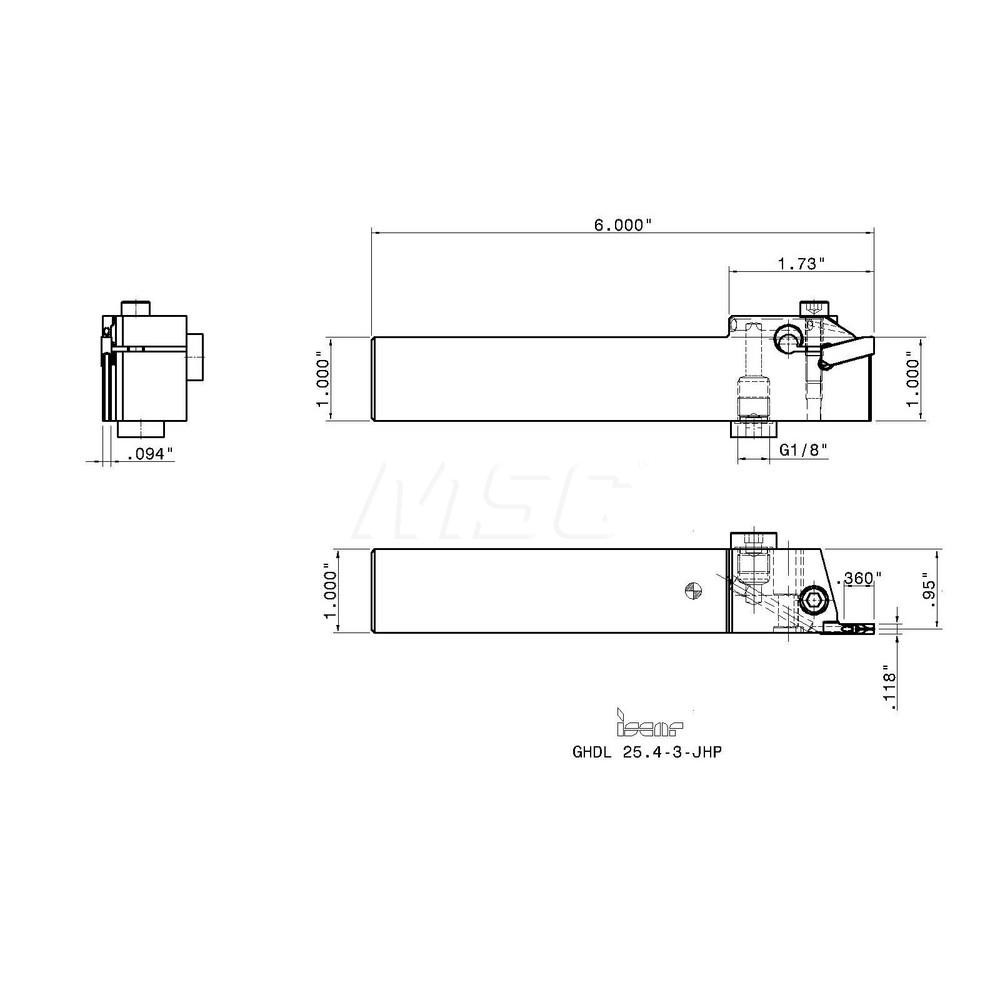

0.36" Max Depth of Cut, 1 x 1" Shank, Through Coolant, Uses GIA-K (W=.118-.236), GIF, GIF (Full Radius), GIF-E (W=.157-.236 radius), GIF-E (W=.157-.236), GIG, GIM-C, GIM-J, GIM-J-RA/LA, GIM-UT, GIM-UT-RA/LA, GIM-W, GIM-W-RA/LA, GIMF, GIMN, GIMT, GIMY, GIMY (Full Radius), GIMY-F, GIP, GIP (Full Radius WM), GIP (Full Radius), GIP (flat top WM), GIP-E, GIP-E (Full Radius), GIP-RX/LX, GIP-UN, GIPA (W=.118-.236), GIPA (round W=.118-.236), GIPM-A46/GIP-1250, GIPY, GITM, GITM (Full Radius), GPV, TIP-MT, TIP-P-BSPT, TIP-P-BSW, TIP-P-ISO, TIP-P-NPT, TIP-P-UN, TIP-WT Inserts
| Toolholder Type | External Grooving |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3600 |
| Minimum Groove Width (Decimal Inch) | 0.1100 |
| Toolholder Style | GHD |
| Maximum Groove Width (Decimal Inch) | 0.1570 |
| Insert Holding Method | Screw |
| Insert Compatibility | GI..; TIP |
| Compatible Insert Size Code | GIF (Full Radius); GIP-UN; GIPY; GIF-E (W=.157-.236); GIMY (Full Radius); GPV; GIPA (W=.118-.236); GIA-K (W=.118-.236); GIM-W-RA/LA; GIP-E (Full Radius); GIP (Full Radius ); GIP-RX/LX; GIM-UT; TIP-P-BSPT; GIMY-F; GIP (flat top ); GIPA (round W=.118-.236); GIMF; GIM-UT-RA/LA; TIP-P-NPT; GIM-J; GIMN; GIG; TIP-P-UN; GIF; GIPM-A46/GIP-1250; GIMT; GIM-C; GIP-E; GITM (Full Radius); GIMY; GIP; TIP-WT; GIM-J-RA/LA; TIP-P-BSW; GIP (Full Radius); TIP-P-ISO; TIP-MT; GITM; GIF-E (W=.157-.236 radius); GIM-W |

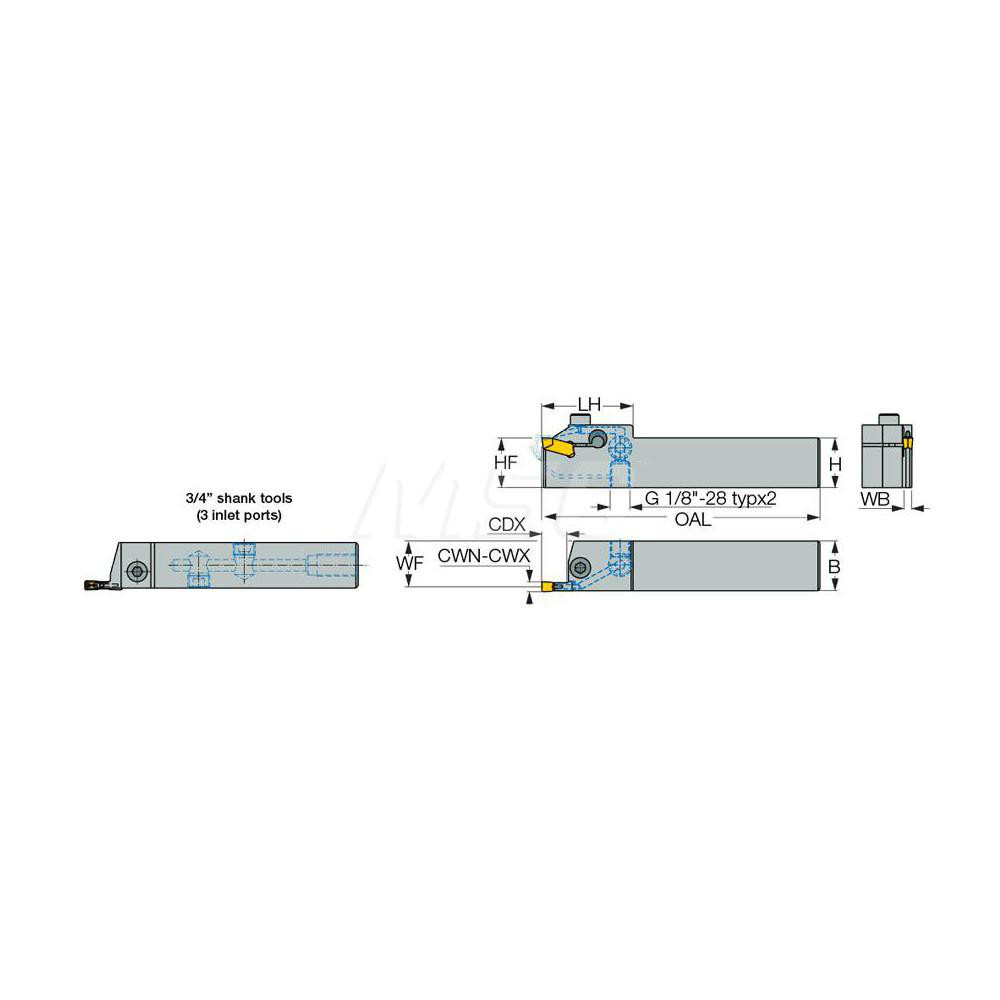

| Shank Height (Decimal Inch) | 1.0000 |
| Series | Cut Grip |
| Shank Length (Decimal Inch) | 4.2700 |
| Overall Length (Decimal Inch) | 6 |
| Multi-use Tool | Yes |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9500 |
| Head Length (Decimal Inch) | 1.73 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| Complete Insert Compatibility | GIA-K... |
| Coolant Through | Yes |
| Country of Origin | Israel |
| MSC Number | MSC# 45382892 |
