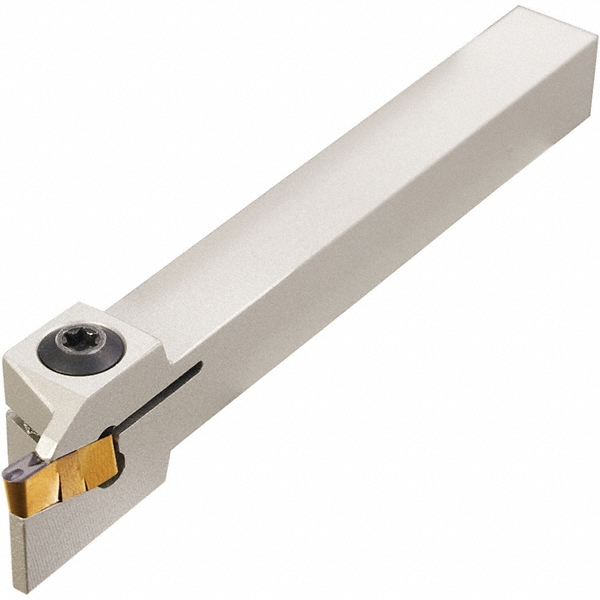

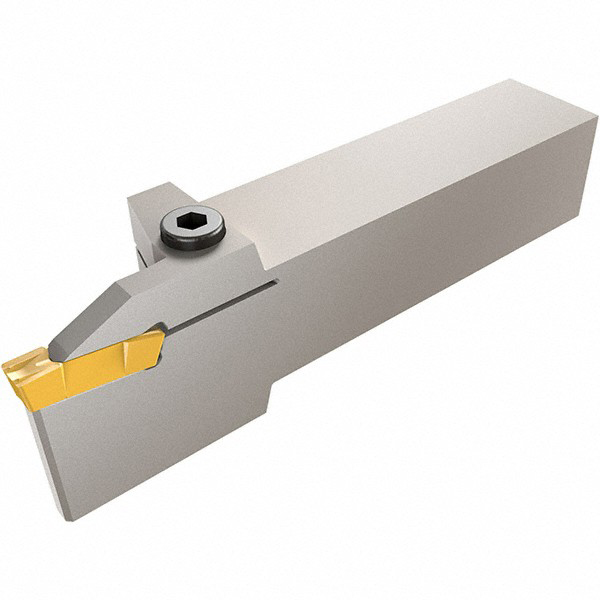

9 mm Max Depth of Cut, 16 x 16 mm Shank
| Toolholder Type | External Grooving |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Maximum Depth of Cut (mm) | 9.00 |
| Minimum Groove Width (Decimal Inch) | 0.1102 |
| Minimum Groove Width (mm) | 2.80 |
| Maximum Groove Width (mm) | 4.00 |
| Toolholder Style | GHD |
| Maximum Groove Width (Decimal Inch) | 0.1575 |
| Insert Holding Method | Clamp |
| Insert Compatibility | GI.. |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Series | Cut Grip |
| Overall Length (mm) | 78 |
| Overall Length (Decimal Inch) | 3.0709 |
| Multi-use Tool | Yes |
| Back of Bar to Cutting Edge (mm) | 15.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5906 |
| UNSPSC Code | 23153308 |
| Complete Insert Compatibility | GIF 3.98-0.20; GIF 3.74-0.20; GIF 4.00E-0.60; GIF 4.00E-0.80; GIF 4.00E-0.40; GIM 3; GIM 4C; GIM 3C; GIM 4; GIM 3.2; GIM 4J; GIF 3.48-0.20; GIM 3J; GIF 3.56-0.20 |
| Coolant Through | No |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 60784261 |
