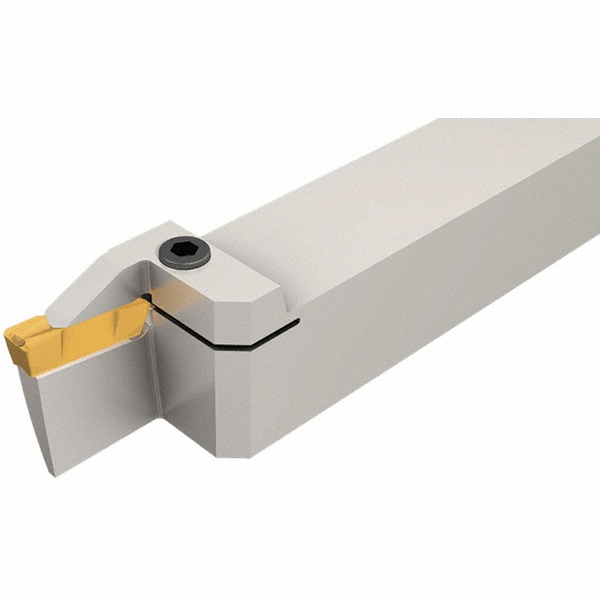

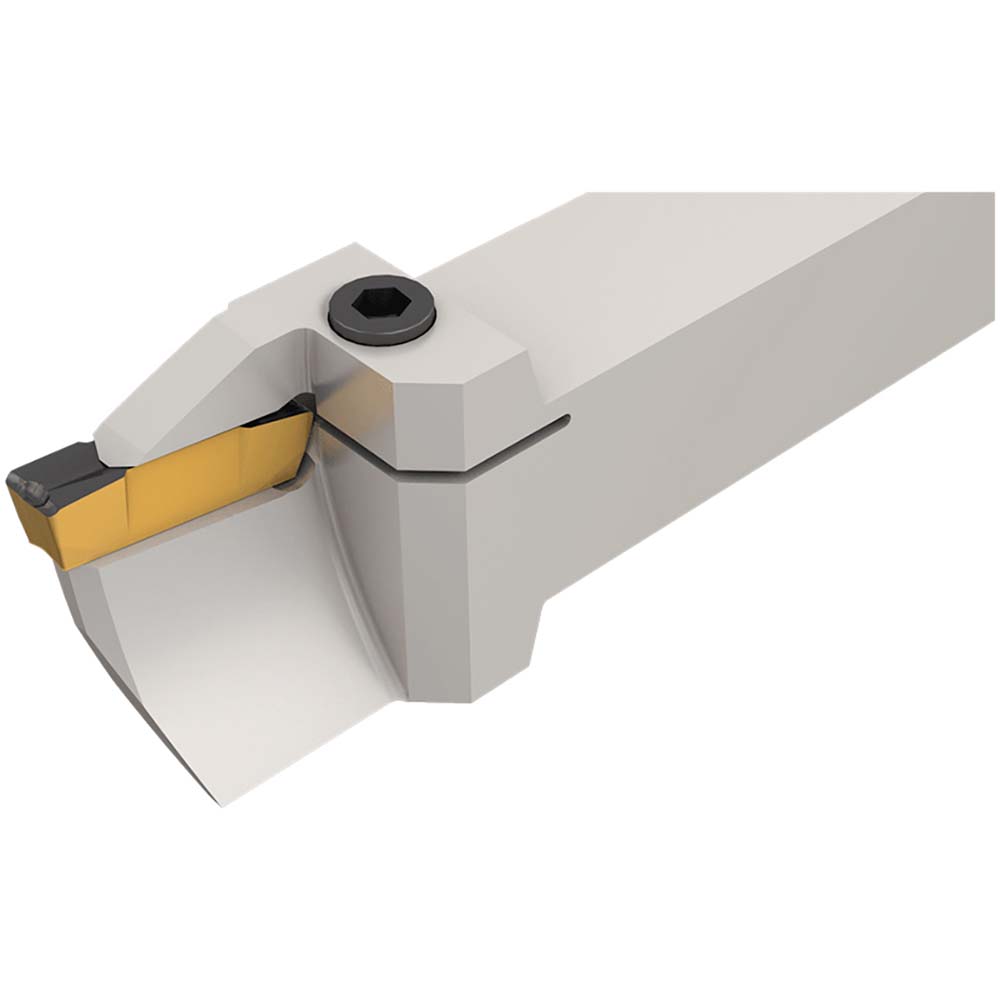

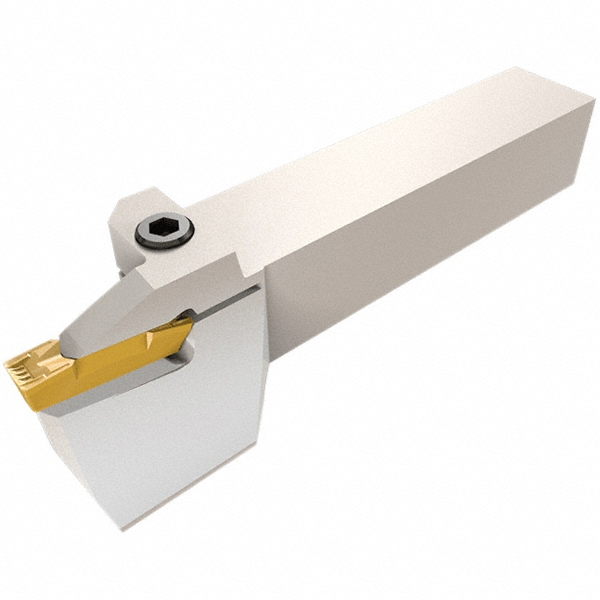

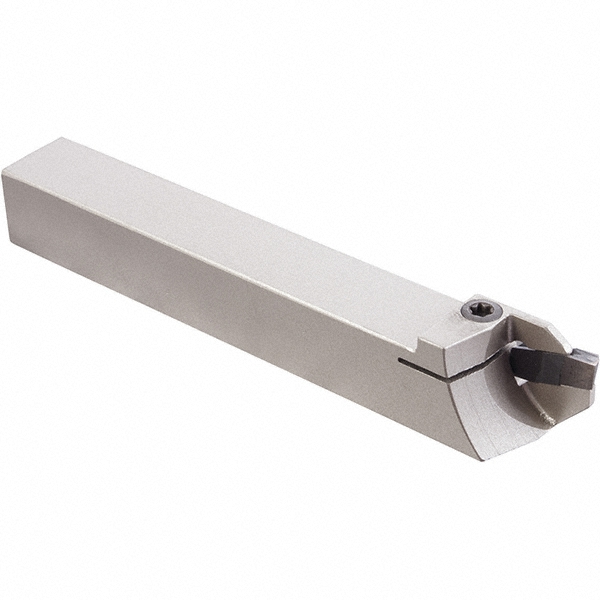

25 mm Max Depth of Cut, 25 x 25 mm Shank, Uses GDMF, GDMM-CC, GDMN, GDMU, GDMY, GDMY (Full Radius), GDMY-F, GIA-K (Long Pocket), GIF (Long Pocket), GIF-E (W=.315,.394 Full Radius), GIF-E (W=.315,.394), GIFG-E (W=.315), GIPA/GIDA 8 (Full Radius) Inserts
| Hand of Holder | Left Hand |
|---|---|
| Maximum Depth of Cut (mm) | 25.00 |
| Maximum Groove Width (mm) | 8.00 |
| Toolholder Style | GHFG |
| Insert Holding Method | Clamp |
| Insert Compatibility | GI..; GDM.. |
| Compatible Insert Size Code | GIF-E (W=.315,.394); GIF-E (W=.315,.394 Full Radius); GDMU; GDMY; GDMY (Full Radius); GDMY-F; GIA-K (Long Pocket); GIF (Long Pocket); GDMM-CC; GIFG-E (W=.315); GDMF; GIPA/GIDA 8 (Full Radius); GDMN |
| Shank Height (mm) | 25.00 |
| Series | Cut Grip |
| Shank Length (mm) | 106.50 |

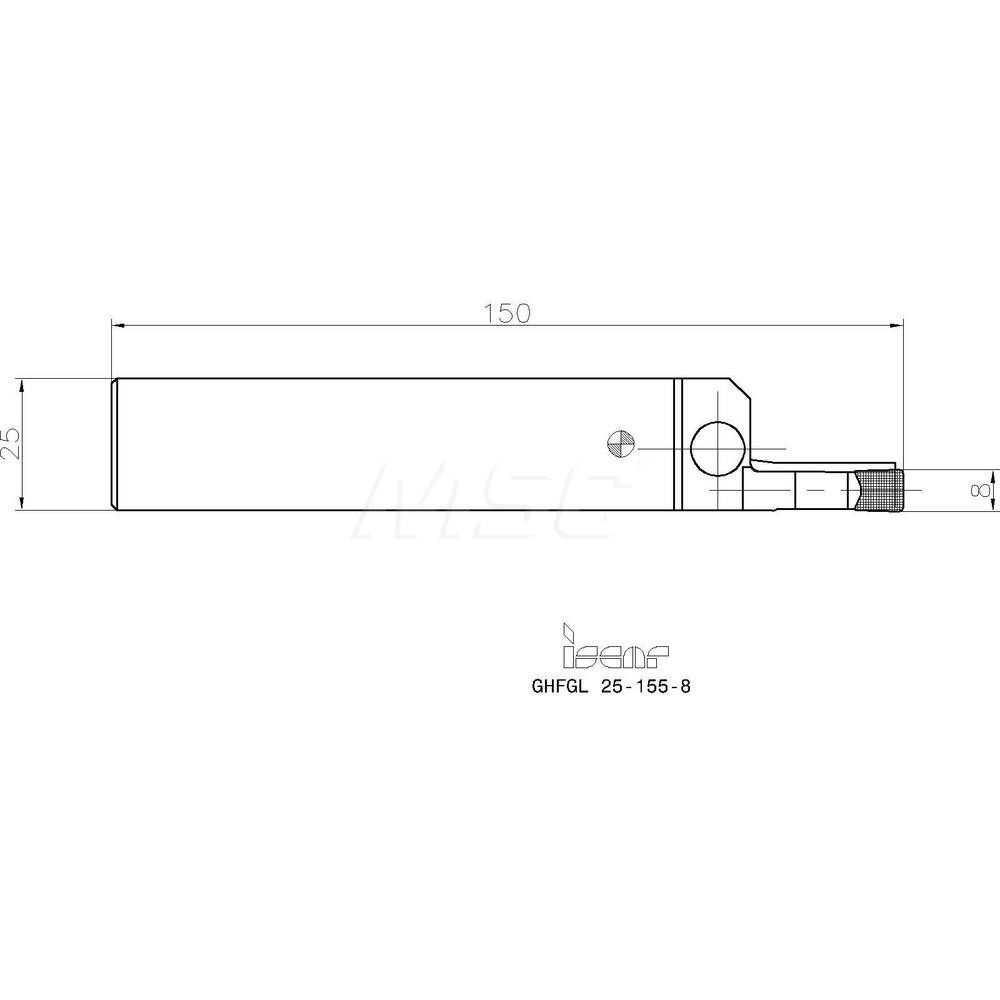

| Overall Length (mm) | 150 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (mm) | 510.00 |
| Back of Bar to Cutting Edge (mm) | 21.30 |
| Head Length (mm) | 43.50 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| Maximum Groove Outside Diameter (mm) | 510.00 |
| Minimum Axial Groove Inside Diameter(mm) | 155.00 |
| Complete Insert Compatibility | GIF-E (W=8,10); GDMU; GDMY; GDMY (Full Radius); GDMY-F; GIA-K (Long Pocket); GIF (Long Pocket); GDMM-CC; GDMF; GIF-E (W=8,10 Full Radius); GIPA/GIDA 8 (Full Radius); GDMN; GIFG-E (W=8) |
| Coolant Through | No |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 45378858 |
