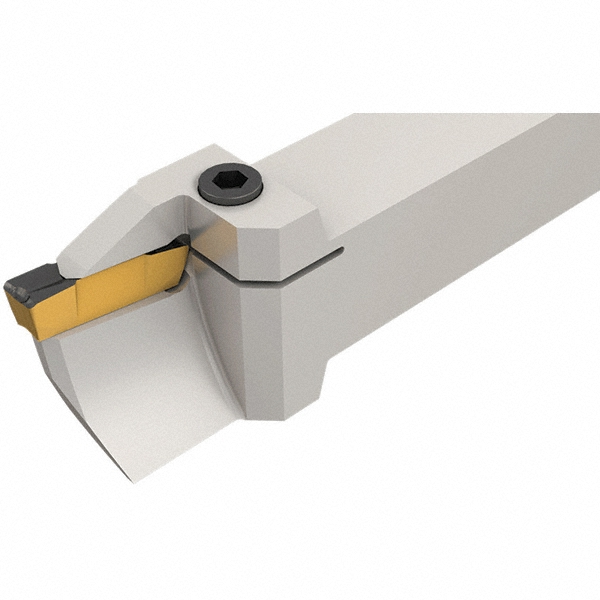

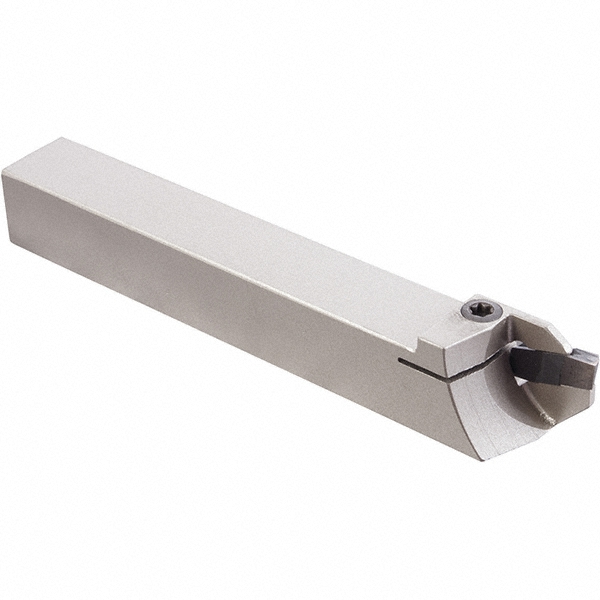

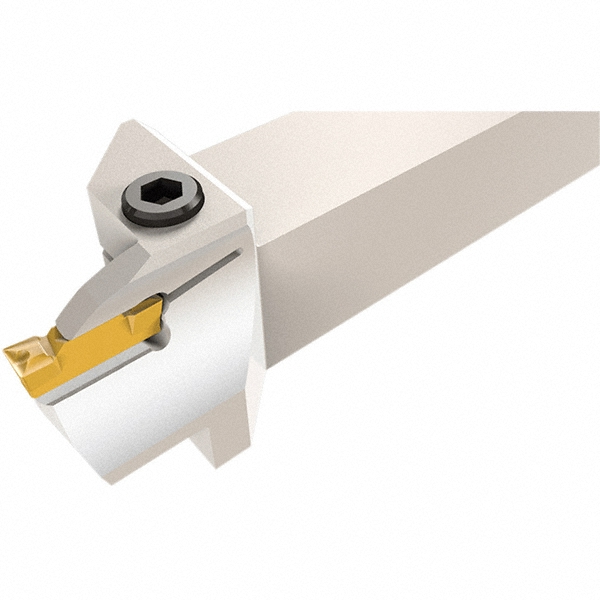

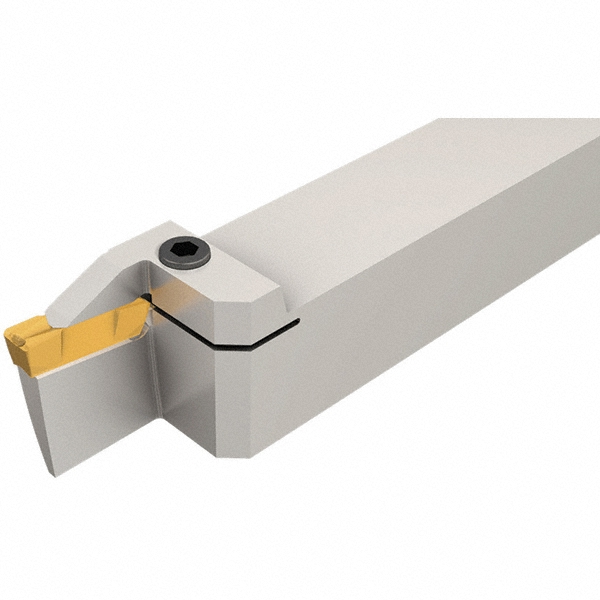

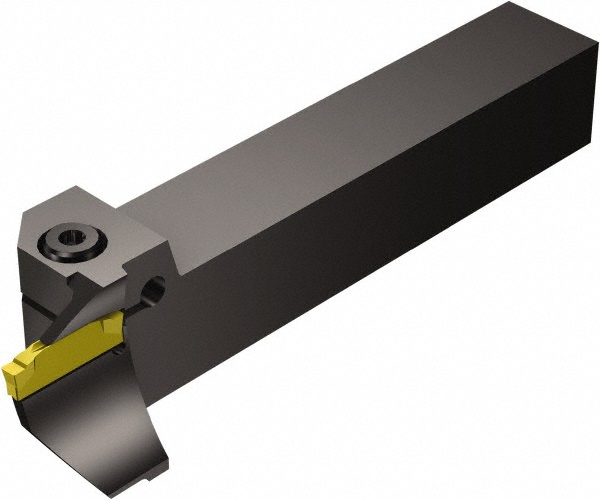

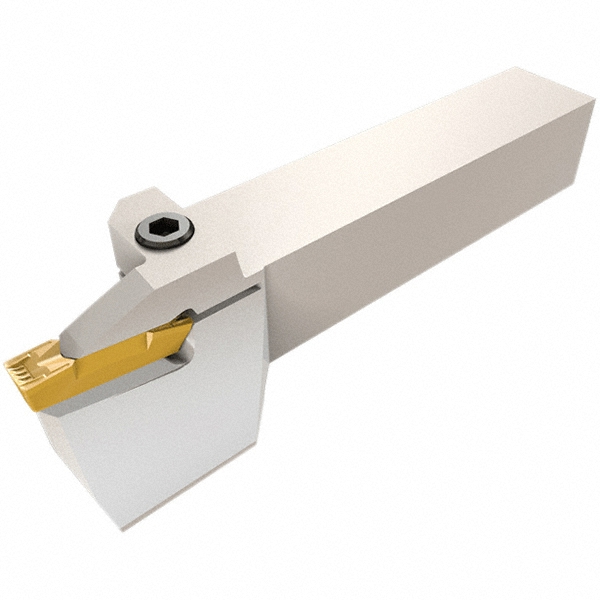

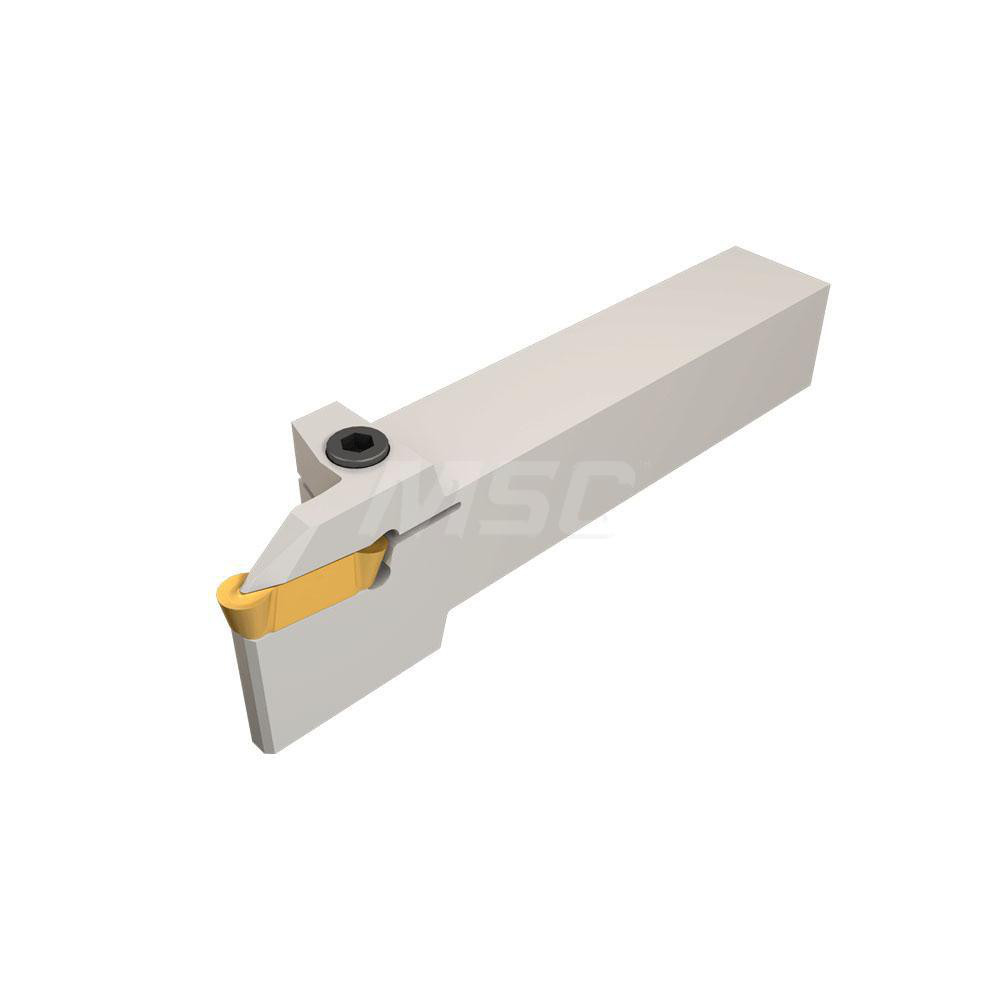

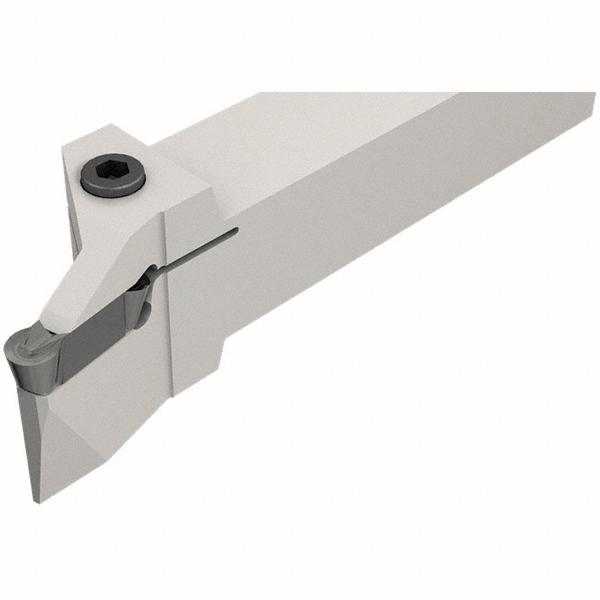

25 mm Max Depth of Cut, 32 x 32 mm Shank, Uses GDMF, GDMM-CC, GDMN, GDMU, GDMY, GDMY (Full Radius), GDMY-F, GIA-K (Long Pocket), GIF (Long Pocket), GIF-E (W=.315,.394 Full Radius), GIF-E (W=.315,.394), GIFG-E (W=.315), GIPA/GIDA 8 (Full Radius) Inserts

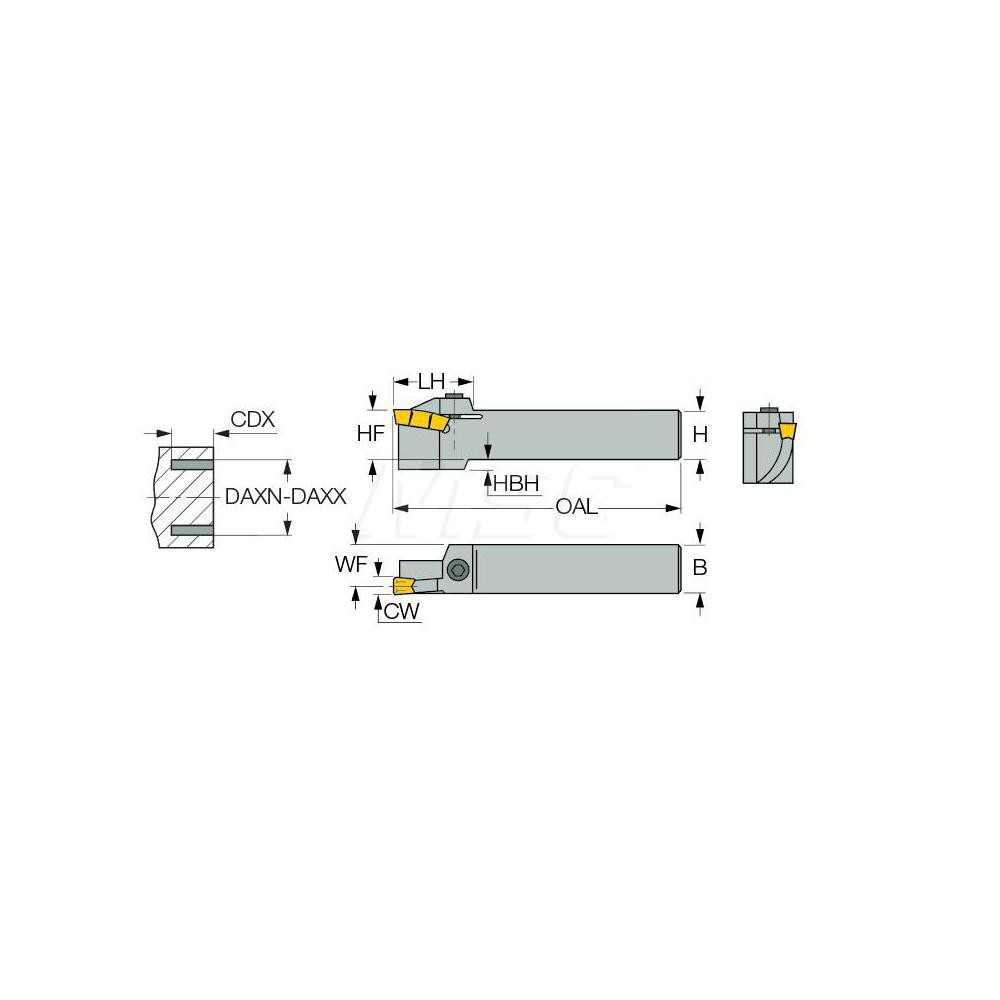

| Toolholder Type | Face Grooving |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 25.00 |
| Minimum Groove Width (Decimal Inch) | 0.3150 |
| Minimum Groove Width (mm) | 8.00 |
| Maximum Groove Width (mm) | 8.00 |
| Toolholder Style | GHFG |
| Maximum Groove Width (Decimal Inch) | 0.3150 |
| Insert Holding Method | Clamp |
| Insert Compatibility | GDM.. 808; GI.. 8.. |
| Compatible Insert Size Code | GIF-E (W=.315,.394); GIF-E (W=.315,.394 Full Radius); GDMU; GDMY; GDMY (Full Radius); GDMY-F; GIA-K (Long Pocket); GIF (Long Pocket); GDMM-CC; GIFG-E (W=.315); GDMF; GIPA/GIDA 8 (Full Radius); GDMN |

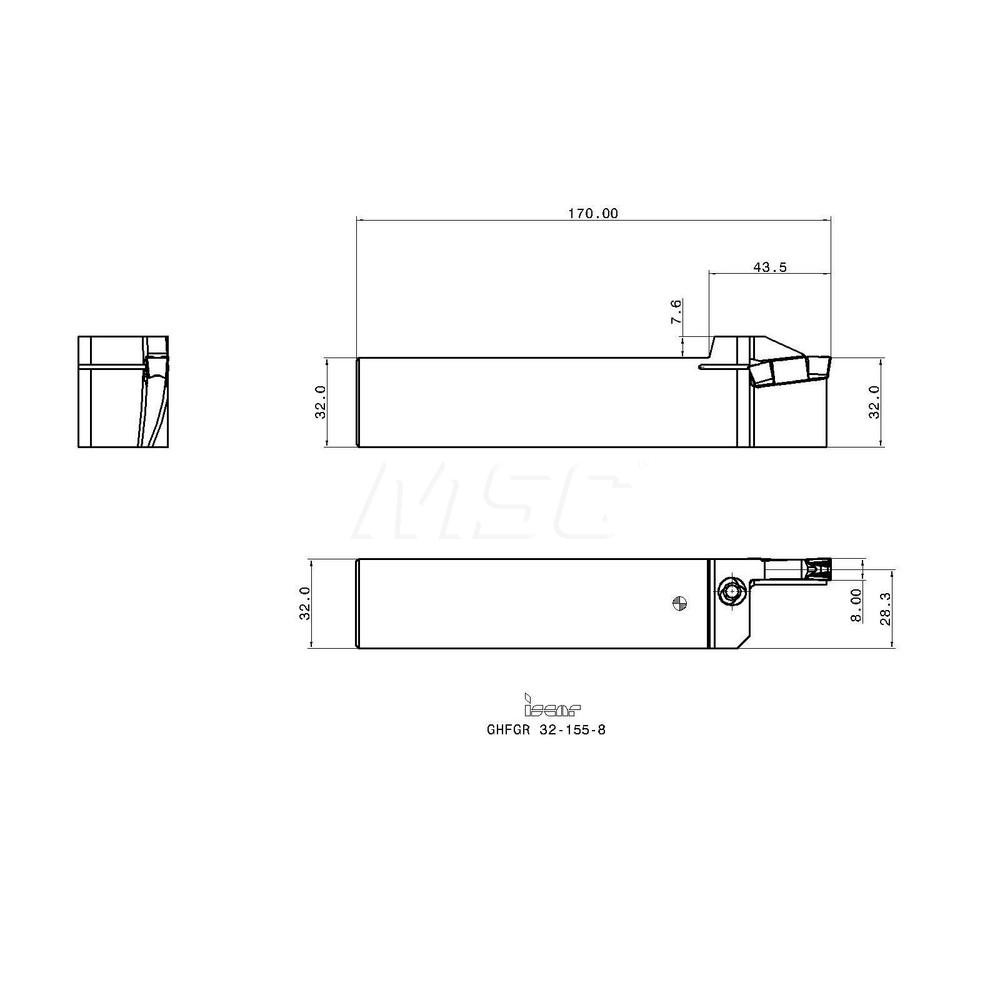

| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Series | Cut Grip |
| Shank Length (mm) | 126.50 |
| Overall Length (mm) | 170 |
| Overall Length (Decimal Inch) | 6.6929 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (mm) | 510.00 |
| Back of Bar to Cutting Edge (mm) | 28.30 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.1142 |
| Head Length (mm) | 43.50 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| Maximum Groove Outside Diameter (mm) | 510.00 |
| Minimum Axial Groove Inside Diameter(mm) | 155.00 |

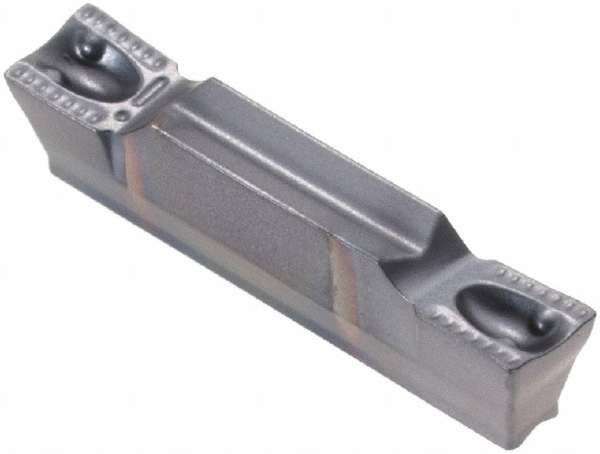

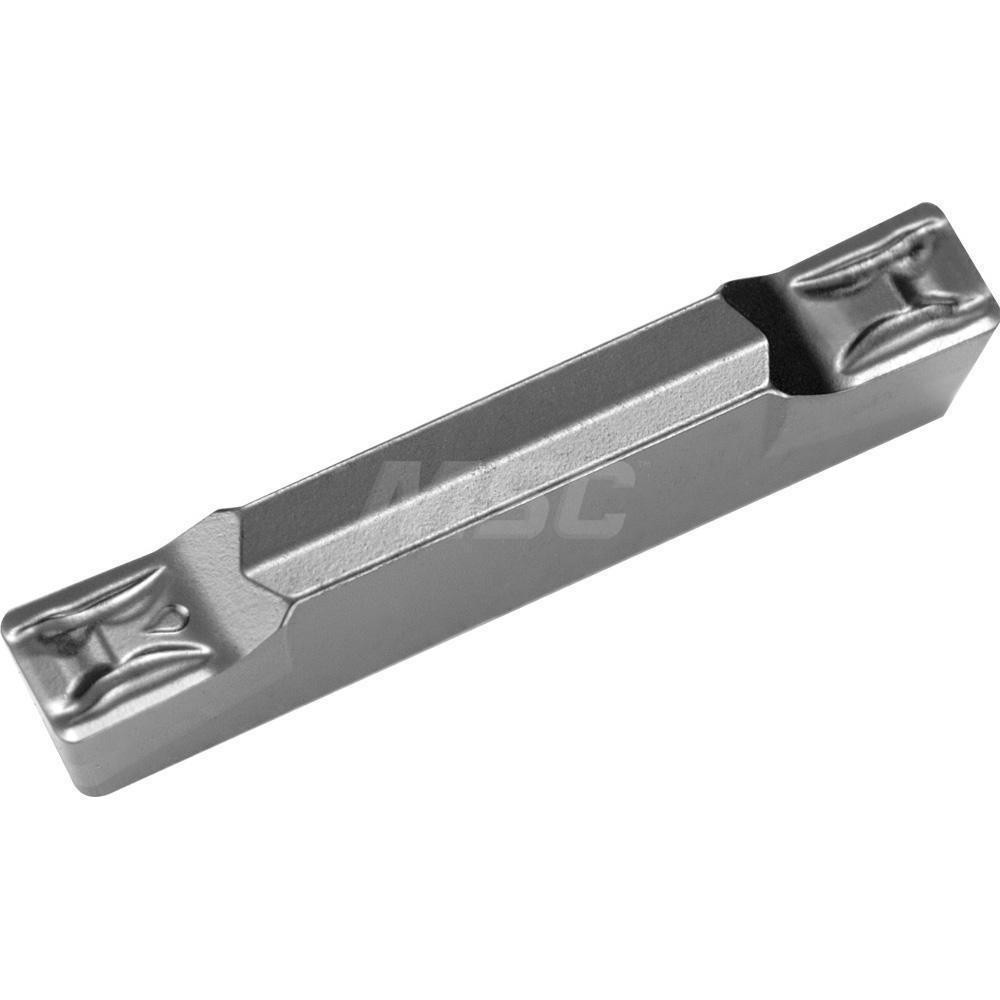

| Complete Insert Compatibility | GIFG 8.00E-1.20; GIFG 8.00E-0.80; GDMU 808; GIF 8.00E-0.80; GIDA 80-40YZ; GIDA 80-40YZ-D; GDMY 808; GIDA 80-40-D; GIF 8.00E-0.40; GIF 8.00E-1.20; GIDA 80-40; GIDA 80-40CB-D |
| Coolant Through | No |
| Country of Origin | Israel |
| MSC Number | MSC# 07638562 |
