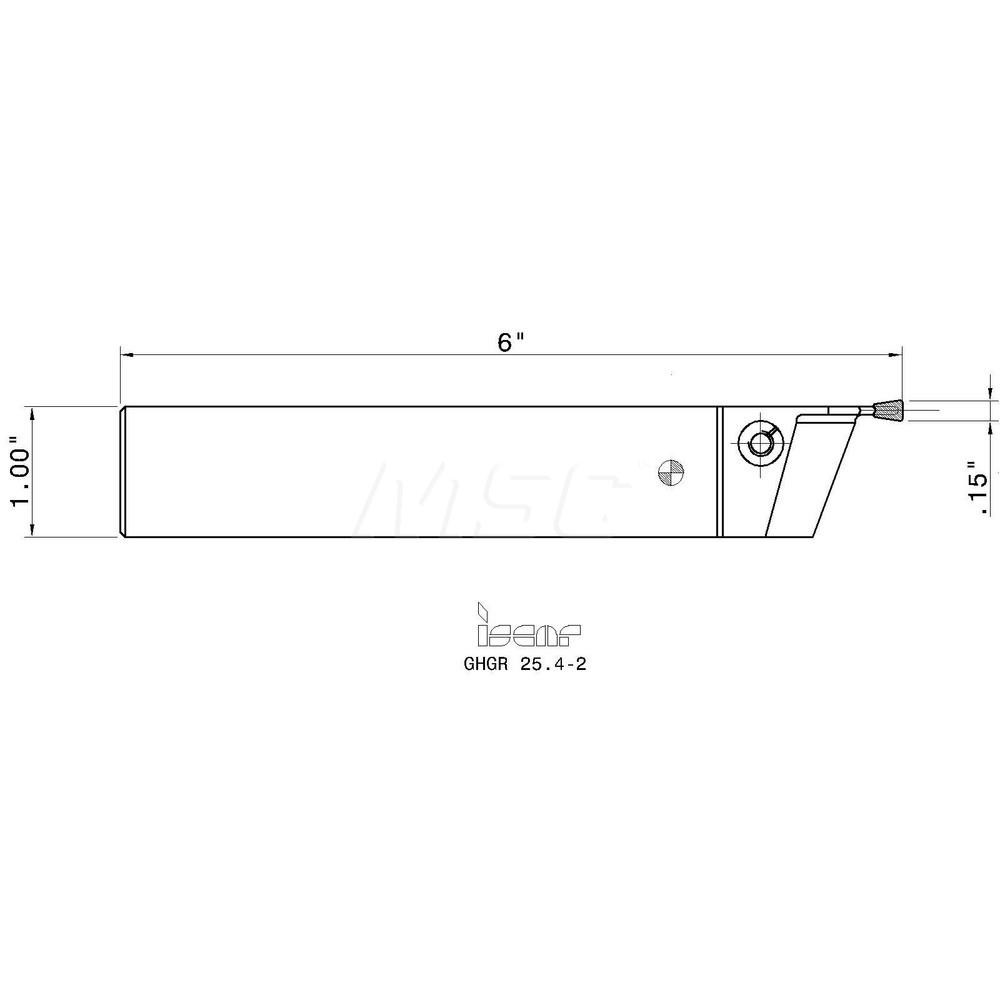

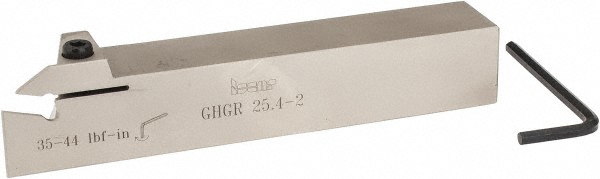

1.34" Max Depth of Cut, 1 x 1" Shank, Uses GIM, GIMF, GIMN, GIMT, GIMY Inserts
| Toolholder Type | External Grooving |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.3400 |
| Minimum Groove Width (Decimal Inch) | 0.0160 |
| Toolholder Style | GHG |
| Maximum Groove Width (Decimal Inch) | 0.0940 |
| Insert Holding Method | Clamp |
| Insert Compatibility | GI..,TIP.. |
| Compatible Insert Size Code | GIMN; GIMT; GIM; GIMF; GIMY |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Cut Grip |
| Shank Length (Decimal Inch) | 6.0000 |
| Overall Length (Decimal Inch) | 6 |
| Multi-use Tool | No |
| Maximum Workpiece Diameter (Decimal Inch) | 1.3400 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9700 |
| Head Length (Decimal Inch) | 1.3 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| Coolant Through | No |
| Country of Origin | Israel |
| MSC Number | MSC# 60785821 |
