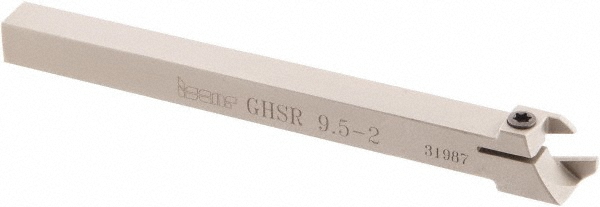

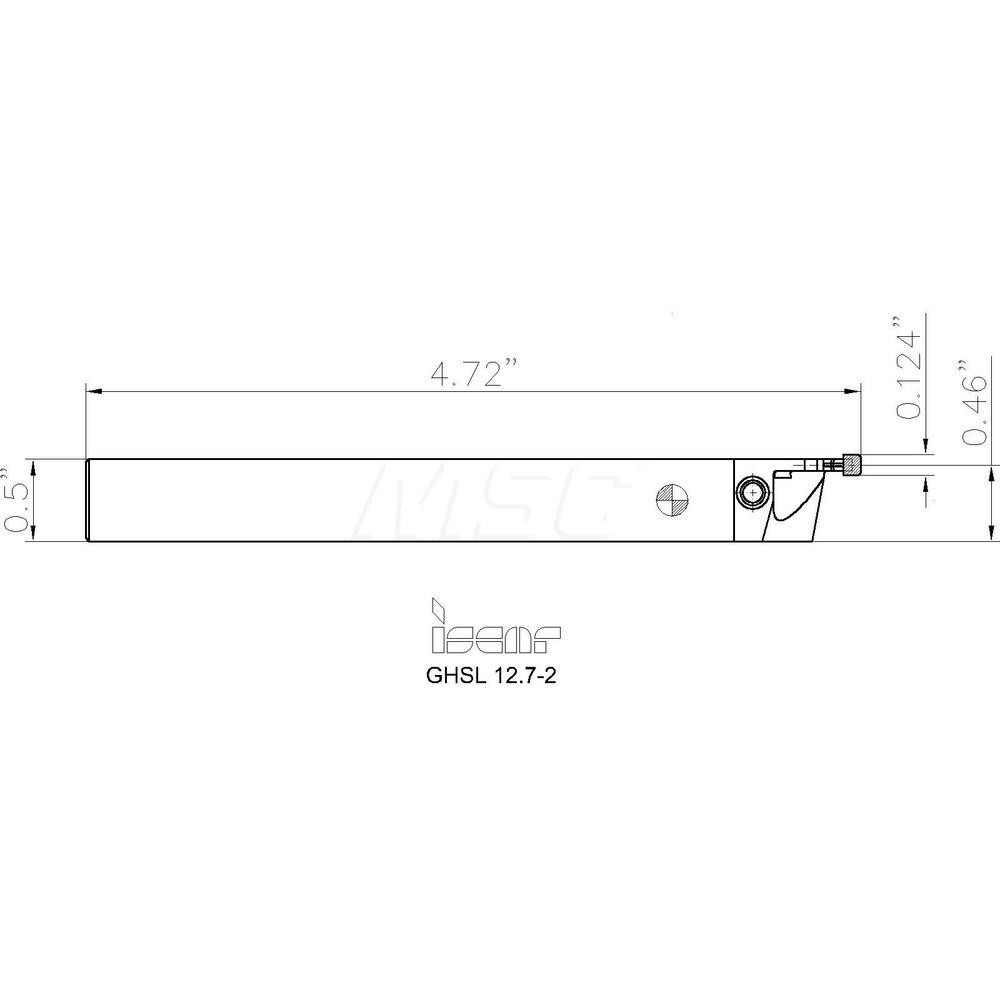

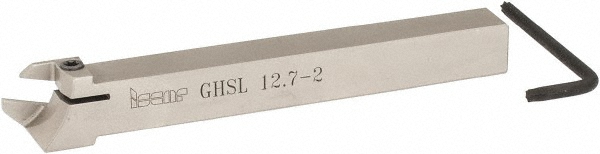

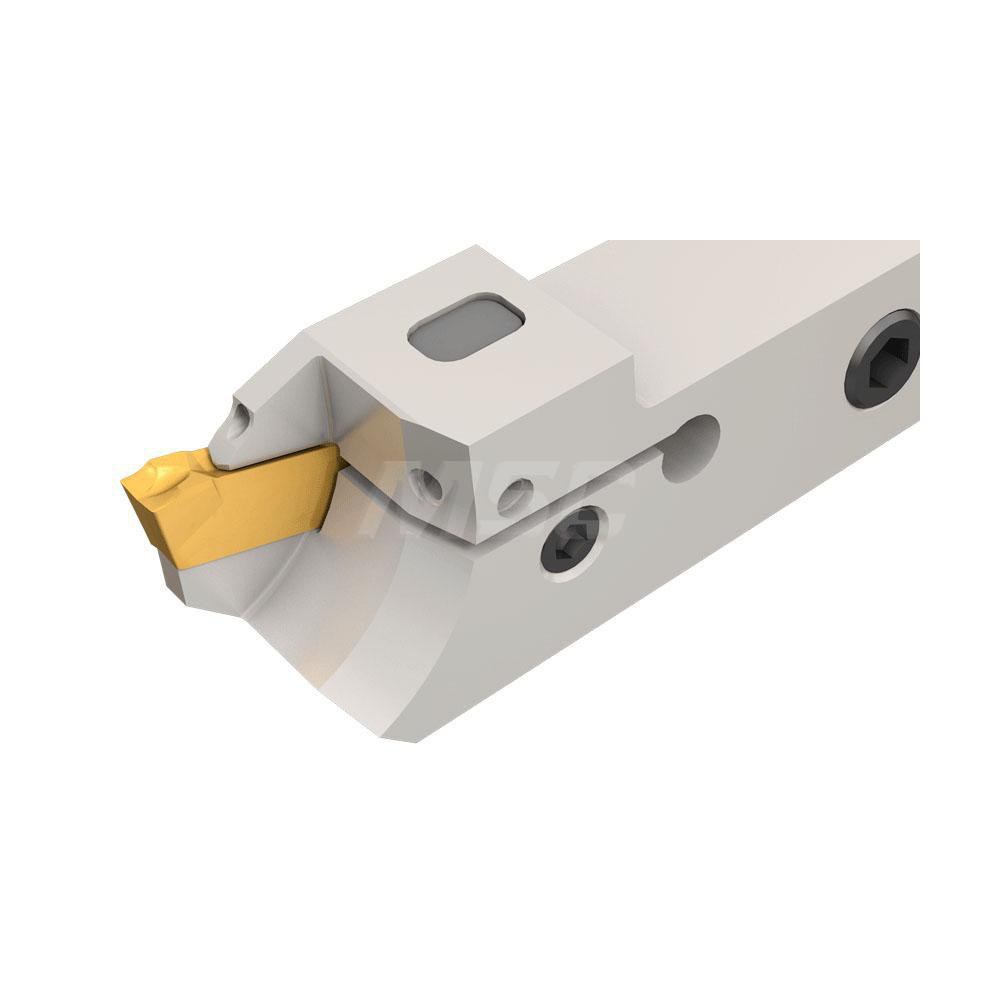

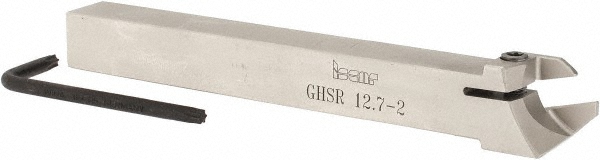

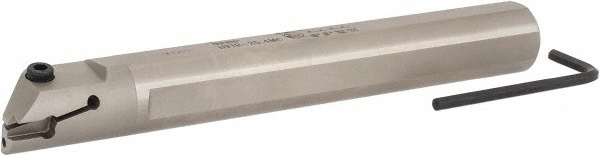

1" Max Depth of Cut, 1/2 x 1/2" Shank, Uses GIG, GIM-J, GIM-J-RA/LA, GIMY, GIMY (Full Radius), GIMY-F, GIP, GIP (Full Radius WM), GIP (Full Radius), GIP-E, GIP-E (Full Radius), GIPA (Full Radius W=3-6), GIPA (W=3-6), GIPM-A46/GIP-1250, GIPY, GITM, GITM (Full Radius), TIP-MT, TIP-P-BSPT, TIP-P-BSW, TIP-P-ISO, TIP-P-NPT, TIP-P-UN, TIP-WT Inserts
| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | 2 |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.0000 |
| Minimum Groove Width (Decimal Inch) | 0.0870 |
| Toolholder Style | GHS |
| Maximum Groove Width (Decimal Inch) | 0.1240 |
| Insert Holding Method | Clamp |
| Insert Compatibility | GIG; GIM; TIP; GIP |
| Compatible Insert Size Code | TIP-P-NPT; GIM-J; GIG; TIP-P-UN; GIPM-A46/GIP-1250; GIPA (Full Radius W=3-6); GIPY; GIMY (Full Radius); GIP-E; GITM (Full Radius); GIP-E (Full Radius); GIMY; GIP; GIP (Full Radius ); TIP-WT; GIM-J-RA/LA; TIP-P-BSPT; TIP-P-BSW; GIP (Full Radius); TIP-P-ISO; GIMY-F; GIPA (W=3-6); TIP-MT; GITM |

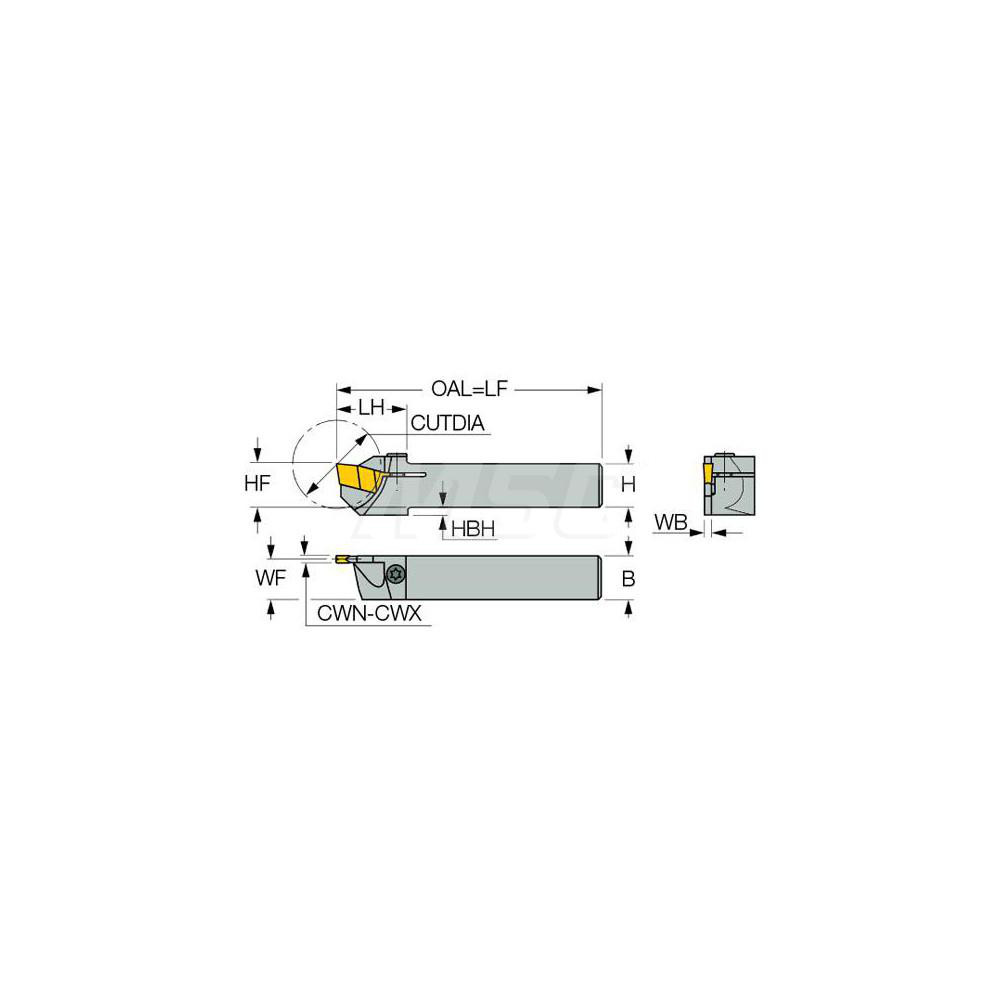

| Shank Height (Decimal Inch) | 0.5000 |
| Series | Cut Grip |
| Shank Length (Decimal Inch) | 3.9600 |
| Overall Length (Decimal Inch) | 4.72 |
| Multi-use Tool | No |
| Maximum Workpiece Diameter (Decimal Inch) | 1.0000 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4640 |
| Head Length (Decimal Inch) | 0.76 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| MSC/Manufacturer Number | GHSR/L 12.7-2 |
| Coolant Through | No |
| Country of Origin | Israel |
| MSC Number | MSC# 60788148 |
