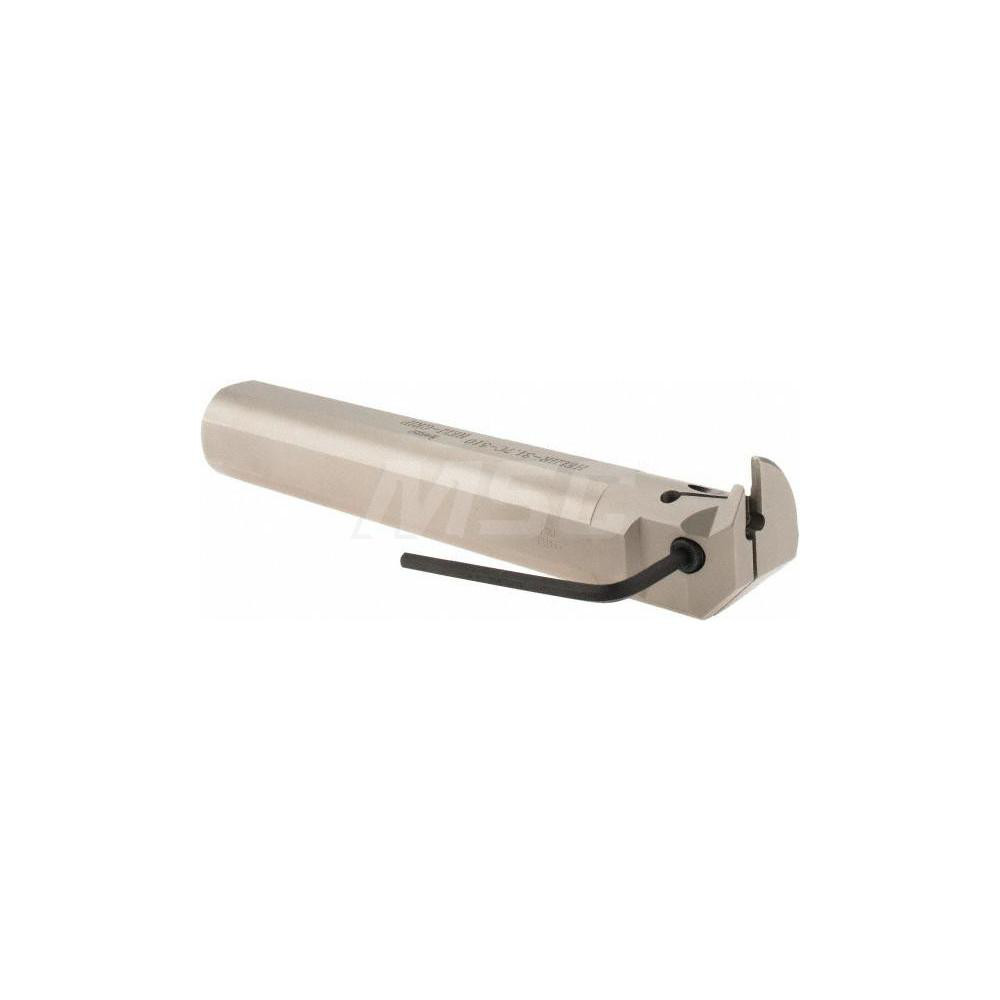

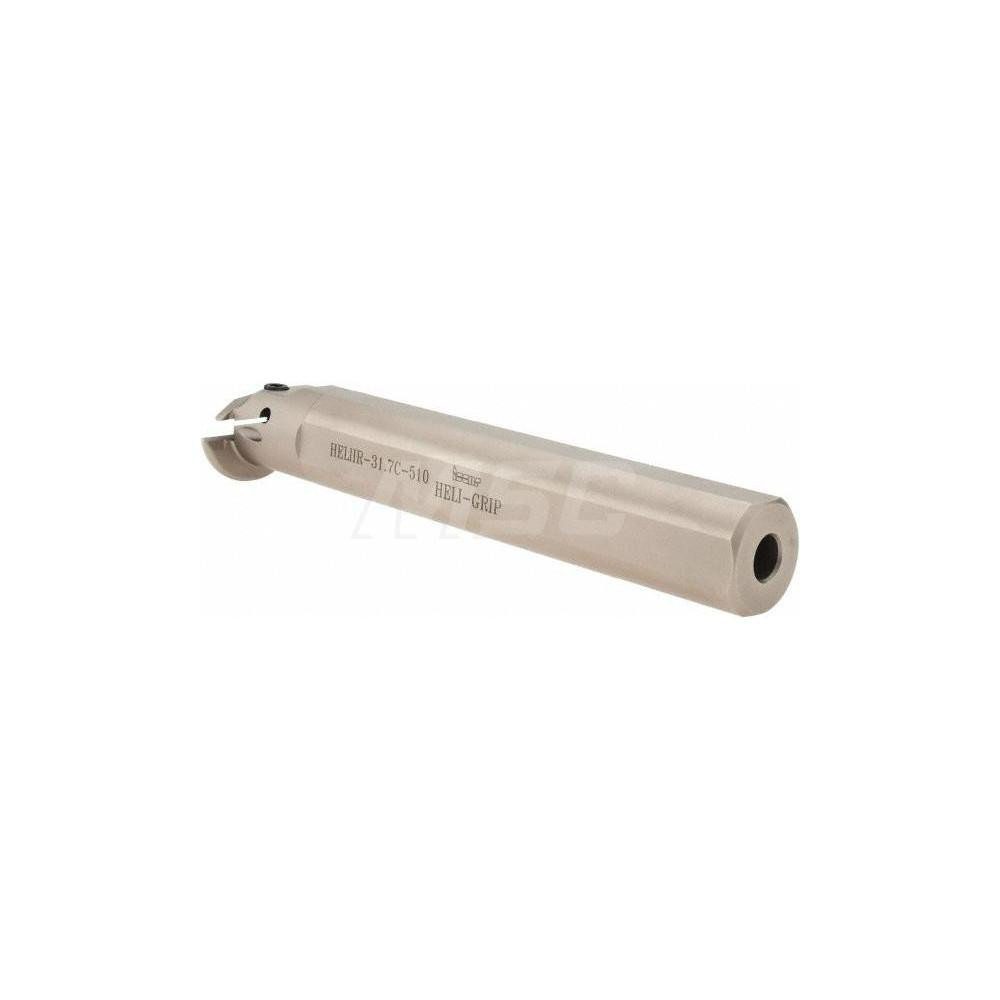

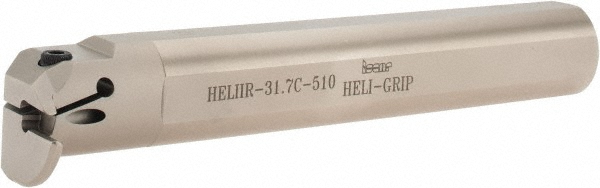

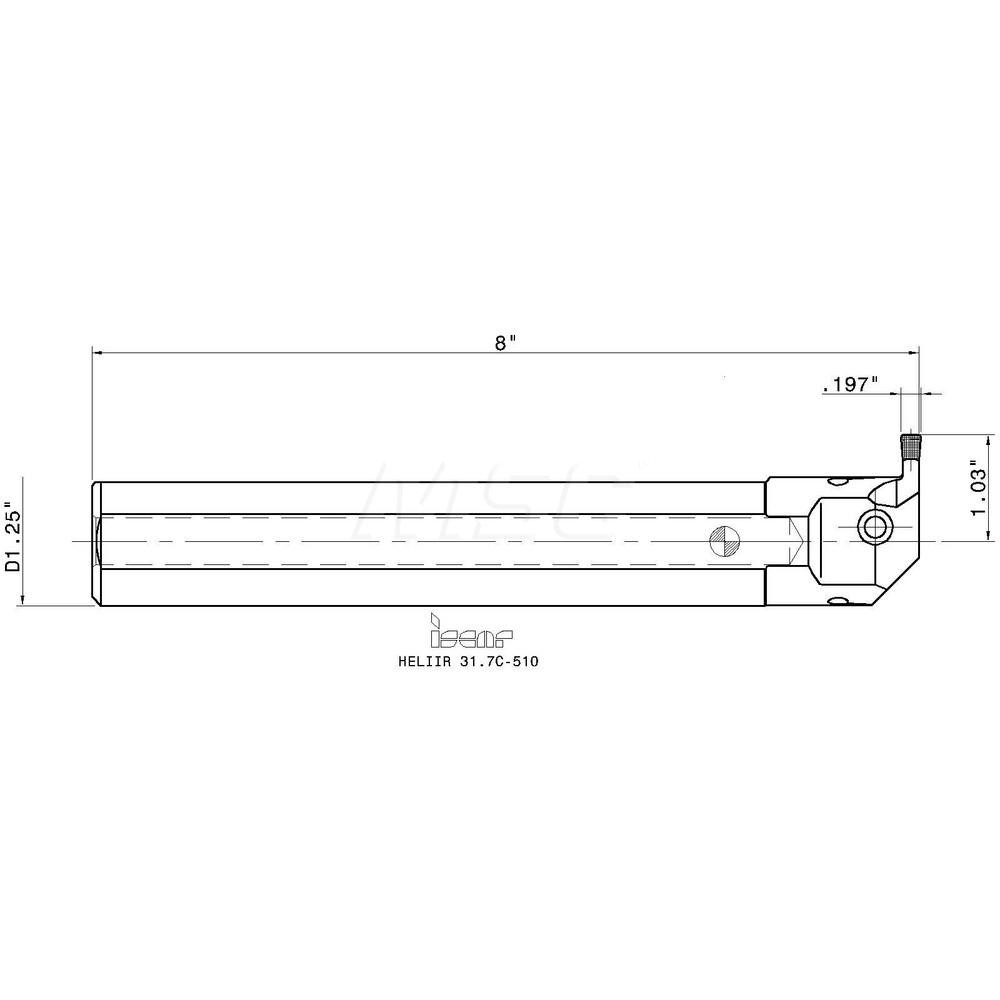

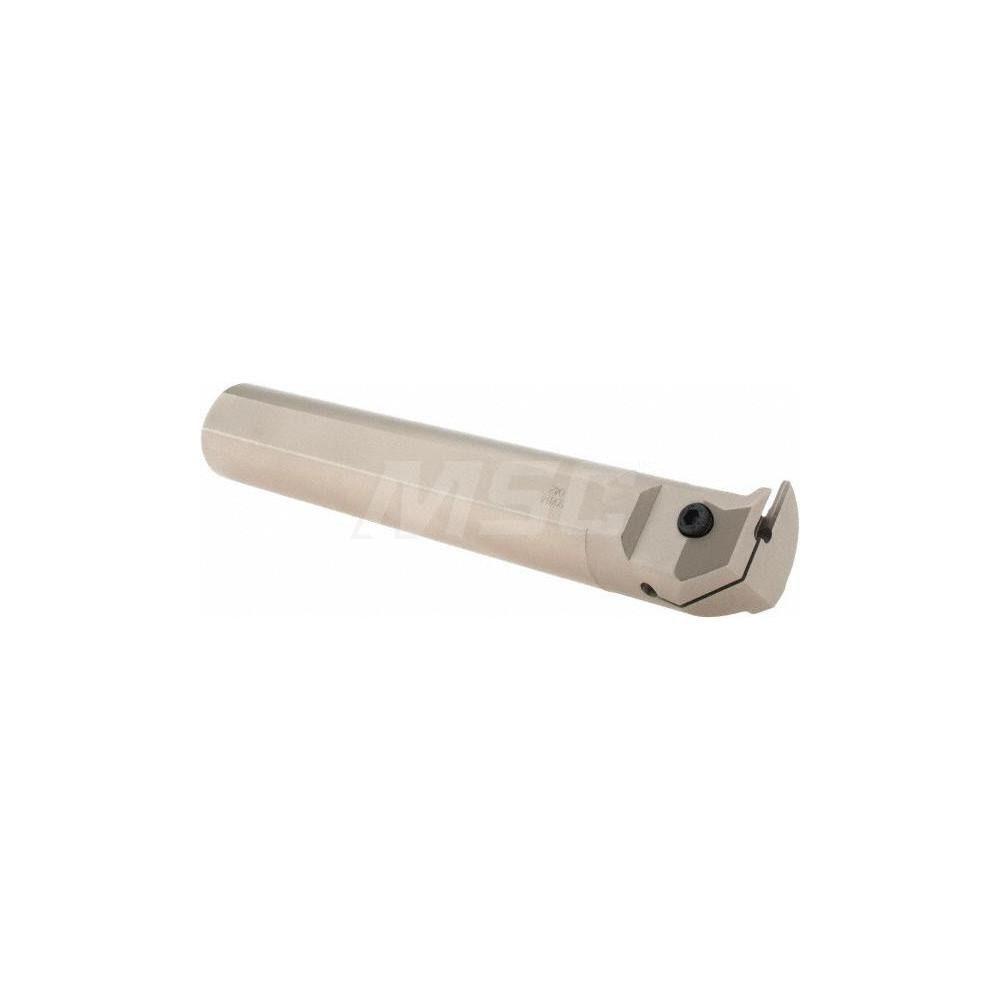

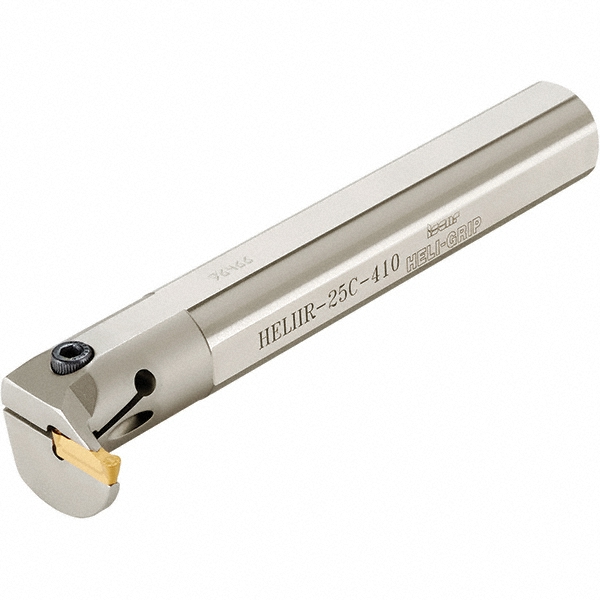

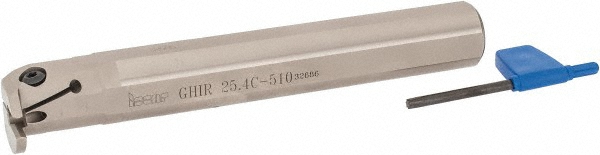

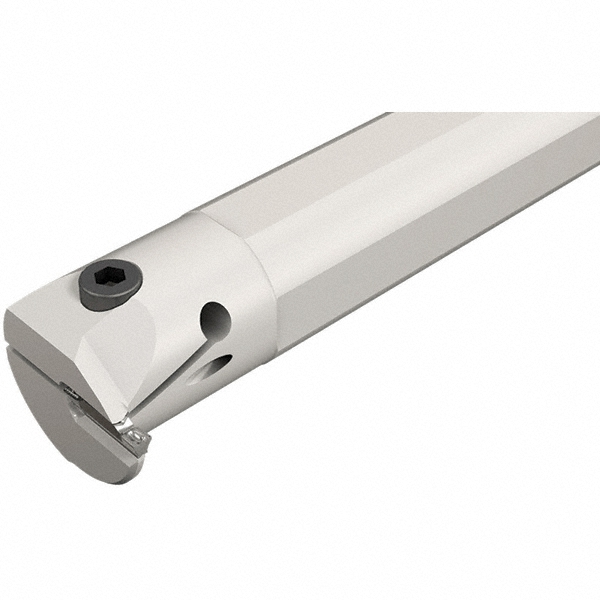

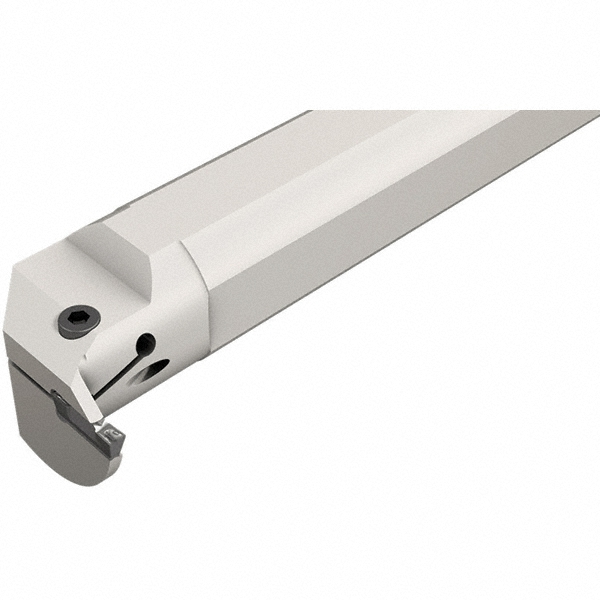

0.393" Max Depth of Cut, 1-1/4 Dia, Through Coolant, Uses GRIP, GRIP (Full Radius) Inserts
| Toolholder Type | Internal Grooving |
|---|---|
| Hand of Holder | Right Hand |

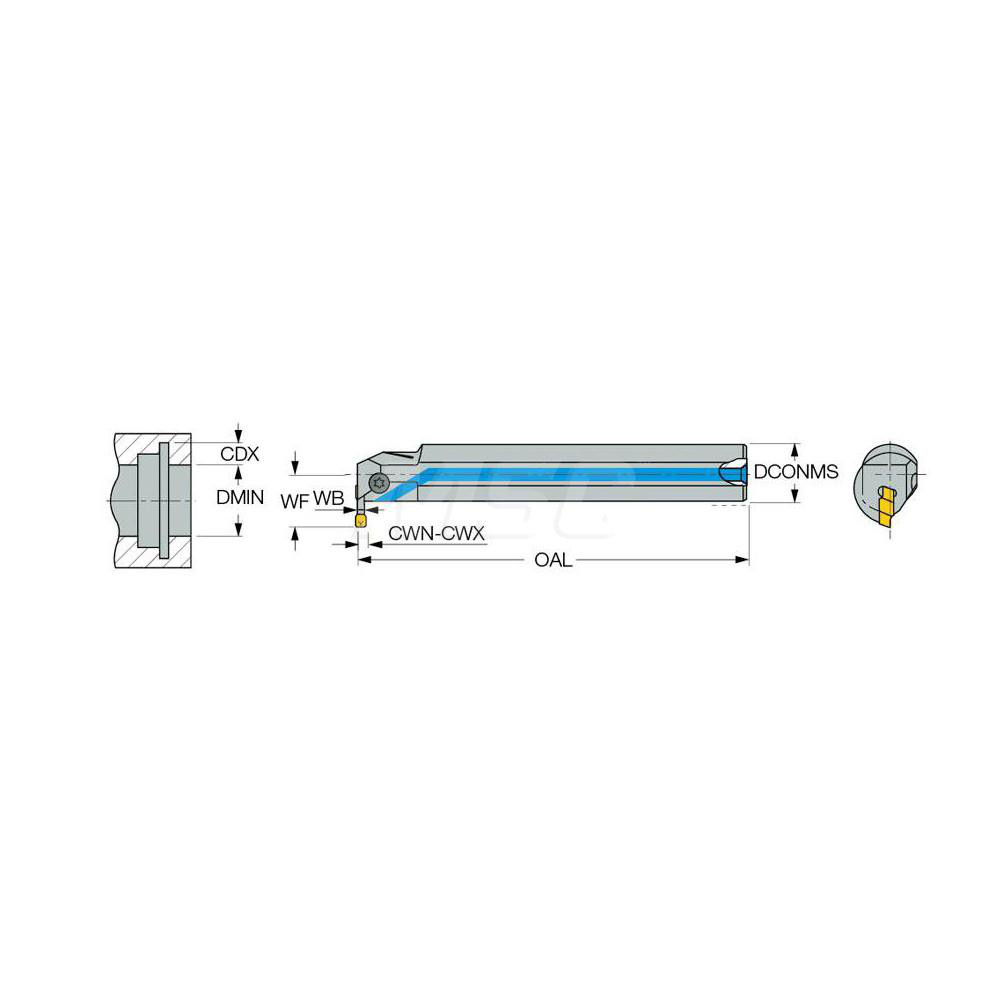

| Maximum Depth of Cut (Decimal Inch) | 0.3930 |
| Minimum Groove Width (Decimal Inch) | 0.1970 |
| Toolholder Style | HELII |
| Maximum Groove Width (Decimal Inch) | 0.1970 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | GRIP; GRIP (Full Radius) |
| Series | Heli-Grip |
| Overall Length (Decimal Inch) | 8 |
| Multi-use Tool | No |
| Center to Cutting Edge (Decimal Inch) | 1.0300 |
| Minimum Hole Diameter (Decimal Inch) | 1.6900 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| Coolant Through | Yes |
| Country of Origin | Israel |
| MSC Number | MSC# 52719804 |
