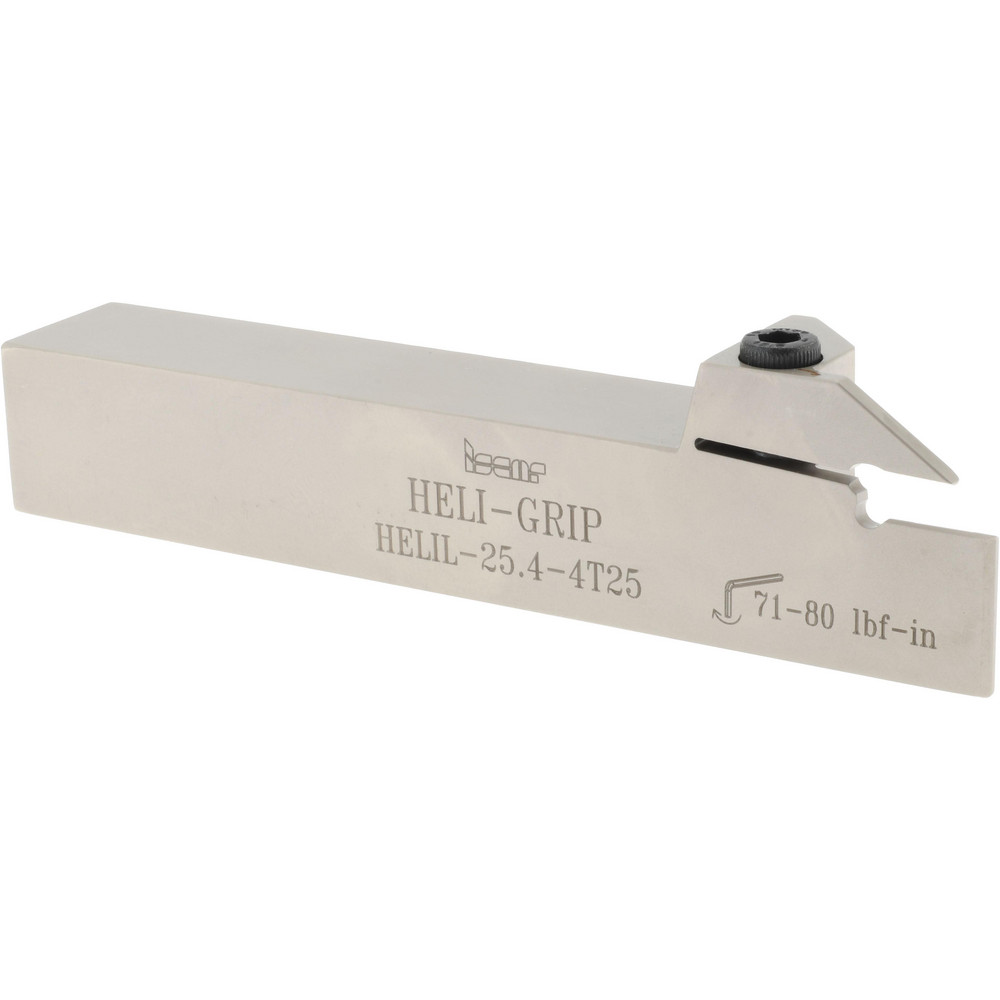

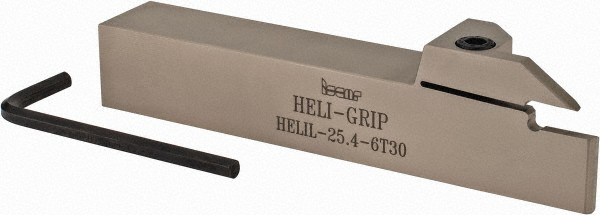

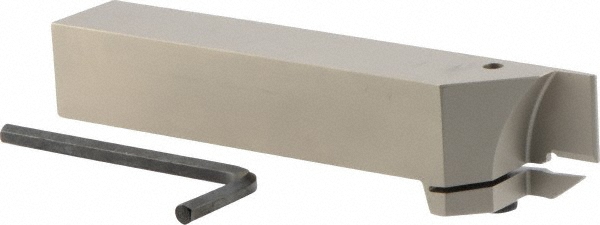

1 x 1" Shank, Uses DG.-6, GRIP-6 Inserts
| Toolholder Type | External Grooving |
|---|---|
| Hand of Holder | Left Hand |
| Minimum Groove Width (Decimal Inch) | 0.2360 |
| Toolholder Style | HELI |
| Maximum Groove Width (Decimal Inch) | 0.2500 |
| Maximum Groove Width (Inch) | 1/4 |
| Insert Holding Method | Clamp |
| Insert Compatibility | GRIP 6..; DG.. 6303 |
| Compatible Insert Size Code | GRIP-6; DG.-6 |

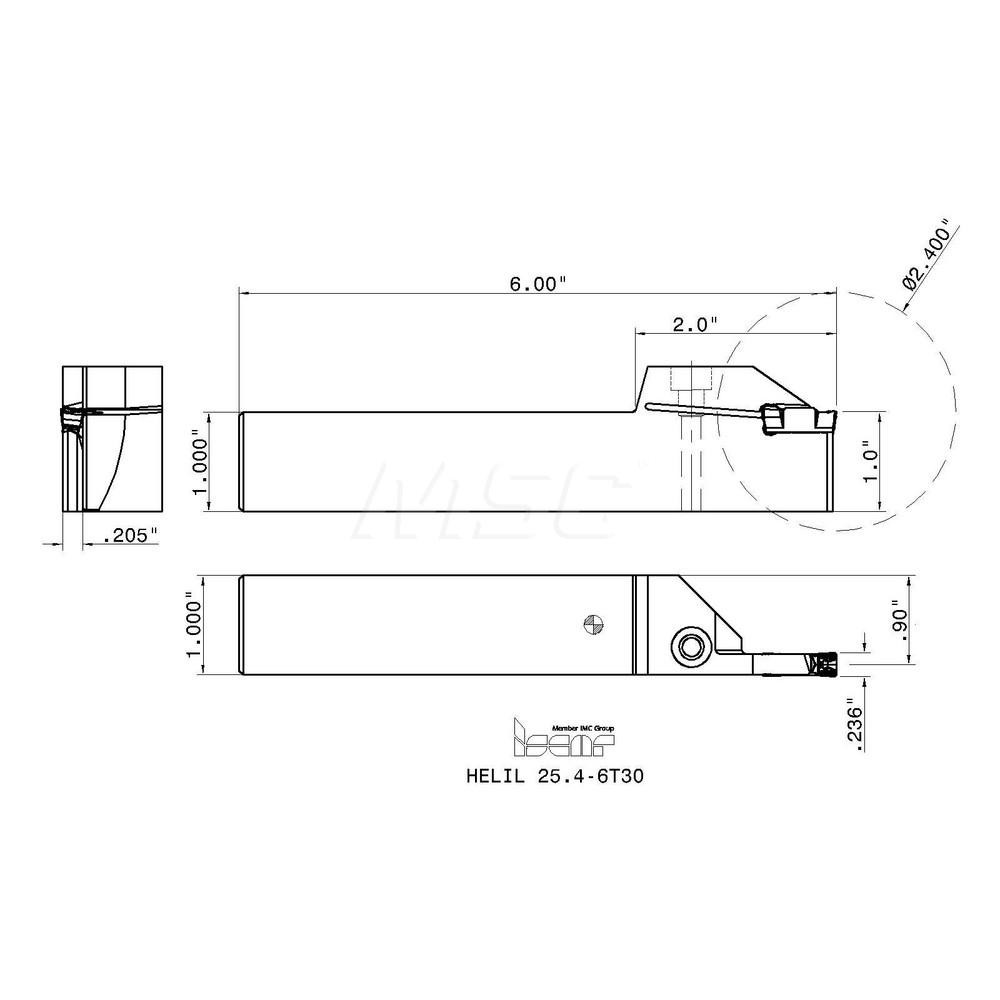

| Shank Height (Decimal Inch) | 1.0000 |
| Series | Heli-Grip |
| Shank Length (Decimal Inch) | 4.0000 |
| Shank Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 6 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 2.3600 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9000 |
| Head Length (Decimal Inch) | 2 |
| Head Length (Inch) | 2 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| Complete Insert Compatibility | GRIP 6005Y; GRIP 635-080Y; GRIP 635-318Y; DGN 6303JT; GRIP 6008Y; DGN 6303J; GRIP 6030Y; DGN 6303C; DGL 6303C-4D; DGR 6303C-4D |
| Coolant Through | No |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 52719994 |
