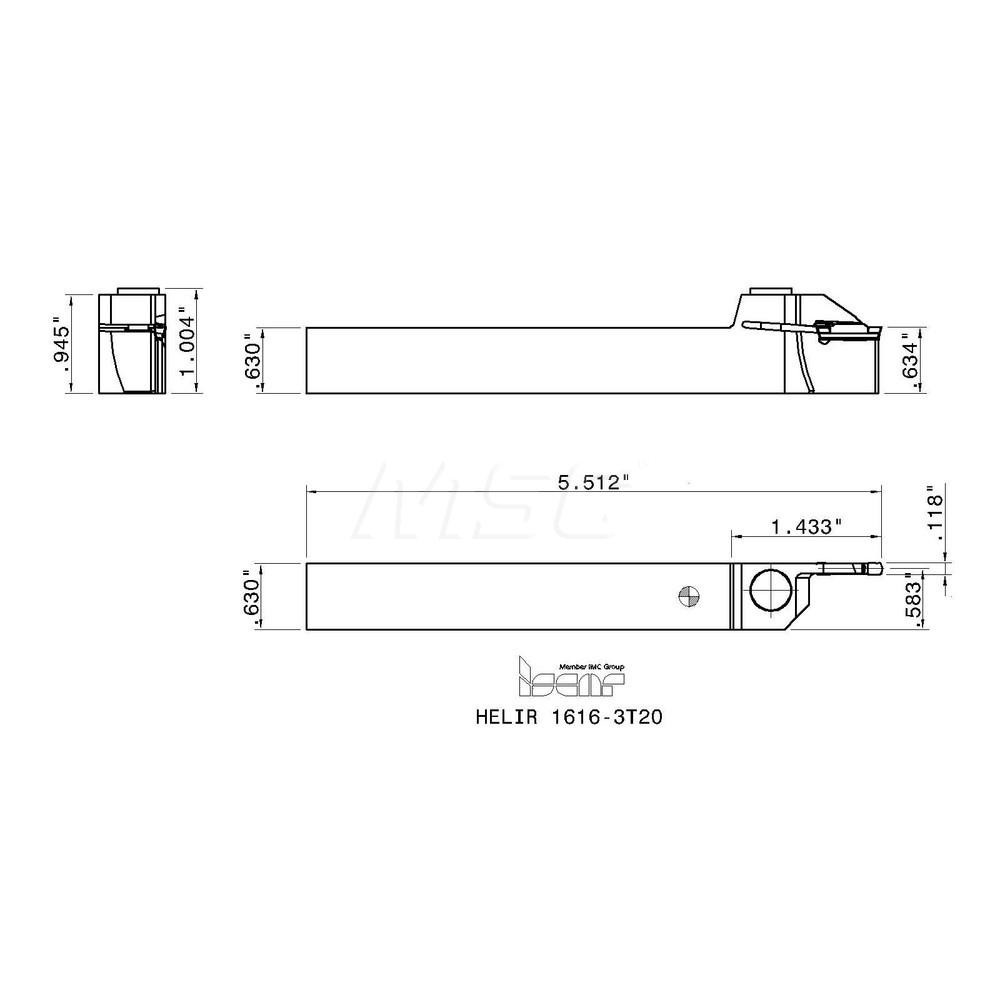

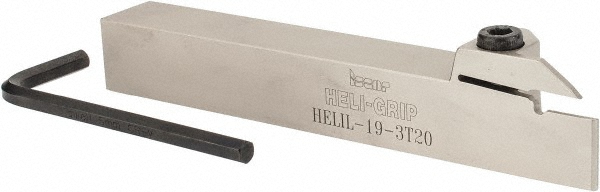

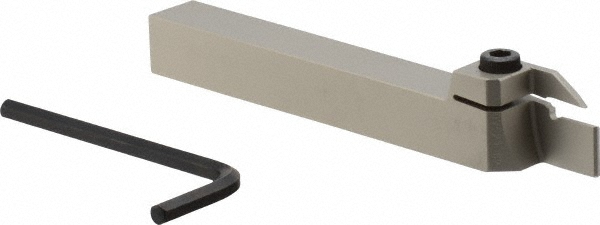

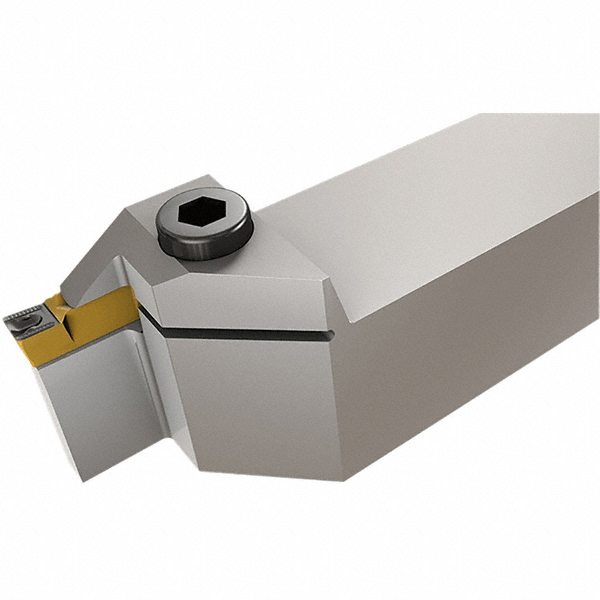

Uses GRIP-3 & HG.-3 Inserts, 0.6299" Shank Height, N/A" Shank Width, No
| Toolholder Type | External Grooving |
|---|---|
| Hand of Holder | Right Hand |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 3.18 |
| Toolholder Style | HELI |
| Maximum Groove Width (Decimal Inch) | 0.1252 |
| Insert Holding Method | Clamp |

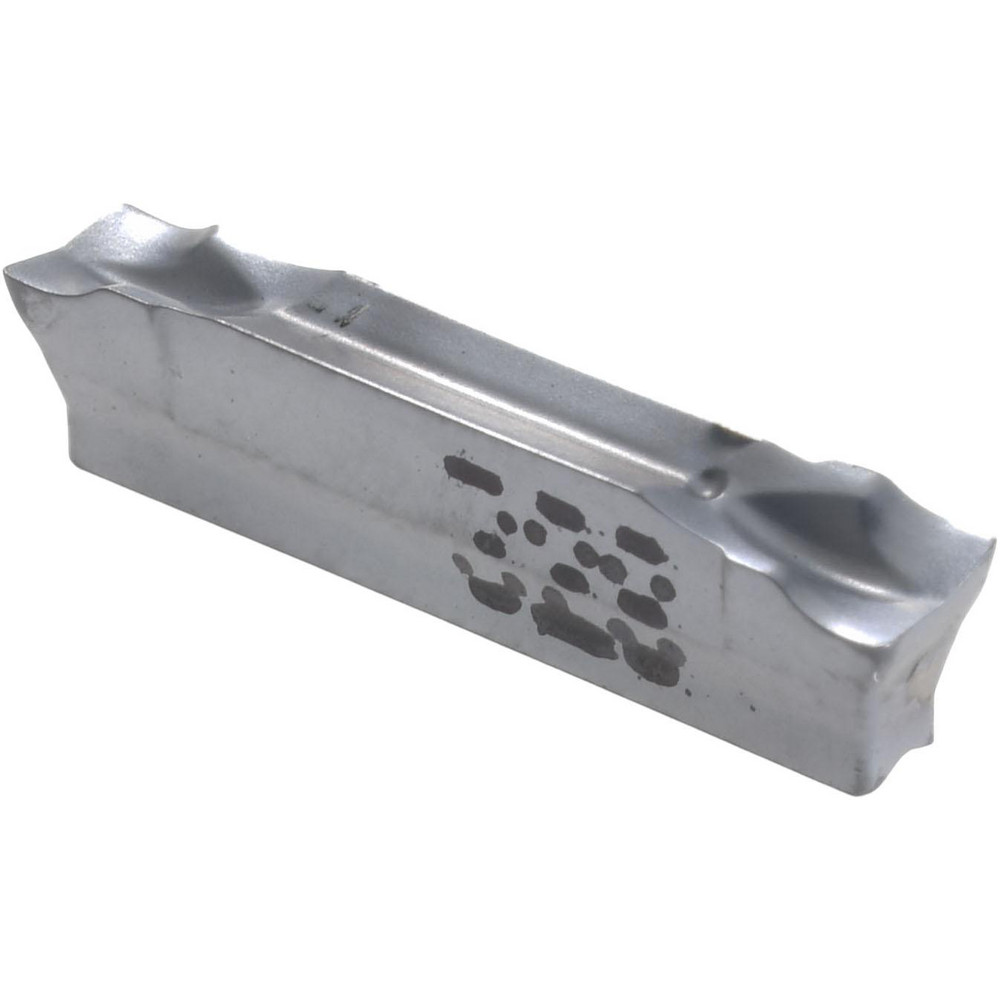

| Insert Compatibility | HGN 30..; GRIP 3.. |
| Compatible Insert Size Code | HG.-3; GRIP-3 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Series | Heli-Grip |

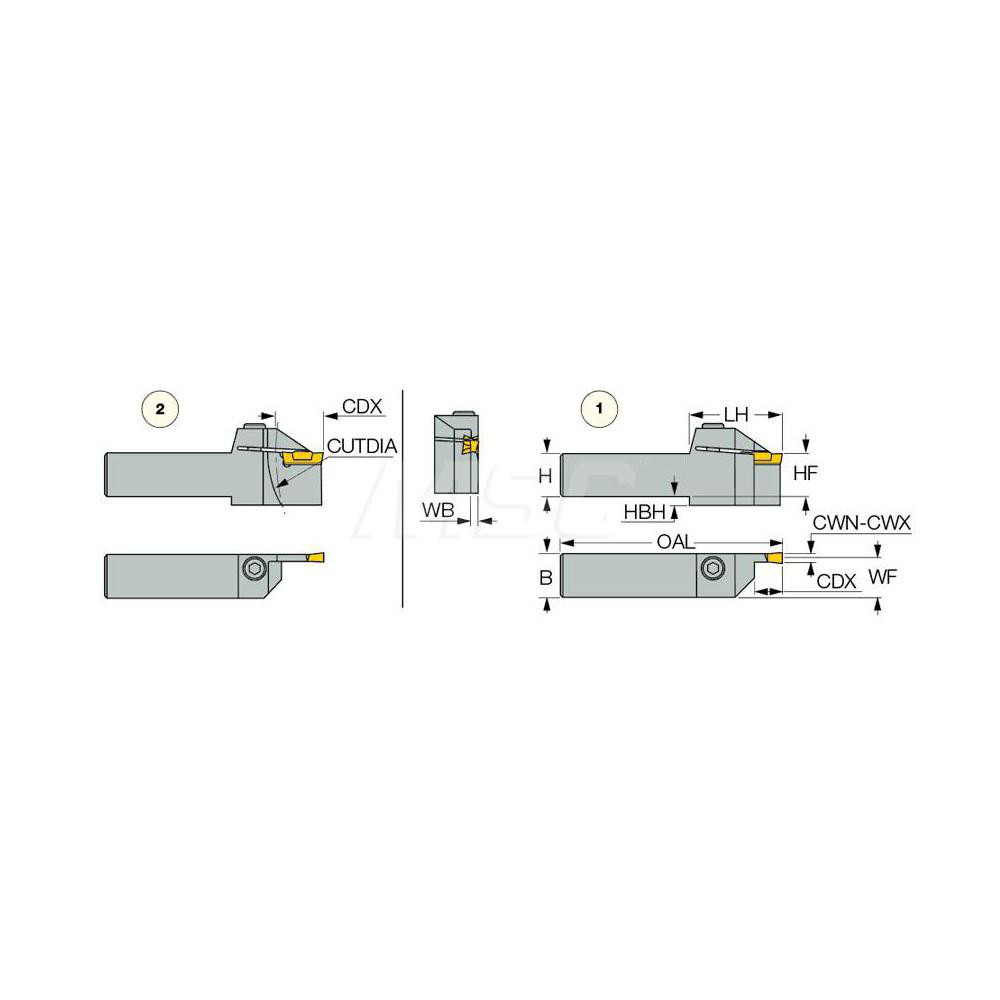

| Shank Length (mm) | 103.60 |
| Shank Length (Decimal Inch) | 4.0788 |
| Overall Length (mm) | 140 |
| Overall Length (Decimal Inch) | 5.5118 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 1.5748 |
| Maximum Workpiece Diameter (mm) | 40.00 |
| Back of Bar to Cutting Edge (mm) | 14.80 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5827 |
| Head Length (Decimal Inch) | 1.433 |
| Head Length (mm) | 36.40 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| Complete Insert Compatibility | HGN 3002J; GRIP 318-159Y; HGN 3003UT; GRIP 3015Y; GRIP 3003Y; HGN 3003C; GRIP 318-040Y; GRIP 3002Y |
| Coolant Through | No |
| Country of Origin | Israel |
| MSC Number | MSC# 78695095 |
