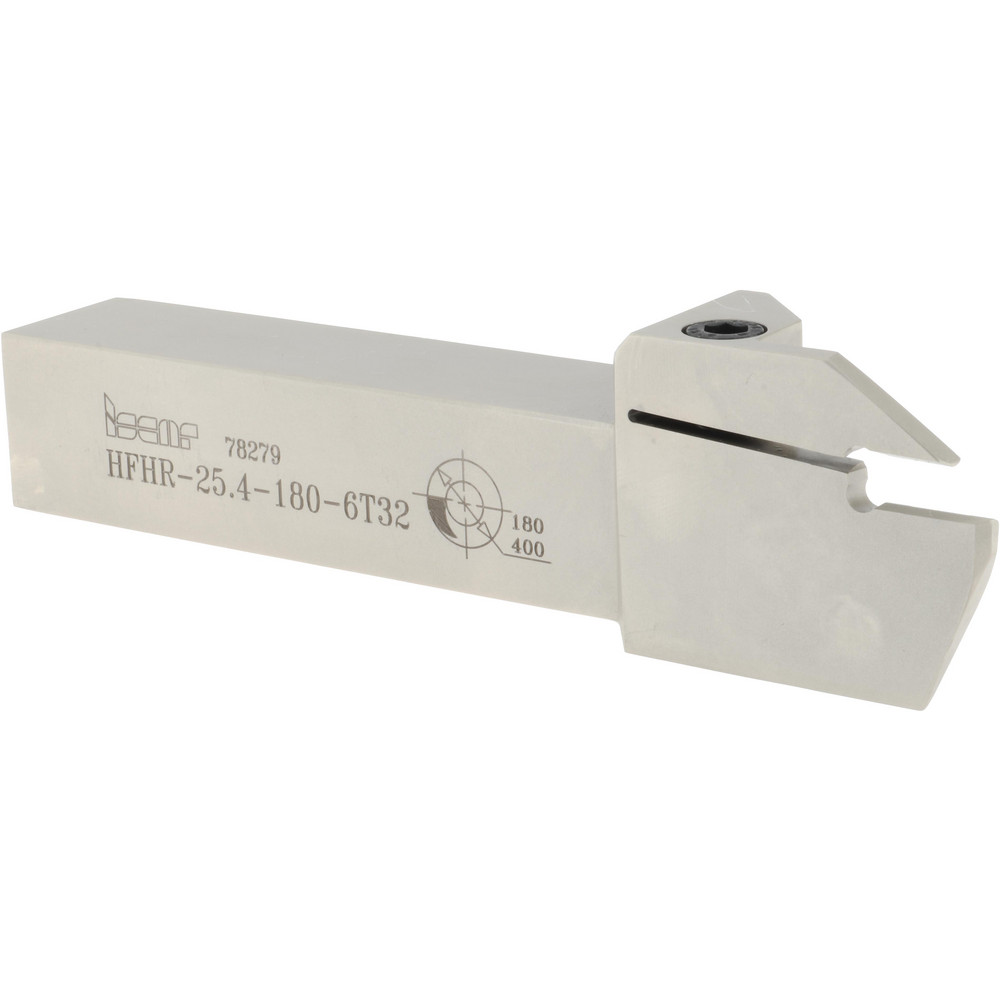

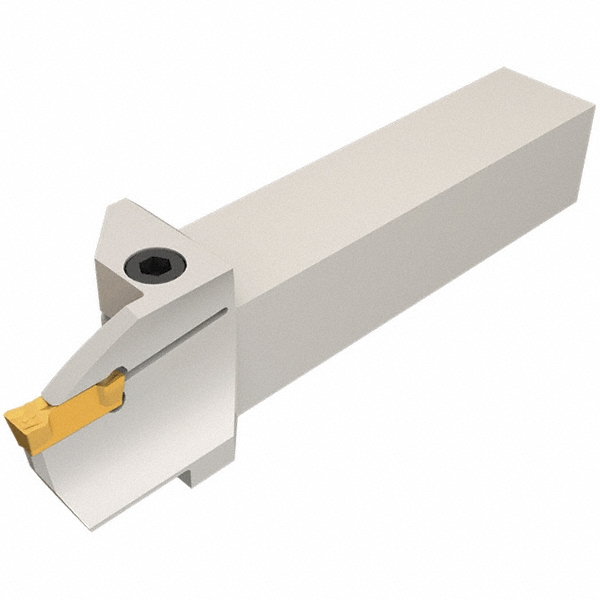

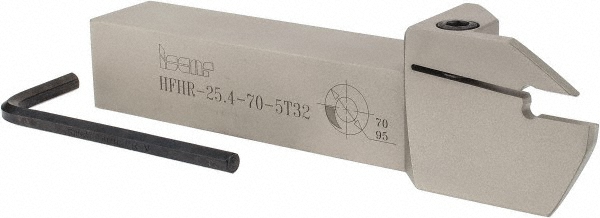

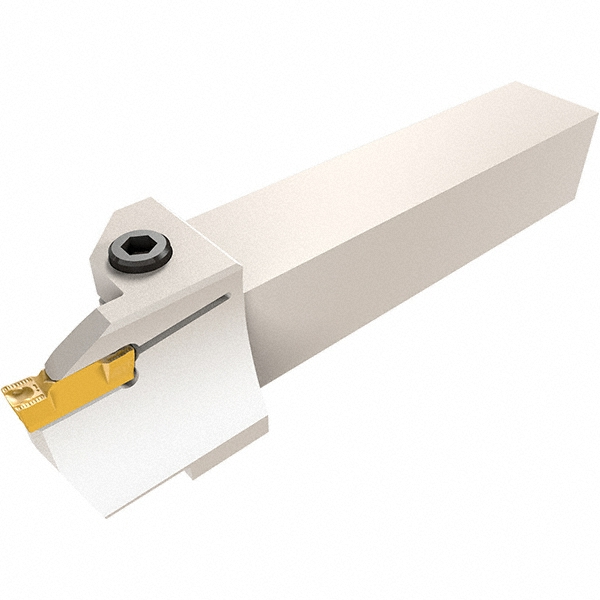

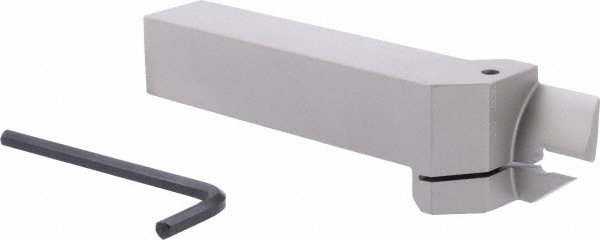

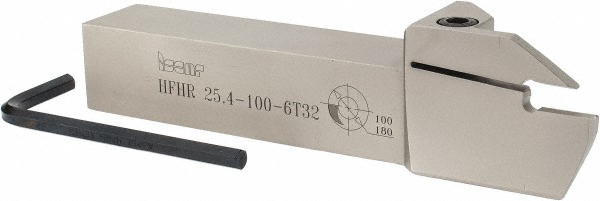

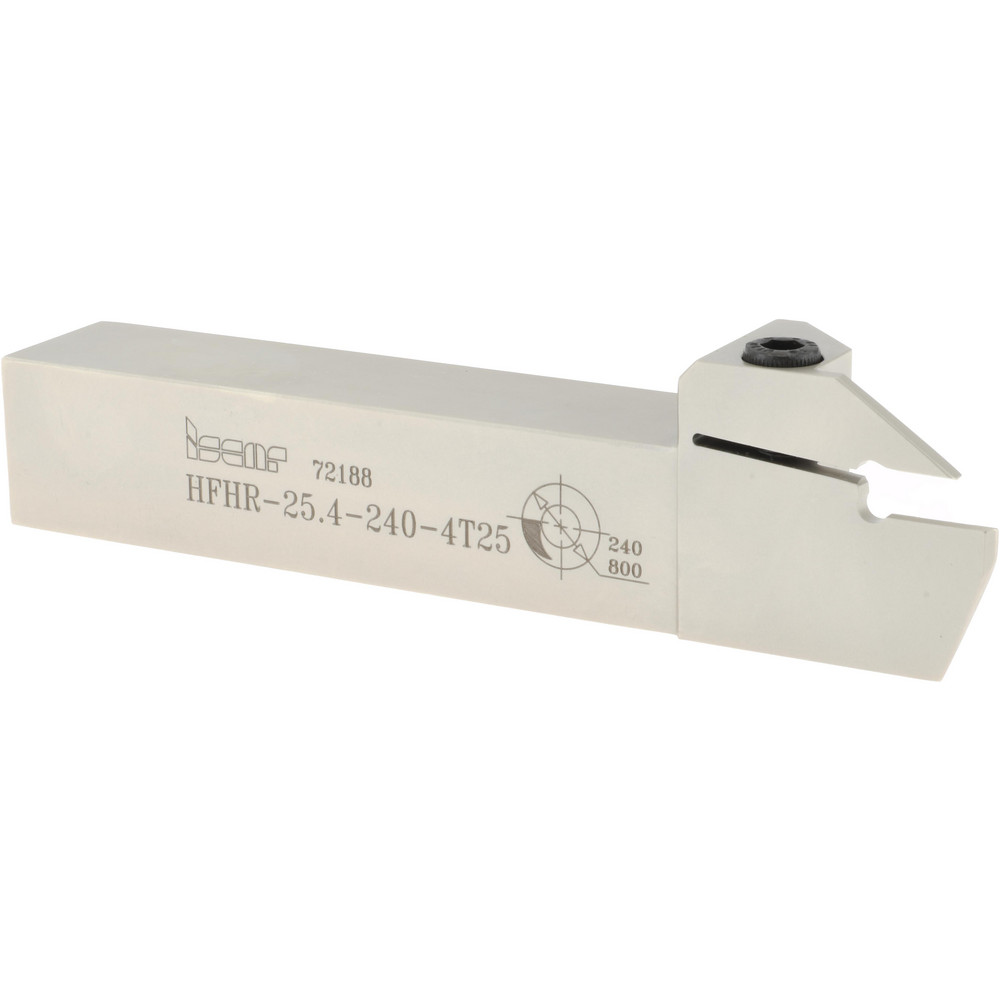

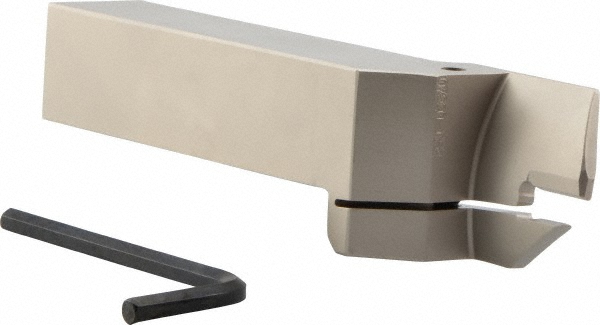

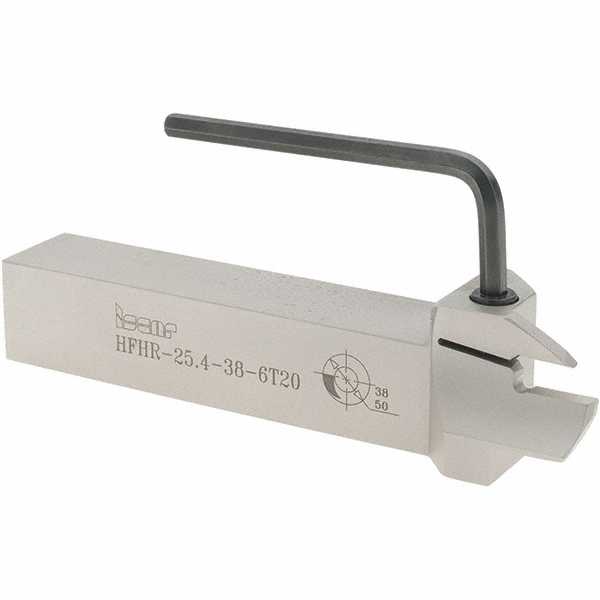

1.26" Max Depth of Cut, 1 x 1" Shank, Uses HGPL 6 Inserts
| Hand of Holder | Left Hand |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Minimum Groove Width (Decimal Inch) | 0.2360 |
| Toolholder Style | HFH |
| Maximum Groove Width (Decimal Inch) | 0.2360 |
| Insert Holding Method | Clamp |
| Insert Compatibility | H.PL 60.. |
| Compatible Insert Size Code | HGPL 6 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Heliface |
| Shank Length (Decimal Inch) | 4.0000 |
| Shank Length (Inch) | 4 |
| Overall Length (Decimal Inch) | 6 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 7.0900 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0500 |
| Head Height (Decimal Inch) | 1.4700 |
| Head Length (Decimal Inch) | 2 |
| Head Length (Inch) | 2 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| Maximum Groove Outside Diameter (Decimal Inch) | 7.0900 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 3.9400 |

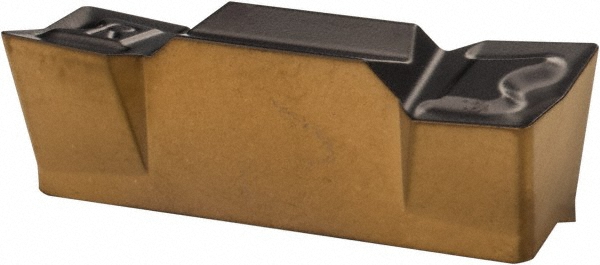

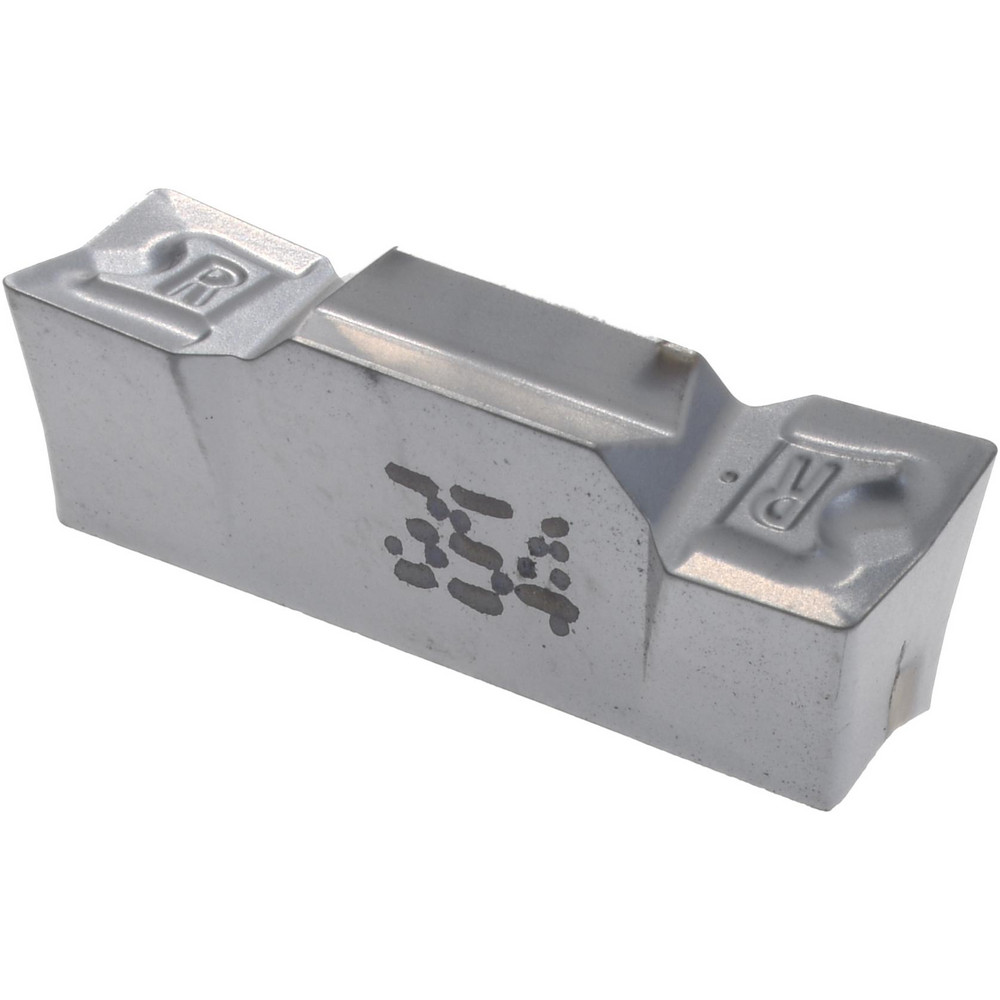

| Complete Insert Compatibility | HGPL 6005Y; HFPL 6004; HGPL 6030Y; HFPL 6030 |
| Coolant Through | No |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 52720778 |
