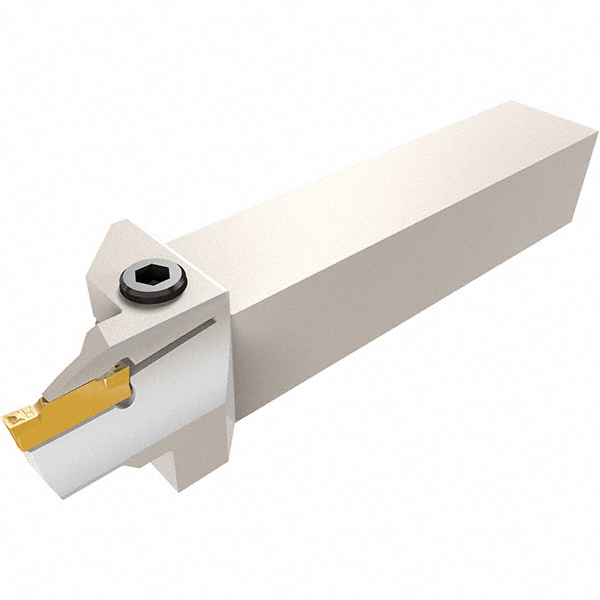

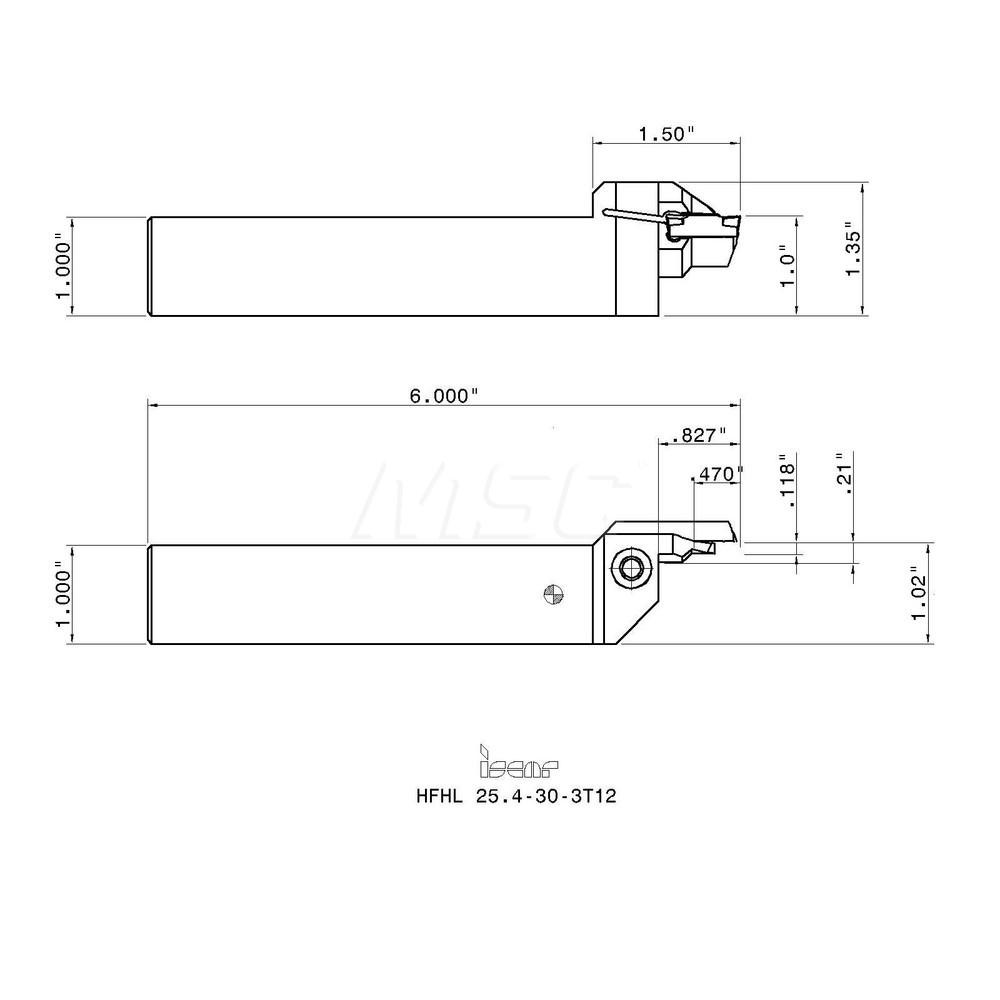

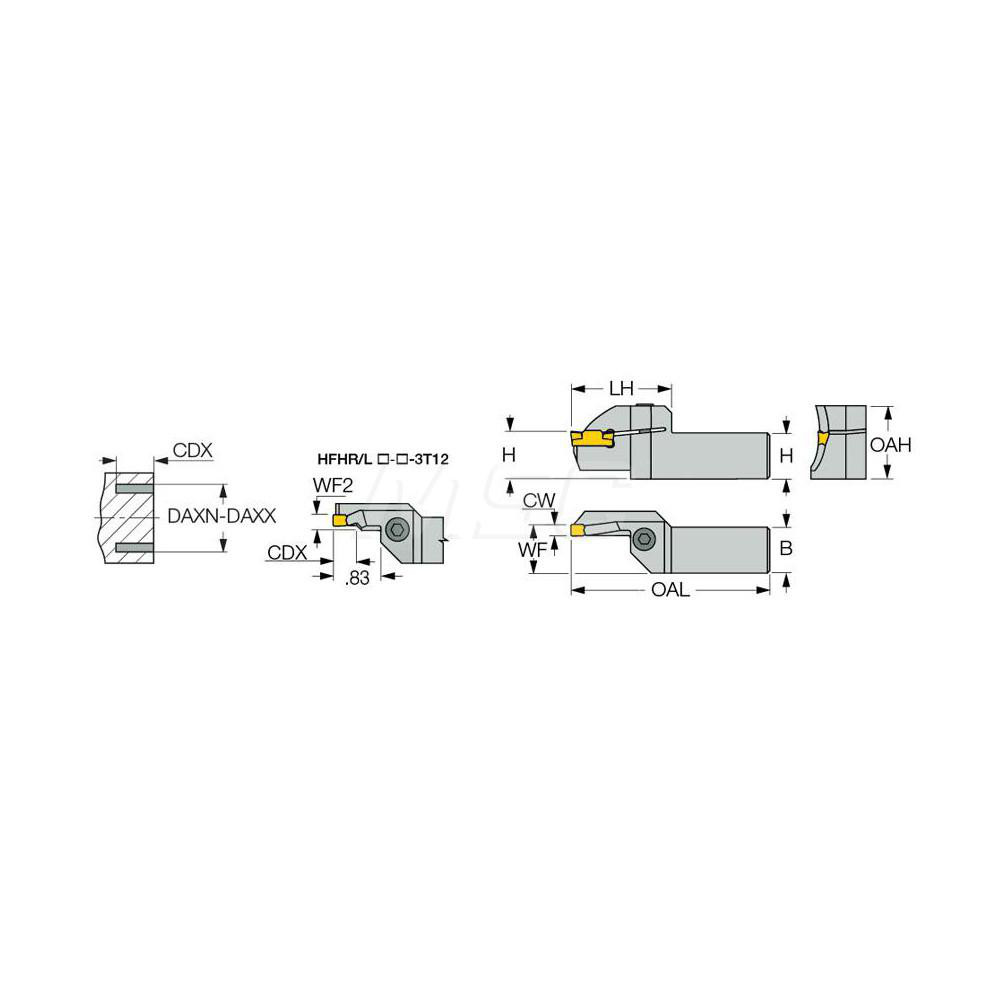

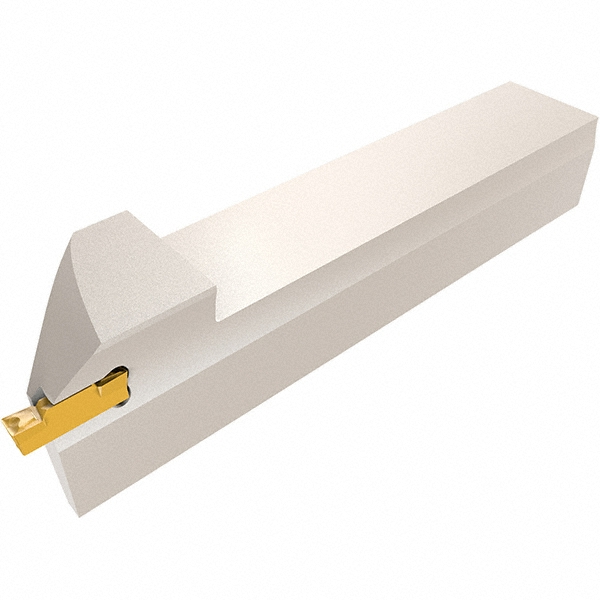

0.47" Max Depth of Cut, 1 x 1" Shank, Uses HFPR/L, HFPR/L (Full Radius) Inserts
| Hand of Holder | Left Hand |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.4700 |
| Minimum Groove Width (Decimal Inch) | 0.1180 |
| Toolholder Style | HFH |
| Maximum Groove Width (Decimal Inch) | 0.1180 |
| Insert Holding Method | Clamp |
| Insert Compatibility | HFPL 30.. |
| Compatible Insert Size Code | HFPR/L; HFPR/L (Full Radius) |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Heliface |
| Shank Length (Decimal Inch) | 4.5000 |
| Shank Length (Inch) | 4-1/2 |
| Overall Length (Decimal Inch) | 6 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 1.5000 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0200 |
| Head Height (Decimal Inch) | 1.3500 |
| Head Length (Decimal Inch) | 1.5 |
| Head Length (Inch) | 1-1/2 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| Maximum Groove Outside Diameter (Decimal Inch) | 1.5000 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 1.1800 |
| Complete Insert Compatibility | HFPL 3015; HFPL 3003 |
| Coolant Through | No |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 52720869 |
