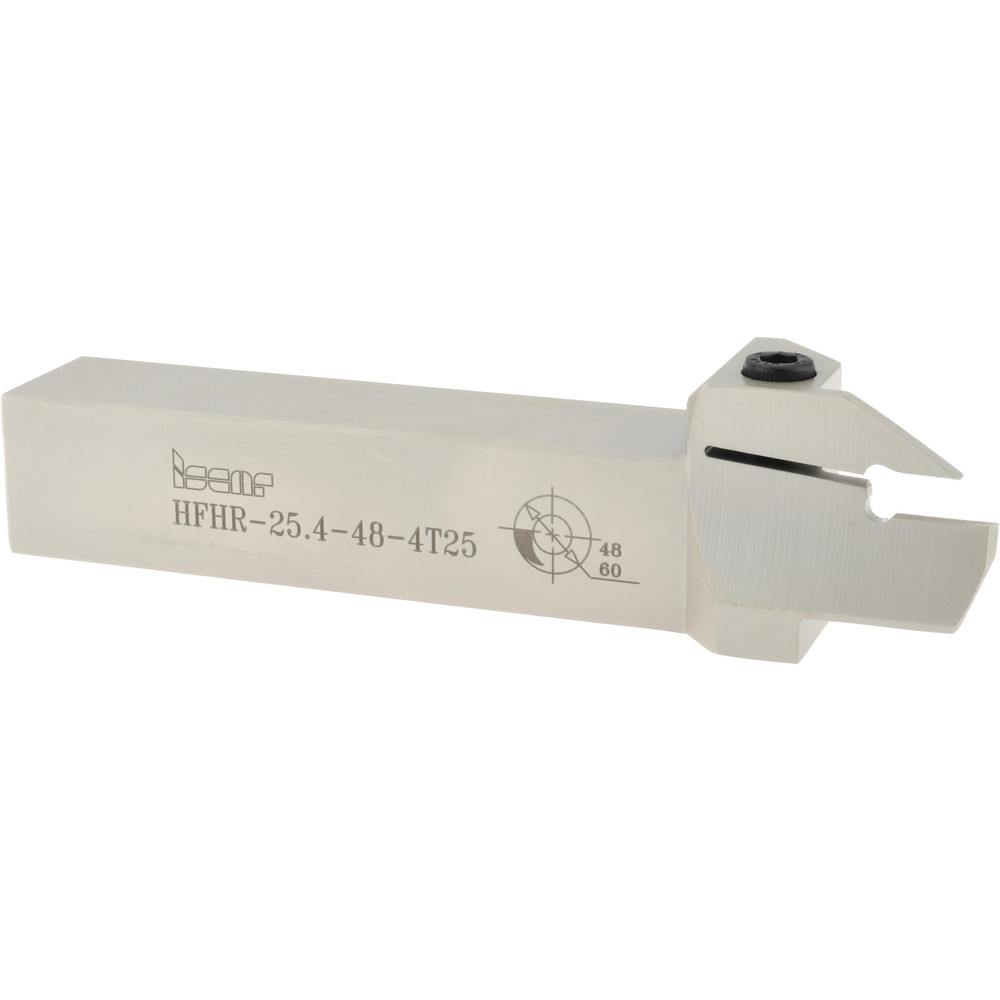

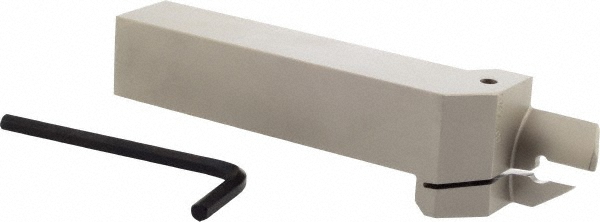

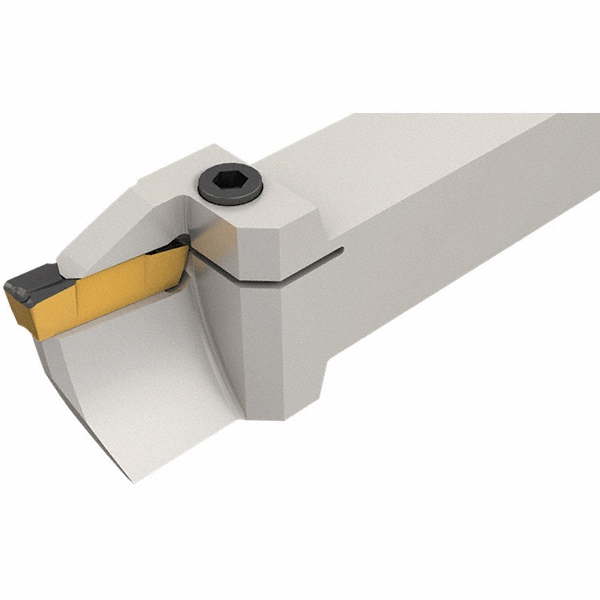

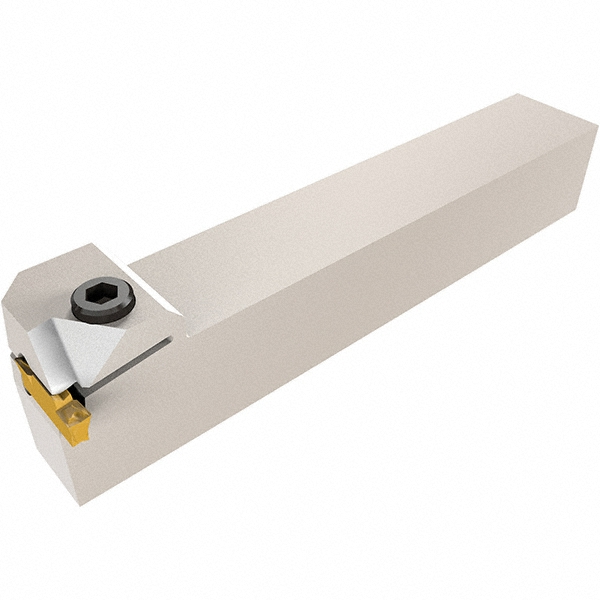

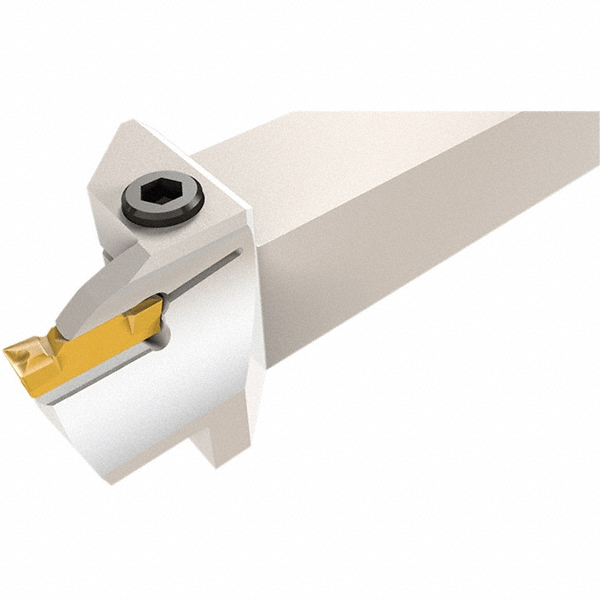

32 mm Max Depth of Cut, 25 x 25 mm Shank, Uses DGN, GRIP 5 Inserts
| Toolholder Type | Face Grooving |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.2598 |
| Maximum Depth of Cut (mm) | 32.00 |
| Minimum Groove Width (Decimal Inch) | 0.1969 |
| Minimum Groove Width (mm) | 5.00 |
| Maximum Groove Width (mm) | 5.00 |
| Toolholder Style | HFH |
| Maximum Groove Width (Decimal Inch) | 0.1969 |
| Insert Holding Method | Clamp |
| Insert Compatibility | DGN..; HFPR 50..; GRIP 5.. |
| Compatible Insert Size Code | DGN; GRIP 5 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Series | Heliface |
| Shank Length (mm) | 99.00 |
| Overall Length (mm) | 150 |
| Overall Length (Decimal Inch) | 5.9055 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (mm) | 800.00 |
| Back of Bar to Cutting Edge (mm) | 26.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0236 |
| Head Height (Decimal Inch) | 1.4567 |
| Head Height (mm) | 37.00 |
| Head Length (mm) | 51.00 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| Maximum Groove Outside Diameter (mm) | 800.00 |
| Minimum Axial Groove Inside Diameter(mm) | 180.00 |
| Complete Insert Compatibility | HFPR 5004; DGN 5003C; GRIP 5025Y; HFPR 5025; GRIP 5005Y; GRIP 5008Y; DGN 4803C |
| Coolant Through | No |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 52721669 |
