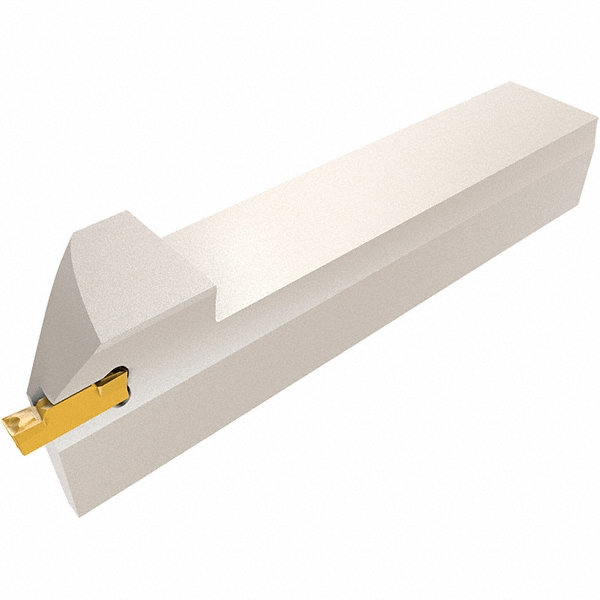

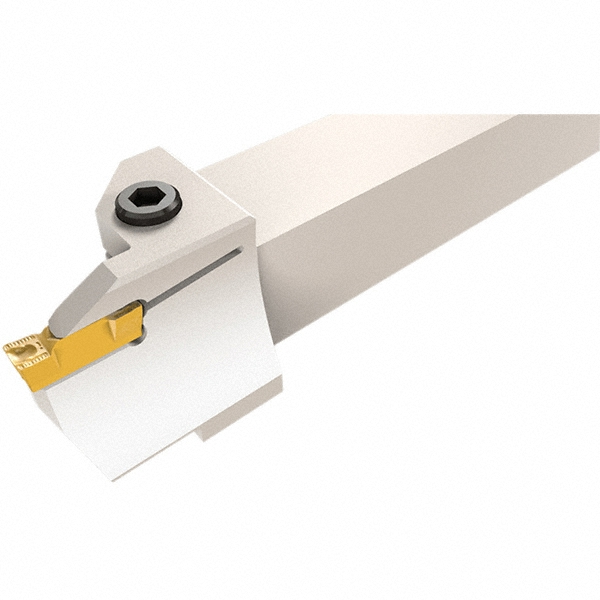

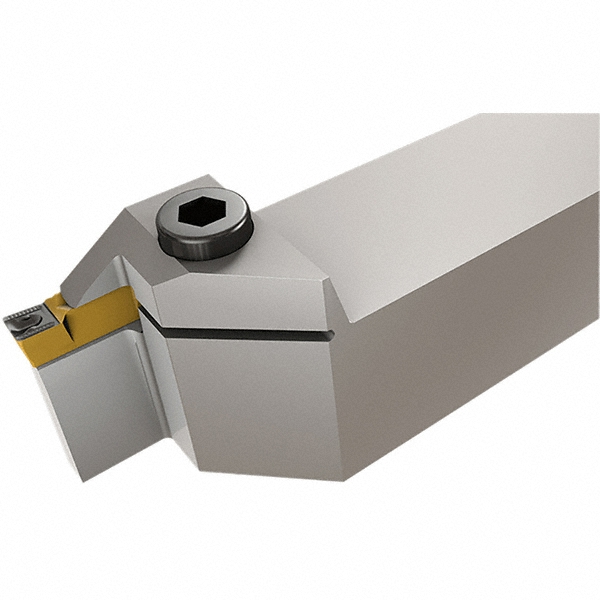

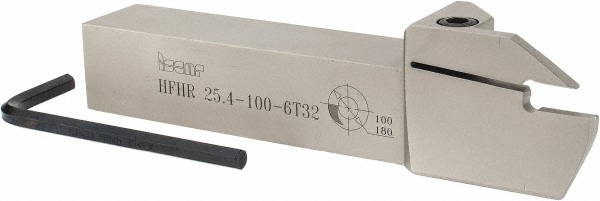

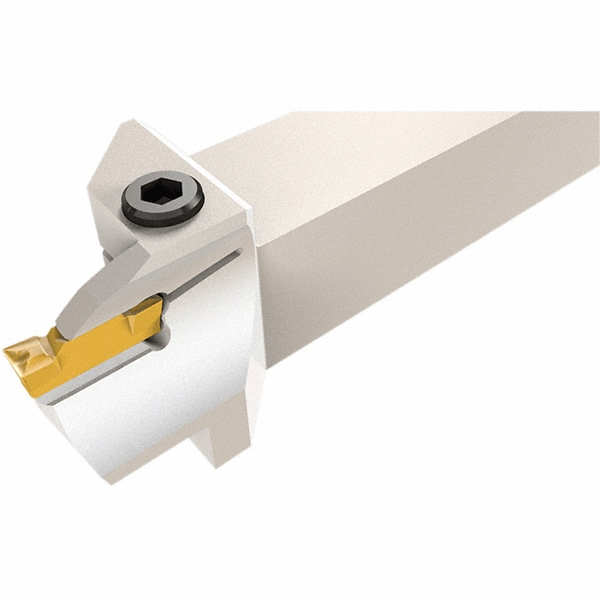

20 mm Max Depth of Cut, 25 x 25 mm Shank, Uses DGN, GRIP 6 Inserts
| Toolholder Type | Face Grooving |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 20.00 |
| Minimum Groove Width (Decimal Inch) | 0.2362 |
| Minimum Groove Width (mm) | 6.00 |
| Maximum Groove Width (mm) | 6.00 |
| Toolholder Style | HFH |
| Maximum Groove Width (Decimal Inch) | 0.2362 |
| Insert Holding Method | Clamp |

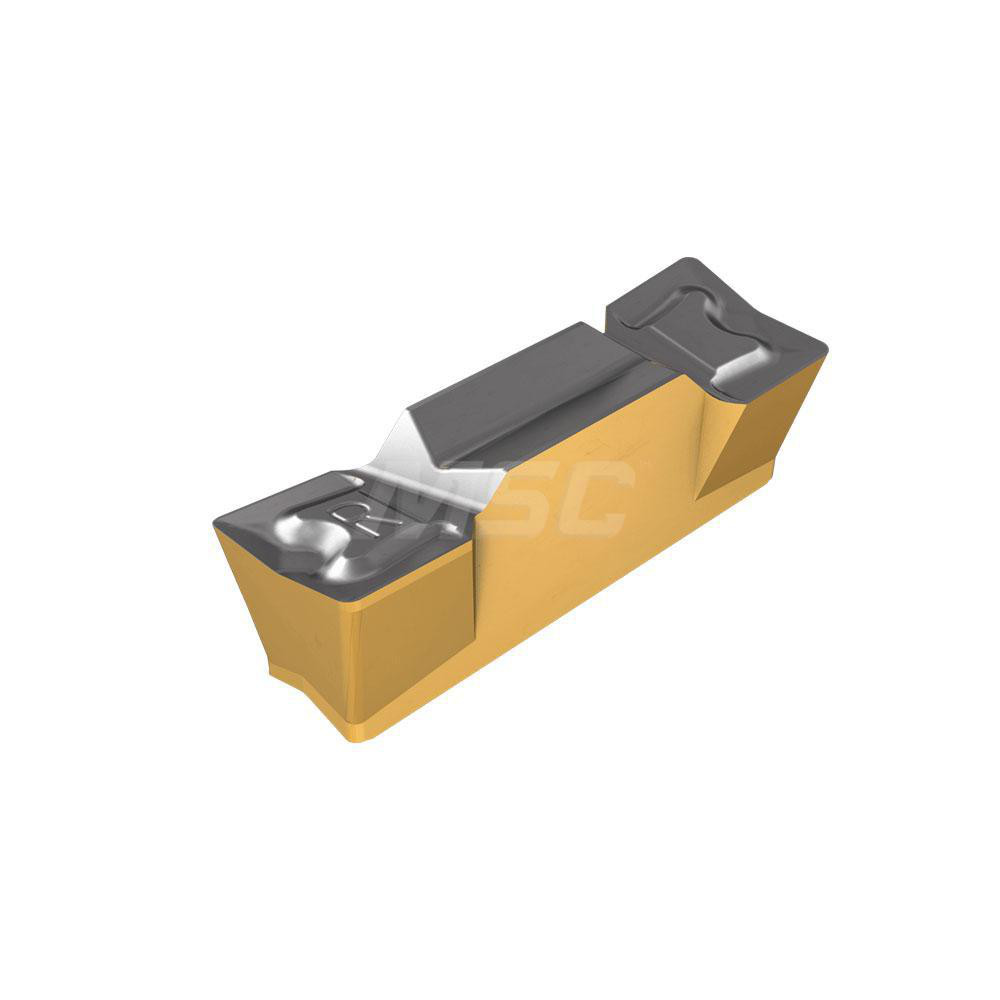

| Insert Compatibility | GRIP 6..; DGN 6303; HFPR 60.. |
| Compatible Insert Size Code | GRIP 6; DGN |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Series | Heliface |
| Shank Length (mm) | 112.50 |
| Overall Length (mm) | 150 |
| Overall Length (Decimal Inch) | 5.9055 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (mm) | 3000.00 |
| Back of Bar to Cutting Edge (mm) | 23.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.9055 |
| Head Height (Decimal Inch) | 1.2992 |
| Head Height (mm) | 33.00 |
| Head Length (mm) | 37.50 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| Maximum Groove Outside Diameter (mm) | 3000.00 |
| Minimum Axial Groove Inside Diameter(mm) | 200.00 |
| Complete Insert Compatibility | GRIP 6005Y; GRIP 635-080Y; HFPR 6004; GRIP 635-318Y; GRIP 6008Y; GRIP 6030Y; HFPR 6030; DGN 6303C |
| Coolant Through | No |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 52721685 |
