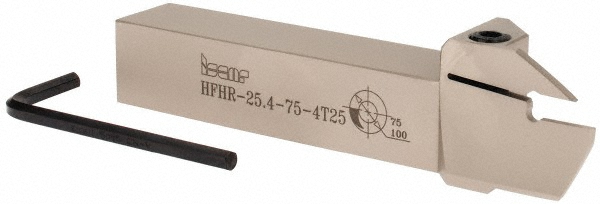

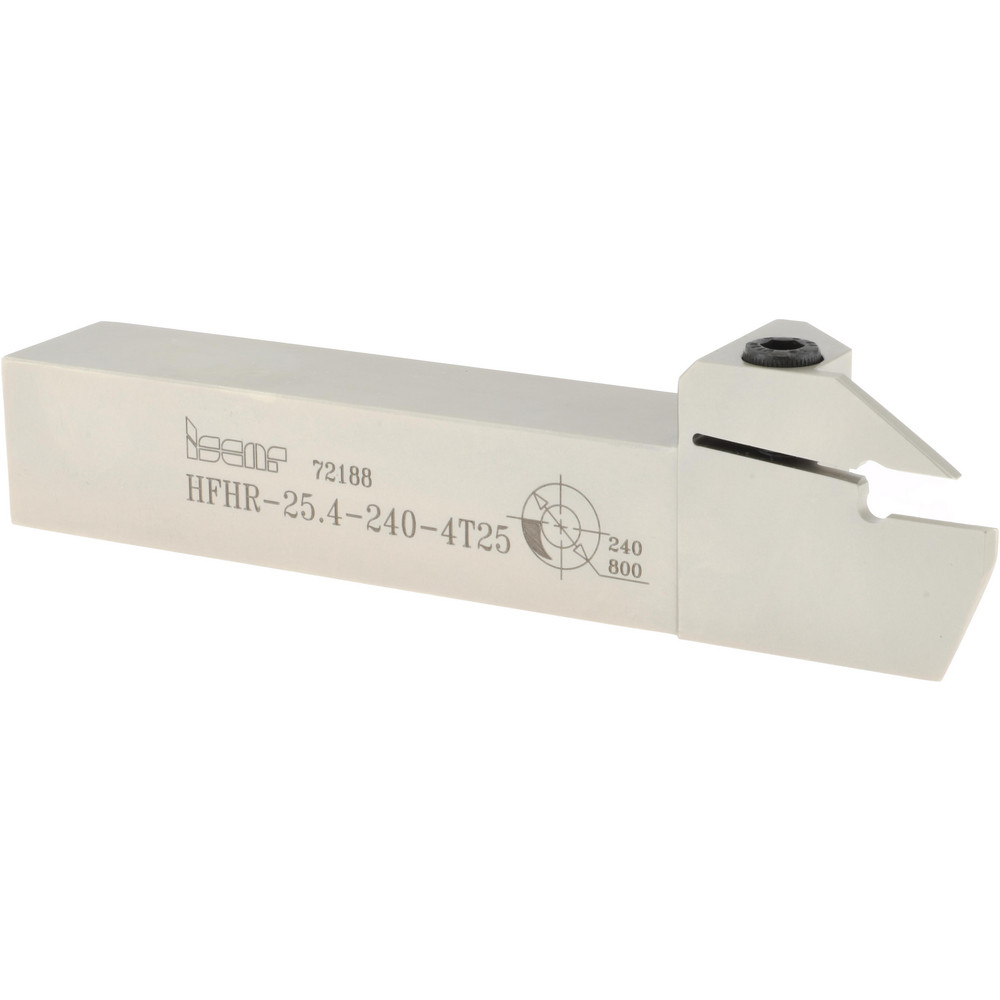

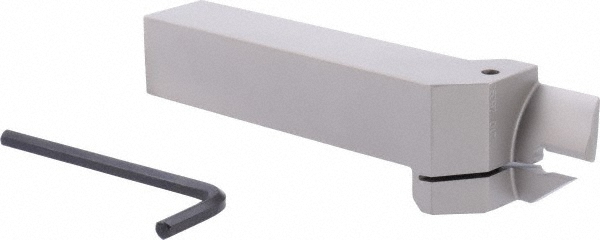

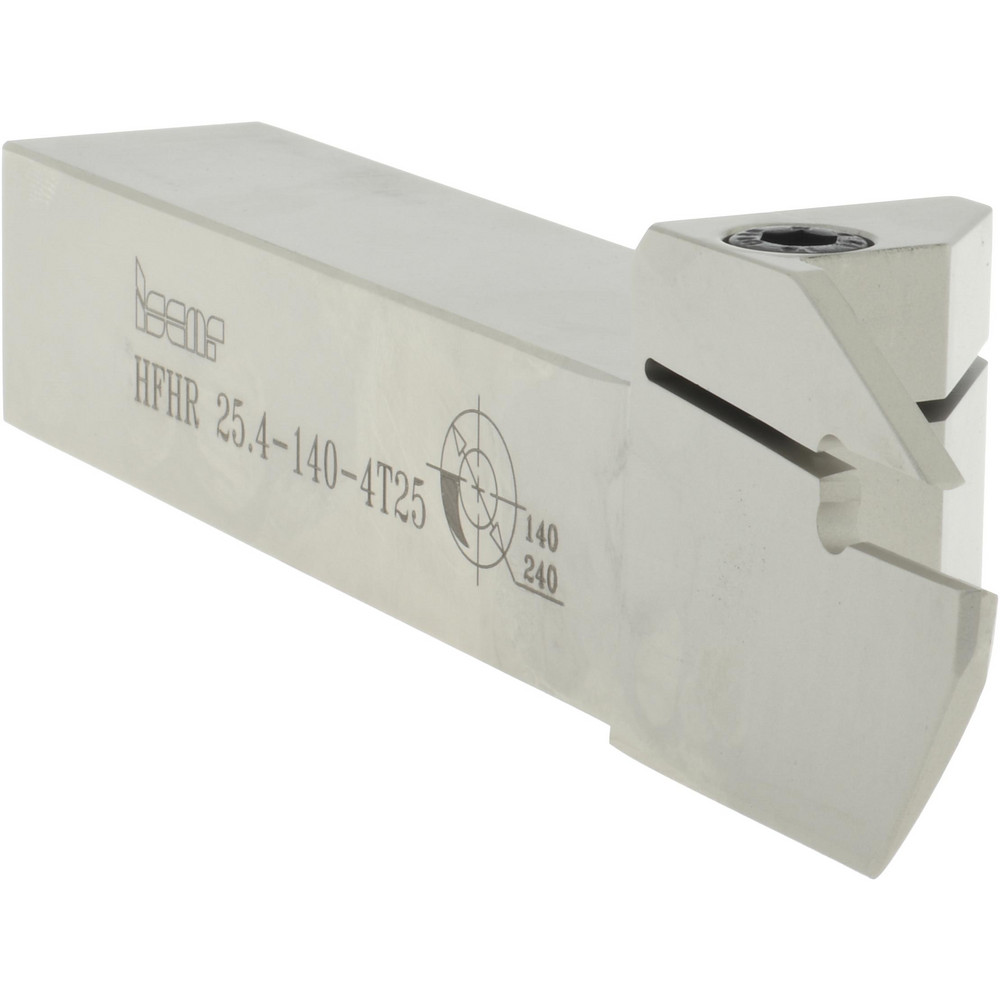

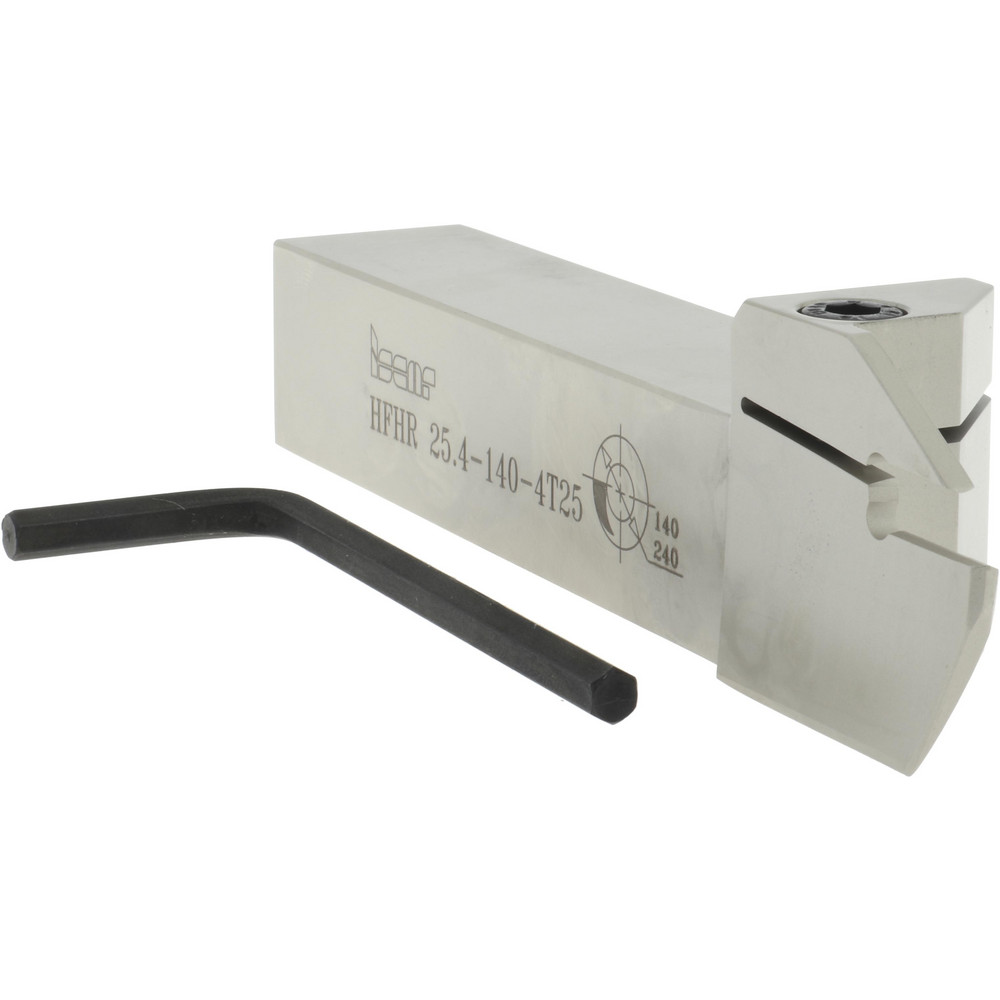

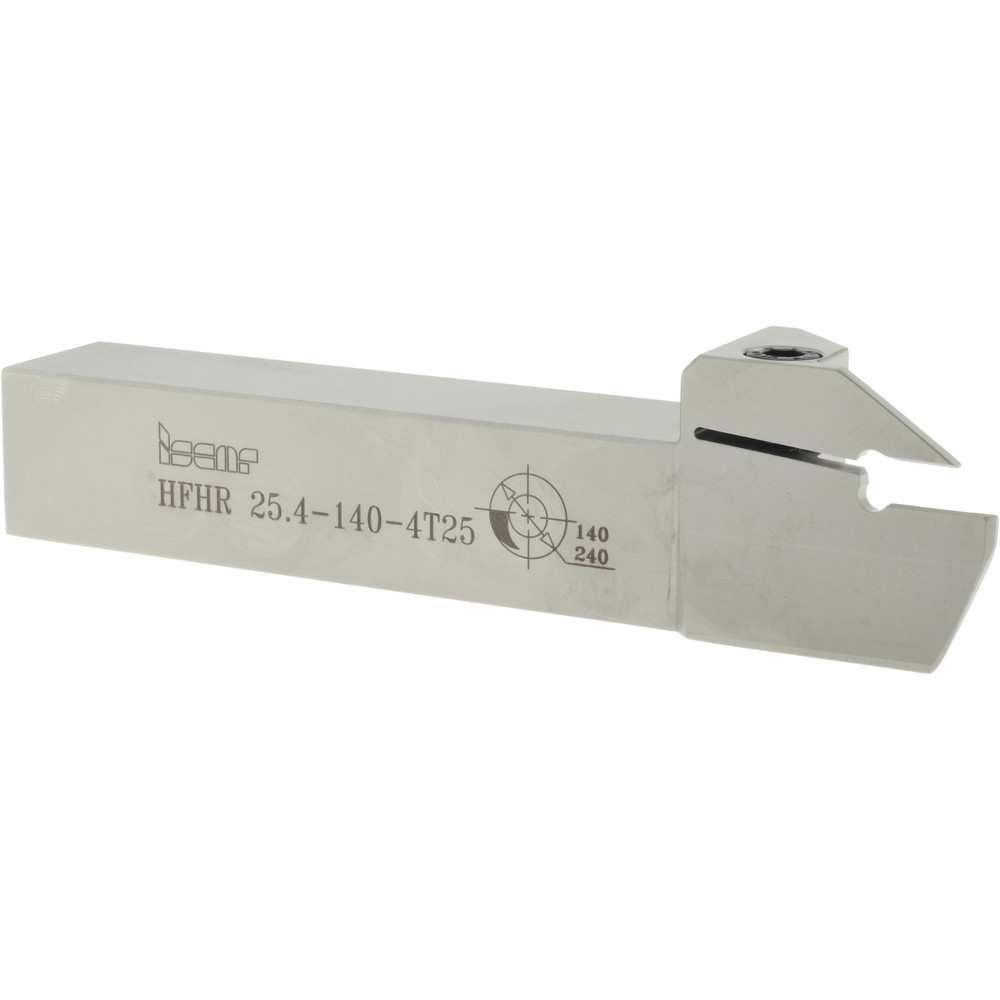

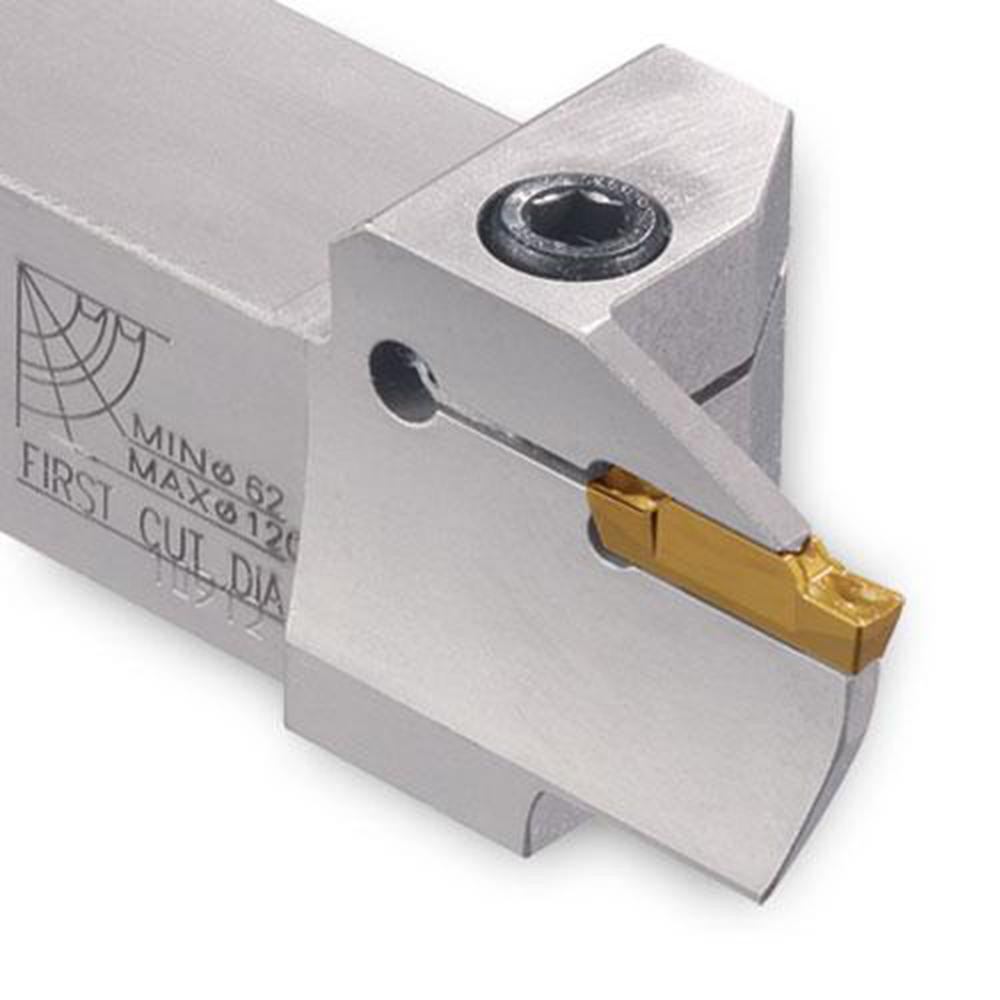

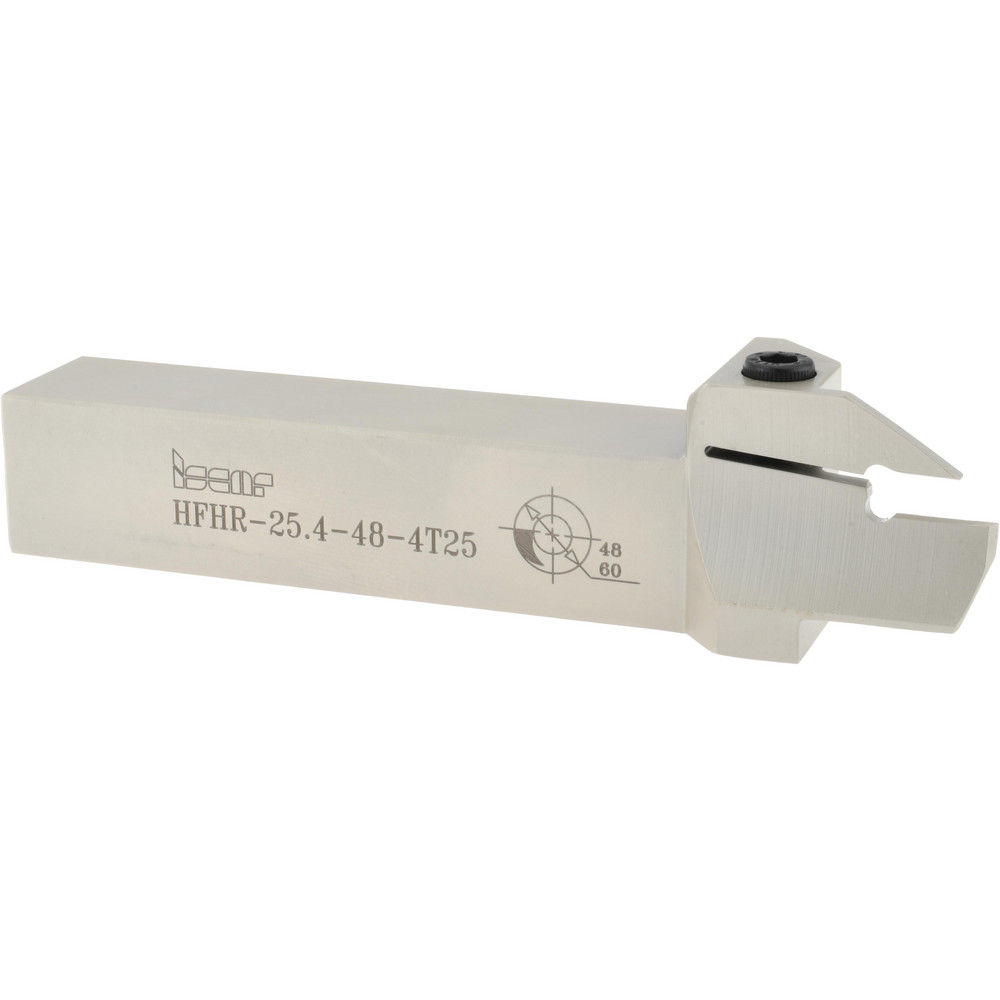

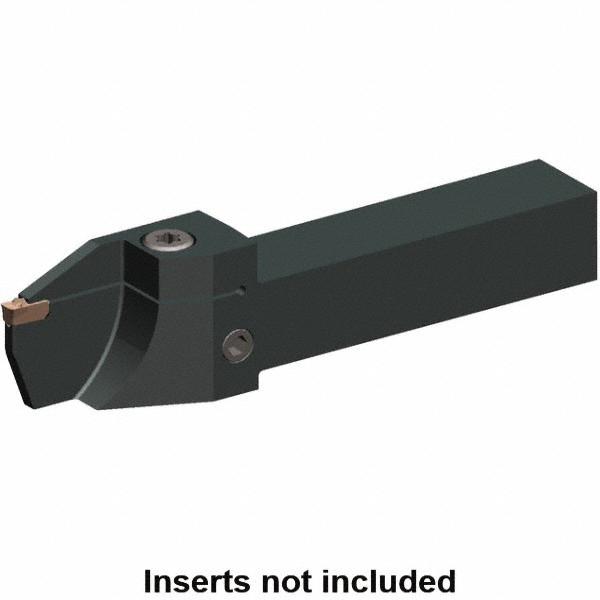

0.98" Max Depth of Cut, 1 x 1" Shank, Uses DGN, GRIP 4 Inserts
| Hand of Holder | Right Hand |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.9800 |
| Minimum Groove Width (Decimal Inch) | 0.1570 |
| Toolholder Style | HFHR |
| Maximum Groove Width (Decimal Inch) | 0.1570 |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | DGN; GRIP 4 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Heliface |
| Shank Length (Decimal Inch) | 4.2700 |
| Overall Length (Decimal Inch) | 6 |
| Multi-use Tool | No |
| Maximum Workpiece Diameter (Decimal Inch) | 9.4500 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0200 |
| Head Height (Decimal Inch) | 1.4700 |
| Head Length (Decimal Inch) | 1.73 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| Maximum Groove Outside Diameter (Decimal Inch) | 9.4500 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 5.5100 |
| Complete Insert Compatibility | GRIP; DGN; DGN 4003; GRIP 4004Y |
| Coolant Through | No |
| Country of Origin | Israel |
| MSC Number | MSC# 52721347 |
