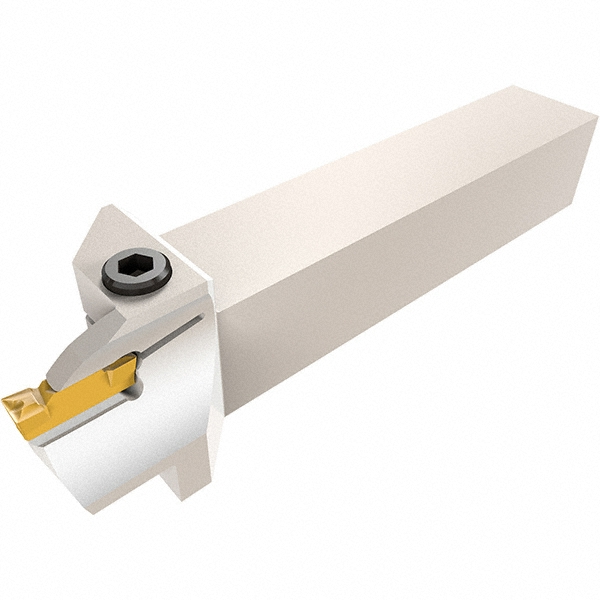

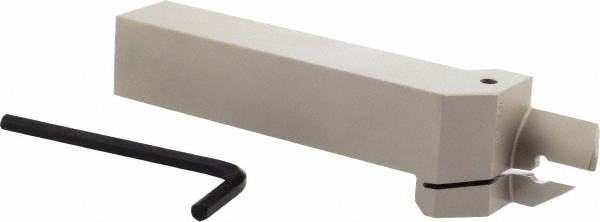

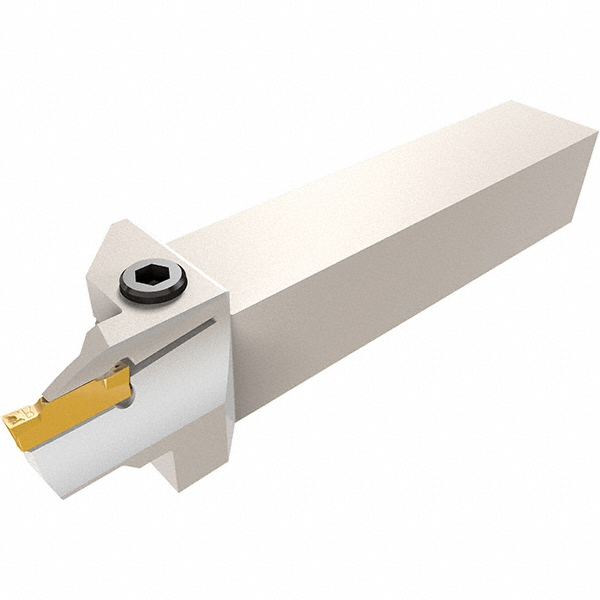

0.39" Max Depth of Cut, 1 x 1" Shank, Uses DGN, GRIP 5 Inserts
| Hand of Holder | Right Hand |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.3900 |
| Minimum Groove Width (Decimal Inch) | 0.1970 |
| Toolholder Style | HFH |
| Maximum Groove Width (Decimal Inch) | 0.1970 |
| Insert Holding Method | Clamp |
| Insert Compatibility | HFPR 5004; DGN..; GRIP 50.. |
| Compatible Insert Size Code | DGN; GRIP 5 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Heliface |
| Shank Length (Decimal Inch) | 4.5000 |
| Shank Length (Inch) | 4-1/2 |
| Overall Length (Decimal Inch) | 6 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 1.1800 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0400 |
| Head Height (Decimal Inch) | 1.3100 |
| Head Length (Decimal Inch) | 1.5 |
| Head Length (Inch) | 1-1/2 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| Maximum Groove Outside Diameter (Decimal Inch) | 1.1810 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 0.9840 |
| Complete Insert Compatibility | HFPR 5004; DGN 5003C; DGN 5003J; GRIP 5005Y; DGN 5003JT; GRIP 5008Y; DGN 4803J; DGN 5003W; DGN 4803C |
| Coolant Through | No |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 52721396 |
