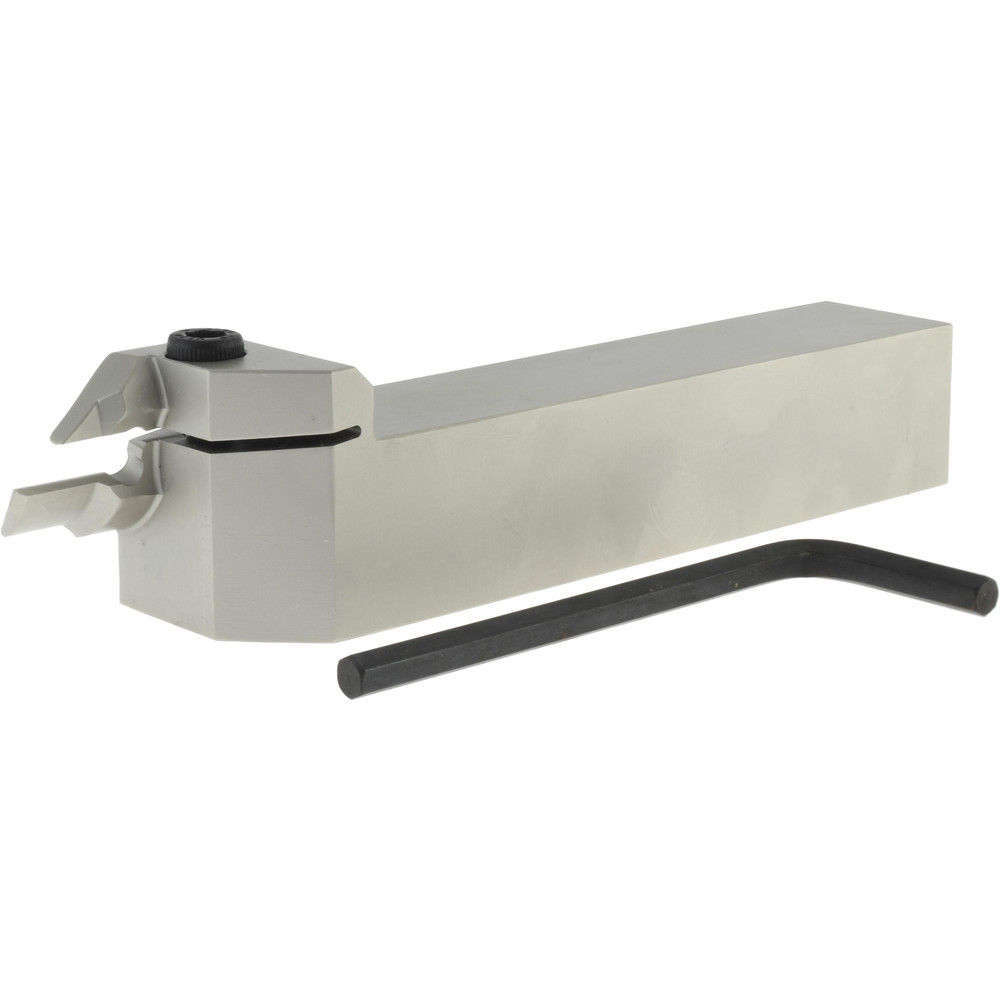

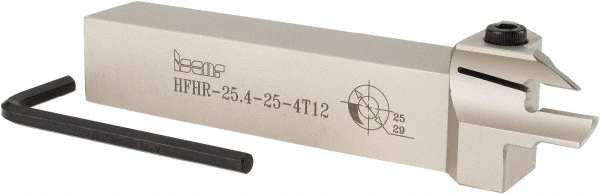

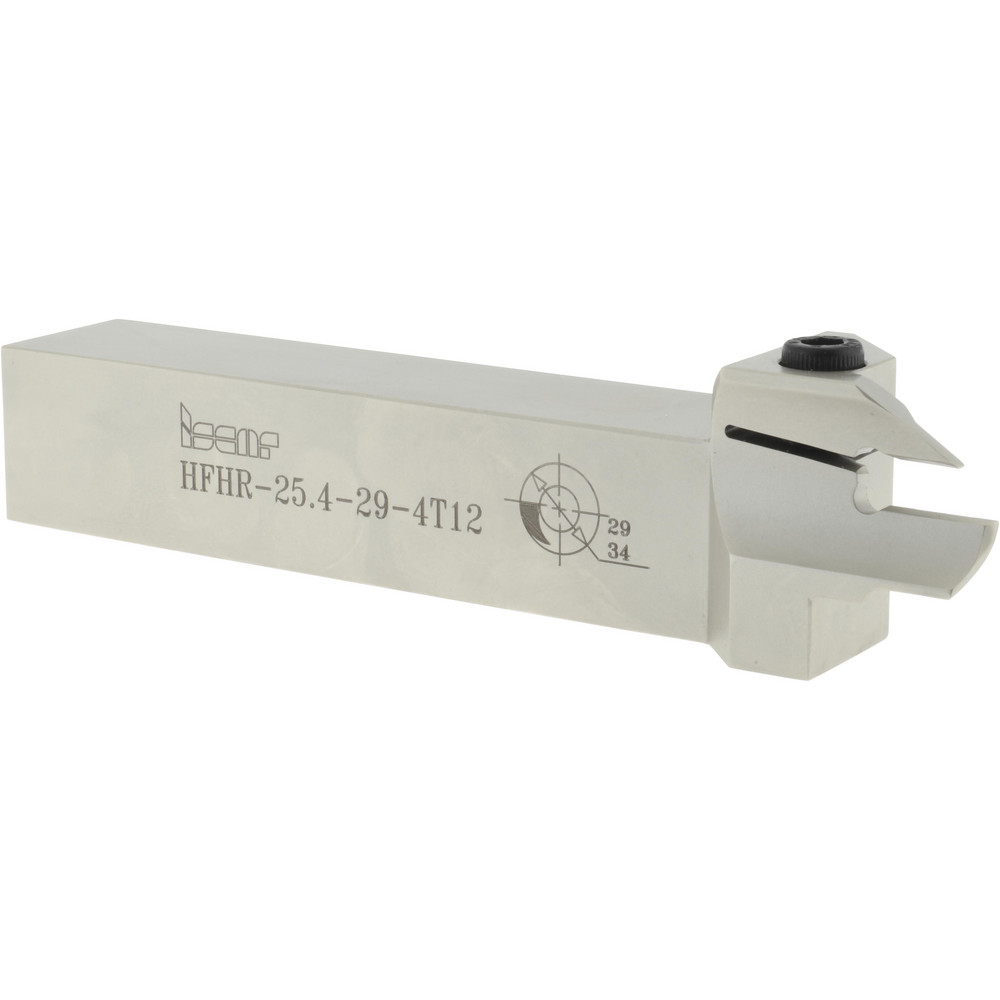

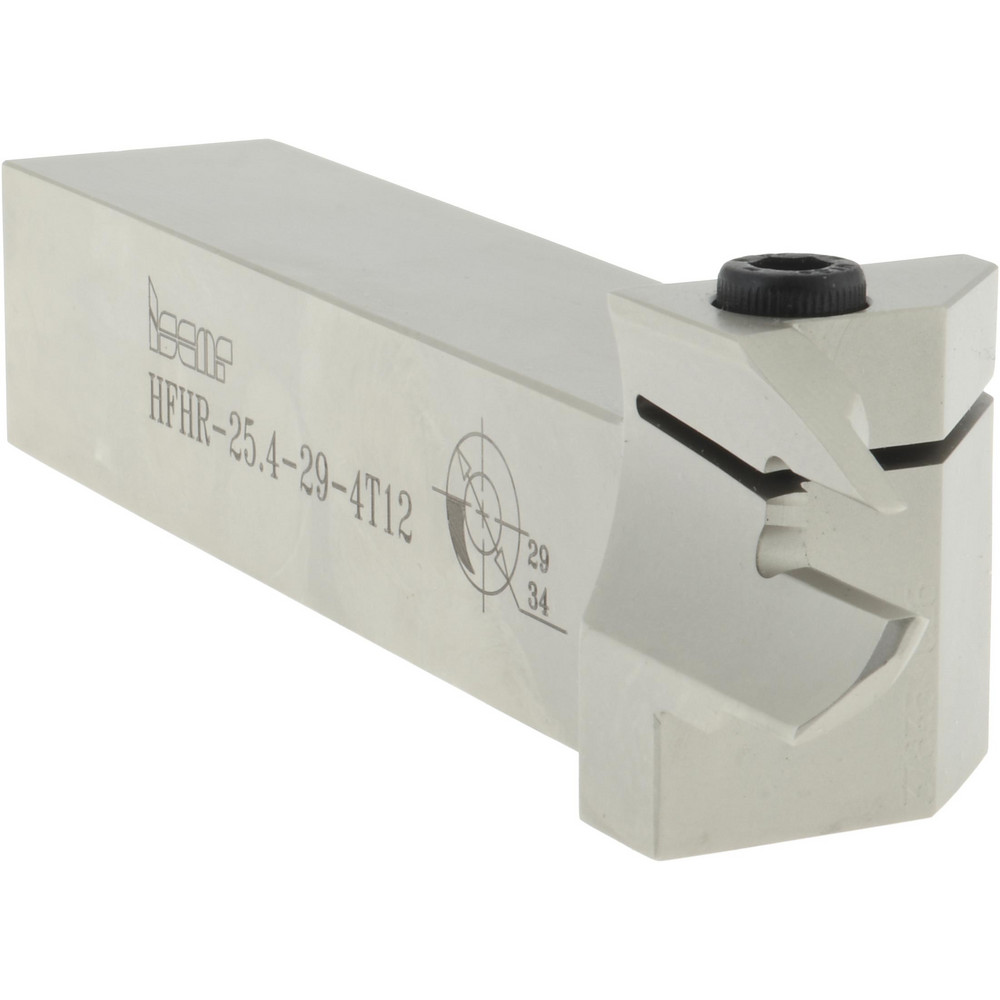

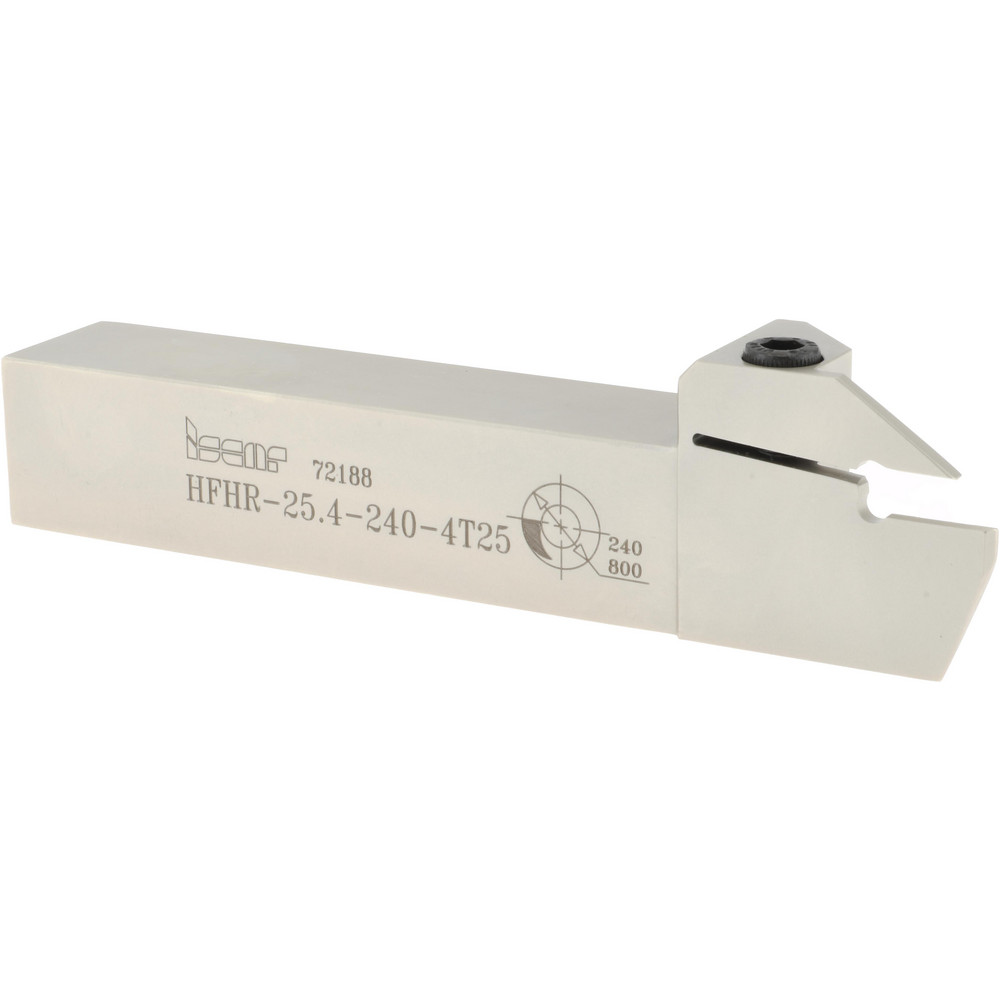

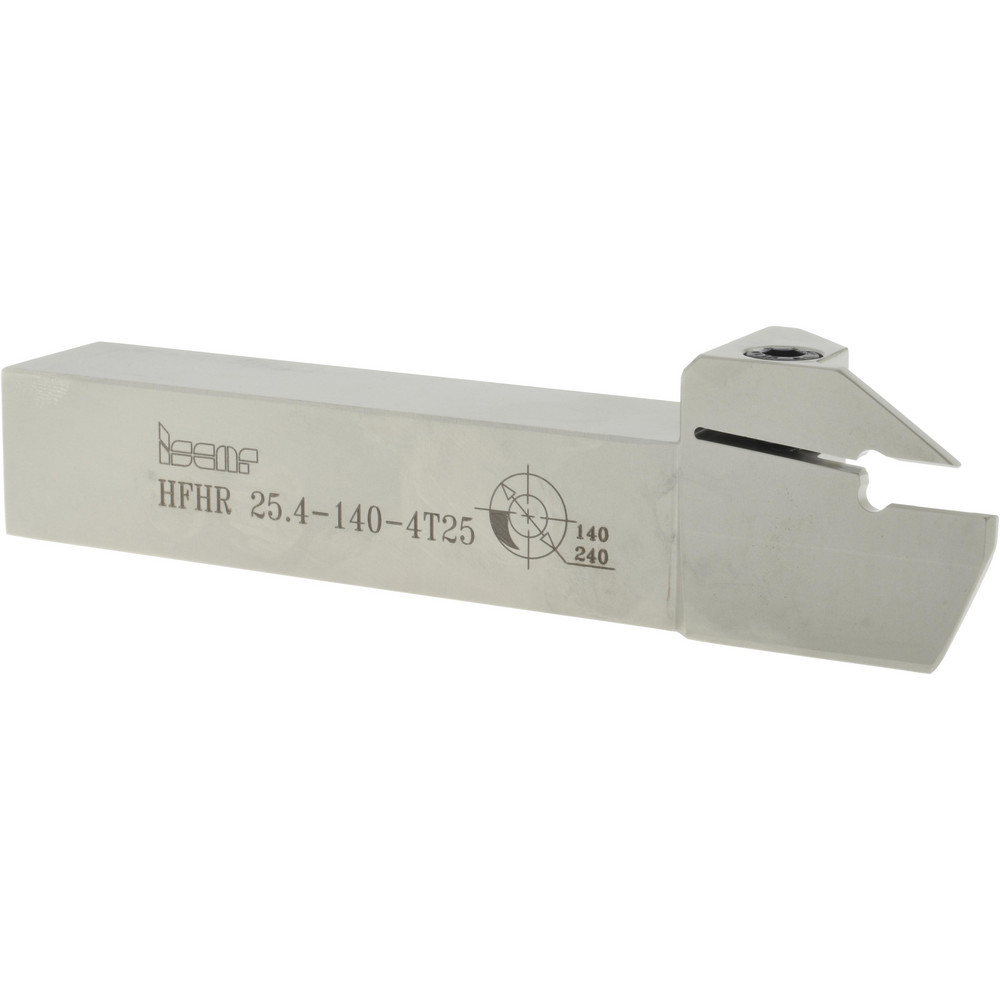

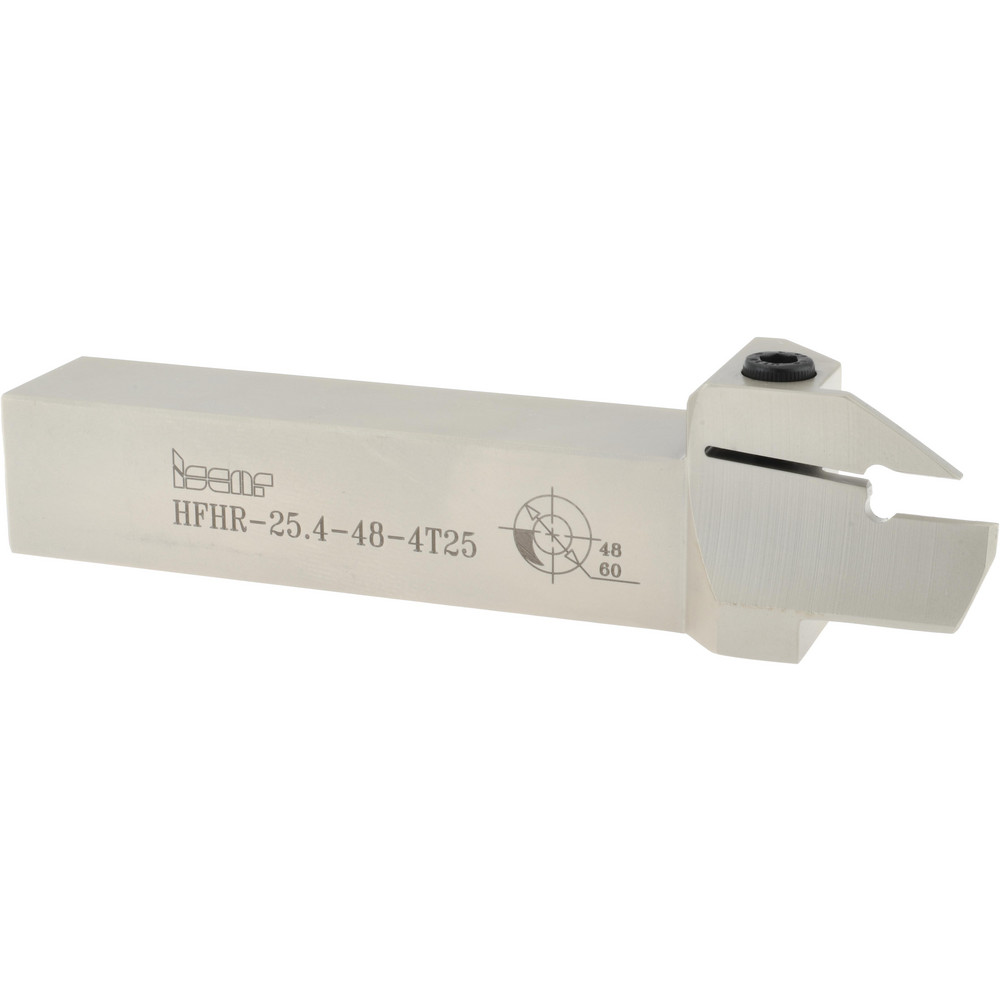

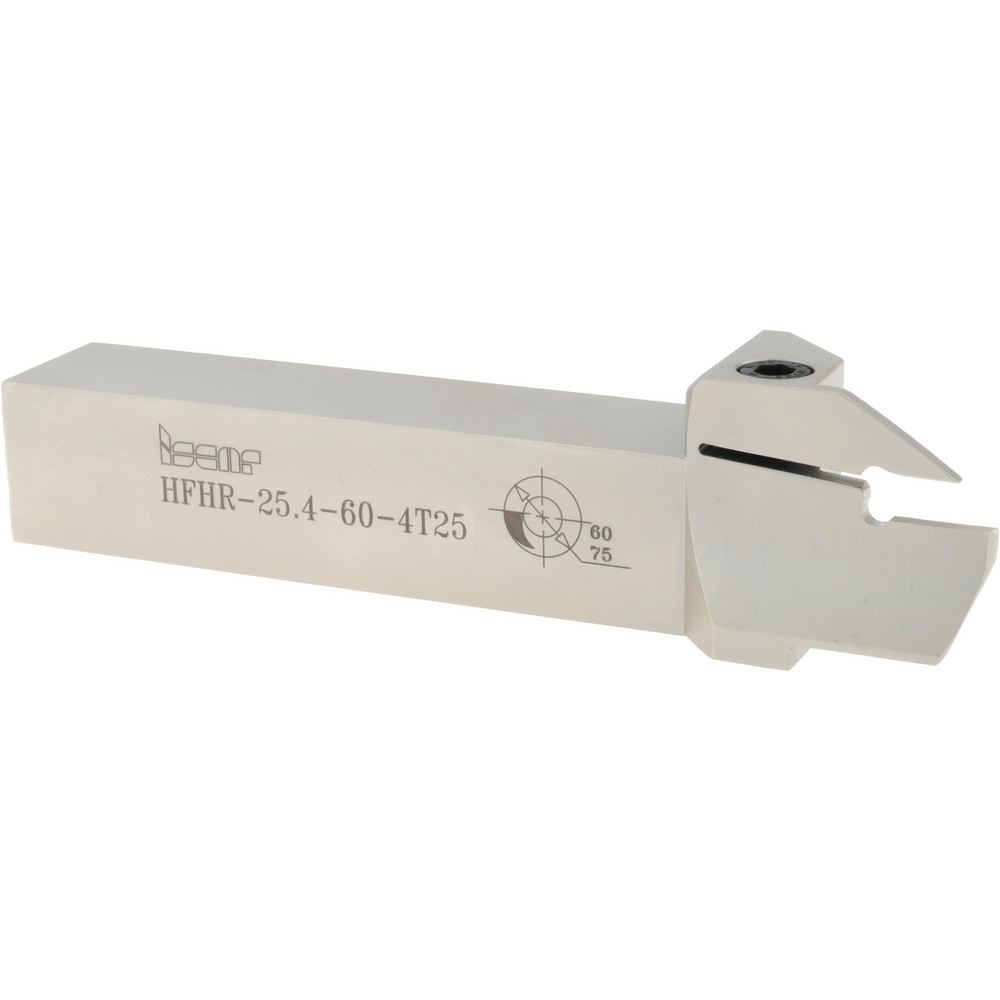

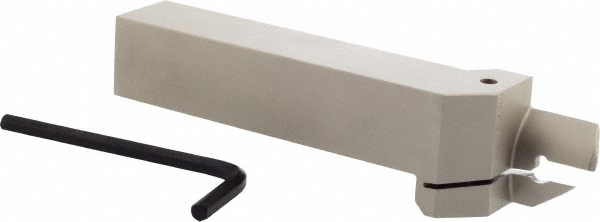

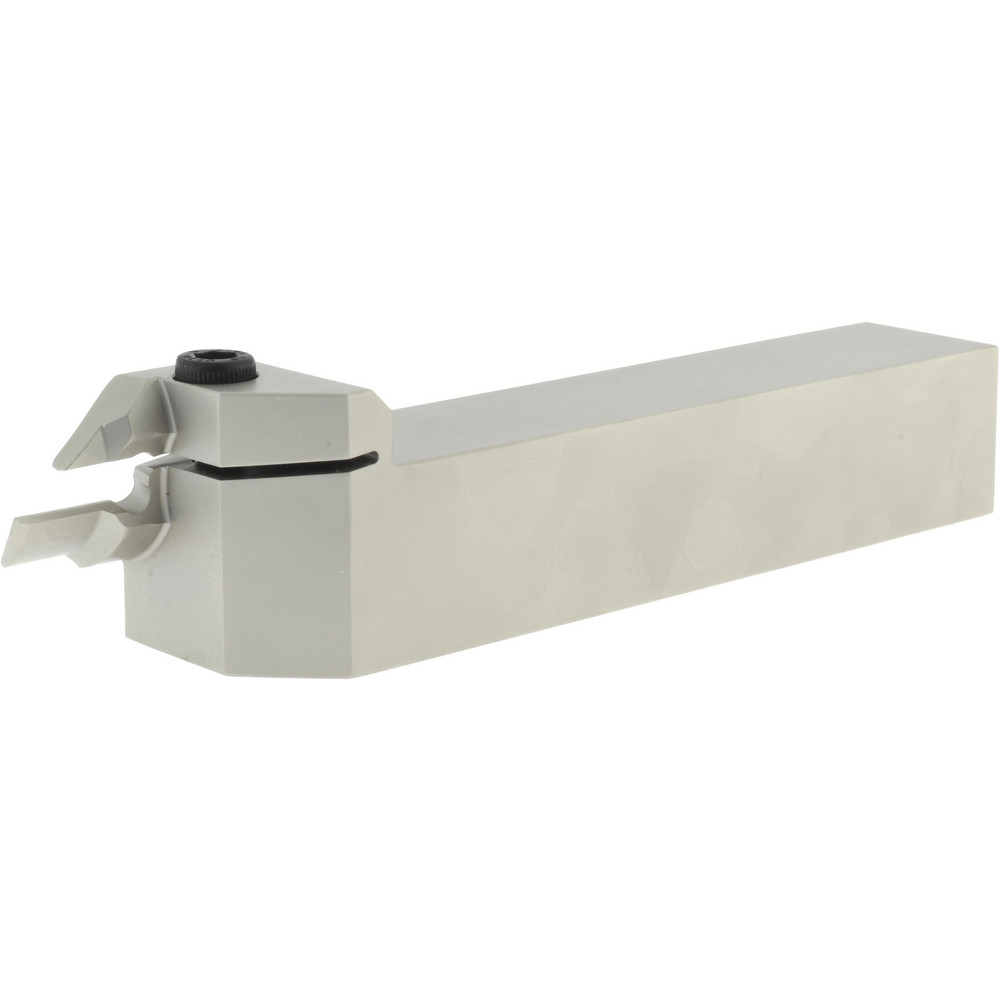

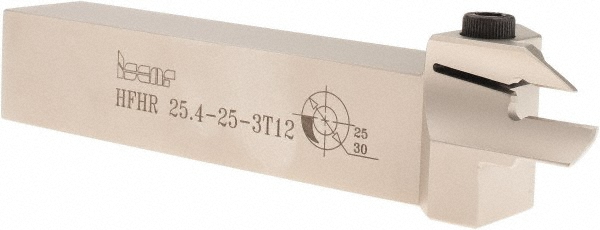

0.47" Max Depth of Cut, 1 x 1" Shank, Uses DGN, GRIP 4 Inserts
| Hand of Holder | Right Hand |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.4700 |
| Minimum Groove Width (Decimal Inch) | 0.1570 |
| Toolholder Style | HFH |
| Maximum Groove Width (Decimal Inch) | 0.1570 |
| Insert Holding Method | Clamp |

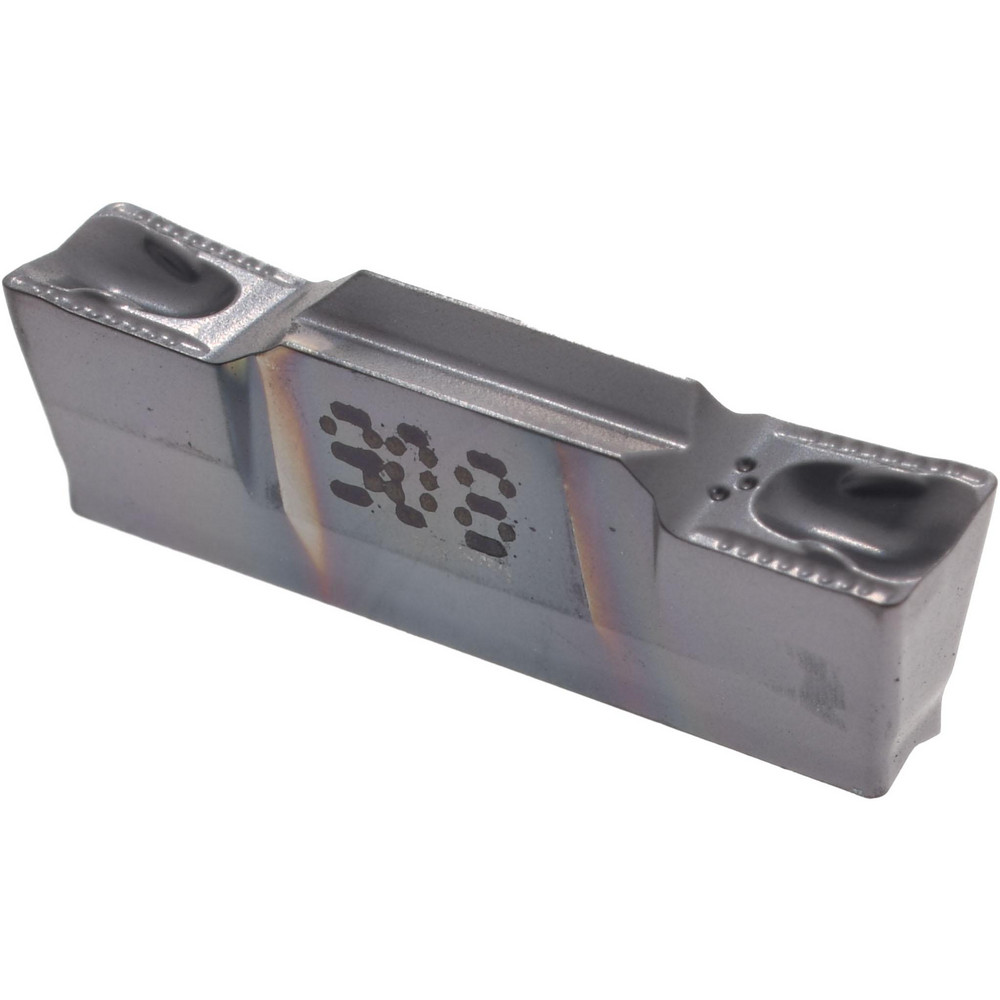

| Insert Compatibility | DGN 4..; GRIP 4..; HFPR 4004 |
| Compatible Insert Size Code | DGN; GRIP 4 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Heliface |
| Shank Length (Decimal Inch) | 4.4600 |
| Overall Length (Decimal Inch) | 6 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 1.3400 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0200 |
| Head Height (Decimal Inch) | 1.3900 |
| Head Length (Decimal Inch) | 1.54 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| Maximum Groove Outside Diameter (Decimal Inch) | 1.3400 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 1.1400 |
| Complete Insert Compatibility | GRIP 4020Y; DGN 4003J; DGN 4803J; DGN 4003JT; GRIP 476-080Y; DGN 4003C; GRIP 4004Y; GRIP 476-238Y; HFPR 4004; GRIP 4002Y |
| Coolant Through | No |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 52721412 |
