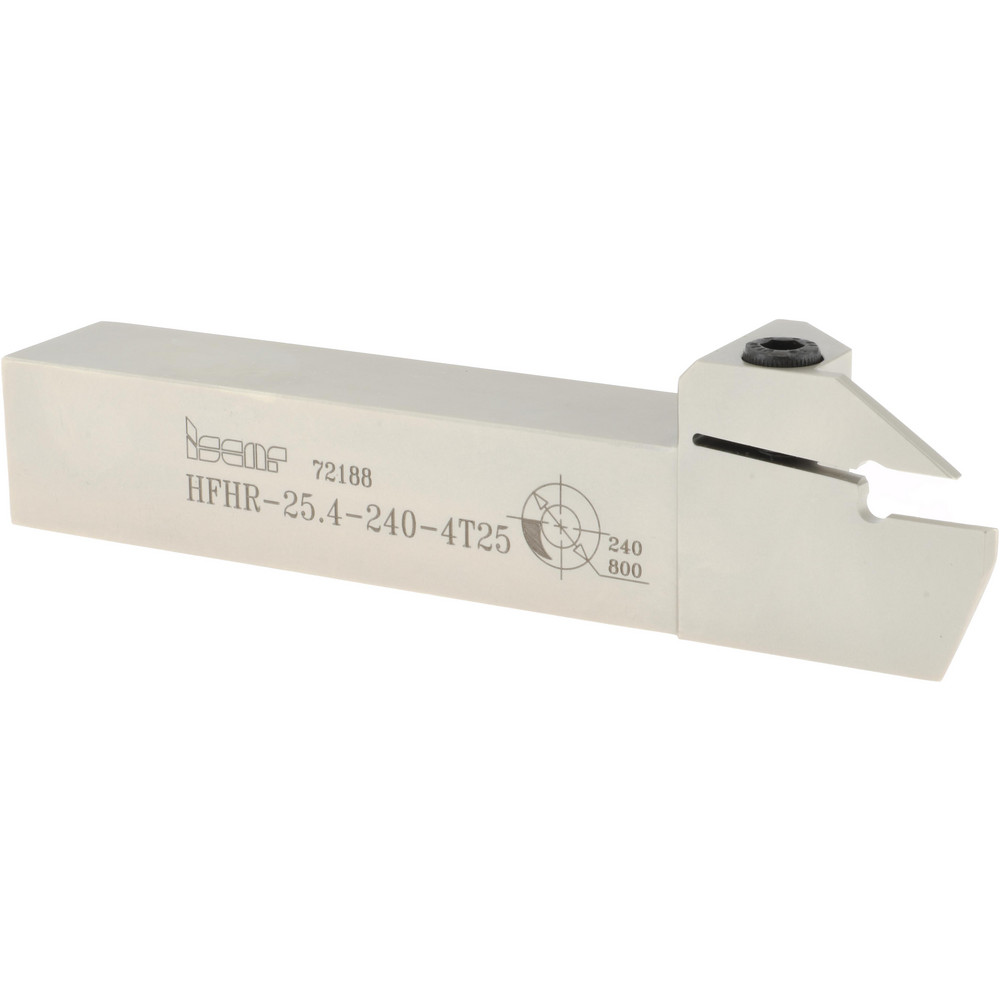

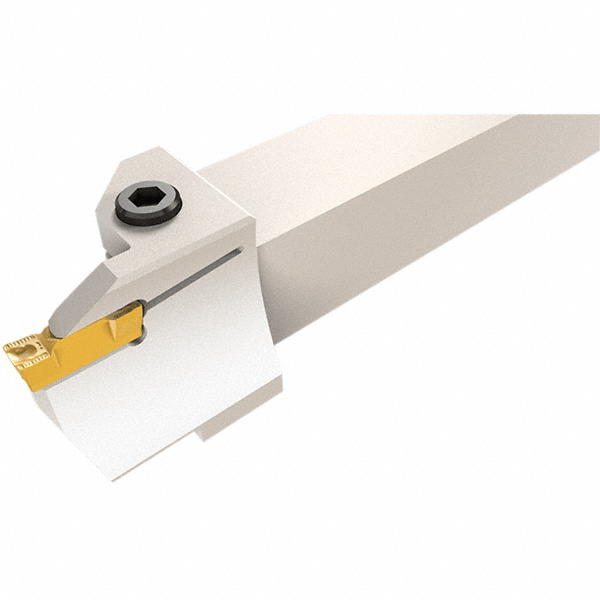

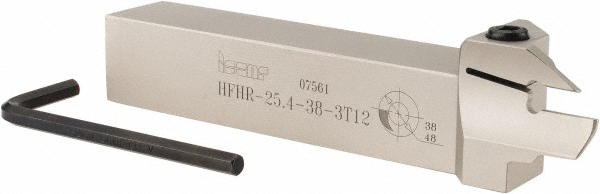

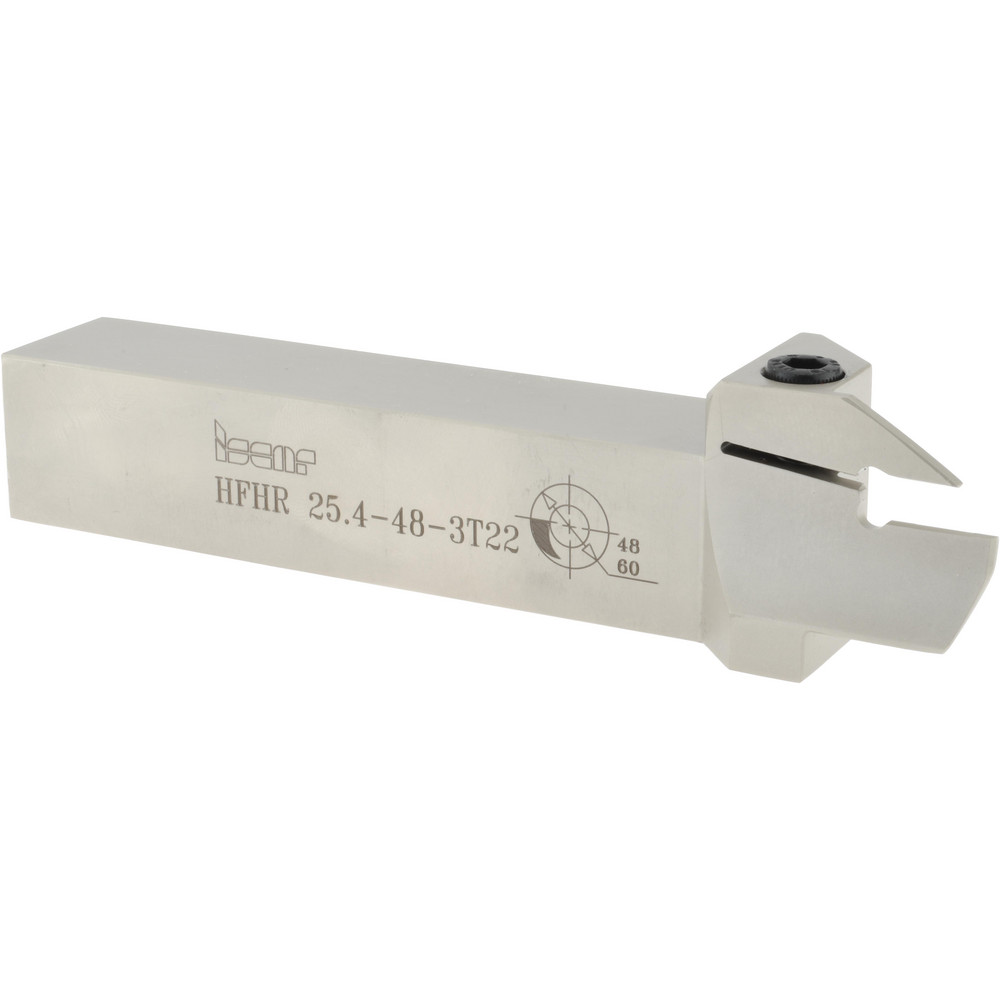

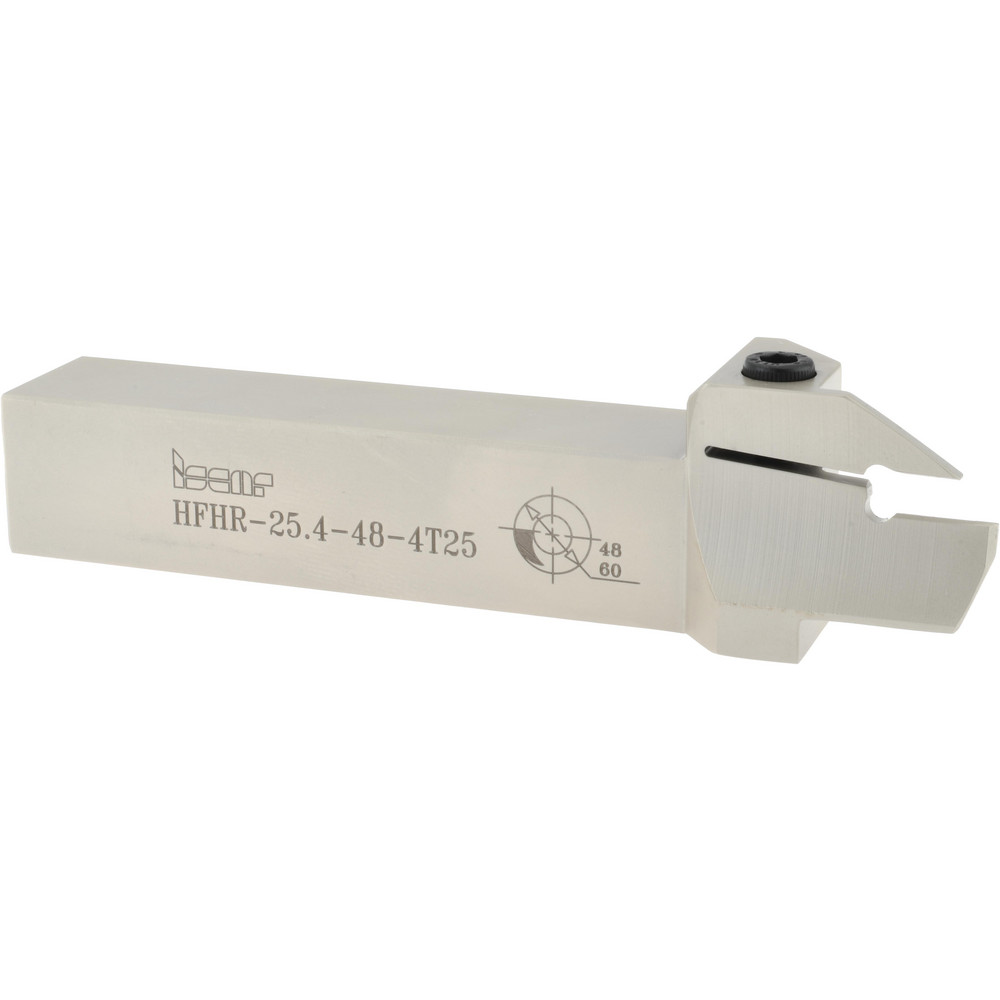

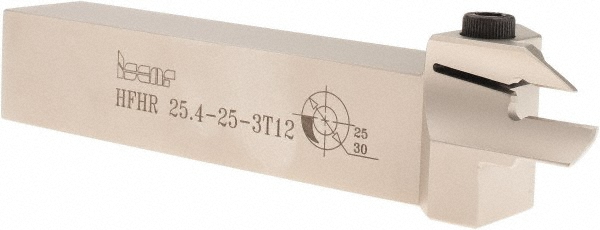

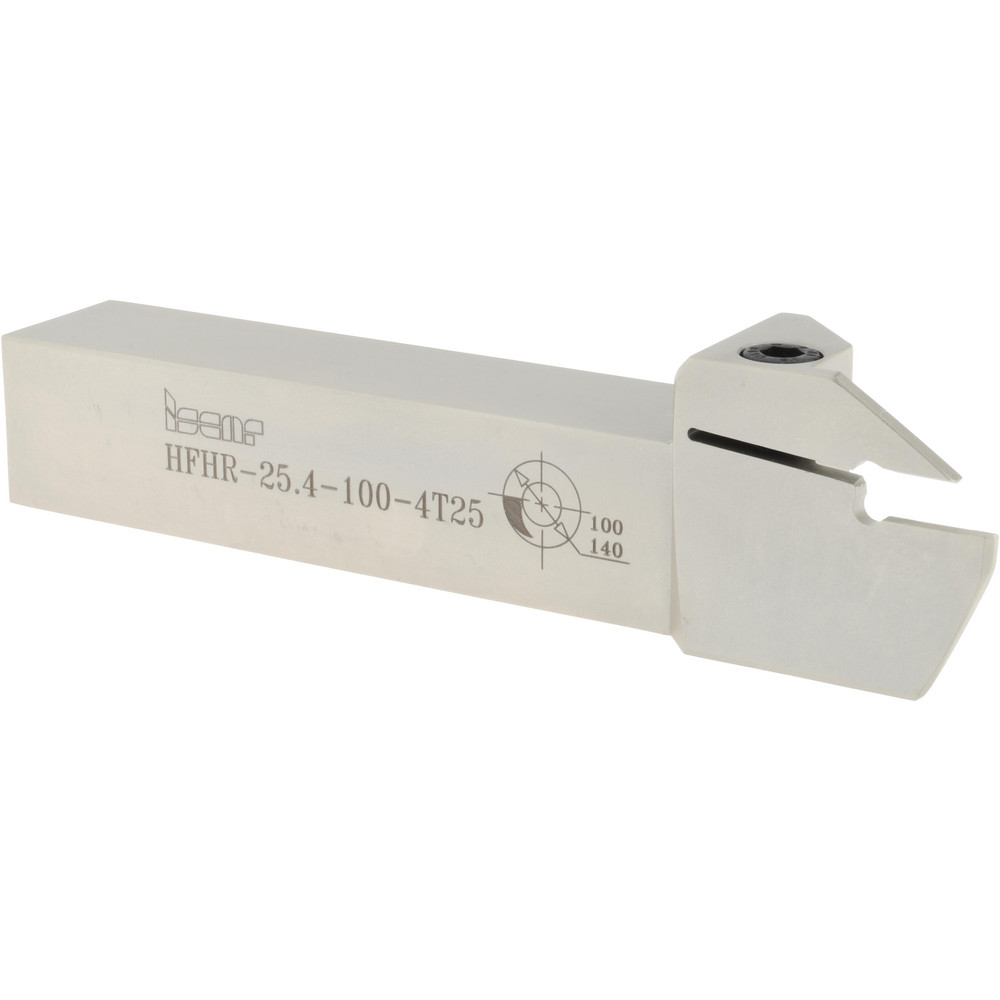

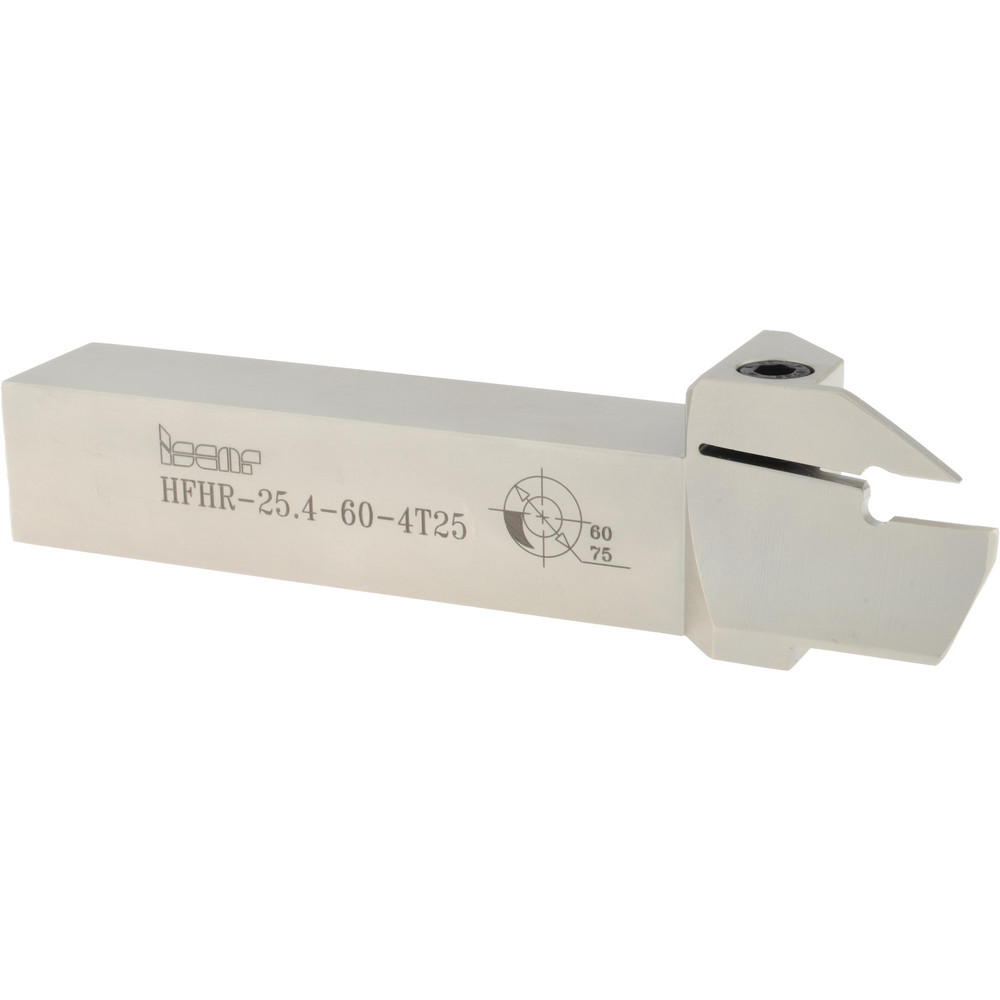

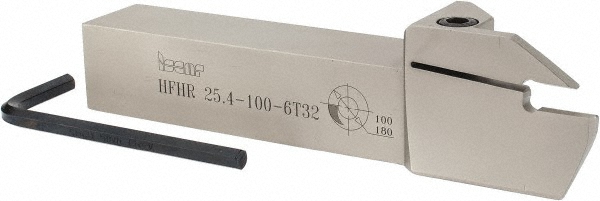

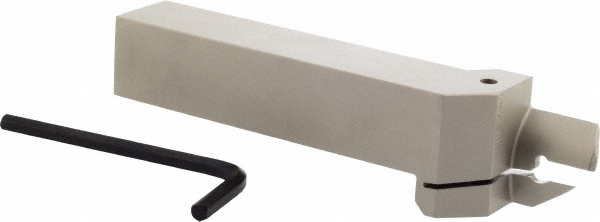

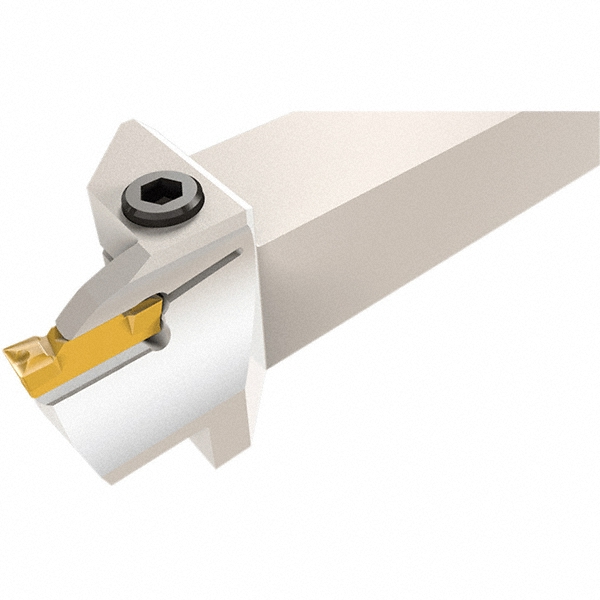

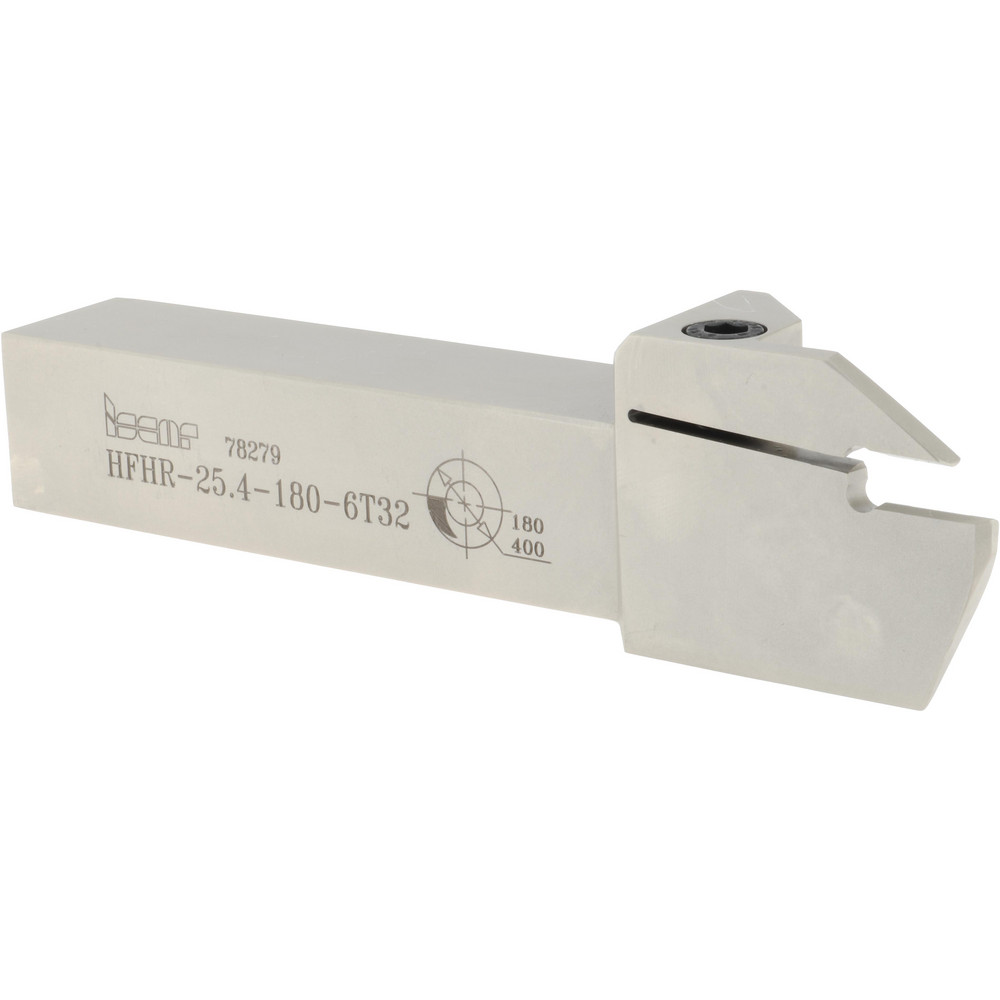

20 mm Max Depth of Cut, 25 x 25 mm Shank, Uses DGN, GRIP 6 Inserts
| Hand of Holder | Right Hand |
|---|---|
| Maximum Depth of Cut (mm) | 20.00 |
| Minimum Groove Width (mm) | 6.00 |
| Maximum Groove Width (mm) | 6.00 |
| Toolholder Style | HFH |
| Insert Holding Method | Clamp |
| Insert Compatibility | GRIP; DGN..; HFP.. |
| Compatible Insert Size Code | GRIP 6; DGN |
| Shank Height (mm) | 25.00 |
| Series | Heliface |
| Shank Length (mm) | 111.00 |
| Overall Length (mm) | 150 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (mm) | 50.00 |
| Back of Bar to Cutting Edge (mm) | 26.40 |
| Head Height (mm) | 36.00 |
| Head Length (mm) | 39.00 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| Maximum Groove Outside Diameter (mm) | 50.00 |
| Minimum Axial Groove Inside Diameter(mm) | 38.00 |
| Complete Insert Compatibility | HFPR/L; HFPR/L (Full Radius); GRIP; DGN/DGNM-J/JS/JT; DGN/DGNC/DGNM-C; DGN-UT/UA |
| Coolant Through | No |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 45378551 |
