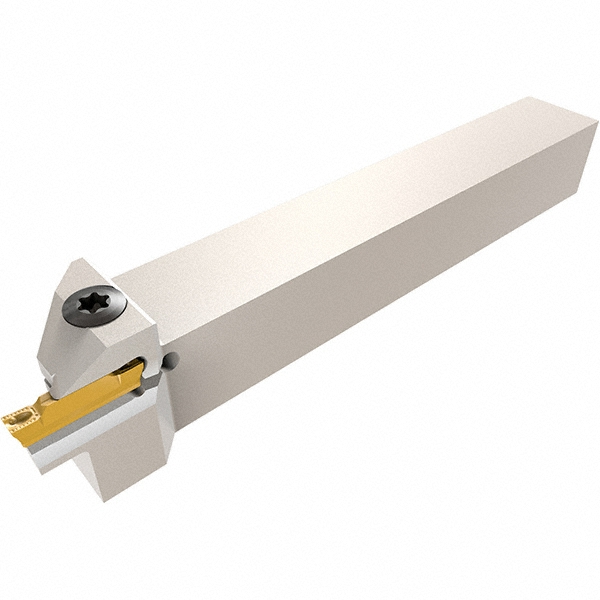

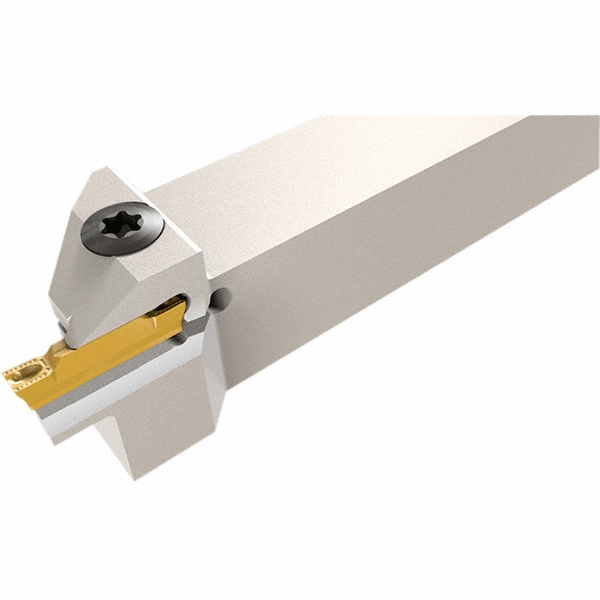

0.236" Max Depth of Cut, 1 x 1" Shank, Uses GRIP, GRIP (Full Radius), HGN-C, HGN-J, HGN-UT, HGPL Inserts
| Hand of Holder | Right Hand |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Toolholder Style | HGH |
| Maximum Groove Width (Decimal Inch) | 0.1180 |
| Insert Holding Method | Clamp |
| Insert Compatibility | GRIP; HGN |
| Compatible Insert Size Code | GRIP; HGN-J; HGN-UT; HGPL; GRIP (Full Radius); HGN-C |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | Heliface |
| Shank Length (Decimal Inch) | 4.2500 |
| Overall Length (Decimal Inch) | 5 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 0.9800 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Head Height (Decimal Inch) | 1.2000 |
| Head Length (Decimal Inch) | 0.75 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| Maximum Groove Outside Diameter (Decimal Inch) | 0.9800 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 0.6300 |
| Complete Insert Compatibility | GRIP; HGN-J; HGN-UT; GRIP (Full Radius); HGN-C |
| Coolant Through | No |
| Country of Origin | Israel |
| MSC Number | MSC# 77352227 |
