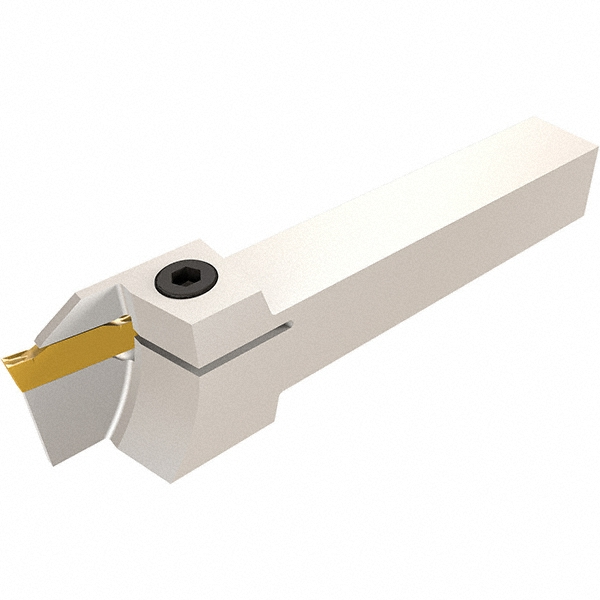

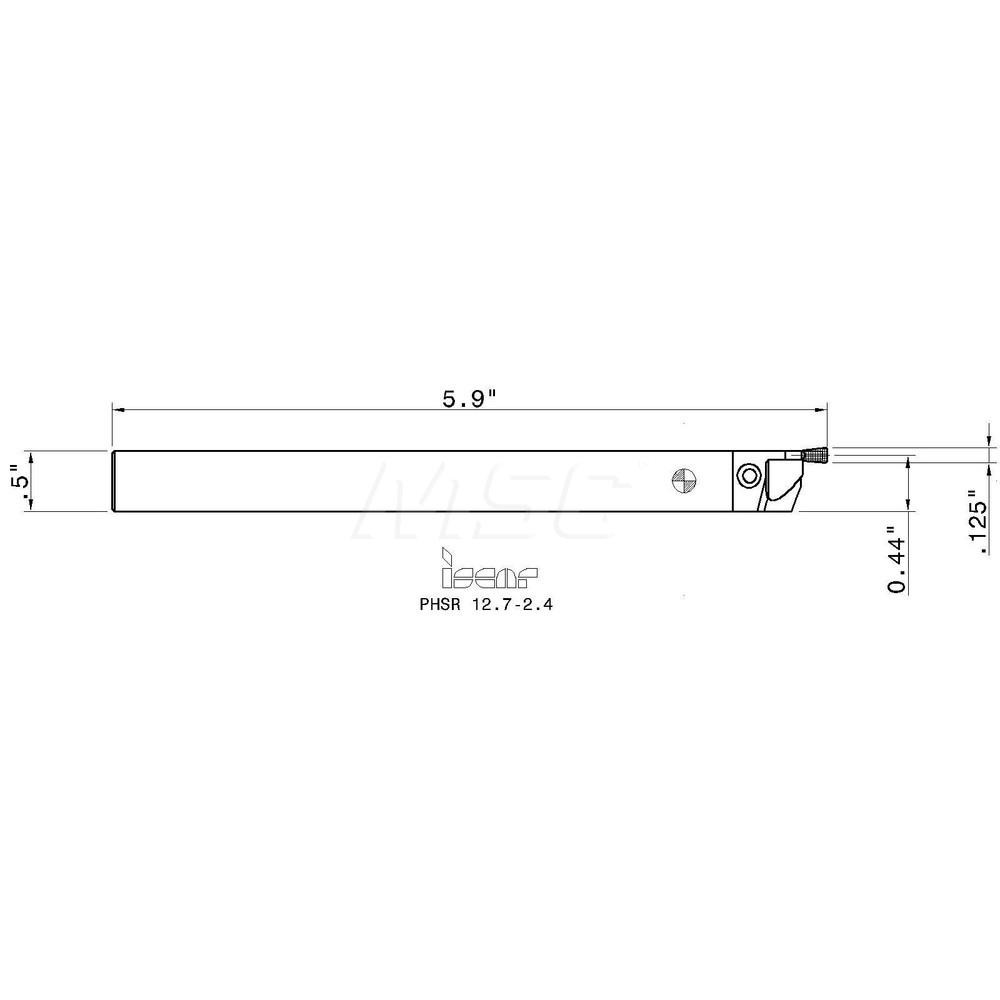

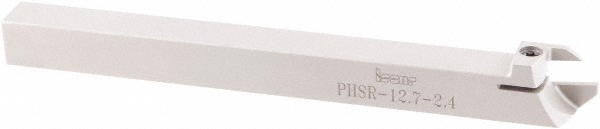

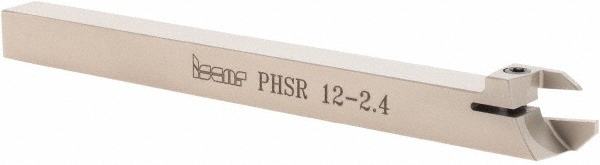

1/2" Max Depth of Cut, 1/2 x 1/2" Shank, Uses GDMW 2.4 Inserts

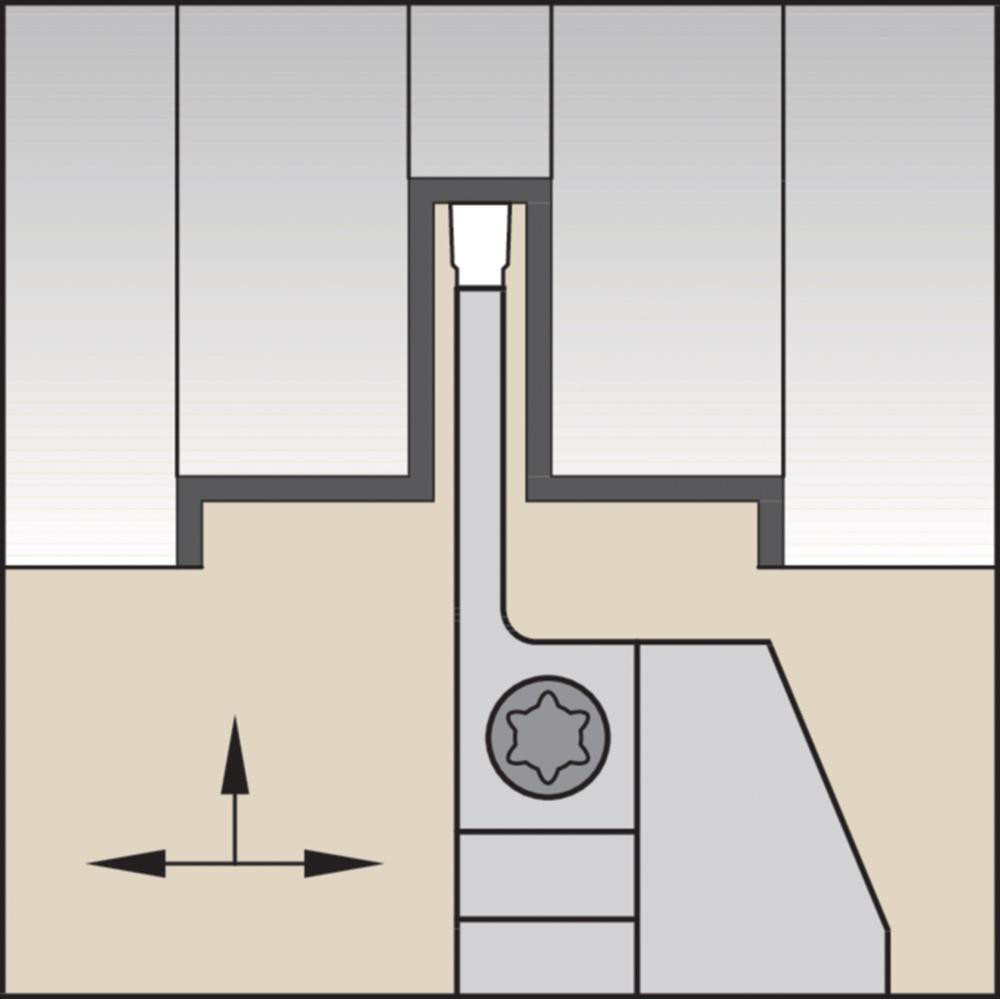

| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | 2.4 |
| Hand of Holder | Right Hand |

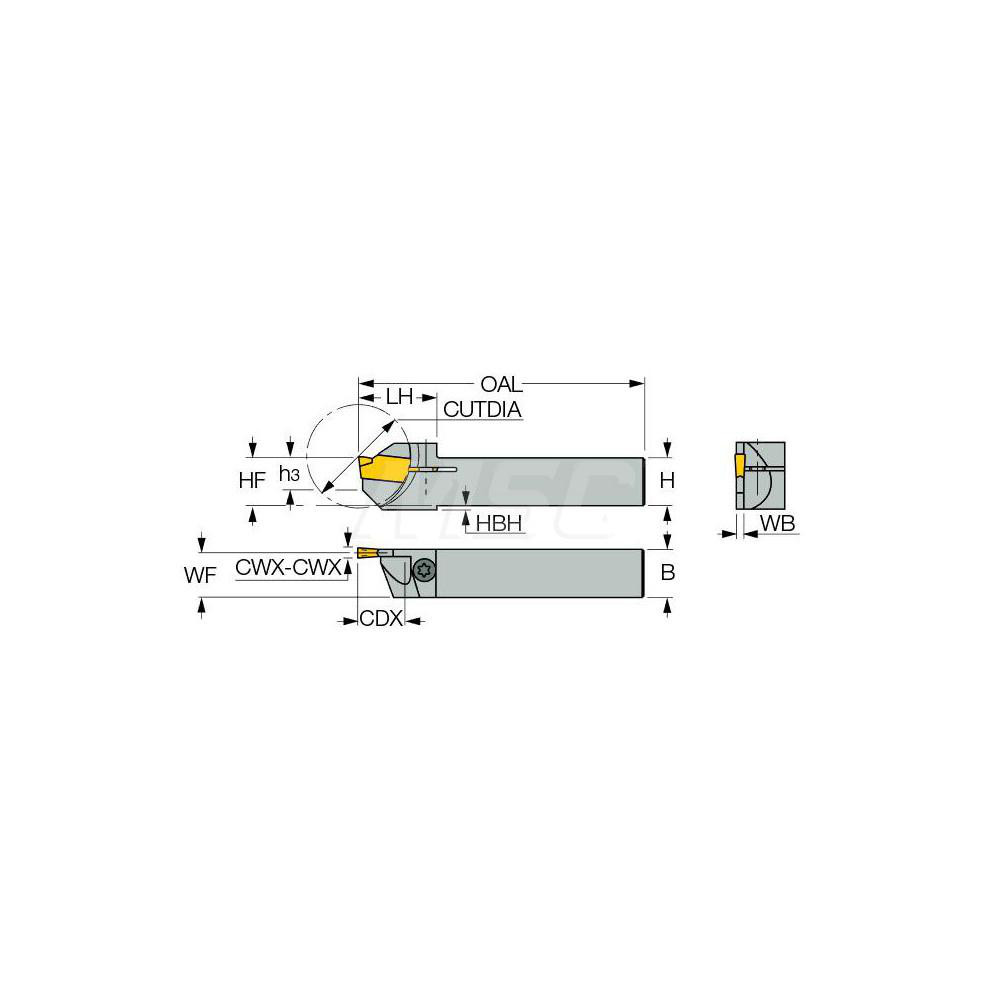

| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Minimum Groove Width (Decimal Inch) | 0.0940 |
| Toolholder Style | PHS |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Maximum Groove Width (Inch) | 1/8 |
| Insert Holding Method | Screw |

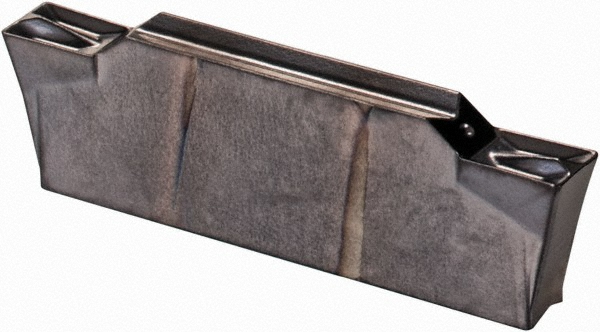

| Insert Compatibility | GDMW 2.4 |
| Compatible Insert Size Code | GDMW 2.4 |
| Shank Height (Decimal Inch) | 0.5000 |
| Series | Cut Grip |
| Shank Length (Decimal Inch) | 4.9500 |
| Overall Length (Decimal Inch) | 5.9 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 1.0000 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4600 |
| Head Length (Decimal Inch) | 0.95 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| Toolholder Material | Steel |
| MSC/Manufacturer Number | PHSR/L 12.7-2.4 |
| Coolant Through | No |
| Country of Origin | Israel |
| MSC Number | MSC# 60788866 |
