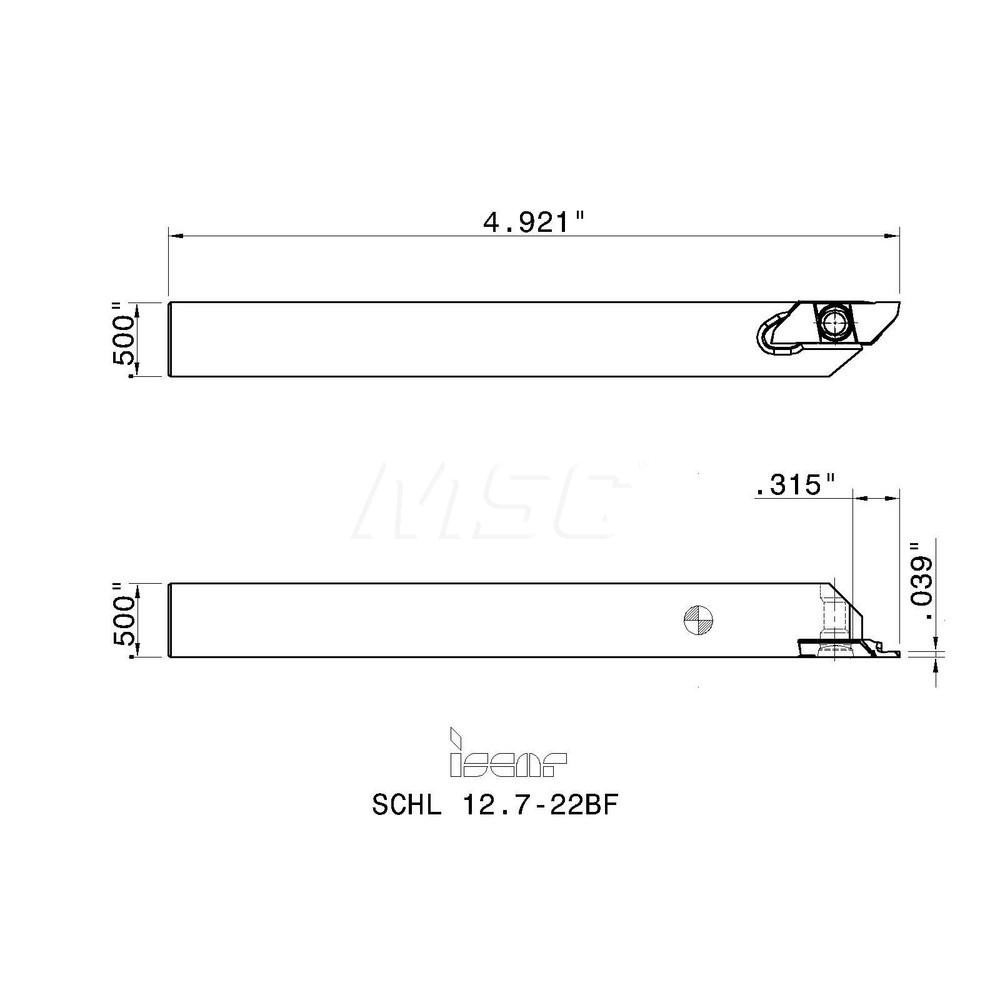

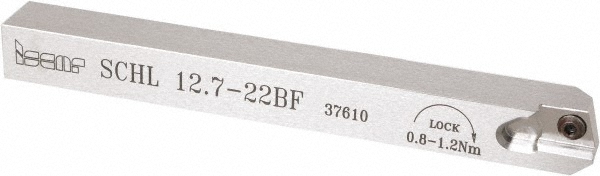

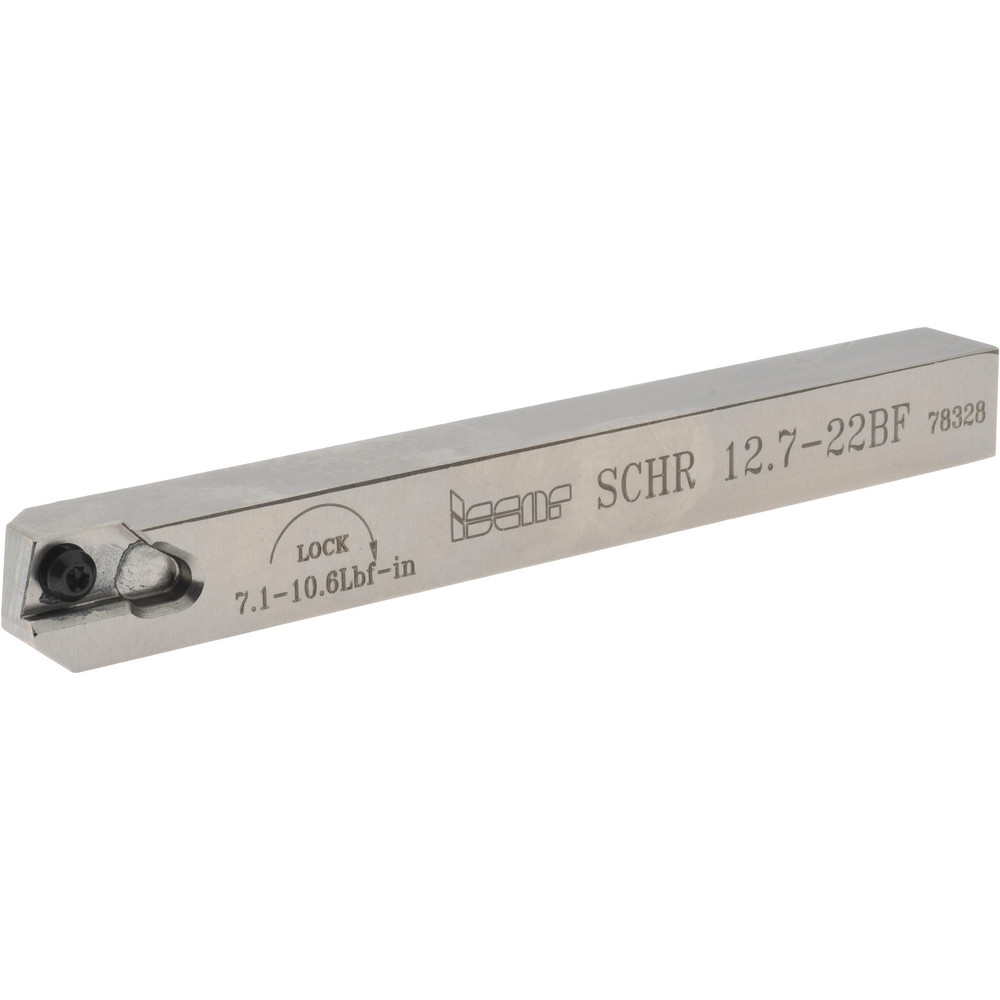

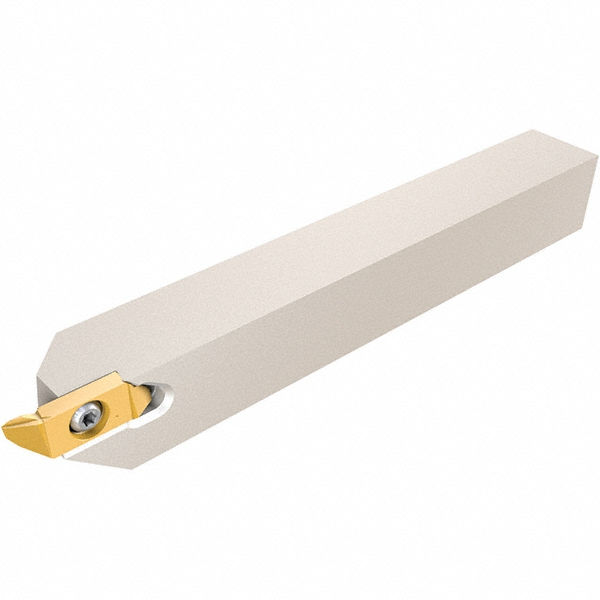

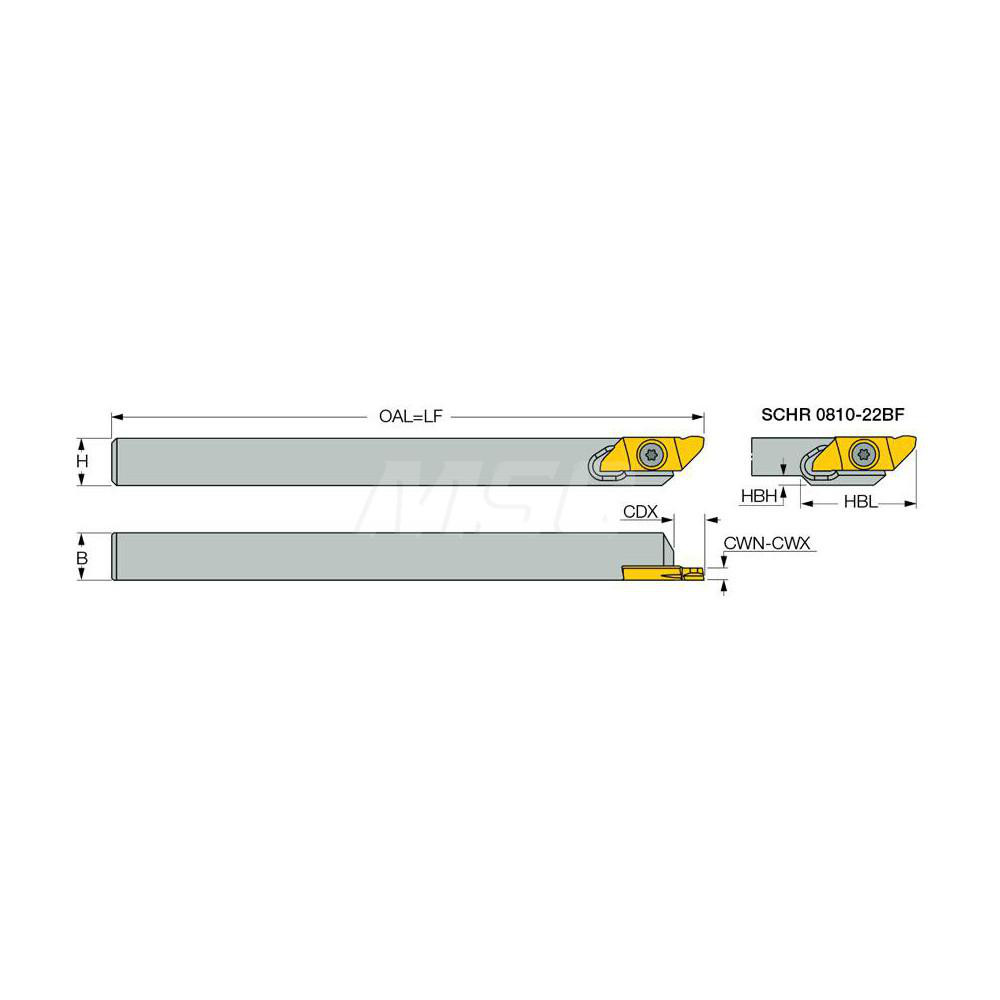

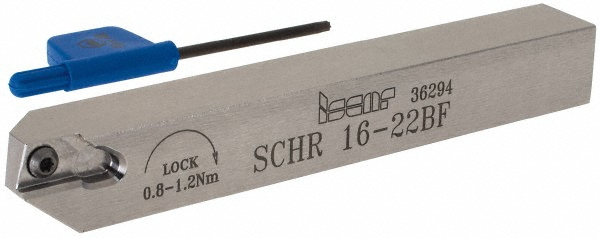

0.315" Max Depth of Cut, 1/2 x 1/2" Shank, Uses SCIR-22-MTR-ISO, SCIR/L 22 BR/BL/BRA/BLA, SCIR/L 22 ER/EL/ERA/ELA, SCIR/L-22-AD, SCIR/L-22-AR/AL, SCIR/L-22-MTR/MTL, SCIR/L-22-N/R/L, SCIR/L-22-NP, SCIR/L-22-NX Inserts
| Toolholder Type | External Grooving |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Minimum Groove Width (Decimal Inch) | 0.0200 |
| Toolholder Style | SCH |
| Maximum Groove Width (Decimal Inch) | 0.0980 |

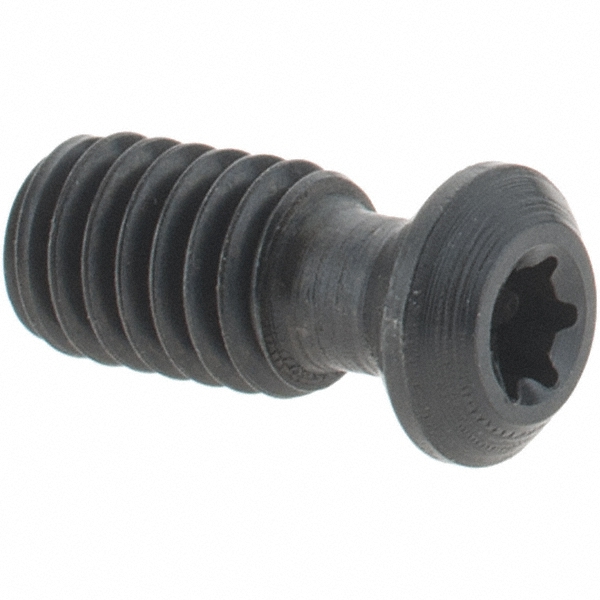

| Insert Holding Method | Screw |

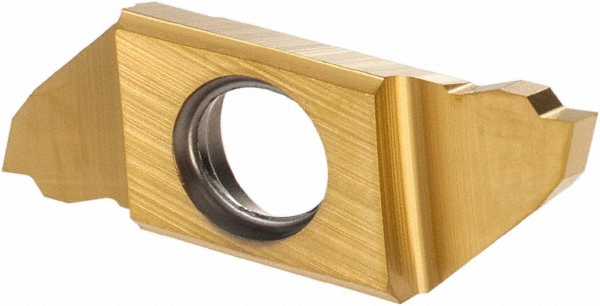

| Insert Compatibility | SCIR 22; SCIL 22 |
| Compatible Insert Size Code | SCIR/L-22-NX; SCIR/L 22 ER/EL/ERA/ELA; SCIR/L-22-AR/AL; SCIR/L-22-AD; SCIR-22-MTR-ISO; SCIR/L-22-N/R/L; SCIR/L-22-NP; SCIR/L-22-MTR/MTL; SCIR/L 22 BR/BL/BRA/BLA |
| Shank Height (Decimal Inch) | 0.5000 |
| Series | Swisscut |
| Overall Length (Decimal Inch) | 4.921 |
| Multi-use Tool | Yes |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| Complete Insert Compatibility | SCIL 22-050R12-00; SCIL 22-100R16-00; SCIL 22-200N-10; SCIL 22-050L12-00; SCIL 22-200L16-00; SCIL 22-050N-00; SCIL 22-100L16-00; SCIL 22-150L16-00; SCIL 22-150NP05; SCIL 22-080NP00; SCIL 22-150R16-00; SCIL 22-200NP05; SCIL 22-100NP08; SCIL 22-100N-00; SCIL 22-150N-00 |
| Coolant Through | No |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 53538427 |
