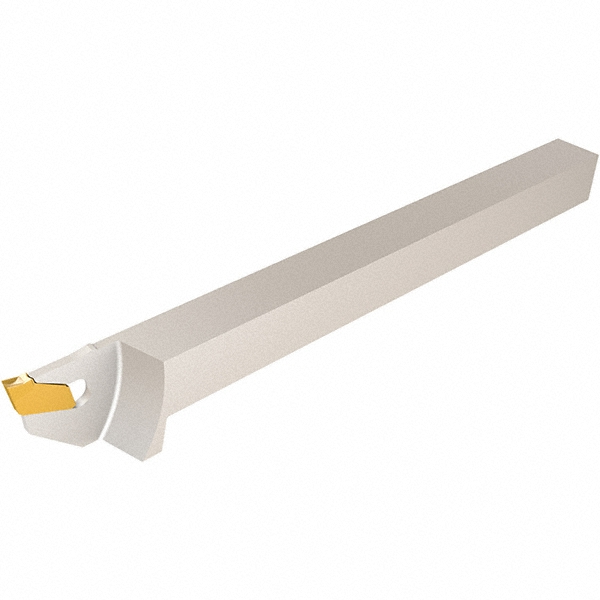

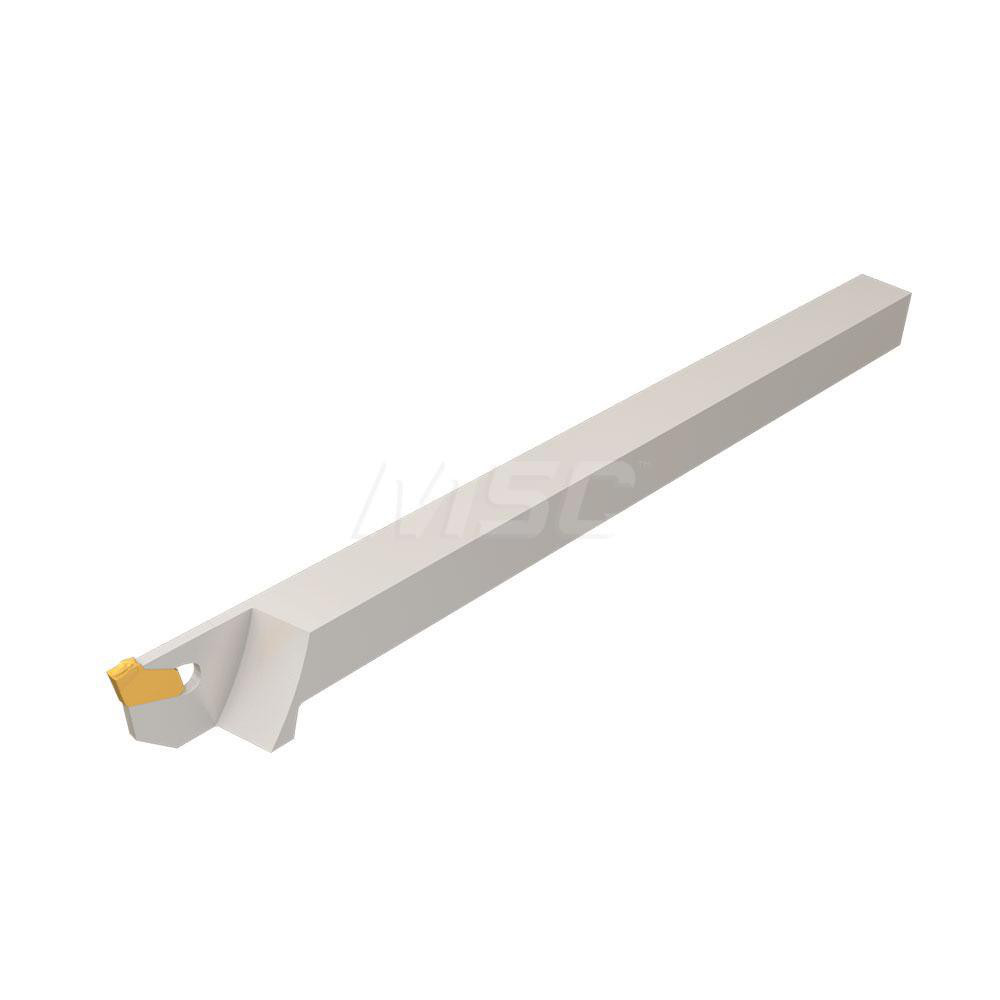

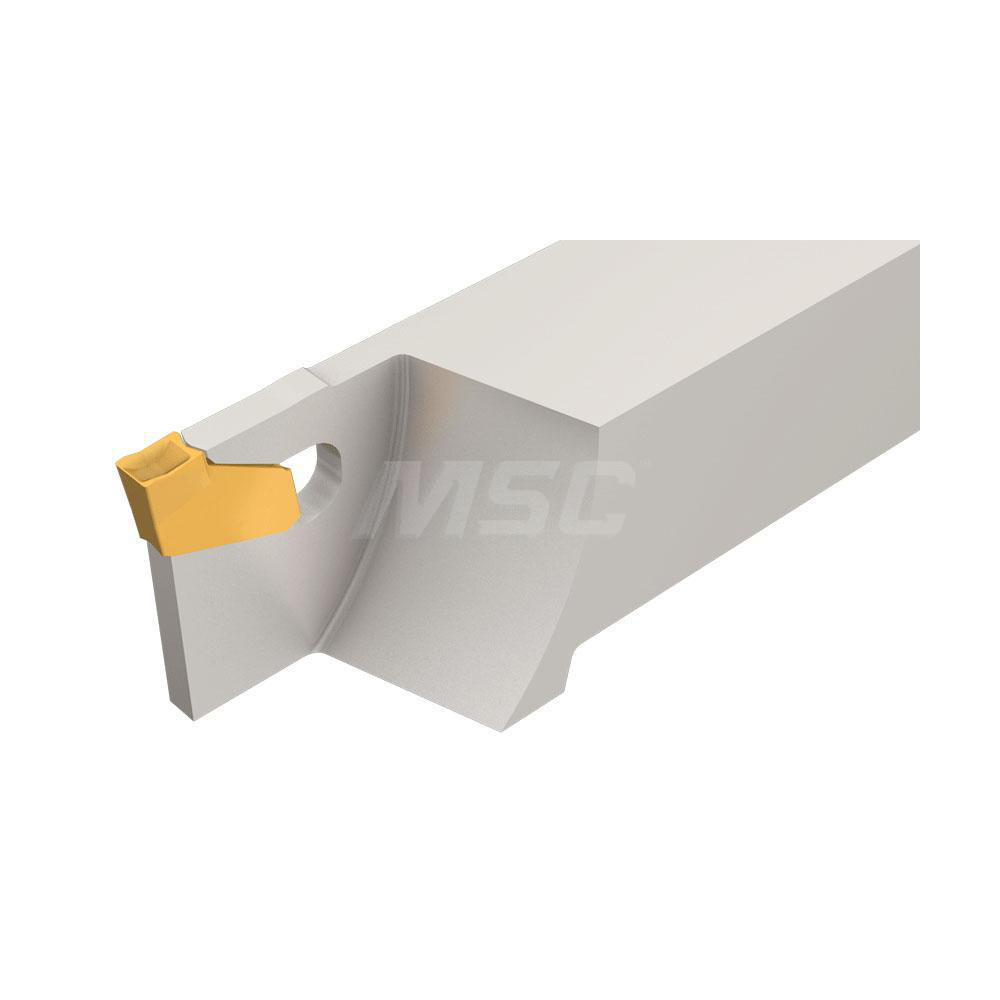

14 x 14 mm Shank
| Toolholder Type | External Grooving |
|---|---|
| Hand of Holder | Right Hand |
| Minimum Groove Width (Decimal Inch) | 0.0630 |
| Minimum Groove Width (mm) | 1.60 |
| Maximum Groove Width (mm) | 1.60 |
| Toolholder Style | SGAF |
| Maximum Groove Width (Decimal Inch) | 0.0630 |
| Insert Holding Method | Wedge |
| Insert Compatibility | GF.. 1.6 |
| Shank Height (mm) | 14.00 |
| Shank Height (Decimal Inch) | 0.5512 |
| Series | Self-Grip |
| Overall Length (mm) | 140 |
| Overall Length (Decimal Inch) | 5.5118 |
| Multi-use Tool | Yes |
| Maximum Workpiece Diameter (Decimal Inch) | 1.3780 |
| Maximum Workpiece Diameter (mm) | 35.00 |
| UNSPSC Code | 23153308 |
| Complete Insert Compatibility | GFN 1.6; GFN 1.6A; GFR 1.6 - 8D; GFL 1.6 - 8D; GFL 1.6J - 6D; GFL 1.6JS-15D; GFR 1.6S - 8D; GFR 1.6JS-15D; GFR 1.6 -15D; GFR 1.6JS- 6D; GFL 1.6 -15D; GFN 1.6J; GFL 1.6JS- 6D |
| Coolant Through | No |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 60815347 |
