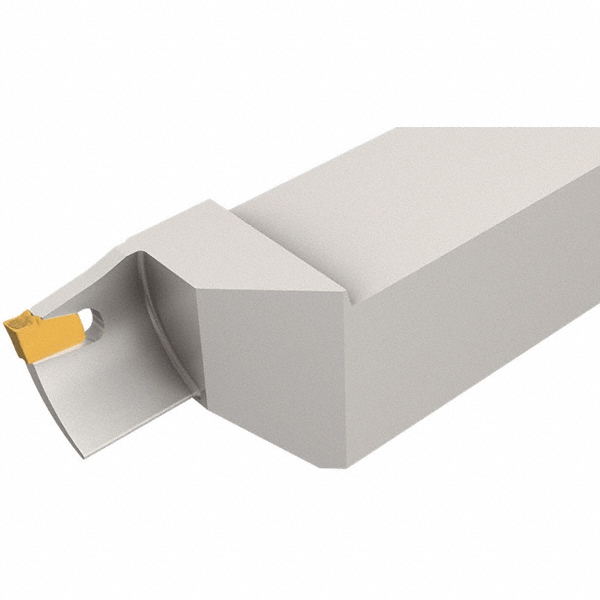

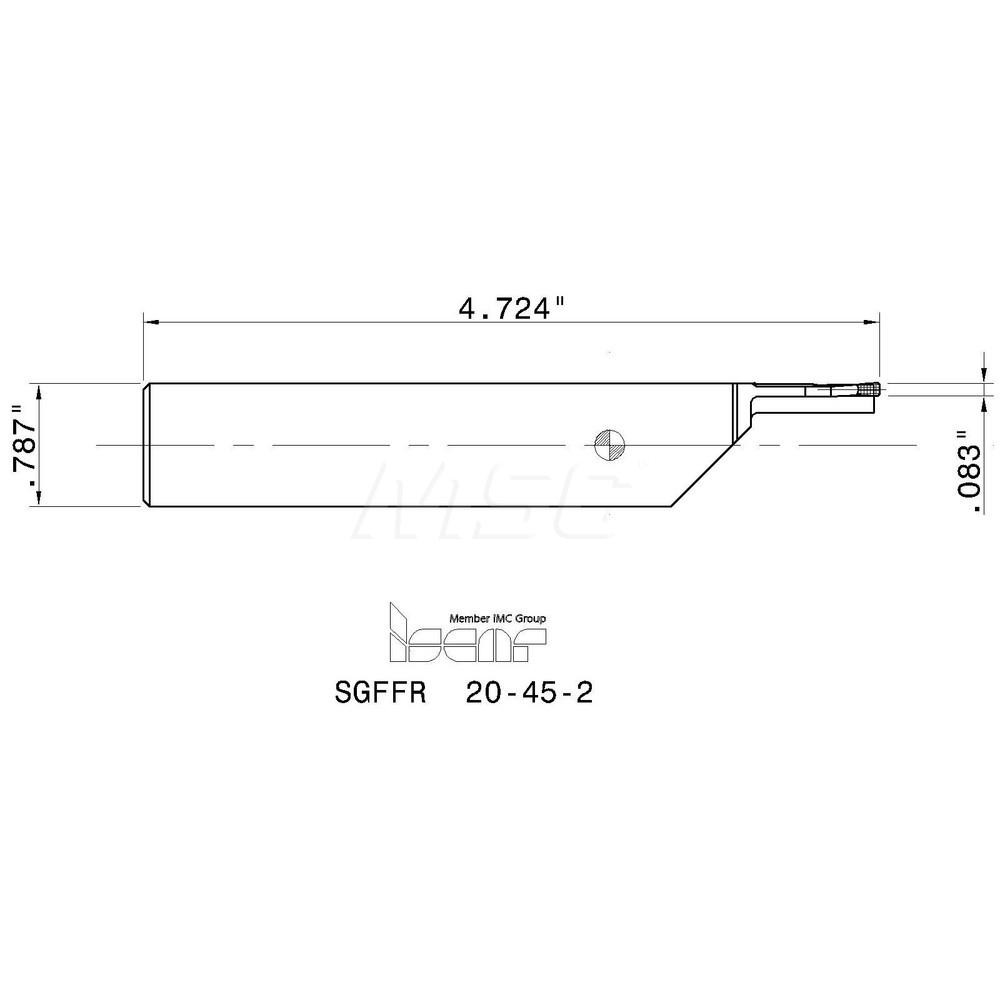

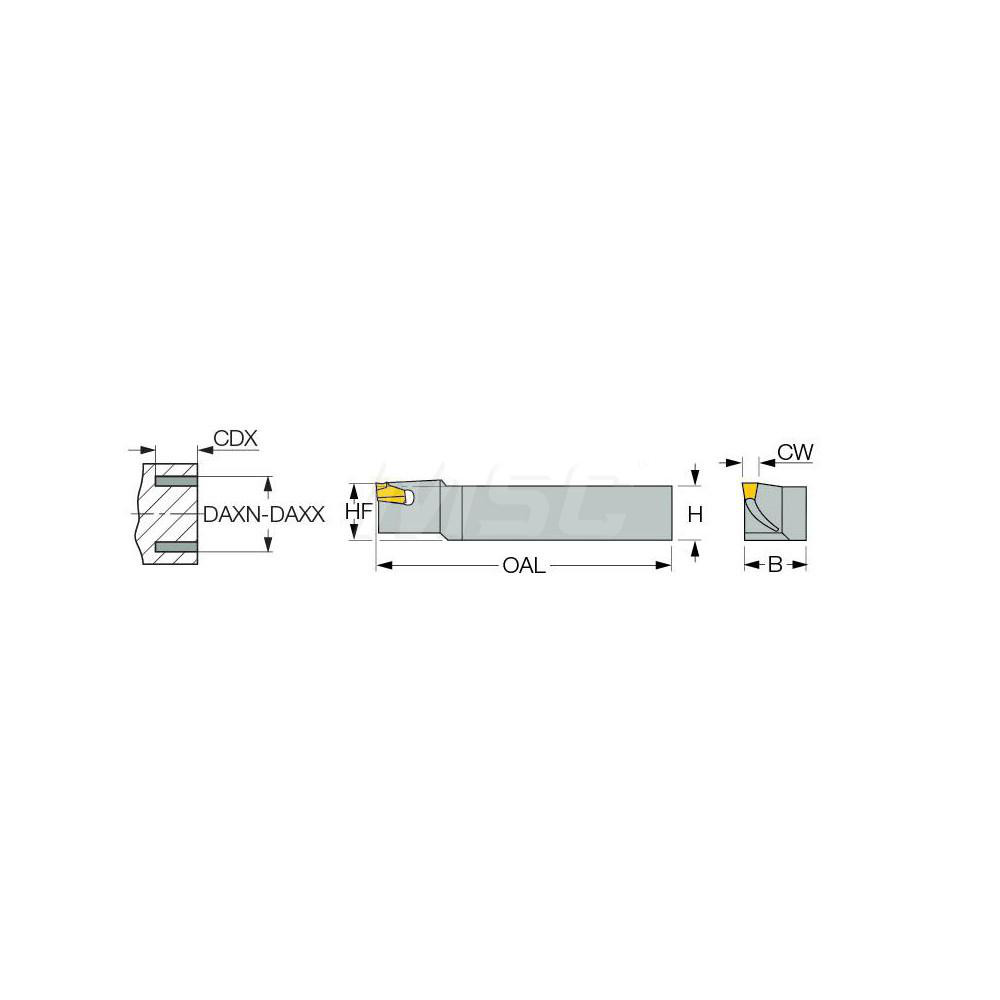

20 mm Max Depth of Cut, 20 mm Shank Dia, Uses GFF 2N Inserts
| Hand of Holder | Right Hand |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 20.00 |
| Minimum Groove Width (Decimal Inch) | 0.0827 |
| Minimum Groove Width (mm) | 2.10 |
| Maximum Groove Width (mm) | 2.10 |
| Toolholder Style | SGFF |
| Maximum Groove Width (Decimal Inch) | 0.0827 |
| Insert Holding Method | Wedge |
| Insert Compatibility | GFF 2N |
| Compatible Insert Size Code | GFF 2N |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Series | Self-Grip |
| Overall Length (mm) | 120 |
| Overall Length (Decimal Inch) | 4.7244 |
| Multi-use Tool | No |
| Maximum Workpiece Diameter (Decimal Inch) | 2.4000 |
| Maximum Workpiece Diameter (mm) | 61.00 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| Maximum Groove Outside Diameter (mm) | 61.00 |
| Minimum Axial Groove Inside Diameter(mm) | 45.00 |
| Complete Insert Compatibility | GFF 2N |
| Coolant Through | No |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 60818689 |
