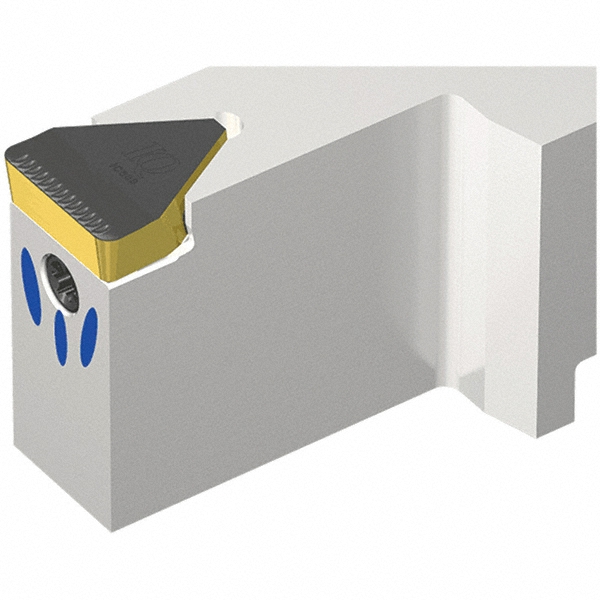

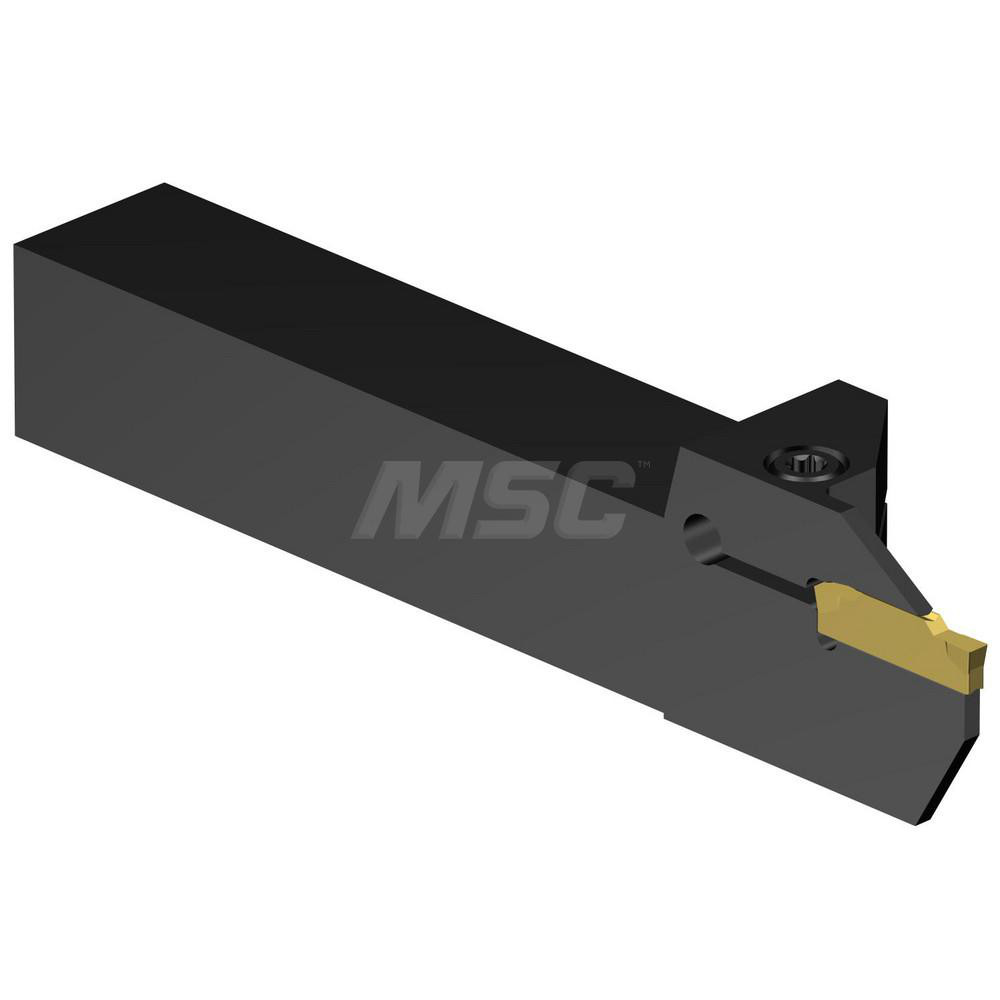

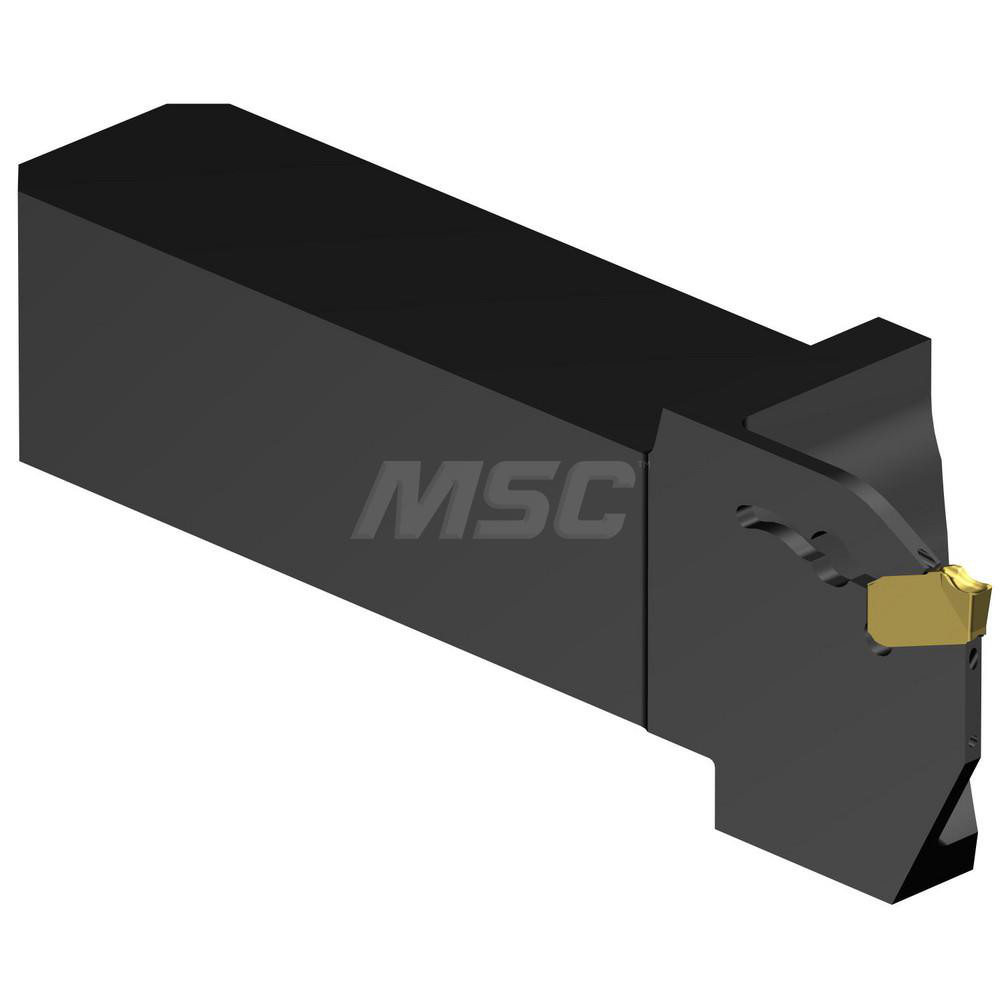

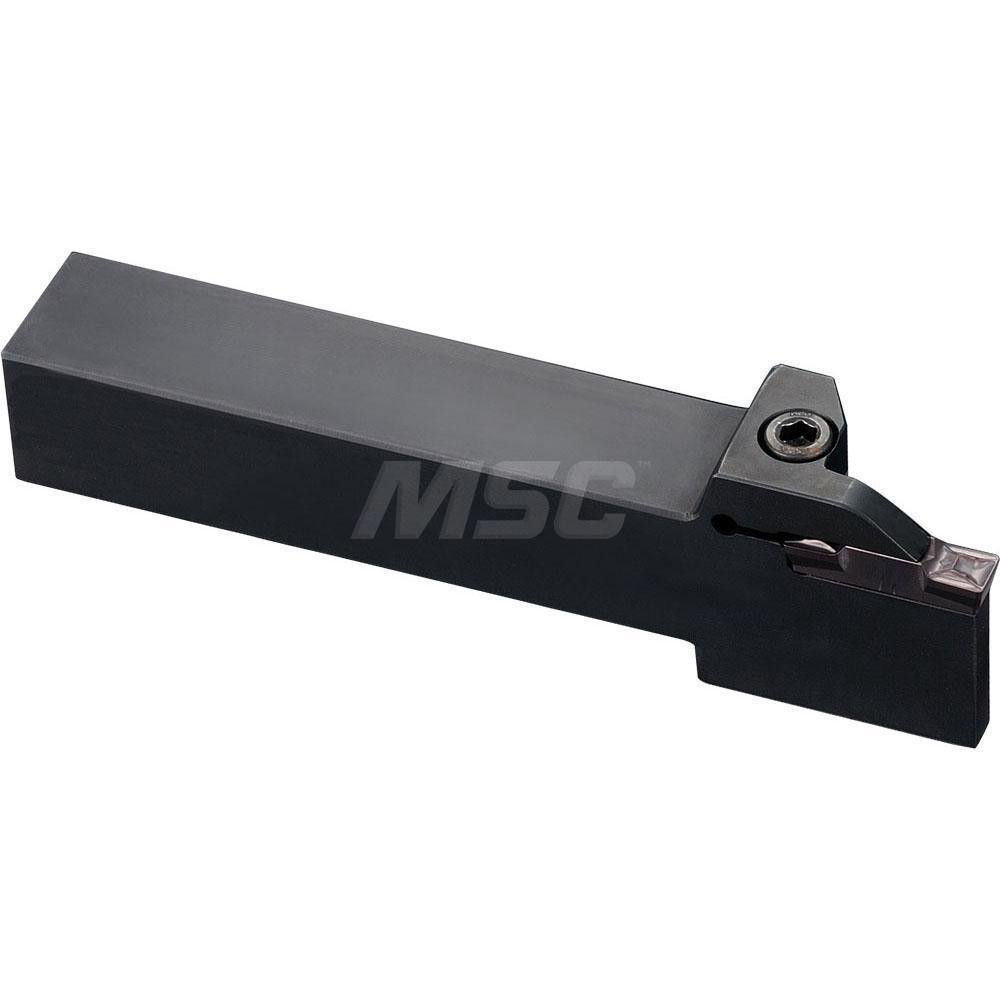

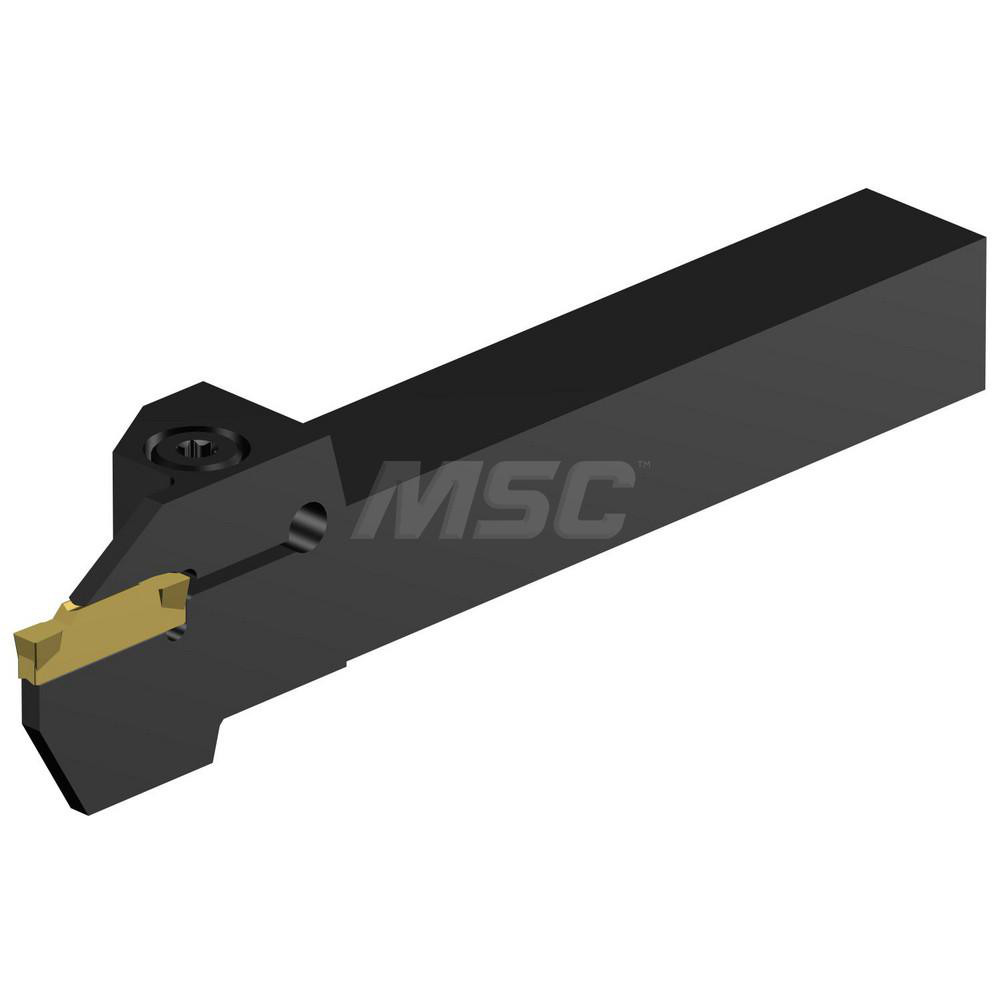

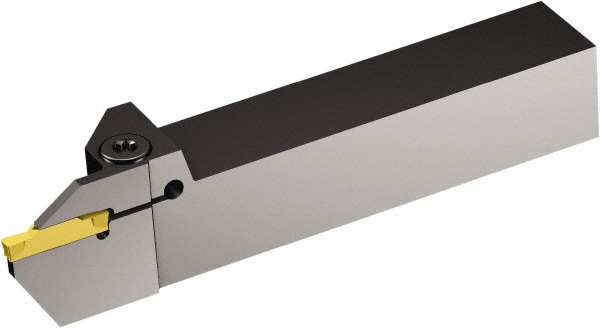

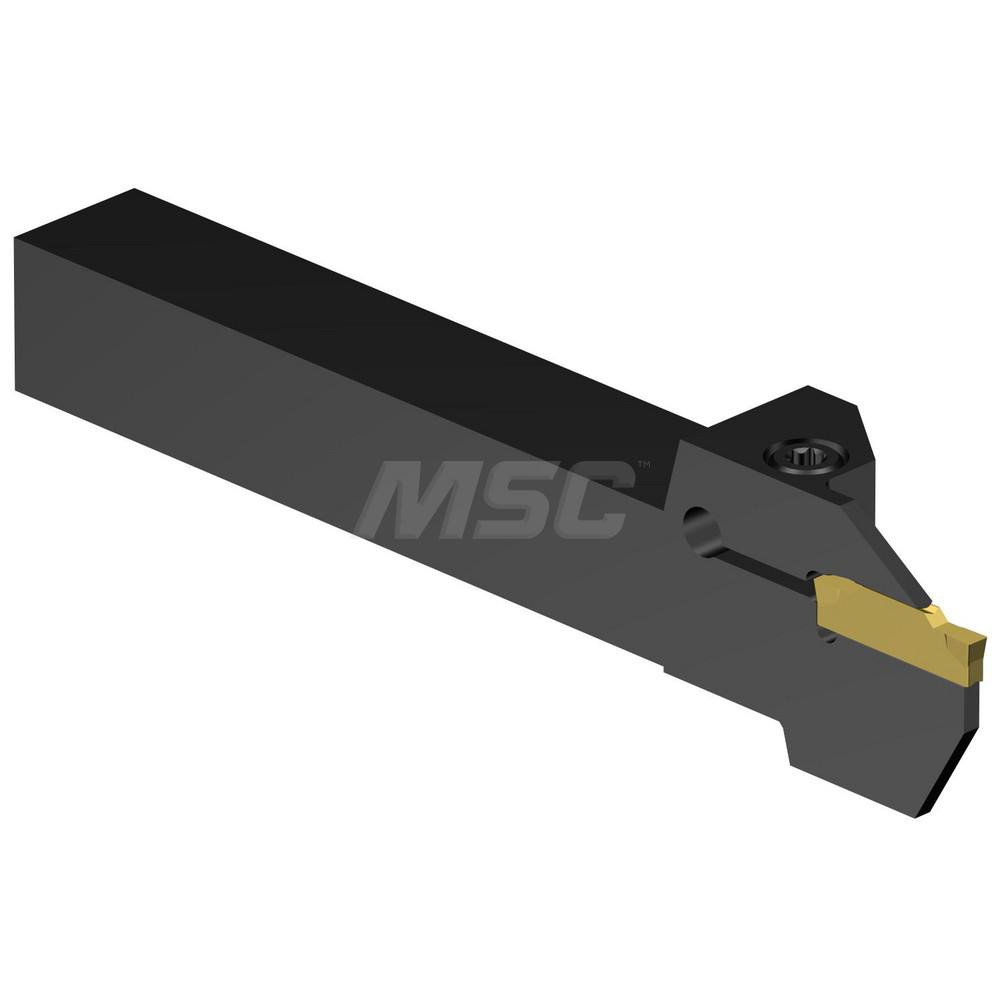

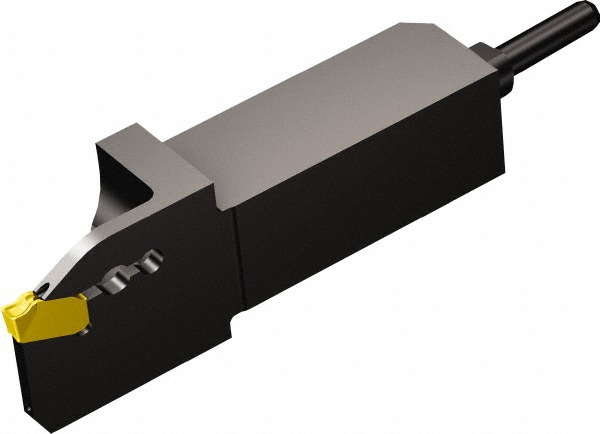

20 mm Max Depth of Cut, 25 x 25 mm Shank, Through Coolant, Uses TIGER-IQ Inserts
| Toolholder Type | External Grooving |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7874 |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Groove Width (mm) | 12.00 |
| Toolholder Style | THD |
| Maximum Groove Width (Decimal Inch) | 0.4724 |
| Insert Holding Method | Clamp |
| Insert Compatibility | TIGER 1212Y-IQ |
| Compatible Insert Size Code | TIGER-IQ |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Series | Dove IQ Grip |
| Shank Length (mm) | 140.00 |
| Shank Length (Decimal Inch) | 5.5118 |
| Overall Length (mm) | 170 |
| Overall Length (Decimal Inch) | 6.6929 |
| Multi-use Tool | No |
| Back of Bar to Cutting Edge (mm) | 19.50 |
| Head Height (Decimal Inch) | 1.2992 |
| Head Height (mm) | 33.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Head Length (mm) | 30.00 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| UNSPSC Code | 23153308 |
| Complete Insert Compatibility | TIGER 1212Y-IQ |
| Coolant Through | Yes |
| Country of Origin | Israel |
| undefined | undefined |
| MSC Number | MSC# 30706675 |
