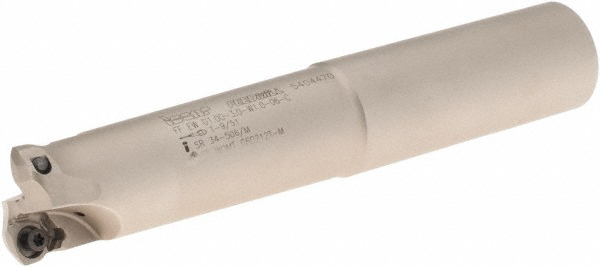

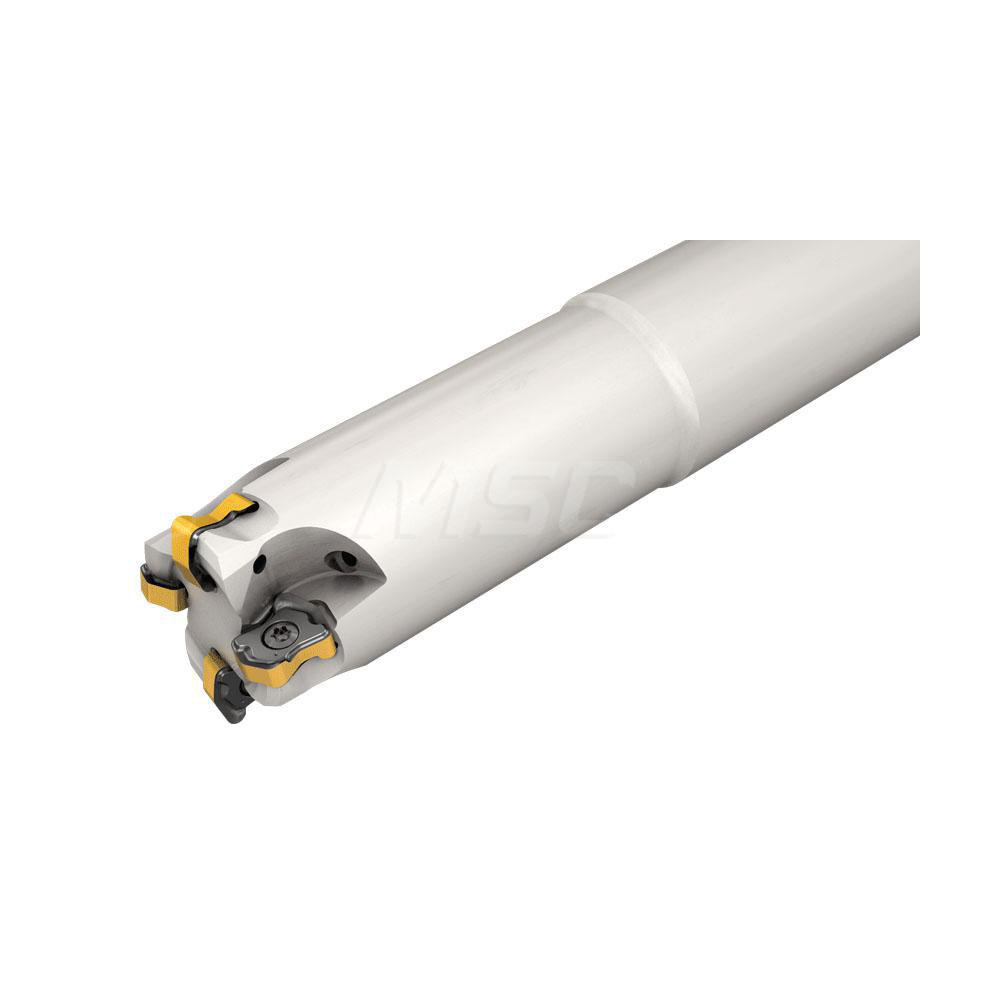

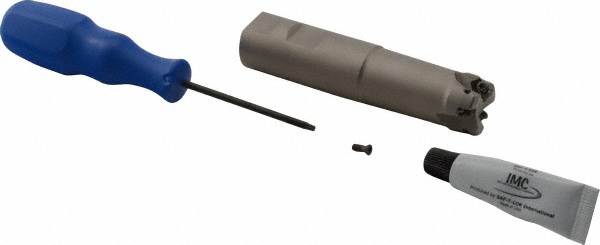

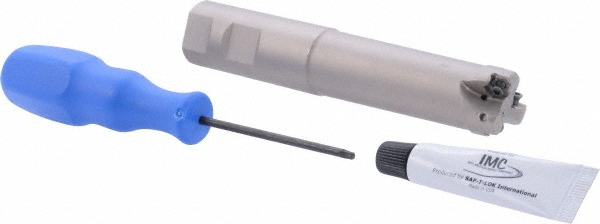

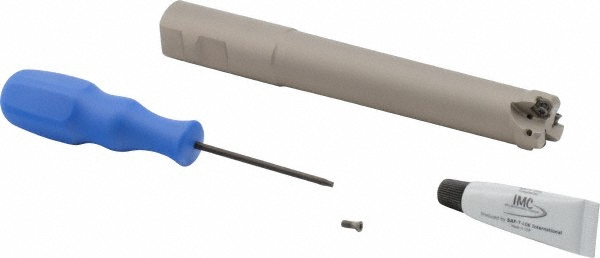

Uses 2 FFWOMT0602 Inserts, 0.0600" Max Depth, Coolant Through
| Minimum Cutting Diameter (Decimal Inch) | 0.4500 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Cutting Diameter (Inch) | 1 |
| Maximum Depth of Cut (Decimal Inch) | 0.0600 |
| Toolholder Style | FF EW |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Maximum Ramping Angle | 5.00 |
| Compatible Insert Style | FFWOMT0602 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 2 |
| Overall Length (Decimal Inch) | 5.7700 |
| Series | FeedMill |
| Head Length (Decimal Inch) | 3.1200 |
| Tool Application | Milling |
| Standards | ISO 13399 |
| Weldon Flat | Yes |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | Israel |
| MSC Number | MSC# 02516169 |
