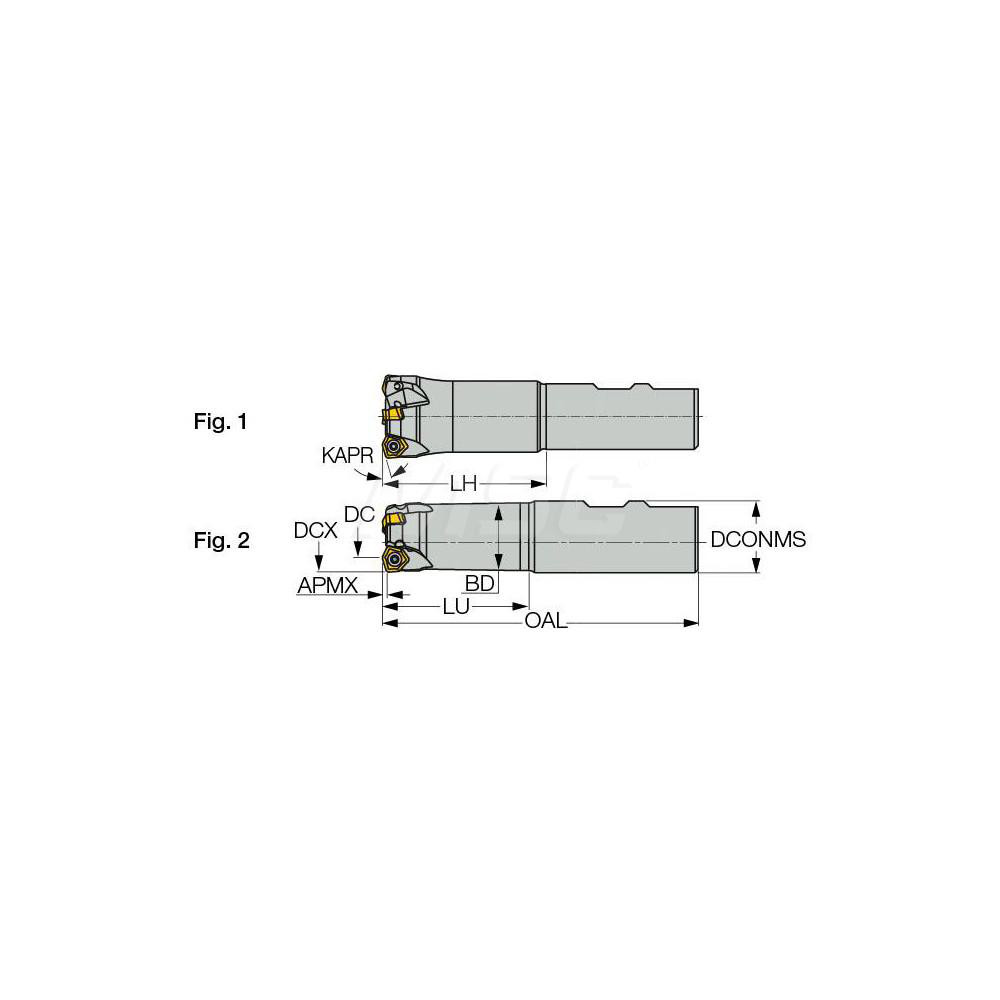

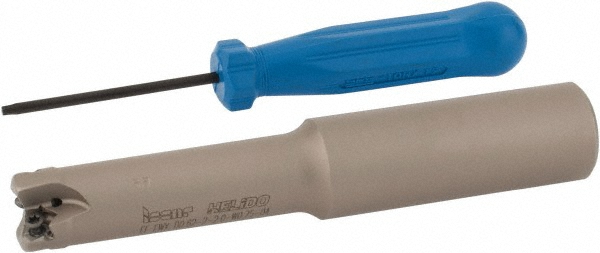

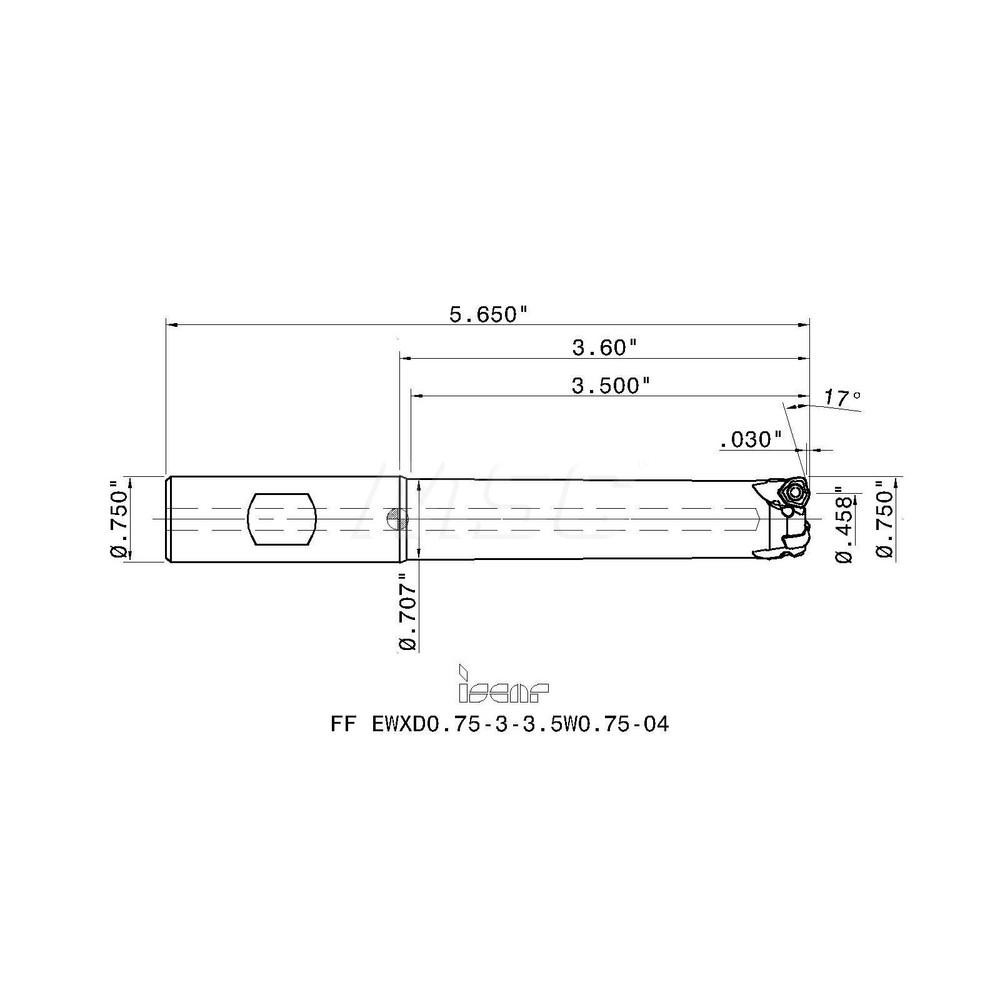

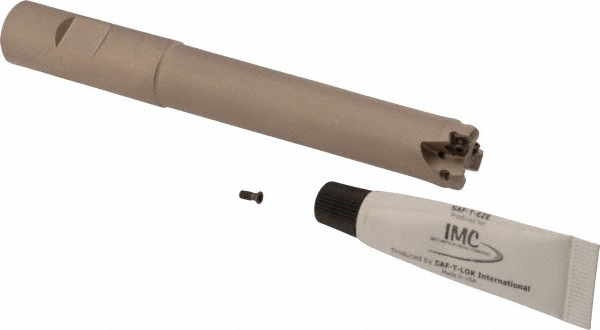

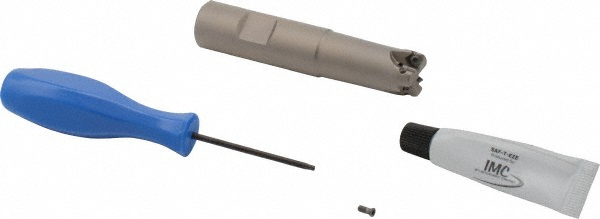

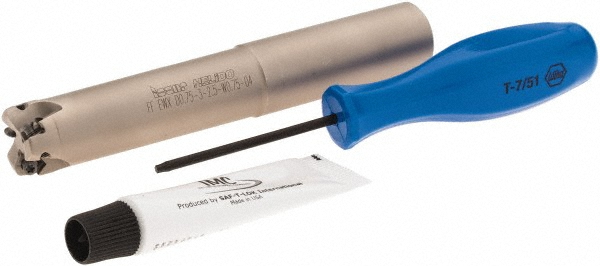

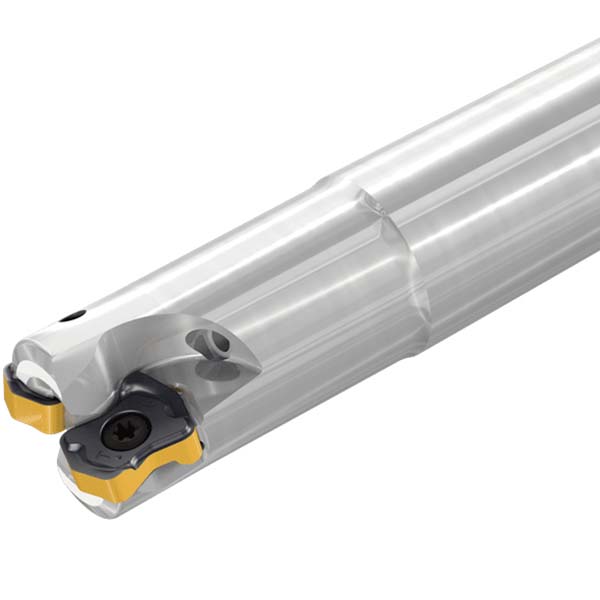

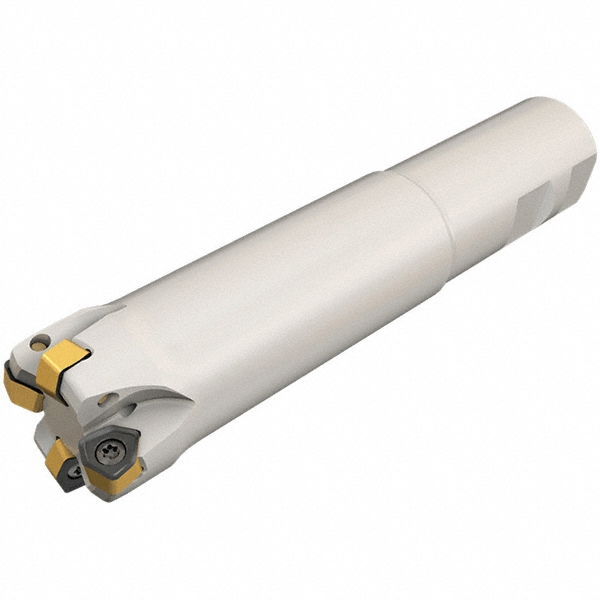

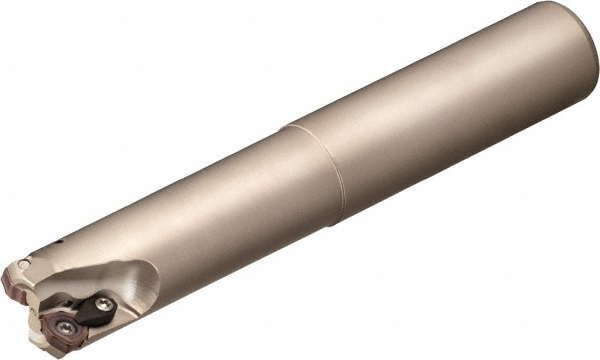

Uses 3 H600WXCU040310T Inserts, 0.0300" Max Depth, Coolant Through
| Minimum Cutting Diameter (Decimal Inch) | 0.4580 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Cutting Diameter (Inch) | 3/4 |
| Maximum Depth of Cut (Decimal Inch) | 0.0300 |
| Toolholder Style | FF EWX-04 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Maximum Ramping Angle | 5.00 |

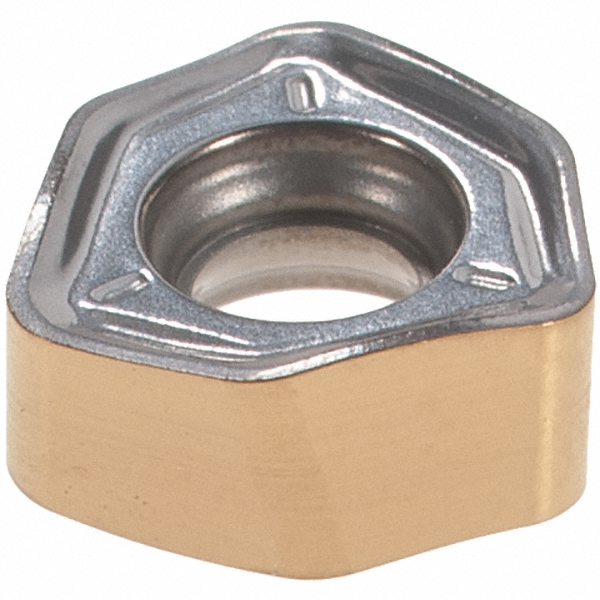

| Compatible Insert Style | H600WXCU040310T |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 5.6500 |
| Series | High Feed 6 |
| Head Length (Decimal Inch) | 3.6000 |
| Tool Application | Milling |
| Standards | ISO 13399 |
| Weldon Flat | Yes |
| Number Of Flutes | 3 |
| Coolant Through | Yes |
| UNSPSC Code | 27112803 |
| Country of Origin | Israel |
| MSC Number | MSC# 82519521 |
